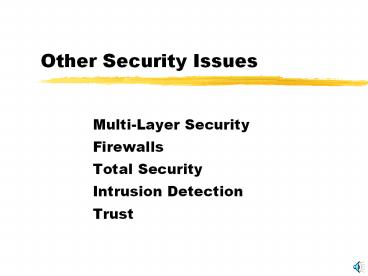

Other Security Issues

1
Other Security Issues

• Multi-Layer Security
• Firewalls
• Total Security
• Intrusion Detection
• Trust

2
Multi-Layer Security

• Security Can be Applied at Multiple Layers
  Simultaneously
• Application layer security for database, e-mail,
  etc.
• Transport layer SSL
• Internet layer IPsec (Chapter 9, Module F)
• Data link layer PPTP, L2TP (Module F)
• Physical layer locks

3
Multi-Layer Security

• Applying security at 2 or more layers is good
• If security is broken at one layer, the
  communication will still be secure
• However,
• Security slows down processing
• Multi-Layer security slows down processing at
  each layer

4
Firewalls

• Firewall sits between the corporate network and
  the Internet
• Prevents unauthorized access from the Internet
• Facilitates internal users access to the Internet

Firewall
OK
No
Access only if Authenticated
5
Firewalls

• Packet Filter Firewalls
• Examine each incoming IP packet
• Examine IP and TCP header fields
• If bad behavior is detected, reject the packet
• No sense of previous communication analyzes each
  packet in isolation

IP Firewall
IP Packet
6
Firewalls

• Application (Proxy) Firewalls
• Filter based on application behavior
• Do not examine packets in isolation use history
• In HTTP, for example, do not accept a response
  unless an HTTP request has just gone out to that
  site

Application
7
Firewalls

• Application (Proxy) Firewalls
• Hide internal internet addresses
• Internal user sends an HTTP request
• HTTP proxy program replaces user internet address
  with proxy servers IP address, sends to the
  webserver

Request with Proxy Servers IP Address
HTTP Request
8
Firewalls

• Application (Proxy) Firewalls
• Webserver sends response to proxy server, to
  proxy server IP address
• HTTP proxy server sends the IP packet to the
  originating host
• Overall, proxy program acts on behalf of the
  internal user

Response to Proxy Servers IP Address
HTTP Response
9
Firewalls

• Why Hide Internal IP Addresses?
• The first step in an attack usually is to find
  potential victim hosts
• Sniffer programs read IP packet streams for IP
  addresses of potential target hosts
• With proxy server, sniffers will not learn IP
  addresses of internal hosts

Sniffer
False IP Address
Host IP Address
10
Firewalls

• Application Firewalls
• Need a separate program (proxy) for each
  application
• Not all applications have rules that allow
  filtering

11
Total Security

• Network Security is Only Part
• Server Security
• Hackers can take down servers with
  denial-of-service attack
• Hacker can log in as root user and take over the
  server
• Steal data, lock out legitimate users, etc.

12
Total Security

• Server Security
• Occasionally, weakness are discovered in server
  operating systems
• This knowledge is quickly disseminated
• Known security weaknesses

13
Total Security

• Server Security
• Server operating system (SOS) vendors create
  patches
• Many firms do not download patches
• This makes them vulnerable to hackers, who
  quickly develop tools to probe for and then
  exploit known weaknesses

14
Total Security

• Client PC Security
• Known security weaknesses exist but patches are
  rarely downloaded
• Users often have no passwords or weak passwords
  on their computer
• Adversaries take over client PCs and can
  therefore take over control over SSL, other
  secure communication protocols

15
Total Security

• Application Software
• May contain viruses
• Must filter incoming messages
• Database and other applications can add their own
  security with passwords and other protections

16
Total Security

• Managing Users
• Often violate security procedures, making
  technical security worthless
• Social engineering attacker tricks user into
  violating security procedures

17
Intrusion Detection

• Intrusion detection software to detect and report
  intrusions as they are occurring
• Needed
• Lets organization stop intruders so that
  intruders do not have unlimited time to probe for
  weaknesses
• Helps organization assess security threats
• Audit logs list where intruder has been vital in
  legal prosecution

18
Trust

• System A may trust System B
• Not check closely for security problems
• This reduces security processing costs
• If trusted system is taken over, disaster
• Can exploit systems that trust it

Trust
System B
System A
No Close Check
19
Trust

• If System A trusts System B and System B trusts
  System C, System A often trusts system C
• Extreme disaster if highly trusted system is
  taken over
• Can exploit many trusting systems

B
A
C
Trust
Trust
Trust
