Title: Distributed Heterogeneous Data Warehouse For Grid Analysis


1

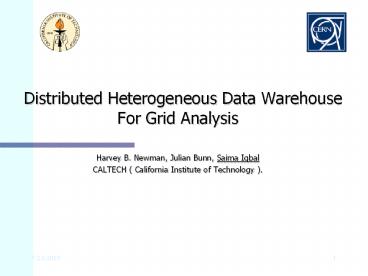

  • Distributed Heterogeneous Data Warehouse For
    Grid Analysis
  • Harvey B. Newman, Julian Bunn, Saima Iqbal
  • CALTECH ( California Institute of Technology ).

2
OUTLINE
  • Introduction
  • What is Relational data warehouse
  • Distributed Heterogeneous Relational Data
    Warehouse Databases (DHRD) and Grid
  • How DHRD could be integrated with the Grid
  • Why web services?
  • Building blocks of Web Services
  • Vital parts of Web Services
  • How DHRD could be integrated with the Grid as a
    Web Service
  • Grid services
  • Grid services architecture (GGF) draft 16th Feb.
    2003
  • Grid services client infrastructure (GGF) draft
    5th Jun. 2003
  • Proposed web services architecture based on Grid
    services to use DHRD in Grid environment
  • Technologies employed
  • UDDI complaint registry service

3
INTRODUCTION
  • Can databases integrated with the Grid ?
  • Most of the existing and proposed Grid
    applications are file based.
  • Very little work has been done on how Distributed
    Heterogeneous Databases can be made available on
    the Grid.
  • Web Services can help in accessing Distributed
    Heterogeneous Databases as a single Virtual
    Database across the Grid.

4
Distributed Data Warehouse
  • The distributed database system allows
    applications to access data from local remote
    databases.
  • It helps to move some of data and some of the
    users to separate servers and databases.
  • Allow to keep data by a particular workgroup at
    Tier 2 and Tier 3, on a server nearby.
  • Reduce the need for massive central computing and
    network delays.

5
Distributed Heterogeneous Relational Data
Warehouse (DHRD) Databases and Grid
  • Is it possible to access DHRD databases across
    Grid by adopting the existing Grid services that
    handle files?
  • While relational databases offers much richer set
    of operations like queries and transactions.
  • There is much differences exists among different
    DBMS as that of different file systems.
  • Even within one paradigm different databases
    products ( Oracle, MS-SQL, DB2) vary in their
    functionality and interfaces.

6
How DHRD Could Be Integrated with The Grid
  • The diversity of DHRD makes it difficult to
    design a single solution to integrate DHRD
    databases with Grid.
  • The Open Grid Services Architecture (OGSA) for
    distributed system provide the concept of Grid
    Services (like Web Services) to access resources
    across distributed and heterogeneous environment.
  • These Grid Services/Web Services can help in
    providing the distributed databases across the
    Grid as a Virtual Database System.

7
Why Web Services?
  • Web Services are centered on the Service
    definition and messages
  • Web Services build on set of well established
    technologies and protocols
  • - XML used for service description and data
    interchange
  • http used as a transport protocol
  • - widely deployed with trusted security
    features
  • Web Services standards are structured and
    extensible
  • - Interface evolution without breaking what is
    already working
  • Provide solution for the access of heterogeneous,
    web-wide resources.

8
Building blocks Of Web Services
  • Web Services are modular software components
    wrapped inside a specific set of Internet
    communication protocols and that can be run over
    the Internet.
  • At the heart, web services architecture is the
    need for program-to-program communications.
  • Key roles in the web services architecture are
  • - a service provider
  • - a service registry
  • - a service requestor

9
Building blocks Of Web Services (contd)
  • - Together they perform three operation on web
    services
  • Publish, Find and Bind

SERVICE PROVIDER
1 Publish
3 Bind
Make the service description publicly available
Allows the service to be used by the requestor
SERVICE REQUESTOR
SERVICE REGISTRY
2 Find
Discover the service
10
Vital Parts of Web Services
  • SOAP (Simple Object Access Protocol) through
    which the service provider, service registry and
    service requestor communicate.
  • WSDL( Web Services Description Language) is the
    language used to create service description.
  • UDDI (Universal Description Discovery and
    Integration) is the directory technology used by
    service registries that contain the description
    of web services and allows the directory to be
    searched for a particular web service.

11
How DHRD Could Be Integrated with The Grid As A
Web Service
  • The Distributed Heterogeneous Relational
    Databases can register themselves as a web
    service in a UDDI registry.
  • These web services can be accessible by a client
    through web application by using WSDL.
  • In this architecture Client is very important
    because this Client can dynamically discover
    services, configure the remote calls on the basis
    of the inputs it gets from http call.

12
Grid Services
  • The OGSA integrates key Grid technologies
    (including Globus toolkit) with Web Services
    mechanisms to create a distributed system
    framework around the OGSI (Open Grid Services
    Infrastructure).
  • A Grid Service is a Web Service that conforms to
    a set of conventions (interfaces behavior) that
    define how a client interacts with a services
    available across Grid.

13
Grid Services Architecture (contd) (Grid
Database Service specification (GGF))
GridDataService
GridServicePort
FindServiceData
ltServiceDatagt
GridDataServicePort
Perform
Requester
ltResponsegt
GridDataTransport Port
Put/get
ltResponsegt
GridDataService
Requester Using Grid Data Service Ports
14
Grid Services Architecture (Grid Database
Service specification (GGF))
GridServiceRegistry
FindServiceData
GSH(GridServiceHandler)
CreateService
Requester
GridDataServiceFactory
ltServiceInformationgt
create
GridDataService
Database Servers
Creating a Grid Data Service
15
Grid Services Client Infrastructure (Grid
Database Service specification (GGF))
Proxy
Binding Selection
Client Application
Protocol 1 (binding) Specific stub
Invocation of Web Service
A Client-Server Interface
Protocol 2 (binding) Specific stub
A Client-Side runtime architecture
16
Proposed Web Services Architecture Based on Grid
ServicesTo Use DHRD In Grid Environment
ORACLE9i SERVER DATA (META DATA)
MonaLisa
Data Replication through
SSL
(Service Registry)
UUDI Registry Server
ORACLE9i SERVER DATA (META DATA)

JAVA XML API to connect with Database Server
Web Server
SOAP
HTTP Server
Server with Master Database
SOAP Processor
DISTRIBUTED DATABASE
WSDL file
(Service Provider)
UDDI SOAP Request and Response
SOAP
Bind with the provided service
MS-SQL DATA (META DATA)
Server with Materialized View Database
Client Web Application to connect with database
(Service Requestor)
17
Technologies Employed
  • Java Web Services Developer Pack 1.0 (JWSDP)
  • Apache Tomcat 4.1.2 for Java Web Services
    Developer Pack 1.0
  • -Apache web server
  • -Tomcat servlet engine
  • Java API for XML Registries (JAXR) 1.0_02
  • Java API for XML-based RPC (JAX-RPC) 1.0_01
  • Web Application Deployment Tool for JWSDP
  • XRPCC tool to generate WSDL
  • JWSDP Registry Server 1.0_02
  • -Xindice database, the repository for registry
    data
  • -implements Version 2.00 of the Universal
    Description, Discovery and Integration (UUDI)

18
UDDI Complaint Service Registry
  • A standardized, transparent mechanism for
    describing the service
  • A simple mechanism for invoking the service
  • An accessible central registry services
  • Make use of XML and SOAP
  • Provide service discovery platform on WWW
  • Suitable for Black Box web environment
  • Allow to store as much as detail about a service
    and its implementation as desired
  • The UDDI version 2.0 API defines approx. 40
    messages to perform inquiry and publishing
    functions against any UDDI complaint service
    registry
  • The schema defines 25 requests and 15 responses

19
Working of Web Services Prototype
6
SOAP Message
Program Implementation
Database Server
Ties
7
JAX-RPC Runtime
SOAP Message
8
5
JAX-RPC Runtime
Registry Server
JAXR
Web server
Stubs
JAX-RPC
3
Program Interface
2
9
4
Find-service
1
10
SOAP Message
http
Web Service Requester
20
Working of Web Services Prototype
21
Working of Web Services Prototype
  • DEMO

22
Conclusion
  • It seems possible that we can make the
    Distributed Heterogeneous Relational Data
    Warehouse Databases available across the Grid in
    form of Web Services/Grid Services.

23
Future Work
  • Integration of MonALISA (Grid monitoring tool),
    for the location of required web service with
    optimal network resources
  • Exploit UDDI with its full functionality
  • Provide an API to integrate this Grid Services
    based Web Services prototype into the Globus
    toolkit

24
  • Questions?
