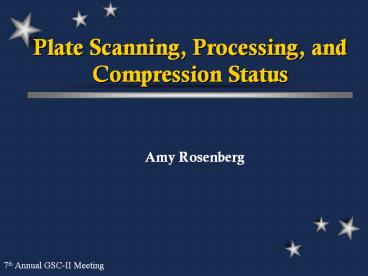

Plate Scanning, Processing, and Compression Status

1
Plate Scanning, Processing, and Compression Status

• Amy Rosenberg

7th Annual GSC-II Meeting
2
Scanning Status
Survey Goal Current Total Done
POSS-II J 897 902 100
POSS-II F 897 910 100
POSS-II N 897 880 98
AAO-SES 606 614 100
PPARC-ER 288 288 100
AAO-SR 118 118 100
UKST-ST 112 50 45
UKST-IR 894 768 86
SERC-J/EJ 447 443 99
POSS-I E 106 106 100
POSS-I O 354 359 38
3
Scanning Machines

• Gamma I being used to scan 2 plates per day
• Gamma II still suffering from unknown problems

4
Currently Scanning

• IS plates
• 86 complete
• XO plates
• being scanned between shipments of IS plates
• 38 complete

5
GSC-II Plate Processing Status
Survey Goal Current Total Done
POSS-I E 936 931 99
POSS-QV 613 2 0
POSS-II J 897 897 100
POSS-II F 897 897 100
POSS-II N 897 308 34
SERC-J/EJ 894 829 93
South-F 894 894 100
UKST-IR 894 392 44
South-SR 116 116 100
South-QV 94 94 100
POSS-I O 936 15 2
6
GSC-II Plate Processing Status

• IS, XI, and some XO plates currently being
  processed
• IS survey is 44 complete
• XI survey is 34 complete
• XO survey is 2 complete
• going slower due to loss of Fabrizia!

7
GSC-II Plate Processing Status

• No global recalibrations have been performed
  recently
• A few plates have needed updating
• All processed data now has the latest astrometry
  and photometry applied
• IV N (IS and XI) plates have not been loaded into
  the COMPASS database
• This processed data has been written to tape and
  will be loaded at a later date

8
DSS-II Compression Status
Survey Goal Current Total Done
POSS-II J 897 897 100
POSS-II F 897 897 100
POSS-II N 897 748 83
AAO SES 606 606 100
PPARC ER 288 288 100
AAO-SR 118 118 100
UKST-IR 894 697 78
POSS-I O 936 94 10
9
Currently Compressing

• XI Survey
• 83 complete
• XO Survey
• 10 complete
• IS Survey
• 78 complete

10
Status of DSS Data Migration

• All DSS-I, DQVS, and DSS-II data to be moved to a
  raid array
• will eventually serve a web page interface
• All of DSS-I and DQVS migrated
• Problems in migrating data
• migration of DSS-II has been put on hold while
  technical issues are sorted out

11
Currently Available DSS Data

• Data being served to web page via a CD jukebox
• jukebox and web page maintained by Archive Branch
• DSS-I, DQVS, and only part of DSS-II currently
  available online
• All headers completed, but not currently
  available online

12
Future Activities

• Complete scanning, processing, and compression of
  XI, XO, and IS surveys
• Limited by telescope availability to complete
  observations
• Completion of DSS data migration and header
  availability
• Load all processed data onto COMPASS
• Perform any recalibration tasks to all data on
  the database side
• Operational goals may need to be scaled back due
  to staffing and resource issues
