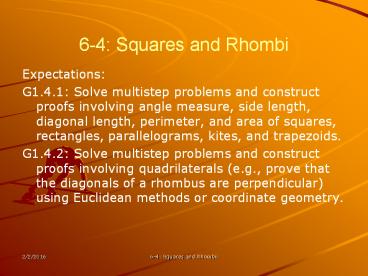

6-4: Squares and Rhombi

1
6-4 Squares and Rhombi

• Expectations
• G1.4.1 Solve multistep problems and construct
  proofs involving angle measure, side length,
  diagonal length, perimeter, and area of squares,
  rectangles, parallelograms, kites, and
  trapezoids.
• G1.4.2 Solve multistep problems and construct
  proofs involving quadrilaterals (e.g., prove that
  the diagonals of a rhombus are perpendicular)
  using Euclidean methods or coordinate geometry.

2
Rhombus
Defn Rhombus A quadrilateral is a rhombus iff
all 4 sides are congruent. The plural or rhombus
is rhombi.
3
Properties of a Rhombus Theorem
If a quadrilateral is a rhombus, then

• it is a parallelogram.
• b. the diagonals are perpendicular to each
  other.
• c. each diagonal bisects a pair of opposite
  angles.

4
Prove a rhombus is a parallelogram.
5
The figure below is a rhombus. Solve for x.
10x - 24
6x12
6
Sufficient Condition for a Rhombus Theorem
If the diagonals of a parallelogram are
perpendicular, then the parallelogram is a
rhombus.
7
Determine the value of x so that the
parallelogram is a rhombus.
(15x 30)
8
Square
Defn Square A parallelogram is a square iff it
is a rectangle and a rhombus.
9
What is true about the diagonals of a square?

• congruent (rectangle),
• b. perpendicular (rhombus),
• c. bisect a pair of opposite angles (rhombus),

• d. bisect each other (parallelogram)

10
WXYZ is a quadrilateral. Of the terms
parallelogram, rectangle, rhombus, square which
apply to WXYZ? W(5,5), X(10,5), Y(10,10),
Z(5,10)
11
Which of the following is a property of squares,
but not rhombi?

1. Diagonals are perpendicular
2. Diagonals are congruent
3. Consecutive sides are congruent
4. Consecutive angles are supplementary
5. Opposite angles are congruent

12
Prove the diagonals of a square are congruent.
13
(No Transcript)
14
Assignment

• Pages 317 318,
• 21 35, 39 47 (odds)
