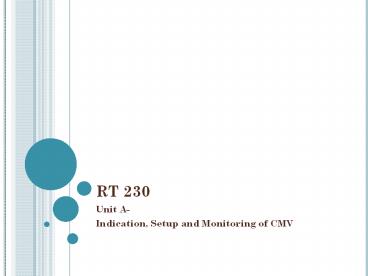

1
RT 230
  • Unit A-
  • Indication, Setup and Monitoring of CMV

2
Indications for CMV
  • Apnea
  • Acute ventilatory failure A PCO2 of more than
    50mmHg with a pH of less than 7.25
  • Impending acute ventilatory failure
  • Based on lab data and clinical findings
    indicating that pt is progressing towards
    ventilatory failure
  • Quick tip
  • acute hypercapnic failure ph drops 0.8 for every
    10mm hg rise in co2
  • chronic hupercapnic ph drops 0.03 for every 10
    mmhg rise in co2

3
  • Clinical problems often resulting in impending
    ventilatory failure
  • Pulmonary abnormalities
  • RDSRespiratory Distress Syndrome
  • Pneumonia
  • Pulmonary emboli
  • Mechanical ability of lung to move airmuscle
    fatigue
  • Ventilatory muscle fatigue
  • Chest injury
  • Thoracic abnormalitiesscoliosis, kyphoscoliosis
  • Neurologic diseaseGB, MG
  • Pleural diseasepleurasy

4
  • Clinical evaluation
  • Vital signs Pulse and BP increase
  • Ventilatory parameters
  • VT decreases
  • RR increases
  • Accessory muscle use increases
  • Paradoxical breathing (abdomen out, rib cage in)
  • Retractions may be noted
  • Development of impending acute vent failure may
    demonstrate
  • Progressive muscle weakness in pt with Neurologic
    disease
  • Increasing fatigue

5
  • ABGs demonstrating a trend toward failure
  • 9am 10am 11am 12pm 1pm
  • pH 7.58 7.53 7.46 7.38 7.35
  • PCO2 22 28 35 42 48
  • HCO3 21 22 23 24 24
  • PO2 60 55 50 43 40

6
Non-responsive hypoxemia
  • PaO2 less than 50 on an FIO2 greater than 50
  • PEEP is indicated
  • REFRACTORY HYPOXEMIA

7
Physiologic Effects of Positive Pressure
Ventilation
  • Increased mean intrathoracic pressure
  • Decreased venous return
  • Thoracic pump is eliminated
  • Pressure gradient of flow to right side of heart
    is decreased
  • Right ventricular filling is impaired
  • Give fluid
  • Decreased cardiac output
  • Caused by decreased venous return
  • Give drugs and fluid
  • Monitor I and O. Normal urine output 1000-1500
    cc/24 hours

8
THORACIC PUMP
  • The "thoracic pump" is the thoracic cavity, the
    diaphragm, the lungs, and the heart.
  • The diaphragm moves down, pressure in the cavity
    decreases and venous blood rushes through the
    vena cava via the right heart into the lungs.
    Pulmonary blood vessels expand dramatically,
    filling with blood, air and blood meeting across
    the very thin alveolar surface. The deeper the
    inhalation, the more negative the pressure, the
    more blood flows, and the fuller the lungs
    become.

9
THORACIC PUMP
  • As the diaphragm moves up the pressure in the
    thoracic cavity reverses. Pulmonary blood vessels
    shrink ejecting an equal volume of blood out of
    the pulmonary veins into the left heart. The left
    heart raises the pressure and checks and
    regulates the flow. The more complete the
    exhalation, the more positive the pressure
    becomes and the more blood is ejected from the
    lungs.
  • Decrease exhalation, more pressure in cavity
    decrease CO

10
Effects of ppv cont.
  • Increased intracranial pressure
  • Blood pools in periphery and cranium because of
    decreased venous return
  • Increased volume of blood in cranium increases
    intracranial pressure
  • Decreased urinary output
  • PPV could cause 30-50 decrease renal output
  • Decreased CO results in decreased renal blood
    flow
  • Alters filtration pressures and diminishes urine
    formation
  • Decreased venous return and decreased atrial
    pressure are interpreted as a decrease in overall
    blood volume
  • ADH is increased and urine formation is decreased

11
ADHVASOPRESSIN
  • Roughly 60 of the mass of the body is water, and
    despite wide variation in the amount of water
    taken in each day, body water content remains
    incredibly stable. Such precise control of body
    water and solute concentrations is a function of
    several hormones acting on both the kidneys and
    vascular system, but there is no doubt that
    antidiuretic hormone is a key player in this
    process.
  • Antidiuretic hormone, also known commonly as
    arginine vasopressin

12
  • The single most important effect of antidiuretic
    hormone is to conserve body water by reducing the
    loss of water in urine. A diuretic is an agent
    that increases the rate of urine formation.
  • high concentrations of antidiuretic hormone cause
    widespread constriction of arterioles, which
    leads to increased arterial pressure.
  • Retention of fluids will cause EDEMA

13
Effects of ppv cont.
  • Decreased work of breathing
  • Force to ventilate is provided by the ventilator
  • Increased deadspace ventilation
  • Positive pressure distends conducting airways
    inhibits venous return
  • The portion of VT that is deadspace increases
  • Greater percentage of ventilation goes to apices
  • Increased intrapulmonary shunt
  • Ventilation to gravity dependent areas is
    decreased
  • Perfusion to gravity dependent areas increase
  • Shunt fraction increases from 2-5 to 10

14
A pulmonary shunt is a physiological condition
which results when the alveoli of the lung are
perfused with blood as normal, but ventilation
(the supply of air) fails to supply the perfused
region. In other words, the ventilation/perfusion
ratio (the ratio of air reaching the alveoli to
blood perfusing them) is zero. A pulmonary shunt
often occurs when the alveoli fill with fluid,
causing parts of the lung to be unventilated
although they are still perfused. Intrapulmonary
shunting is the main cause of hypoxemia
(inadequate blood oxygen) in pulmonary edema and
conditions such as pneumonia in which the lungs
become consolidated.
The shunt fraction is the percentage of blood put
out by the heart that is not completely
oxygenated. A small degree of shunt is normal and
may be described as 'physiological shunt'. In a
normal healthy person, the physiological shunt is
rarely over 4 in pathological conditions such
as pulmonary contusion, the shunt fraction is
significantly greater and even breathing 100
oxygen does not fully oxygenate the blood.1
15
Effects of ppv cont.
  • Respiratory rate, VT, Inspiratory time, and flow
    rate can be controlled
  • May cause stress ulcers and bleeding in GI tract

16
Complications of Mechanical Ventilation
  • Complications related to pressure
  • Ventilator-associated lung injury (VALI)
  • High pressures are associated with barotrauma
  • Pneumothorax, pneumomediastinum,
    pneumopericardium, subcutaneous emphysema
  • Pneumothorax has decreased chest movement,
    hyperresonance to percussion, on affected side
  • If tension pneumothorax medical emergency
  • Relieved by needle insertion, then chest tube
  • Use 100 oxygen to speed reabsorption.

17
Placing patient on CMV
  • Establish airway
  • Select VT 8-12ml/kg of ideal body weight
  • Select mode - a/c sensitivity at minimal to not
    self cycle
  • Set pressure limit 10cmH2O above delivery
    pressure
  • Set sigh volume 1-1/2 to 2 times VT
  • Sigh pressure 10cmH2O above sigh delivery
    pressure
  • Rate as ordered
  • PEEP as ordered exp. resist, insp. hold, etc.
  • Set spirometer 100 cc less than patient volume
  • check for function (turn on)

18
Modes
  • Control
  • All of WOB is taken over by ventilator
  • Sedation is required
  • Control mode is useful
  • During ARDS, especially if high PEEP is required
    or inverse IE ratio
  • Assist
  • Patient is able to control ventilatory rate
  • Should not be used for continuous mechanical
    ventilation if pt is apneic

19
  • Assist/control
  • Pt able to control vent rate as long as
    spontaneous rate gt backup rate
  • Machine performs majority of WOB
  • Sedation is often required to prevent
    hyperventilation
  • Is useful during early phase of vent support
    where rest is required
  • Useful for long term for pt not ready to wean
  • SIMV
  • In between positive press breaths pt can breathe
    spontaneously
  • Useful for long term for pt not ready to wean
  • Used as weaning technique for short-term vent
    dependent pt

20
  • PS
  • Vent functions as constant pressure generator
  • Positive pressure is set
  • Pt initiates breath, a predetermined pressure is
    rapidly established
  • Pt ventilates spont, establishes own rate, VT,
    peak flow and IE
  • Can be used independently/CPAP/SIMV
  • Indicated to reduce work imposed by ETT, 5 to
    20cm H2O
  • Can be used for weaning
  • A set IPS (12ml/kg VT) achieved by adjusting IPS
    level then slowly reducing as clinical status
    improves
  • To overcome resistance of ETT, IPS should meet
    Raw
  • To determine amount of PS needed (PIP Plateau
    pressure) / Ventilatory inspiratory flow x
    spontaneous peak inspiratory flow

21
  • IBWEstimated ideal body weight in (kg)Males
    IBW 50 kg 2.3 kg for each inch over 5
    feet.Females IBW 45.5 kg 2.3 kg for each
    inch over 5 fee.
  • 1 Kilogram 2.20462262 Pounds

22
Monitoring CMV
  • Observation
  • Look at patient!
  • Make a good visual assessment
  • Start with patient, trace circuit back to
    ventilator
  • Check and drain tubing
  • Check connections
  • Check patient
  • Suctioning, position, etc.
  • BP
  • Spontaneous RR
  • Heart rate and all vital signs

23
  • Check machine settings
  • VT (set, exhaled, corrected)
  • f (assisted, set, spontaneous)
  • Pressure limit 10 above delivery pressure
  • PEEP if applicable Check BP!
  • Peak Insp. Pressure (PIP) Keep as low as
    possible
  • IE ratio for proper flow
  • FiO2 Keep as low as possible to prevent Oxygen
    Toxicity yet keep them adequately oxygenated
  • Check all apnea alarms and settings.
  • Check set VT to exhaled VT for any lost volumes
  • If difference is greater than 100 cc, check for
    leak.

24
Compliance
  • Measures distensibility of lung how much does
    the lung resist expansion.
  • Relationship between Volume and Pressure
  • High compliance equals lower PIP thus easier
    ventilation and less side effects of CMV

25
  • Disease states resulting in low compliance
    include the Adult Respiratory Distress Syndrome
    (ARDS), pulmonary edema, pneumonectomy, pleural
    effusion, pulmonary fibrosis, and pneumonia among
    others.
  • Emphysema is a typical cause of increased lung
    compliance.

26
You must know
  • Dynamic VT (corrected or exhaled)
  • PIP PEEP
  • Always subtract out PEEP
  • Consistently use exhaled or corrected VT
  • Used to assess volume/pressure relationships
    during breathing any changes in RR will effect
    it
  • CDYN decreases as RR increases which may cause
    V/Q mismatch which may cause hypoxemia
  • May reflect change due to change in flow due to
    turbulence instead of compliance
  • Normal 30 40 cmH2O

27
Very important
  • Static VT (corrected or exhaled)
  • Plateau PEEP
  • Always subtract out PEEP
  • Always consistently use either VT exhaled or VT
    corrected
  • Will not change due to change in flow, more
    accurate
  • Measured pressure to keep airways open with no
    gas flow.
  • Normal values very with pt, but usually above 80
    cmh2o will show lung overdistention

28
  • Importance
  • to follow trends in patient compliance
  • Decreased C stiffer lung less compliant
    higher ventilating pressures you need a
    ventilator with high internal resistance to
    deliver volumes using square wave.
  • High compliance possible Emphysema

29
Static vs Dynamic Compliance
  • Decrease in CDYN with no change in CST indicates
    worsening airway resistance
  • Causes
  • Bronchospasm
  • Secretions
  • Kinked/Occluded ETT
  • Inappropriate flow and/or sensitivity settings
  • If both CDYN and CST worsen, not likely to be an
    airway problem
  • Causes
  • Pulmonary Edema
  • ARDS
  • Tension Pneumothorax
  • Atelectasis
  • Fibrosis
  • Pneumonia
  • Obesity
  • Patient Position

30
  • RAW PIP Pplat
  • Flow (L/sec.)
  • Airway Resistance
  • Impedance to ventilation by movement of gas
    through the airways thus the smaller the airway
    the more resistance which will increase WOB
    (causing respiratory muscle and patient fatigue)
  • Example ETT, Ventilator Circuit, Bronchospasm

31
  • Airway Resistance Compliance
  • Decreased Compliance Increased Airway
  • Resistance High PIP, Decreased Volumes and
    significant increase in WOB
  • Very difficult to wean a patient until problems
    are resolved

32
Patient stability
  • Vital signs
  • Pulse normal, weak, thready, bounding, rate,
    etc.
  • BP hypo/hypertensive directly related to CO
  • Respirations tachypnea, bradypnea, hyperpnea,
    hypopnea, rate, etc.
  • Color dusky, pale, gray, pink, cyanotic
  • Auscultation - bilateral, etc.
  • Are they bilateral, amount of air moving, rales,
    rhonchi or wheezing
  • Are they Vesicular (normal) or Adventitious
    (abnormal)
  • Describe what you hear fine, course,
    high-pitched, low-pitched, etc.
  • And the location where you heard it bilateral
    bases, posterior bases, right upper anterior
    lobe, laryngeal, upper airway, etc.

33
Hemodynamic monitoring
  • BTFDC
  • Also known as
  • Balloon Tipped Flow Directed Catheter
  • Swan-Ganz Catheter
  • Pulmonary Artery Catheter
  • Done by inserting a BTFDC into R atrium, thru R
    ventricle, and into pulmonary artery
  • SvO2 is drawn from the distal port of a BTFDC
  • Used to monitor tissue oxygenation and the amount
    of O2 consumed by the body

34
Catheters and Insertion Sites
35
PA Pressure Waveforms
36
  • CVP
  • Monitors fluid levels, blood going to the right
    side of heart
  • Normal 2 6 mmHg (4 12 cmH2O)
  • Increased CVP right sided heart failure (cor
    pulmonale), hypervolemia (too much fluid)
  • Decreased CVP hypovolemia (too little fluid),
    hemorrhage, vasodilation (as occurs with septic
    shock)

37
  • PAP
  • Pulmonary Artery Pressure B/P lungs
  • Monitors blood going to lungs via Swan-Ganz
    catheter (BTFDC)
  • Normal 25/8 (mmHg)
  • Increased PAP COPD, Pulmonary Hypertension, or
    Pulmonary Embolism
  • PCWP
  • Pulmonary Capillary Wedge Pressure monitors blood
    moving to the L heart
  • Balloon is inflated to cause a wedge
  • Normal PCWP 8 mmHg
  • Range is 4 12 mmHg
  • Increased PCWP L heart failure, CHF
  • Measure backflow resistance

38
  • Cardiac Output
  • Expressed as QT or CO (QT Greek alphabet, 1050
    BC scientist used qt had cardiac output
    expression)
  • Normal 5 LPM
  • Range 4 8 LPM
  • Decreased CO CHF, L heart failure, High PEEP
    effects
  • I O
  • Needs to be monitored closely to prevent fluid
    imbalance due to increased ADH production and
    decreased renal perfusion
  • Fluid imbalance can develop into pulmonary edema
    and hypertension

39
(No Transcript)
40
Cardiac Output (CO)
  • The amount of blood pumped out of the left
    ventricle in 1 minute is the CO
  • A product of stroke volume and heart rate
  • Stroke volume amount of blood ejected from the
    left ventricle with each contraction
  • Normal stroke volume from 60 to 130 ml
  • Normal CO from 4 to 8 L/min at rest
  • Fick CO Vo2/Cao2-Cvo2
  • C(a-v)O2 could decrease if CO is increased due to
    less oxygen needs to be extracted from each unit
    of blood that passes

41
Fick MethodThe Fick method requires that you be
able to measure the A-V oxygen content difference
and requires that you be able to measure the
oxygen consumption. An arterial blood gas from a
peripheral artery provides the blood for the CaO2
measurement or calculation while blood from the
distal PA port of a Swan-Ganz catheter provides
the blood for the CvO2 measurement or calculation
Dilution methods mathematically calculate (using
calculus) the cardiac output based on how fast
the flowing blood can dilute a marker substance
introduced into the circulation normally via a
pulmonary artery catheter. (injecting a dye in
prox port of Swanz. Not really used anymore due
to infections
42
Measures of Cardiac Output and Pump Function
  • Cardiac index (CI)
  • Determined by dividing the CO by body surface
    area
  • Normal CI is 2.5 to 4.0 L/min/m2
  • CI measurement allows a standardized
    interpretation of the cardiac function
  • True cardiac output compared to each persON

43
Measures of Cardiac Output and Pump Function
(contd)
  • Cardiac work
  • A measurement of the energy spent ejecting blood
    from the ventricles against aortic and pulmonary
    artery pressures
  • It correlates well with the amount of oxygen
    needed by the heart
  • Normally cardiac work is much higher for the left
    ventricle

44
Measures of Cardiac Output and Pump Function
(contd)
  • Ventricular stroke work
  • A measure of myocardial work per contraction
  • It is the product of stroke volume times the
    pressure across the vascular bed
  • Ventricular volume
  • Estimated by measuring end-diastolic pressure

45
Measures of Cardiac Output and Pump Function
(contd)
  • Ejection fraction
  • The fraction of end-diastolic volume ejected with
    each systole normally 65 to 70 drops with
    cardiac failure

46
Determinants of Pump Function
  • Preload
  • Created by end-diastolic volume
  • The greater the stretch on the myocardium prior
    to contraction the greater the subsequent
    contraction will be
  • When preload is too low, SV and CO will drop
  • This occurs with hypovolemia
  • Too much stretch on the heart can also reduce SV

47
Determinants of Pump Function
  • Afterload
  • Two components peripheral vascular resistance
    and tension in the ventricular wall
  • Created by end systolic volume
  • Increases with ventricular wall distention and
    peripheral vasoconstriction
  • As afterload increases, so does the oxygen demand
    of the heart
  • Decreasing afterload with vasodilators may help
    improve SV but can cause BP to drop if the blood
    volume is low

48
Ventilation Patient Parameters
  • Spontaneous VT
  • Is it adequate for patient?
  • Spontaneous volumes should be between 5 8 ml/Kg
    of Ideal Body Weight (IBW)
  • Spontaneous VC
  • 10 15 ml/Kg IBW
  • NIF/MIP/MIF/NIP
  • -20 to -25 cmH2O within 20 seconds

49
ABGs
  • PaO2 represents oxygenation adjust with PEEP or
    FiO2
  • PaCO2 represents ventilation adjust with VT or
    RR
  • pH represents Acid/Base status
  • pH acid High CO2 (respiratory cause) or low HCO3
    (Metabolic cause)
  • pH alkaline Low CO2 (respiratory cause) or high
    HCO3 (Metabolic cause)

50
  • Draw ABGs
  • To stabilize
  • With any change in ventilator settings change
    only one vent setting at a time
  • With any change in patient condition

51
Ventilator alarms
  • Appropriate for each patient
  • Usually 10 higher/lower than set parameter
  • For pressure and RR settings
  • VT alarms 100 ml higher/lower than set VT
  • Adjust all alarms for patient safety.

52
X-ray when indicated for
  • Tube placement 2 4 cm above carina
  • Possible pneumothorax
  • To check for disease process reversal, or lack
    of, for treatment purposes and weaning

53
Frequency of ventilator checks
  • Must be done as often as required by the patients
    condition unstable patients continuous to hourly
  • In general patients and ventilators need
    evaluation Q1-Q4h
  • With every vent check, patient assessment should
    take place
  • Use VT exhaled for calculations.
  • Corrected VT exhaled vt-tubing lost volume
  • Tubing volume lost factor 1-8 cc x pressure
  • Exhaled vt 650 pip-peep x (3) 60
  • 650-60590 corrected vt

54
Waveform Analysis
  • Three wave forms typically presented together
  • Pressure
  • Flow
  • Volume
  • Plotted versus time
  • Horizontal axis is time
  • Vertical axis is variable
  • Other common wave forms
  • Pressure vs Volume
  • Flow vs Volume

55
  • Pressure vs Time Assessment
  • Patient Effort Negative pressure deflection at
    beginning of inspiration indicates patient
    initiated breath
  • Peak Plateau Pressures
  • Adequacy of inspiratory flow If pressure rises
    slowly, or if curve is concave, flow is
    inadequate to meet patients demand.
  • Flow vs Time Assessment
  • Inspiratory flow patterns
  • Air Trapping a.k.a. AutoPEEP expiratory flow
    fails to reach baseline prior to delivery of next
    breath

56
  • Airway Resistance
  • Lower slope (smaller angle) indicative of high
    resistance to flow
  • Steeper slope (greater angle) indicative of lower
    resistance to flow
  • Also increased resistance manifests itself as
    decreased peak expiratory flowrate (depth of
    expiratory portion of flow pattern) with more
    gradual return to baseline as expiratory flow
    meets with resistance
  • Bronchodilator increased peak expiratory flow
    rate with quicker return to baseline

57
  • Volume vs Time Assessment
  • VT peak value reached during inspiration
  • Air Trapping fails to reach baseline before
    commencement of next breath
  • Identifying breath type
  • Larger volumes mechanical breaths
  • Smaller volumes spontaneous breaths

58
  • Pressure vs Volume Loop
  • Volume on vertical axis
  • Pressure on horizontal axis
  • Positive pressure on right of vertical axis
  • Indicates mechanical breath
  • Application of positive pressure to the lung
  • Tracing is in a counter-clockwise rotation

59
  • Subambient pressure to the left of the vertical
    axis
  • Indicates a spontaneous breath
  • Spontaneous inspiration is to the left of the
    vertical axis subatmospheric pressure at start
    of inspiration (Intrapulmonary pressure -3
    cmH2O)
  • Spontaneous expiration is to the left of the
    vertical axis 3 cmH2O intrapulmonary pressure
    on expiration
  • Tracing is in a clockwise rotation
  • Useful in helping diagnosing
  • Alveolar Overdistension looks like birds beak,
    or the Partridge Family symbol
  • Increased RAW looks pregnant or fat
  • Decreased compliance looks lazy or like its
    lying down

60
  • Flow vs Volume Loop
  • Helpful in assessing changes in RAW, such as
    after the administration of a bronchodilator
  • Flow on vertical axis
  • Volume on horizontal axis
  • Inspiration is top part of loop, expiration on
    bottom
  • When RAW improved, expiratory flows are greater
    and the slope of the expiratory flow is greater

61
  • To determine patient effort, use the following
    curves
  • Pressure vs Time
  • Pressure vs Volume Loop
  • Volume vs Time
  • All show subambient drops in pressure/volume when
    patient initiates the breath

62
  • To determine Auto-PEEP, use
  • Volume vs Time
  • Flow vs Time
  • Pressure vs Volume Loop
  • For all curves, ask does the exhalation reach
    baseline before the next breath starts
  • To determine the adequacy of inspiratory flow
  • Pressure vs Time concave or slow rise to
    pressure means inadequate flow on inspiration
  • Volume vs Time Too slow flow increased I
    Time decreased E-Time AutoPEEP
  • Volume vs Pressure Slope is shallow, may look
    similar to loop associated with increased RAW

63
  • If you detect the patient actively working during
    mechanical breath, increase the flow to help meet
    the patients demand and decrease the WOB
  • To assess changes in compliance, use
  • Pressure vs Volume Loop
  • Steeper slope increased compliance, or larger
    volume at lower pressure
  • Shallow slope decreased compliance, or smaller
    volume at higher pressure

64
  • To assess changes in RAW, use
  • Pressure vs Volume Loop
  • Space hysteresis between inspiratory and
    expiratory portions of loop
  • Bowed appearance inspiratory portion more
    rounded and distends toward the pressure axis
  • Flow vs Volume Loop
  • Observe peak flow on Flow-Volume Loop
  • Increased RAW Decreased Peak Flow

65
UNIT B
  • Acute Critical Care

66
PEEP/CPAP
  • PEEP Positive End Expiratory Pressure
  • Definition
  • Application of pressure above atmospheric at the
    airway throughout expiration
  • Goal
  • To enhance tissue oxygenation
  • Maintain a PaO2 above 60 mmHg with least amount
    of supplemental oxygen
  • Recruit alveoli
  • DECREASE (PA-a)02
  • Dont forget (PA-a)02 will increase with v/q or
    shunt

67
HOW TO ACHIVE CPAP/PEEP
  • A. Exhaling through a spring tension diaphragm
  • B. Exhaling through a column of water
  • C. Exhaling through a partially inflated
    exhalation valve (mushroom type)
  • D. A continuous flow through the circuit

68
  • Indications
  • Cardiogenic pulmonary edema
  • Left sided heart failure
  • Prevents transudation of fluid
  • Improves gas exchange
  • ARDS
  • Increases lung compliance
  • Decreases intrapulmonary shunting
  • Increases FRC
  • Refractory hypoxemia
  • PaO2 lt 50 mmHg with an FIO2 gt50
  • Increase FRC
  • Opens collapsed alveoli
  • Increases reserve

69
  • Contraindications
  • Unilateral lung disease
  • Hypovolemia
  • Hypotension
  • Untreated pneumothorax
  • Increased ICP
  • Hazards
  • All of the effects of CMV are magnified
  • Increased intrathoracic pressure
  • Decreased venous return
  • Increased ADH
  • Decreased blood pressure
  • Decreased cardiac output
  • Loss of thoracic pump
  • Barotrauma

70
  • Physiological effects
  • Baseline pressure increases
  • Increased intrapleural pressures
  • Increased FRCrecruiting collapsed alveoli
  • Dead spaceincreased in non-uniform lung disease
    and healthy lungs by distending alveoli
  • Increased alveolar volumes
  • Can increase compliance
  • Cardiovascular
  • Decrease venous return
  • Decrease cardiac output
  • Decrease blood pressure

71
  • Decreases intrapulmonary shunt
  • Increases mixed venous value (PvO2)--Drawn from
    pulmonary artery via Swan-Ganz
  • Increased intracranial pressures
  • Decrease in A-a gradient (A-a DO2)
  • Increased PaO2
  • Decrease in FIO2, which causes a decrease in PAO2

72
Initiation and monitoring of PEEP
  • Start off at 5 cmH2O and increase by 3 to 5 cmH2O
    increments
  • Adjust sensitivity
  • With an increase in baseline pressure the
    sensitivity must be increased or the patient will
    have to increase inspiratory effort to initiate a
    breath
  • Monitor
  • Blood pressure First thing you look at when
    adding PEEP
  • Cardiac output Goal is least cardiac
    embarrassment with the best PaO2 and least FIO2
  • Pulse
  • If the patient is hypoxemic their heart rate is
    probably increased
  • With addition of PEEP the hypoxemia should
    resolve and pulse should decrease to normal level
  • PaO2 Goal is best PaO2 with the lowest possible
    FIO2

73
Maintenance level of PEEP
  • PEEP trial
  • Used to determine best level of PEEP
  • This is the pressure at which cardiac output and
    total lung compliance is maximized,the VD/VT is
    minimal, and the best PaO2 and PvO2, and the
    lowest P(A-a)O2 are obtained
  • Optimal Peep
  • Level at which physiological shunt (Qs/Qt) is
    lowest without detrimental drop in cardiac output
  • A C(A-V)O2 of less than 3.5 vol should reflect
    adequate CO
  • Ficks law CO VO2/C(a-v)O2
  • Cardiac output and C(a-v)O2 are inversely related
  • Best oxygenation with lease cardiac issues

74
CPAP
  • Physiologically the same as PEEP
  • Used in spontaneously breathing patients
  • Maintains continuous positive airway pressure
    during inspiration and expiration
  • Accomplished by a continuous flow of gas or a
    demand valve
  • System flow must be enough to meet patients peak
    inspiratory demands
  • Used to treat OSA
  • CPAP delivered via mask or nasal pillows
  • No machine breaths, all spontaneous ventilation

75
NPPV (BiPAP)
  • Similar to CPAP
  • Delivers two levels of pressure during the
    inspiratory-expiratory cycle
  • Delivers higher pressure on inspiration
  • Delivers lower pressure on exhalation
  • Less resistance to exhalation

76
  • Two levels of pressure
  • EPAP
  • Constant pressure delivered during exhalation
  • Same as CPAP
  • Adjust for oxygenation
  • IPAP
  • Constant pressure delivered during inspiration
  • Same as IPPB
  • Adjust for ventilation
  • The difference between the two pressures is known
    as pressure support

77
  • Used to treat OSA
  • Better tolerated than traditional CPAP
  • Delivered with mask or nasal pillows
  • Used in acute respiratory failure
  • Can prevent or delay intubation and CMV
  • Improves ventilation and oxygenation
  • Improves patient comfort

78
Rules of putting patient on PEEP
  • Obtain order
  • Set-up PEEP and make additional changes (i.e.,
    sensitivity)
  • Monitor patient for hazards, BP, CO if available
  • Monitor for "optimal/best PEEP"
  • 60-60 Rule to improve oxygenation increase fio2
    to 60 then start adding peep (to prevent o2
    toxicity). To remove peep go down to 60 and
    then start removing peep

79
IMV/SIMV
  • Definitions
  • IMV Intermittent Mandatory Ventilation
  • Patient receives set number of mechanical breaths
    from the ventilator. In between those breaths,
    the patient can take their own spontaneous
    breaths at a rate and VT of their choice.
  • SIMV Synchronized Intermittent Mandatory
    Ventilation
  • Same as IMV, except the mechanical breaths are
    synchronized with the patients spontaneous
    respiratory rate. Helps improve
    patient/ventilator synchrony and helps prevent
    breath stacking (where the vent delivers the
    machine set VT on top of the patients
    spontaneous VT)

80
  • IMV
  • Advantages
  • Prevents muscle atrophy makes patient assume an
    increasing, self-regulating role in their own
    respirations, helping to rebuild respiratory
    muscles
  • Allows patient to reach baseline ABGs baseline
    means the patients baseline ABGs
  • Chronic CO2 retainer ABGs do not have a normal
    PaCO2 of 40
  • Decreases mean intrathoracic pressure the lower
    the IMV/SIMV rate, the lower the intrathoracic
    pressure
  • Avoids decreased venous return lower
    intrathoracic pressure greater venous return
  • Avoids cardiac embarrassment greater venous
    return less decrease in cardiac output and
    blood pressure

81
  • May avoid positive fluid balance
  • Allows normalization of ADH production
  • Helps avoid cardiac embarrassment
  • Psychological encouragement
  • Some patients may exhibit anxiety, especially
    those who have been on the vent for several days
    or weeks
  • Do not tell the patient they will never need the
    vent again
  • Some patients become encouraged by progress,
    being able to do more for themselves
  • Weaning gradually re-evaluate if weaning takes
    several days

82
  • May allow decreased use of pharmacological agents
    e.g., morphine, diprivan, versed, etc.
  • If patient is too sedated, wont be able to
    breathe spontaneously and participate in weaning
  • May be the only way to correct respiratory
    alkalosis on patient who is over-breathing the
    vent in A/C mode
  • Patients spontaneous VT will most likely be
    smaller than that of the set VT on mechanical
    ventilator

83
Candidates for IMV/SIMV
  • IMV/SIMV is great for weaning patient from CMV
  • Allows patient to assume increased responsibility
    for providing own respirations, with diminishing
    mechanical support
  • Allows patient to re-build respiratory muscle
    strength
  • Patient must be stable. Not ideal for unstable
    patient. Consider patient unstable if
  • Fever causes increased O2 consumption and
    increased CO2 production, thereby increasing WOB
  • Unstable cardiac status
  • Unresolved primary problem that caused them to be
    on the vent in the first place

84
  • Problems of IMV
  • Fighting the ventilator patient becomes out of
    phase or synch with the ventilator
  • Stacking of breaths is not necessarily a problem
  • Patient will normally synchronize self with
    ventilator rate
  • Patient disconnection from gas source (with
    external IMV circuit)
  • Other problems of CMV

85
  • Benefits of SIMV Synchronized IMV
  • Prevents stacking of breaths (pt can breath
    spontaneously through demand valve)
  • May help patient to become in phase with vent
  • Breath stacking could be prevented just by
    increase inspiratory flow

86
Inspiratory Pressure Support (IPS)
  • Commonly referred to simply as Pressure Support
  • During spontaneous breathing, the ventilator
    functions as a constant pressure generator
  • Pressure develops rapidly in the ventilator
    system and remains at the set level until
    spontaneous inspiratory flow rates drop to 25 of
    the peak inspiratory flow (or specific flow rate)
  • This mode may be used
  • Independently
  • With CPAP
  • With SIMV
  • With any spontaneous ventilatory mode
  • Not with any full support modes, such as Control
    or A/C

87
  • PS is used to overcome the increased resistance
    of the ET tube and vent circuit
  • Pouiselles Law decrease the diameter of a tube
    by ½, increase the resistance of flow through
    that tube by 16 times
  • If you apply/use PS, do not set less than 5 cmH2O
    of PS least amount needed to overcome
    resistance of ET tube and vent circuit
  • If PS is set at a level higher than RAW, you will
    be adding to patient volumes, rather than just
    helping overcome the increased resistance from
    the ET tube and vent circuit
  • Can be used to help wean patient from vent and
    help rebuild respiratory muscle strength

88
Management of ventilators by ABGs
  • Pressure Control Ventilation
  • Can be used as CMV or SIMV
  • In SIMV mode, the machine breaths are delivered
    at the preset pressure while the spontaneous
    breaths are delivered with PS
  • PC-CMV (a.k.a., PCV) used to decrease shear
    forces that damage alveoli whenever the peak or
    plateau pressures meet or exceed 35cm H2O
  • Help prevent damage to alveoli from excessively
    high ventilating pressures
  • Shear forces damage alveoli when they collapse
    (because closing volumes are above FRC) and then
    are forced back open again with the next breath.
    Damage occurs as this cycle is repeated over
    time alveoli collapses, then is reinflated,
    collapses, reinflated, etc.

89
  • Also used when permissive hypercapnia is desired
    (treatment of ARDS)
  • When the PaCO2 is allowed to rise through a
    planned reduction in PPV, which allows for a
    reduction in the mean intrathoracic pressure,
    which results in less incidence of barotrauma and
    other commonly associated complications of PPV
  • The gradual increase in PaCO2 is accomplished by
    a reduction of the mechanical VT (by decreasing
    the pressure) and usually does not affect the
    oxygenation

90
  • PC-IRV Pressure Controlled Inverse Ratio
    Ventilation
  • Pressure controlled ventilation with an IE ratio
    gt 11.
  • Causes mean airway pressure to rise with the IE
    ratio
  • Usually used on patients with severe hypoxemia
    where high FIO2s and PEEP have failed to improve
    oxygenation
  • Causes intrinsic PEEP (a.k.a. auto-PEEP), which
    is what causes the mean airway pressure to
    increase, which is the mechanism for alveolar
    recruitment and improved arterial oxygenation

91
  • While an increase in oxygenation does occur at
    the lung, a resultant decrease in cardiac output
    (due to the increased mean intrathoracic
    pressures) may result in an overall decrease in
    tissue oxygenation. Care must be exercised to
    maintain adequate cardiac output in order to
    maintain adequate tissue oxygenation
  • Because its not a natural way to breath
    (backwards from the way we normally breath), most
    patients must be either heavily sedated
    (Diprivan, Versed) or must be paralyzed with a
    paralytic drug (such as Pavulon or Norcuron)

92
  • APRV Airway Pressure Release Ventilation
  • Related to PC-IRV except that patient breathes
    spontaneously throughout periods of raised and
    lowered airway pressure.
  • APRV intermittently decreases or releases the
    airway pressure from an upper CPAP (IPAP) level
    to a lower CPAP (EPAP) level
  • The airway pressure release usually lasts 1.5
    seconds or shorter, allowing the gas to passively
    leave the lungs to eliminate CO2
  • IE ratio is usually gt 11, but differs from
    PC-IRV in that it allows spontaneous breathing
  • Because patient is breathing spontaneously, there
    is less need for sedation

93
(No Transcript)
94
  • Usually has lower peak airway pressure than
    PC-IRV
  • Originally proposed as a treatment for severe
    hypoxemia, but appears to be more useful in
    improving alveolar ventilation rather than
    oxygenation.

95
End Tidal CO2 Monitoring (PETCO2)
  • Measures CO2 level at end exhalation, when CO2
    levels are highest in exhaled breath
  • Two methods of collection
  • Sidestream typically used for non-intubated
    patients
  • Mainstream typically used for intubated
    patients and more commonly seen and used
  • Probe is placed between the patient wye of vent
    tubing and the patients ETT
  • Infrared light measures CO2 levels
  • Inspired gas should have value of zero
  • PETCO2 content should be within 2 5 mmHg of
    patients PaCO2
  • Difference will be greater on a patient with
    larger amounts of air trapping, e.g. Emphysema

96
Capnometry (cont.)
97
  • End-tidal CO2 monitoring is for trending
  • Not absolutecan vary from breath to breath
    similar to pulse oximetry
  • Look at the trend. Is the patients PETCO2
    increasing or decreasing over a period of time?
    Similar activity should then be also occurring
    with the PaCO2
  • When setup, correlate the PETCO2 readings with
    current ABGs PaCO2. This will give you an idea of
    how much less the PETCO2 is reading than the
    PaCO2, giving you a good idea of future trends of
    the PETCO2 will relate to the PaCO2

98
Chest Tube Drainage Systems
  • Chest tube placed high in thoracic cavity to
    drain air
  • Second or third intercostal space at
    midclavicular line
  • Incision made right over the rib
  • Chest tube advanced towards anterior apex of
    lung.
  • Chest tube placed low in thoracic cavity to drain
    fluid (e.g., pleural effusion)
  • Placement is in fourth intercostal space (or
    lower) at midaxillary line
  • Patient is placed lying on side with affected
    side up
  • Once incision is made, tube is advanced
    posteriorly, toward the base of the lung so
    gravity can help drain the fluid

99
(No Transcript)
100
(No Transcript)
101
  • Three chamber chest tube drainage system is most
    common
  • Left chamber is the suction control chamber
  • Level of water determines how much suction is
    applied to the chest cavity, regardless of how
    much the suction is set on the suction regulator
    on the wall
  • Middle chamber is the water seal chamber
  • Usually no more than 2 cmH2O
  • Too much and you increase difficulty of air or
    fluid to drain
  • Too little and you risk an air leak

102
  • Bubbles in water seal indicate that a leak in the
    lung is still present
  • Spontaneous breathing patients with leak will
    have bubbles on exhalation
  • Intubated, mechanically ventilated patients with
    leak will have bubbles on inspiration
  • Continuous bubbling could be a sign of a leak in
    your chest tube drainage system and must be
    corrected immediately!
  • Clamp chest tube briefly where it exits patients
    chest. If bubbling stops, leak is in your patient
    (intrathoracic).
  • If bubbling persists, then you must check your
    chest tube drainage system for leaks
  • Move clamp down tubing in 10cm (approx. 4 inch)
    increments (working from patient to chest tube
    drainage system), briefly clamping as you go
    until bubbling stops
  • Right chamber is the drainage collection chamber
  • This is where the fluid drained from the patient
    is collected

103
ALIAcute lung injury or ARDS
  • Definition agreed upon in 1994 at the American
    European Consensus Conference on ARDS

104
  • ALI Definition a syndrome of acute and
    persistent lung inflammation with increased
    vascular permeability. Characterized by
  • Bilateral radiographic infiltrates
  • A ratio PaO2/FIO2 between 201 and 300 mmHg,
    regardless of the level of PEEP. The PaO2 is
    measured in mmHg and the FIO2 is expressed as a
    decimal between 0.21 and 1.00
  • No clinical evidence of an elevated left atrial
    pressure. If measured, the PCWP is 18 mmHg or
    less

105
  • ARDS Definition same as ALI, except the hypoxia
    is worse. Requires a PaO2/FIO2 ratio of 200 mmHg
    or less, regardless of the level of PEEP. ARDS is
    ALI in its most extreme state
  • Mortality rate between 40 and 60 --varies from
    source to source
  • Down from about 20 years ago when ARDS was almost
    certain death sentence with approximately 90
    mortality rate.

106
  • Current Protective Lung Strategies
  • Lower VTs with ALI/ARDS patients about 6 ml/Kg
    IBW to avoid volutrauma from alveolar over
    distension
  • Sufficient PEEP to prevent alveolar collap
Write a Comment
User Comments (0)
About PowerShow.com
