Title: 12.1 Evidence for Continental Drift


1

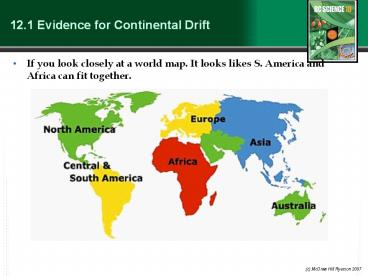

12.1 Evidence for Continental Drift
  • If you look closely at a world map. It looks
    likes S. America and Africa can fit together.

2
12.1 Evidence for Continental Drift
  • Early maps of the world caused Alfred _________
    to propose
  • the ____________________________.
  • The continents looked as though they might fit
    together like puzzle pieces.
  • The continental shelves actually fit together
    even better.
  • The large mountain ranges and coast lines match
    up. Each continent has a continental shelf
  • Continent
  • Continental shelf

  • Ocean floor
  • All continental shelves are approximately 200m
    deep.

See pages 506 - 509
3
12.1 Evidence for Continental Drift
  • The original, supercontinent was named _________
    by Wegener.
  • Wegener also realized that other evidence also
    supported his theory.
  • 1. There were ___________________________ and
    ________ on different continents.
  • Rocks in Newfoundland are the same type rock with
    the same age as the rocks in Norway and Sweden
  • 2. There were _________ _________, like
    Mesosaurs, on different continents.
  • Similar fossils found at similar depths in Africa
    and South America. Plants and animals are only
    found in very specific locations around the
    world.

4
12.1 Evidence for Continental Drift
  • 3. There was evidence of different climates (eg.
    glaciers) on warm continents.
  • Fossils of warm weather plants found in
    Antarctica Glacial rock in S. America and Africa.
  • Ice ages show the retreat of large icebergs.
    These icebergs leave behind deep valleys and
    scratches in the ground.
  • There is coal in Antarctica coal comes from
    decaying tropical swamp land. If Antarctica was
    a swamp land then it must have been in another
    location on the earth.

5
Quick Check
  • 1. What did Wegener notice about the shapes of
    continents that led him to suggest that
    continents were able to move? ____________________
    __________________________________________
  • __________________________________________________
    _____________________
  • 2. List three forms of evidence besides continent
    shape that gave support to the idea of
    continental drift.
  • __________________________________________________
    ______________________
  • __________________________________________________
    ______________________
  • __________________________________________________
    ______________________

6
Continental drift theory - Pangea breaking
apart
7
How Can Continents Move?
  • Wegeners evidence for continental drift didnt
    explain
  • how entire continents could change locations.
  • New scientific equipment ( ________) allowed
    scientists to measure the slow, but steady, drift
    of Earths tectonic plates.
  • It was noted that ____________ and ____________
    appear in certain patterns, which happen to be
    along the ______________________
    ___________________.
  • Mapping of the ocean floor revealed the
    __________________, a long mountain range running
    down the middle of the Atlantic ocean.

See pages 510 - 512
8
How Can Continents Move?
  • Rocks taken from the Mid Atlantic ridge were
    ______________ than other ocean rocks.
  • Sediments along the Ridge became
    ________________________ ____________ from the
    ridge.
  • _______________________ shows that iron-based
    rocks along the ridges are striped with reversing
    magnetic fields.
  • All of these findings developed the
  • Theory of _______________________

9
Sea Floor Spreading
10
Sea Floor Spreading An Explanation
  • Hess suggested that magma rose to form new rock
    at certain places.
  • Magma (melted rock), rises and falls like warm
    and cold liquids.
  • The __________________________________ formed a
    _______________________ where it broke through
    Earths crust.
  • Like a new crust conveyer belt
  • Magnetic striping of basalt rock shows long
    stripes of new rock moving away from ocean
    ridges, and also reveals the direction of Earths
    magnetic field at that time. This magnetic field
    changes or reverses over time.

See pages 512 - 513
11
  • Wilson then unified the ideas of Wegener and Hess
    into the plate tectonic theory.
  • Continental drift occurs because of areas like
    these ridges, that push along tectonic plates
    floating on Earths surface.
  • geologic ______________ are anywhere magma rises
    to Earths surface.
  • A geologic hot spot is the location of
    ____________________, causing magma to rise to
    Earths surface.
  • The __________ Islands formed as a
    tectonic plate passed over a hot spot and magma
    rose up from under Earths surface.

12
Plate Tectonics - 1960
13
Quick Check
  • Quick Check
  • 1. Explain the implications of evidence from each
    of the following areas.
  • (a) mapping the sea floor ________________________
    _________________________________
  • __________________________________________________
    __________________________
  • __________________________________________________
    __________________________
  • (b) analyzing ocean rock and sediments
    _____________________________________________
  • __________________________________________________
    __________________________
  • __________________________________________________
    __________________________
  • (c) paleomagnetism _______________________________
    ______________________________
  • __________________________________________________
    __________________________
  • __________________________________________________
    __________________________
  • 2. How did the Hawaiian Islands form?
    _________________________________________________
  • __________________________________________________
    _____________________________
  • __________________________________________________
    _____________________________
  • 3. What does the theory of plate tectonics state?
    _________________________________________
  • __________________________________________________
    _____________________________
  • __________________________________________________
    _____________________________
