System Software

1
System Software

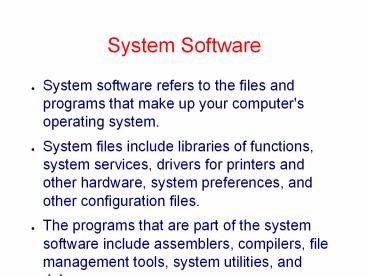

• System software refers to the files and programs
  that make up your computer's operating system.
• System files include libraries of functions,
  system services, drivers for printers and other
  hardware, system preferences, and other
  configuration files.
• The programs that are part of the system software
  include assemblers, compilers, file management
  tools, system utilities, and debuggers.

2
System Software

• Unlike application programs, however, system
  software is not meant to be run by the end user.
• For example, while you might use your Web browser
  every day, you probably don't have much use for
  an assembler program (unless, of course, you are
  a computer programmer).

3
System Software

• Since system software runs at the most basic
  level of your computer, it is called "low-level"
  software.
• It generates the user interface and allows the
  operating system to interact with the hardware.
• Fortunately, you don't have to worry about what
  the system software is doing since it just runs
  in the background. It's nice to think you are
  working at a "high-level" anyway.

4
Debugger

• Even the most experienced software programmers
  usually don't get it right on their first try.
• Certain errors, often called bugs, can occur in
  programs, causing them to not function as the
  programmer expected.
• Sometimes these errors are easy to fix, while
  some bugs are very difficult to trace. This is
  especially true for large programs that consist
  of several thousand lines of code.

5
Debugger

• Fortunately, there are programs called debuggers
  that help software developers find and eliminate
  bugs while they are writing programs.
• A debugger tells the programmer what types of
  errors it finds and often marks the exact lines
  of code where the bugs are found.
• Debuggers also allow programmers to run a program
  step by step so that they can determine exactly
  when and why a program crashes.
• Advanced debuggers provide detailed information
  about threads and memory being used by the
  program during each step of execution.

6
Operating System

• Also known as an "OS," this is the software that
  communicates with computer hardware on the most
  basic level.
• Without an operating system, no software programs
  can run. The OS is what allocates memory,
  processes tasks, accesses disks and peripherials,
  and serves as the user interface.

7
Operating System

• With an operating system, like Windows, the Mac
  OS, or Linux, developers can write code using a
  standard programming interface (known as an API).

• Without an operating system, programmers would
  have to write about ten times as much code to get
  the same results.
• Of course, some computer geniuses have to program
  the operating system itself.

8
Application

• An application, or application program, is a
  software program that runs on your computer. Web
  browsers, e-mail programs, word processors,
  games, and utilities are all applications.
• The word "application" is used because each
  program has a specific application for the user.
• For example, a word processor can help a student
  create a research paper, while a video game can
  prevent that same student from getting the paper
  done.

9
Application

• In contrast, system software consists of programs
  that run in the background, enabling applications
  to run.
• These programs include assemblers, compilers,
  file management tools, and the operating system
  itself.
• Applications are said to run on top of the system
  software, since the system software is made of of
  "low-level" programs.
• While system software is automatically installed
  with the operating system, you can choose which
  applications you want to install and run on your
  computer.

10
Compilers

• These have two functions
• to check whether the submitted program is a legal
  program,
• to translate it into a lower level language e.g.
  machine code (which is usually called the object
  program).
• The object program produced is usually
  interpreted by the hardware. Any process that
  does this, hardware or software, is called an
  interpreter. It simulates the execution of a
  program rather than translating the user's
  program into machine instructions.

11
Compilers

• An example of this is the UNIX system Pascal
  compiler. pc translates the Pascal program into
  intermediate code in a file called e.out. The
  program em1 is the interpreter, reading from
  e.out and interpreting it.
• One advantage of interpretation is that the
  author of an interpreter has more control over
  the execution of the user's program than the
  author of a compiler (e.g. checks for overflow).

12
Compilers

• One disadvantage is that the time taken to
  interpret a program can be much greater than the
  time taken to execute it under normal techniques.

13
(No Transcript)
14
Assemblers

• These are programs which translate from assembly
  language. Both assemblers and compilers are
  translators.
• Assembly language is the mnemonic representation
  of binary machine code which allows you to use
  names for locations and instructions.

15
Assemblers

• An assembler translating a program to binary has
  four tasks
• Replace symbolic addresses e.g. LOOP, by numeric
  addresses.
• Replace symbolic operation code by machine
  operation codes.
• Reserve storage for the instructions and data.
  Each instruction and each piece of data counts as
  one word of memory and addresses are usually
  assigned from 0.
• Translate constants into their machine
  representation.

16
Assemblers

• A simpler assembler must keep track of how many
  words we have generated so far (kept in the
  Instruction Location Counter). We need a table
  listing instructions and their opcodes (the
  opcode table).
• The program is read twice by a two-pass
  assembler.

17
Assemblers

• On the first pass we read all the variables and
  labels and put them into the Symbol Table (items
  in the label column take up no memory but are
  recorded in the symbol table using the address of
  the command next to them).
• On the second pass, label gaps are filled from
  the table by replacing the label name with the
  address.

18
Assemblers

• Possible errors while assembling the program
  include missing operand, illegal operation,
  missing definition (e.g. JMP LOOP where LOOP was
  never defined.
• This is detected at the end of the first pass) or
  multiple definition (two locations called LOOP).

19
Assemblers

• An assembler could be written in binary, which is
  impractical.
• Alternatively an assembler could be written to
  run on machine B but generating code which runs
  on machine A (this is referred to as cross
  assembly).
• To get a true assembler on machine A, you write
  the Pascal version in the assembly language of A,
  run it through the cross-assembler on B and
  transfer it to A (called bootstrapping).

20
Assemblers

• In constructing a one-pass assembler, we still
  have the problem of forward references.
• A forward reference is where a statement in the
  program contains a jump to a statement later on
  which the compiler hasn't met yet.

21
Assemblers

• There are two common solutions
• Put the object code directly in memory. If you
  come across a forward reference, note the
  location, leave it blank and come back and fill
  it in when it is defined. This also saves loading
  the program into memory at a later stage. There
  are problems
• Addressing space occupied by the assembler
• If the program is large there may not be enough
  space for both program and assembler.
• It does not permit separate translation (where
  the program is developed in sections, each being
  translated and then joined using a link-loader
  program. This technique, assembling the code and
  leaving it in memory is called Assemble and Go).
• It does not permit separate translation (where
  the program is developed in sections, each being
  translated and then joined using a link-loader
  program. This technique, assembling the code and
  leaving it in memory is called Assemble and Go).

22
Assemblers

• There are two common solutions
• Noting where forward references occur and where
  they are defined and putting this in the object
  code. The link-loader (usually written in
  assembly language) picks this up and fills in the
  locations (not all link loaders do this).
• Two-pass assemblers are more common, although
  slower. On the first pass, the assembler makes a
  note of all the addresses referred to by labels.
  On the second pass, the addresses are written
  into the assembled code.

23
Link Loaders

• The link loader derives standard routines (read,
  write, sin etc.) from libraries. The user can
  create his own personal libraries. The functions
  of a link-loader are
• It may have to tie up forward references.
• It manages libraries (stored in a special form
  to speed up the search).
• It allocates space in memory for routines
  (forming its own memory map).
• It resolves links, calling coroutines,
  procedures etc.

24
Link Loaders

• It relocates code. Translators always allocate
  addresses from 0. Routines are not always loaded
  at address 0, so some changes are made to make
  jumps and references to data correct. Usually
  this means adding the starting address (allocated
  by the link-loader) to the address given by the
  translator. The translator marks all addresses
  needing relocating.

25
Link Loaders

• A bootstrap loader activates when the computer is
  switched on. Every morning when the computer is
  switched on, the RAM is vacant.
• The ROM contains a program which reads in from
  disk a more sophisticated loader, which loads the
  operating system which then executes.

26
Compilers

• The different options are
• "Compile and Go", which is similar to Assemble
  and Go. The compiler reads the source file,
  checks it, translates it into machine code and
  puts it in memory.
• The advantages of this are
• It is relatively fast (there is no output to a
  file which is relatively slow).
• The program is executable directly after
  translation.

27
Compilers

• The disadvantages are
• There is no link-loader (faster, but can't use
  any precompiled subroutines).
• It lacks portability as absolute binary is
  being produced.
• If the program is to be run again, it must be
  translated again (we can overcome this by also
  writing it out to a file which can be reloaded).
• This is often used in educational establishments
  where execution time is less important that
  compilation time.

28
Compilers

• The different options are
• "Translate and Interpret" (for example, pc/em1).
  In this case, the compiler reads the source file,
  translates it to intermediate code (in the case
  of pc this is called e.out), which is read by the
  interpreter which simulates the execution of the
  program.
• The advantages of this are
• It's fairly portable.
• It's reasonably fast in translation.
• The main disadvantage is that the program
  executes relatively slow.

29
Compilers

• The different options are
• Translate into assembly language. The source
  file is read by the compiler and translated to
  assembly language, read by an assembler and
  passed to the link-loader which produces the
  object code.
• The advantages of this are
• It produces absolute binary so execution is
  fast.
• It accesses a link-loader so we can use
  pre-compiled routines.
• It is relatively portable.
• The main disadvantage is that it is slow to
  compile.

30
Compilers

• The different options are
• Translate directly into link-loader format (used
  by most compilers). The compiler reads the source
  and gives out link-loader format, which is read
  by the link-loader producing object code.
• The advantages of this are
• It can access libraries.
• The execution is fast.
• The translation is relatively fast.
• The main disadvantage is that it isn't very
  portable.

31
Compilers

• The different options are
• Interactive translation, such as BASIC. There are
  three types of this
• The more efficient type (usually done on larger
  machines). Each line of the program is translated
  separately into intermediate code.
• The less efficient type (usual on micros). A line
  is typed in, put straight in the file which is
  interpreted. It is relatively slow.
• The highly efficient type. The translator
  translates each line to absolute binary. After
  RUN is typed, we have direct execution.

32
Linking and Loading

• Most programs are divided into separate parts,
  each of which is translated separately and linked
  by the link-loader to produce the load module.
  When the translator runs, it assigns 'virtual'
  addresses to the routines starting with 0.
  Therefore each of the object codes have internal
  references from 0.
• The linker's task is to combine these.

33
Linking and Loading

• It constructs a table of all object modules and
  their lengths.
• Based on this table, it assigns a load address to
  each object module.
• It finds all the instructions that contain a
  memory address and to each adds a relocation
  constant equal to the starting address of the
  module in which it is contained.
• It finds all references to procedures and other
  modules in which it is contained.
• It finds all references to procedures and other
  modules and inserts the appropriate address.

34
Dynamic Link-loading. Structure of an object
module

• Usually contains six parts identification, entry
  point table, external reference table, machine
  instructions and constants, relocation directory
  and the end of the module.
• The machine instructions are the part of the
  module which are the user's program.
• The next part (the directory) is the table
  showing the addresses of the routines to be
  built-in (produced by the linker).

35
Dynamic Link-loading. Structure of an object
module

• The compiled program with its virtual (from 0)
  addresses may be mapped into memory at any of
  several stages
• On program execution.
• When the program is written (some micros)
• When the program is linked but before it is
  loaded (slightly more flexile than the previous
  option).
• At load time.
• When a base register is loaded (see below).
• 6. When the program is compiled.

36
Dynamic Link-loading. Structure of an object
module

• Options 1 and 5 provide protection against
  accidental jumps to other parts of memory.
• A base register in the CPU is one loaded with the
  offset of the program.
• There is also a limit register holding the offset
  of the end of the program. The PDP 11
  implementation is similar to this having eight
  hardware memory management registers.

37
Compilers

• A compiler is a program that translates a source
  program written in some high-level programming
  language (such as Java) into machine code for
  some computer architecture (such as the Intel
  Pentium architecture).
• The generated machine code can be later executed
  many times against different data each time.

38
Compilers

• An interpreter reads an executable source program
  written in a high-level programming language as
  well as data for this program, and it runs the
  program against the data to produce some results.
  One example is the Unix shell interpreter, which
  runs operating system commands interactively.
• Note that both interpreters and compilers (like
  any other program) are written in some high-level
  programming language (which may be different from
  the language they accept) and they are translated
  into machine code.

39
Compilers

• What is the Challenge?
• Many variations
• many programming languages
• many programming paradigms
• many computer architectures
• many operating systems

40
Compilers

• Qualities of a compiler (in order of importance)
• the compiler itself must be bug-free
• it must generate correct machine code
• the generated machine code must run fast
• the compiler itself must run fast (compilation
  time must be proportional to program size)
• the compiler must be portable (ie, modular,
  supporting separate compilation)
• it must print good diagnostics and error messages
• the generated code must work well with existing
  debuggers
• must have consistent and predictable optimization.

41
Compilers

• A typical real-world compiler usually has
  multiple phases. This increases the compiler's
  portability and simplifies retargeting. The front
  end consists of the following phases
• scanning a scanner groups input characters into
  tokens
• parsing a parser recognizes sequences of tokens
  according to some grammar and generates Abstract
  Syntax Trees (ASTs)
• Semantic analysis performs type checking (ie,
  checking whether the variables, functions etc in
  the source program are used consistently with
  their definitions and with the language
  semantics) and translates ASTs into Irs
• optimization optimizes Irs.

42
Compilers

• The back end consists of the following phases
• instruction selection maps IRs into assembly
  code
• code optimization optimizes the assembly code
  using control-flow and data-flow analyses,
  register allocation, etc
• code emission generates machine code from
  assembly code.

43
Compilers

• The generated machine code is written in an
  object file. This file is not executable since it
  may refer to external symbols (such as system
  calls). The operating system provides the
  following utilities to execute the code
• linking A linker takes several object files and
  libraries as input and produces one executable
  object file. It retrieves from the input files
  (and puts them together in the executable object
  file) the code of all the referenced
  functions/procedures and it resolves all external
  references to real addresses. The libraries
  include the operating sytem libraries, the
  language-specific libraries, and, maybe,
  user-created libraries.
• loading A loader loads an executable object file
  into memory, initializes the registers, heap,
  data, etc and starts the execution of the program.

44
Lexical Analysis

• The lexical analyzer is responsible for
• Reading in a stream of input characters
• Produces as output a sequence of tokens
• Upon get-next-token request from the parser, the
  analyzer

45
Lexical Analysis

• A scanner groups input characters into tokens.
  For example, if the input is
• x x(b1)
• then the scanner generates the following sequence
  of tokens
• id(x) id(x) (id(b) num(1))
• where id(x) indicates the identifier with name x
  (a program variable in this case) and num(1)
  indicates the integer 1.
• Each time the parser needs a token, it sends a
  request to the scanner. Then, the scanner reads
  as many characters from the input stream as it is
  necessary to construct a single token.

46
Lexical Analysis

• The scanner may report an error during scanning
  (eg, when it finds an end-of-file in the middle
  of a string).
• Otherwise, when a single token is formed, the
  scanner is suspended and returns the token to the
  parser.
• The parser will repeatedly call the scanner to
  read all the tokens from the input stream or
  until an error is detected (such as a syntax
  error).
• Tokens are typically represented by numbers. For
  example, the token may be assigned number 35.

47
Lexical Analysis

• Some tokens require some extra information.
• For example, an identifier is a token (so it is
  represented by some number) but it is also
  associated with a string that holds the
  identifier name.
• For example, the token id(x) is associated with
  the string, "x". Similarly, the token num(1) is
  associated with the number, 1.

48
Lexical Analysis

• Tokens are specified by patterns, called regular
  expressions.
• For example, the regular expression
  a-za-zA-Z0-9 recognizes all identifiers with
  at least one alphanumeric letter whose first
  letter is lower-case alphabetic.

49
Parsing

• Context-free Grammars
• Consider the following input string
• x2y
• When scanned by a scanner, it produces the
  following stream of tokens
• id(x) num(2) id(y)

50
Parsing

• Predictive Parsing
• The goal of predictive parsing is to construct a
  top-down parser that never backtracks. To do so,
  we must transform a grammar in two ways
• eliminate left recursion, and
• 2. perform left factoring.
• These rules eliminate most common causes for
  backtracking although they do not guarantee a
  completely backtrack-free parsing

51
Parsing

• Bottom-up Parsing
• The basic idea of a bottom-up parser is that we
  use grammar productions in the opposite way (from
  right to left).
• Like for predictive parsing with tables, here too
  we use a stack to push symbols.
• If the first few symbols at the top of the stack
  match the rhs of some rule, then we pop out these
  symbols from the stack and we push the lhs
  (left-hand-side) of the rule. This is called a
  reduction.

52
Semantic Analysis

• Abstract Syntax
• The basic idea of a bottom-up parser is that we
  use grammar productions in the opposite way (from
  right to left).
• Like for predictive parsing with tables, here too
  we use a stack to push symbols.
• If the first few symbols at the top of the stack
  match the rhs of some rule, then we pop out these
  symbols from the stack and we push the lhs
  (left-hand-side) of the rule. This is called a
  reduction.

53
Lexical Analysis

• The lexical analyzer is responsible for
• Reading in a stream of input characters
• Produces as output a sequence of tokens
• Upon get-next-token request from the parser, the
  analyzer
