Title: Aircraft Characteristics


1

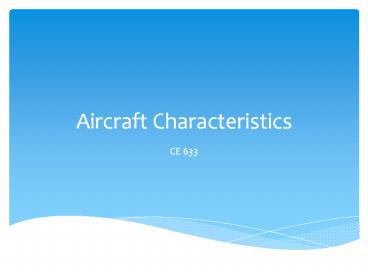

Aircraft Characteristics
  • CE 633

2
Aircraft Characteristics
  • Important to consider when designing an airport
  • Design to accommodate changes/enhancements in
    aircraft specifications

O'Hare International Airport (ORD) in Chicago
http//www.allairports.net/ord/ord-airport-pictu
re.asp
3
Characteristics Will Determine
  • Airside
  • Runway length/width
  • Separation between runways, taxiways, taxilanes,
    etc.
  • Pavement design
  • Landside
  • Gates size and number
  • Terminal design
  • Passenger capacity

4
Examples of Characteristics Include
  • Aircraft Dimensions
  • Weight
  • Passenger Capacity
  • Landing Gear Configurations
  • Engine Types
  • Speed
  • Flight Separation
  • Environmental Noise, fuel consumption,
    pollution, etc

5
(No Transcript)
6
Aircraft Categories
  • Category I
  • Weight 12,500 lbs or less
  • Single propeller driven engine
  • All helicopters
  • Category II
  • Weight 12,5000 lbs or less
  • Propeller driven twin-engines
  • Category III
  • All other aircraft

7
Engine Types
  • Piston Engine Propeller driven aircraft with
    high-octane gasoline fed reciprocating engines.
    Mostly small aircraft.
  • Turboprop Propeller driven aircraft with
    turbine engines
  • Turbofan/Jet Do not use propellers for thrust
    but get power directly from a turbine engine.
    Usually fuel be a diesel fuel, Jet-A.

8
Runway Performance
  • Runway performance is different for every
    aircraft
  • Will determine runway length requirements
  • Dependent upon
  • Aircraft Weight
  • Landing gear
  • Fuel capacity (weight)
  • Aircraft performance under certain weather
    conditions

9
Performance Atmospheric Conditions
  • Temperature, air pressure, and wind speed can
    affect how an aircraft will perform
  • Runway length, aircraft noise, energy
    consumption, and flight distances are dependent
    upon the atmospheric conditions

10
  • Aircraft characteristic database can be found on
    FAAs website
  • http//www.faa.gov/airports/engineering/aircraft_c
    har_database/

11
Cessna Skycatcher
  • Engine 1 Propeller
  • Wingspan 30
  • Length 221
  • Height 74
  • Total Seats 2
  • Cruising Speed 125 mph
  • Maximum Takeoff Weight 1,320 lbs
  • Required Runway Length 1,138 ft

http//www.cessna.com/single-engine/skycatcher/sky
catcher-gallery.html
12
Cessna Caravan 675
  • Engine 1 Turboprop
  • Wingspan 521
  • Length 377
  • Height 1410
  • Total Seats 10
  • Cruising Speed 214 mph
  • Maximum Takeoff Weight
  • Required Runway Length 2055 ft

http//www.cessna.com/caravan/caravan-675/caravan-
675-gallery.html
13
ERJ-145
  • Engine 2 Turbofans
  • Wingspan 659
  • Length 98
  • Height 222
  • Total Seats 50
  • Cruising Speed 518 mph
  • Maximum Takeoff Weight 45,415 lbs
  • Required Runway Length 5,643 ft

http//www.airlinesanddestinations.com/
http//www.adeo-tours.com/default.asp
14
Boeing MD-80
  • Engine 2 Turbofan
  • Wingspan 10710
  • Length 14710
  • Height 295
  • Total Seats 172
  • Cruising Speed 500 mph
  • Maximum Takeoff Weight 140,000 lbs
  • Required Runway Length 7,250 ft

www.aa.com/
15
Airbus A300-600
  • Engine 2 Turbofans
  • Wingspan 14701
  • Length 17506
  • Height 546.5
  • Total Seats 375
  • Cruising Speed 544 mph
  • Maximum Takeoff Weight 363,690 lbs
  • Required Runway Length 7,600 ft

http//www.aircharter.uk.com/Aircraft_Search/Comme
rcial/Airbus_Industries_A300-600R/
16
Concorde Jet
  • Engine 2 Turbojets
  • Wingspan 8310
  • Length 20505
  • Height 288
  • Total Seats 128
  • Max Speed Mach 2.04 (1350 mph)
  • Maximum Takeoff Weight 408,000 lbs
  • Required Runway Length 11,300 ft

http//www.concordesst.com/techspec.html
