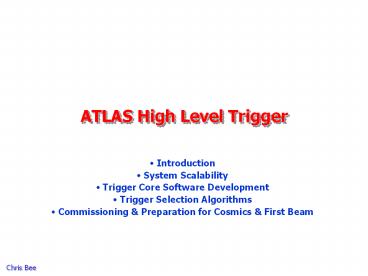

ATLAS High Level Trigger

1
ATLAS High Level Trigger

• Introduction
• System Scalability
• Trigger Core Software Development
• Trigger Selection Algorithms
• Commissioning Preparation for Cosmics First
  Beam

2
Introduction
3
Introduction

• ATLAS trigger comprises 3 levels
• LVL1
• Custom electronics ASICS, FPGAs
• Max. time 2.5ms
• Use of Calorimeter and Muon detector data
• Reduce interaction rate to 75 kHz
• LVL2
• Software trigger based on linux PC farm (500
  dual CPUs)
• Mean processing time 10 ms
• Uses selected data from all detectors (Regions of
  Interest indicated by LVL1)
• Reduces LVL1 rate to 1 kHz
• Event Filter
• Software trigger based on linux PC farm (1600
  dual CPUs)
• Mean processing time 1s
• Full event calibration data available
• Reduces LVL2 rate to 100Hz
• Note large fraction of HLT processor cost
  deferred ? initial running with reduced computing
  capacity

4
ATLAS Trigger DAQ Architecture
Trigger
DAQ
Calo MuTrCh
Other detectors
40 MHz
specialized h/w ASICsFPGA
LV L1
D E T R/O
2.5 ms
Lvl1 acc 75 kHz
H L T
D A T A F L O W
5
ATLAS Three Level Trigger Architecture

• LVL1 decision made with calorimeter data with
  coarse granularity and muon trigger chambers
  data.
• Buffering on detector
• LVL2 uses Region of Interest data (ca. 2) with
  full granularity and combines information from
  all detectors performs fast rejection.
• Buffering in ROBs
• EventFilter refines the selection, can perform
  event reconstruction at full granularity using
  latest alignment and calibration data.
• Buffering in EB EF

2.5 ms
10 ms
sec.
6
LVL1 - Muons Calorimetry
Toroid
Muon Trigger looking for coincidences in muon
trigger chambers

• Calorimetry Trigger looking for e/g/t jets
• Various combinations of cluster sums and
  isolation criteria

7
ATLAS LVL1 Trigger
pT, h, f information on up to 2 m
candidates/sector(208 sectors in total)
ET values (0.2?0.2)EM HAD
ET values (0.1?0.1)EM HAD
O(1M) RPC/TGC channels
7000 calorimeter trigger towers
Muon trigger
Calorimeter trigger
Muon Barrel Trigger
Muon End-cap Trigger
Pre-Processor (analogue ? ET)
Jet / Energy-sum Processor
Cluster Processor (e/g, t/h)
Muon-CTP Interface (MUCTPI)
Multiplicities of m for 6 pT thresholds
Central Trigger Processor (CTP)
Multiplicities of e/g, t/h, jet for 8 pT
thresholds each flags for SET, SET j, ETmiss
over thresholds multiplicity of fwd jets
Timing, Trigger, Control (TTC)
LVL1 Accept, clock, trigger-type to Front End
systems, RODs, etc RoI pointers
8
RoI Mechanism

• LVL1 triggers on high pT objects
• Calorimeter cells and muon chambers to find
  e/g/t-jet-m candidates above thresholds

• LVL2 uses Regions of Interest as identified by
  Level-1
• Local data reconstruction, analysis,and
  sub-detector matching of RoI data

• The total amount of RoI data is minimal
• 2 of the Level-1 throughput but it has to be
  accessed at 75 kHz

H ?2e 2?
9
Physics Selection Strategy

• ATLAS has an inclusive trigger strategy
• LVL1 Trigger on individual signatures
• EM cluster
• Muon track
• Jets
• Total Energy
• Missing Energy
• LVL2 confirms refines LVL1 signature
• requires seeding of LVL2 with LVL1 result i.e.
  RoI
• Event Filter confirms refines LVL2 signature
  more complete event reconstruction
• Possibility of seeding of Event Filter with LVL2
  result
• tags accepted events according to physics
  selection
• Reject events early
• Save resources
• minimize data transfer
• minimize required CPU power

10
System Scalability
11
ATLAS TDAQ Physical Layout
Central Switches
Events Built
12
System Scalability

• Extended testing programme for system scalability
  testing
• Dedicated testbed for dataflow performance
  networking issues
• ? Data Acquisition group
• Large clusters worldwide for node scalability
  testing
• Machine run control
• Start/end run cycling
• Software distribution
• Large scale configuration
• ? Data Acquisition Trigger groups
• Trigger focus on Event Filter
• Recent work
• Use of LXSHARE cluster at CERN 500 nodes and
  WESTGRID cluster in Canada (840 nodes)
• Plans
• Use of 50-700 nodes on LXSHARE this summer
• http//atlas-tdaq-large-scale-tests.web.cern.ch

13
Summary of Recent Tests

• Conclusions
• Primary goal was system porting and debugging
• Important bug in CORBA lib was found and fixed
• Many others benefits obtained
• Experience in porting large-scale DAQ system
• Many particular indications for weak points and
  possible improvements
• General impression of run control transition
  times
• LST _at_ CERN
• June 6 July 19
• Many things being tested / investigated /
  measured
• We are ready following experience from WestGrid

14
System Scalability

• Many hardware issues need attention
• How to organize O(2000) PCs
• racks, space, weight, heat cooling, cabling
• data I/O networking
• operating booting, s/w installation,
  operational monitoring
• dependency on ever evolving PC CPU
  architectures and compilers, applicability of
  Moores Law
• Remote farms
• Possible Involvement
• Longer term possibilities of LSTs at SLAC?
• Software development testing work in the Event
  Filter to include requirements from overall ATLAS
  monitoring and calibration
• Work on the specification development,
  installation, maintenance running of the EF

15
Trigger Core Software Development
16
Trigger Core Software Development

• Provides a coherent software framework for LVL2
  and EF
• Coherent data access methods
• Re-use of some offline components where
  appropriate
• Development platform common across trigger
  offline
• Facilitates online/offline comparisons ease of
  development
• Detailed collaboration with core offline
  development group as well as detector software
  development
• Benefit from detailed expertise in each detector
  group
• E.g. gt in last years testbeam detector
  monitoring software developed for use in offline
  was also used online in the EF
• Considerable exchange of ideas development
• Performance efficiency improvements done for
  the trigger now benefit offline ? some new
  offline functionality benefits the trigger
• More specific dedicated development for LVL2

17
HLT Event Selection Software

• HLT Selection Software
• Framework ATHENA/GAUDI
• Reuse some offline components
• Common to Level-2 and EF

HLT Data Flow Software
Offline algorithms used in EF
18
LVL2 Development Environment

• HLT software development and testing in offline
  environment
• Final certification procedure in Data Flow
  test-beds

Offline support for Level-2 developers Multithread
ed offline application AthenaMT Emulates complete
L2PU environment No need to setup complex Data
Flow systems As simple to run as a normal offline
application athenaMT ltnumber of threadsgt
ltjob-configurationgt Coding guidelines for Lvl2
developers
Development and Data Flow setup for Level-2
19
Trigger Core Software Development

• Possible Involvement
• Work responsibility in specific s/w packages in
  the core s/w
• Trigger configuration and algorithm control
  system
• Trigger monitoring framework and strategy
• Offline/online Software integration

20
Trigger Selection Algorithms
21
Trigger Selection Algorithms

• On-line event selection in the HLT based on
  algorithmic software tools running in LVL2 and EF
  farms, sequenced by HLT steering
• LVL2 specialized algorithms, EF algorithms
  adapted from off-line
• Important deployment in HLT test-beds to assess
  compliance with realistic on-line environment
• Building on expertise and development inside
  detector communities
• Calorimeters, Inner Detector, Muon Spectrometer
• Studies of efficiency, rates, rejection factors,
  physics coverage organized around five main lines
  (vertical slices) coherently mapped to the
  Physics Combined Performance groups (see physics
  session)
• Electrons and photons
• Fundamental signatures for both precision
  measurements and discovery signals
• Muons
• Low- and High-PT objects, strategic also for
  B-physics programme
• Jets / Taus / ETmiss
• Models testing, new physics
• b-tagging
• Optimize physics coverage, add flexibility and
  redundancy to HLT selection starting from LVL2
• B-physics
• Rich program of work with new strategies
  dependent on luminosity
• Most recent talks on performance studies
• http//agenda.cern.ch/fullAgenda.php?idaa052747

22
Trigger Menus and Strategy

• Extracting tiny signals out of huge backgrounds
  requires the HLT selection strategy to be robust,
  redundant and flexible
• Selections are mostly inclusive, with
  as-low-as-possible pT thresholds for
  fundamental objects
• The usage of software tools at both HLT levels
  allows detailed studies of the boundary between
  LVL2 and EF
• Different paths leading at approximately thesame
  efficiency (electrons in the figure)
• Example of flexibility and different selection
  sequences
• Choice will depend on background conditions,
  detector knowledge, luminosity,
• The building of complete Trigger Menus evolves
  and complement the work done in the slices
• Moving from single objects to complex topological
  signatures
• Include issues of pre-scaled triggers, monitor
  triggers, etc
• Optimize to environmental conditions
• Commissioning the HLT selection will be an
  important step towards physics data taking
• Needs to be ready for cosmic period
• Implies modification to algorithms, new sequences

23
Trigger Selection

• Possible Involvement
• Work in trigger algorithm development and
  selection performance evaluation
• Jet / tau / Etmiss area is in particular need of
  increased effort
• Other areas would also benefit from new manpower
  and groups willing to take on new responsibility
• Preparation/adaptation of sets of algorithms
  selection procedures for use in cosmic running
  and in initial beam periods (single beams, very
  initial collisions etc)

24
Commissioning Preparation for Cosmics First
Beam
25
Commissioning

• Detailed planning for stepwise commissioning of
  the trigger system (LVL1 HLT) is being prepared
• Planning taking account of detector plans and
  triggering requirements for their commissioning
• Planning in various phases with increasing levels
  of integration
• Commissioning planning is broken in 4 broad
  phases
• Subsystem standalone commissioning
• Integrate subsystems into full detector
• Cosmic rays, recording data, analyze/understand,
  distribute to remote sites
• Single beam, first collisions, increasing rates
• Phases will overlap
• ? TDAQ pre-series system

26
TDAQ Pre-series system

• Fully functional, small scale, version of the
  complete HLT/DAQ system
• Equivalent to a detectors module 0
• Purpose and scope of the pre-series system
• Pre commissioning phase
• To validate the complete, integrated, HLT/DAQ
  functionality
• To validate the infrastructure, needed by
  HLT/DAQ, at point-1.
• Installed at point 1 (USA15 and SDX1)
• Commissioning phase
• To validate a component (e.g. a ROS) or a
  deliverable (e.g. a Level-2 rack) prior to its
  installation and commissioning
• TDAQ post-commissioning development system.
• Validate new components (e.g. their functionality
  when integrated into a fully functional system).
• Validate new software elements or software
  releases before moving them to the experiment.

27
Pre-Series
SDX1
USA15

Partial ONLINE rack- TDAQ rack- 4 HLT
PC(monitoring) 2 LE PC(control) 2 Central
FileServers
Partial EF rack- TDAQ rack- 12 HLT PCs
Partial Supervr rack- TDAQ rack- 3 HE PCs
One ROS rack-TC rack horiz. cooling- 12
ROS 48 ROBINs
One Full L2 rack-TDAQ rack- 30 HLT PCs
RoIB rack-TC rack horiz. cooling- 50 of
RoIB
One Switch rack- TDAQ rack- 128-port GEth for
L2EB
Partial EFIO rack- TDAQ rack- 10 HE PC(6 SFI
- 2 SFO - 2 DFM)
ROS, L2, EFIO and EF racks one Local File
Servers, one or more Local Switches
28
Commissioning

• Phase 1 commissioning will be completely defined
  after the experience with the pre-series
• Parallelize commissioning work as much as
  possible
• Use data taken during detector commissioning to
  test data unpacking tools
• Develop special algorithms to test component
  units
• Extend offline s/w testing procedures
• Provide infrastructure to collect systematic
  information from trigger selection studies
• List of selection variables
• Graphs of rate and efficiency variation
• There is a strong coupling with the offline
  commissioning activities
• Trigger commissioning extends well into
  data-taking
• Need good coordination with physics groups
• Treat the trigger as a single object to be
  commissioned (inc. LVL1)
• Will need a clear strategy for the daily run
  meetings (data request)
• It is clear that the Extra Triggers (monitoring,
  calibration, etc) will be much larger than the
  foreseen 10 during the first months of
  data-taking

29
Commissioning

• Possible involvement
• ? We would like to benefit from your experience
  in commissioning and running the BaBar experiment
  elsewhere
• Work in installing, developing and exploiting the
  pre-series system
• Development of algorithms and procedures that
  allow to rapidly check the trigger performance
  with real data and monitor the overall HLT
  commissioning advancement
• Responsibility in the more general trigger
  commissioning activities and in preparing the
  ATLAS trigger for cosmic tests and first beams in
  LHC
• There is considerable lack of effort in this area
  and there is room for major involvement and
  responsibility

30
Summary

• Outlined several areas within the ATLAS HLT
  system where members of the SLAC team could
  contribute and take responsibility
• Spread of areas ranging from more technical
  software design and implementation to much more
  physics oriented work
• Many interesting challenges ahead to lead ATLAS
  into data-taking and first physics
• TDAQ Workshop in Mainz, Germany 10-14 October
  2005
• WELCOME !!!

31
Backup
32
ATLAS LVL1 Trigger
75(100) kHz
75(100) kHz
75(100) kHz
75(100) kHz
LVL1 Accept 75(100) kHz
33
m-RoI reconstruction at LVL2 using mFast
Muon Road
34
muFast Timing Measurements
Optimized code run on (Pentium III _at_
2.3GHz). Physics single muon,pt100 GeV Cavern
Background High Lumi x 2

• mFast latency is the CPU time taken by the
  algorithm without considering the data
  access/conversion time
• the presence of Cavern Background does not
  increase the mFast processing time.
• The total latency shows timings made on the same
  event sample before and after optimizing the MDT
  data access.
• Optimized version
• total data access time 800 ms
• data access takes the same cpu time of mFast

35
Stepwise HLT Selection

• Selection takes place in steps
• Rejection can happen at every step
• Trigger Decision and Data Navigation is based on
  Trigger Elements
• Algorithms use the result from previous steps
  (Seeding) using the Data Navigation and the
  Trigger Elements
• The initial seeds for the LVL2 steps are the LVL1
  RoIs

Event Accepted
e50ie50i ?
e50i
e50i

isolation
isolation
Decision
e50
e50

elecId
elecId
EM50
EM50

RoI
RoI
LVL1 Trigger Element
36
The Different Commissioning Phases (1)

• HLT standalone commissioning
• Units of racks (considered to be a unit to be
  commissioned)
• A rack delivered from installation has
• Checked the power, cooling and network within and
  outside the rack
• Operating system installed
• Commissioning starts with the installation of the
  DAQ and offline software
• Check internal Dataflow (preloaded data)
• Monitoring tools
• Offline software
• Offline software distribution procedures
• Automatic testing procedures
• Testing algorithms

37
The Different Commissioning Phases (2)

• Integrate subsystems into the full detector.
• These operations that have a very strong
  coupling with the offline commissioning
  activities
• First start with data unpacking algorithms
• Monitoring infrastructure to check this step
• Use any commissioning data taken by the detectors
  to debug this part of the system
• Even if the data is corrupted, it might be very
  useful to test the robustness of the code
• Current activities (or areas where we need to
  concentrate effort)
• Extend the pool of data prep algorithms
• Algorithms must be scrutinized and broken up in
  simpler testing units
• Testing procedures for both offline selection
  software and interface to DAQ software are being
  strengthened and running in the nightly
  automatically
• The goal is to arrive to a set of tests that
  almost guarantee further test-bed (or pre-series,
  etc) integration will succeed
• Specify constraints and tests in the offline
  software before distribution
• Software distribution

38
The Different Commissioning Phases (3)

• The remaining phases correspond to commissioning
  while data is being taken and assumes
• Complete HLT Dataflow is working
• The algorithms start selecting/rejecting events
• The trigger work will focus more on demonstrating
  that an algorithm gives an Xx.Yy selection
  efficiency with some rejection rate
• This activities are very important
• Help to develop and tune the algorithms
• Give us the building blocks to test the complete
  HLT chain
• However, for commissioning, we need to be focused
  also in some other aspects
• Have a centralized place where the complete set
  of parameters that algorithms use (will be inside
  the configuration in the future) are listed
• Size of data request around the ROI
• Set of selection cuts
• For every selection variable we need the graph
  of variation in selection efficiency and
  rejection rate around the chosen optimal point
  (we are sure we will have to tune it with data)
• Need to prepare a set of algorithms and methods
  that allow us to check the trigger performance
  with data
• Particles with known mass (selected only
  triggering in one of its decay products)
• How many hours of data-taking do we need to know
  the selection efficiency within a 5 precision?
