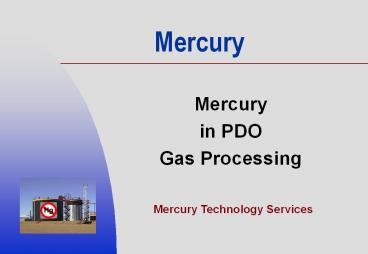

Mercury

1
Mercury

• Mercury
• in PDO
• Gas Processing

Mercury Technology Services
2
Types of Mercury

• Elemental Hg0
• Organic CH3HgCH3
• Inorganic HgCl2
• Suspended HgS

3
Mercury Metal
Hg0
4
Elemental Mercury
Hg0

• Found in gas and condensate
• Volatile (evaporates)
• Can be inhaled
• Adsorptive (sticks to surfaces)

5
Mercury is Volatile
Mercury evaporates like water
6
Mercuric Sulfide
HgS
Cinnabar
7
Ionic Mercury
HgCl2

• Sometimes found in produced water
• Not volatile (does not evaporate)
• Cannot be inhaled
• Can be ingested (drinking or eating contaminated
  food or water)

Ionic mercury is a salt
8
Mercury Amalgam
Mercury reacts with metals
9
Organic Mercury
CH3HgCH3

• Almost never found
• Less volatile
• Can be absorbed through the skin
• Adsorptive (sticks to surfaces)

10
Concentrations

• Gas 0.1 to 1000 ug/m3
• Condensate 0.1 to 2000 ppb
• SE Asia 500 ug/m3, 800 ppb condensate
• South America 100 ug/m3 wellhead, 40 ug/m3
  export 100 ppb condensate
• Algeria, Offshore Holland, Indonesia, China,
  Argentina, Venezuela

11
Measuring Mercury in Air
12
Jerome Mercury Analyzer
Mercury in air
13
Jerome Detector
Gold wire detector
14
Measuring Mercury in Gas
Mercury traps
15
Measuring Mercury in Solids and Liquids
Combustion Method
16
PDO CPP
17
Why worry?

• Mercury and mercury compounds are in natural gas,
  condensate and crude oil.
• You cannot smell, see or taste mercury.
• Mercury and its compounds are neurotoxins meaning
  they are poisonous to the brain.

18
Risk Analysis
Mercury is successfully dealt with in
virtually all gas production and processing
facilities without risk to workers or negative
impact on efficient operations.
19
How can I be exposed?

• Mercury is volatile and you can absorb it through
  your lungs if it is in the air you breathe.
• Some forms in condensate can be absorbed into the
  body through the skin.
• Mercury and its compounds are neurotoxins meaning
  they are poisonous to the brain.

20
Where can I be exposed?

• Cleaning tanks, vessels and equipment
• Hot work on corroded metals
• Maintenance, changing filters
• Glycol unit

21
Avoiding Exposure

• Follow safety policy and procedures
• Ask the Safety Officer
• Monitor the worksite
• Use Personal Protection Equipment (PPE)
• Stay clean (good hygiene)

Safety
22
Avoiding Exposure

• Training
• Wear PPE when required
• Cartridge Respirators
• (Hg0 lt 0.5 mg/m3)
• BA (Hg0 gt 0.5 mg/m3)
• Gloves
• Chemical suits in some situations

23
Avoiding Exposure

• Chemical Suits
• Barricade
• 4H
• Responder
• Tyvek

24
Worker Hygiene
Shutdown Procedures

• Wash hands and shower after working
• Use disposable clothing or segregate laundry
• Do not eat in work area

25
Respirators

• NIOSH RECOMMENDATIONS FOR MERCURY IN AIR
• UP TO 0.5 mg/m3 Chemical cartridge respirator or
  SAR.
• UP TO 1.25 mg/m3 SAR operated in a
  continuous-flow mode or powered air- purifying
  respirator with cartridge(s) to protect against
  mercury compounds (canister).
• UP TO 2.5 mg/m3 Full-facepiece chemical
  cartridge respirator with cartridge(s) to protect
  against mercury compounds or SAR with a
  tight-fitting facepiece operated in a
  continuous-flow mode or full-facepiece SCBA or
  full-facepiece SAR.
• UP TO 10 mg/m3 Positive pressure SAR.
• Abbreviations SAR supplied-air respirator
  SCBA self-contained breathing apparatus IDLH
  immediately dangerous to life or health.

26
Symptoms of Acute Exposure

• Shortness of breath
• Nausea
• Chest pain
• Blurred vision

27
Symptoms of Chronic Exposure

• Loss of memory
• Depression
• Confusion
• Personality change
• Dementia

28
Mercury Waste
Solid Waste

• Used PPE
• Sludge
• Debris
• Sorbents
• Filters

29
Mercury Waste
Liquid Waste

• Glycol
• Decon Solutions
• Condensate

30
Mercury Waste Flow
31
Mercury Sludge

• Mercury is a hazardous waste above 200 ppb.
• Keep mercury wastes separate from other wastes

32
Disposal of Mercury Waste
Storage

• Double bag
• Add sulfur
• Drum
• Label

33
Waste Handling and Storage

• Store mercury in metal containers in a secure
  area.
• Exercise caution when decanting liquid mercury.
• Mercury is incompatible with bleach and other
  oxidizers
• Mercury is incompatible with acids

34
Decontamination
35
Decontamination

• Metals - degrease
• Metals - chemical clean
• Plastics - throw away

36
Decontamination
Vapor Test
Test for contamination
37
Corrosion
38
Corrosion
39
Next Steps

• Review safety policy
• Review PPE requirements
• Know action levels
• If you have questions, ask the Safety Officer

40
Risk Analysis
Mercury is successfully dealt with in
virtually all gas production and processing
facilities without risk to workers or negative
impact on efficient operations.
41
smw_at_hgtech.com
