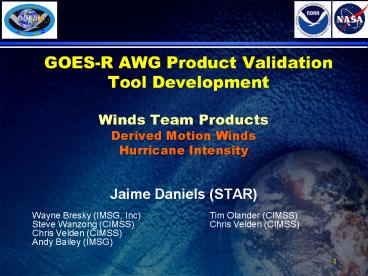

GOES-R AWG Product Validation Tool Development

1
GOES-R AWG Product Validation Tool Development

• Winds Team Products
• Derived Motion Winds
• Hurricane Intensity
• Jaime Daniels (STAR)

Wayne Bresky (IMSG, Inc) Steve Wanzong
(CIMSS) Chris Velden (CIMSS) Andy Bailey (IMSG)
Tim Olander (CIMSS) Chris Velden (CIMSS)
2
OUTLINE

• Example Product Output
• Validation Strategies
• Routine Validation Tools
• Deep-Dive Validation Tools

3
Derived Motion Winds
4
Example Output Long-wave IR Cloud-drift Winds
Cloud-drift Winds derived from a Full Disk
Meteosat-8 SEVERI 10.8 µm image triplet centered
at 1200 UTC 01 February 2007
4
Low-Level gt700 mb
Mid-Level 400-700 mb
High-Level 100-400 mb
5
Example Output Visible Cloud-drift Winds
Cloud-drift Winds derived from a Full Disk
Meteosat-8 SEVERI 0.60 um image triplet centered
at 1200 UTC 01 February 2007
5
Low-Level gt700 mb
6
Validation Strategies

• Routinely generate Derived Motion Wind (DMW)
  product in real-time using available ABI proxy
  data
• Acquire reference/ground truth data and
  collocate DMW product
• Radiosondes, GFS analysis, Wind profilers,
  CALIPSO
• Analyze and visualize data (imagery, GFS model,
  L2 products, intermediate outputs,
  reference/ground truth) using available and
  developed (customized) tools
• Measure performance
• Modify L2 product algorithm(s), as necessary

7
Validation Strategies
Radiosondes
GFS Analyses
Derived Motion Wind Product
CALIPSO
MET-9 SEVIRI Full Disk Imagery
Routine generation of winds product
Collocate DMW product with reference/ground truth
data
Clear-Sky Mask Cloud Products
GFS forecast files (GRIB2)
Analyze/ Visualize
Update L2 Product Algorithm(s), as necessary
Compute comparison statistics
Display Product Ground Truth Data
Re-retrieve single DMW
Search for outliers
Perform Case Study Analysis
8
Routine Validation ToolsProduct Visualization
McIDAS-V
McIDAS-X

• Heavy reliance on McIDAS to visualize DMW
  products, intermediate outputs, diagnostic data,
  ancillary datasets, and reference/ground-truth

9
Routine Validation ToolsProduct Visualization
Java-based program written to display satellite
winds vectors over a false color image
10
Routine Validation ToolsCollocation Tools

• Collocation Software (DMW and Reference/Ground
  Truth Winds)
• Radiosondes
• GFS Analysis
• Customized code (built on top of McIDAS) to
  perform the routine daily collocation of Level-2
  products with their associated reference
  (truth) observations
• Creation of comprehensive collocation databases
  that contain information that enables
  comparisons, error analyses

Satellite/Raob winds
Satellite/GFS Winds
11
Routine Validation ToolsComparison Statistics
GOES-13 CD WIND RAOB MATCH ERROR
STATISTICS PRESSURE RANGE 100 - 1000
LATITUDE RANGE -90 - 90
SAT GUESS RAOB
RMS DIFFERENCE (m/s) 6.68
6.11 NORMALIZED RMS
0.34 0.31 AVG DIFFERENCE (m/s)
5.51 5.02 STD DEVIATION
(m/s) 3.78 3.48
SPEED BIAS (m/s) -0.97
-1.32 DIRECTION DIF (deg)
14.85 15.06 SPEED (m/s)
18.55 18.20
19.52 SAMPLE SIZE
87100

• Customized codes that enable the generation and
  visualization of comparison statistics
• Text reports
• Creation of a database of statistics enabling
  time series of comparison statistics to be
  generated
• Use the PGPLOT Graphics Subroutine Library
• Fortran- or C-callable, device-independent
  graphics package for making various scientific
  graphs
• Visualize contents of collocated databases
• McIDAS is used

Satellite DMW vs. Raob Wind OR Satellite
DMW vs. GFS Analysis Wind
12
Routine Validation ToolsComparison Statistics
Retrieved Winds (100-400 mb) vs Radiosonde Winds
Retrieved Winds (400-700 mb) vs Radiosonde Winds
13
Example Scatter Plot Generated with PGPLOT
Version 3 vs. Version 4 Performance
Black Version 3 Algorithm RMS 7.78 m/s MVD
6.14 m/s Spd Bias -2.00 m/s Speed 17.68
m/s Sample 17,362 Light Blue Version 4
Algorithm (Nested Tracking) RMS 6.89 m/s MVD
5.46 m/s Spd Bias -0.18 m/s Speed 17.91
m/s Sample 17,428
LWIR Cloud-drift Winds August 2006 Meteosat-8,
Band 9
Sat Wind Speed (m/s)
Radiosonde Wind Speed (m/s)
14
Validation Strategies
Radiosondes
GFS Analyses
Derived Motion Wind Product
CALIPSO
MET-9 SEVIRI Full Disk Imagery
Routine generation of winds product
Collocate DMW product with reference/ground truth
data
Clear-Sky Mask Cloud Products
GFS forecast files (GRIB2)
Analyze/ Visualize
Update L2 Product Algorithm(s), as necessary
Compute comparison statistics
Display Product Ground Truth Data
Re-retrieve single DMW
Search for outliers
Perform Case Study Analysis
15
Deep-Dive Validation Tools

• Stand-alone re-retrieval visualization tool
  that enables the generation of a single derived
  motion wind vector for a single target scene and
  allows for the visualization of wind solution,
  tracking diagnostics, target scene
  characteristics . PGPLOT library used.

Line Displacement
Element displacement
Largest Cluster measuring motion of front
Second Cluster measuring motion along front
matches raob
16
Deep-Dive Validation Tools

• Stand-alone re-retrieval visualization tool
  that enables the generation of a single derived
  motion wind vector for a single target scene and
  allows for the visualization of wind solution,
  tracking diagnostics, target scene
  characteristics . PGPLOT library used.

Target Scene Characteristics
Feature Tracking Diagnostics
Correlation Surface Plots
Spatial Coherence Plots
17
Deep-Dive Validation Tools
Using CALIPSO/CloudSat Data to Validate Satellite
Wind Height Assignments

• Winds team continues to work closely with the
  cloud team on cloud height problem (case studies,
  most recently)
• Leverages unprecedented cloud information offered
  by CALIPSO and CloudSat measurements
• Enables improved error characterization of
  satellite wind height assignments
• Enables feedback for potential improvements to
  satellite wind height assignments
• Improvements to overall accuracy of
  satellite-derived winds

GOES-12 Cloud-drift Wind Heights Overlaid on
CALIPSO total attenuated backscatter image at
532nm
Work in progress
18
Radiosonde
Deep-Dive Validation Tools
Visualization of reference/ground truth data
using McIDAS-V
Done using McIDAS-V
19
Deep-Dive Validation Tools
At what height does satellite wind best fit?
20
Deep-Dive Validation Tools
100 250 hPa 251 350 hPa 351 500 hPa
The search for outliers
Vector Difference gt 20 m/s
Large wind barbs are GFS Analysis winds at 200
hPa.
21
Come see our Derived Motion Winds Posters
GOES-R AWG Winds Team Current Validation
Activities(Steve Wanzong is manning this poster)
New Methods for Minimizing the Slow Speed Bias
Associated with Atmospheric Motion Vectors
(AMVs)(Wayne Bresky is manning this poster)
22
Hurricane Intensity
23
Hurricane Intensity Product

• HIE algorithm output is purely textual
  (specifically it consists of the current TC
  intensity in terms of wind speed in m/s). No
  product displays are required. Examples of
  output Tailored Products are provided.

24
Validation Strategies

• HIE intensity estimates (stored in HIE history
  files) can be validated against two different
  ground truth data sets either in real-time of
  post-storm, depending on the data set used in the
  process.
• In situ aircraft reconnaissance measurements of
  maximum wind speed.
• May not be available for part or all of the storm
  lifetime, depending on where the storm track is
  located.
• Working and Final Best Track storm intensity
  history.
• Available for entire storm lifetime, but may not
  be based entirely on in situ data.
• Working Best Track is available in real-time
  during the storm lifetime. It may not be
  accurate due to bad observational data,
  inaccurate Dvorak estimates, or TC forecaster
  error.
• Final Best Track are made available after
  extensive analysis of all in situ observations,
  estimates from remote sensing methods/applications
  , and TC forecast methodology have been examined.
• Ground Truth data can be easily obtained via
  NOAA Family of Services or FTP sites (such as
  NOAA/NHC)

25
Routine Validation Tools

• Datasets will include the HIE history file output
  for each storm being analyzed. The history files
  will be compared directly to the in situ aircraft
  reconnaissance measurements of TC intensity or
  the Best Track intensity for the storm in
  question.
• The HIE validation suite will produce statistical
  comparisons of the HIE intensity estimates and
  the validation data. The statistical analysis
  will be provided in terms of wind speed (in m/s)
  precision and accuracy metrics as well as
  additional error metrics utilized at operational
  NOAA TC forecasting and analysis centers.
• HIE Validation analysis suite has already been
  used by an operational TC forecast center
  (NOAA/SAB) to verify the ADT/HIE, so it is
  already familiar to organizations who wish to
  validate the HIE.
• Output products are ASCII text files derived
  using a series of C programs and shell scripts.
  No proprietary software is currently used.

26
Routine Validation Tools
INTENSITY ERRORS (wind speed m/s)
bias rmse aae stdv cnt ADT07L
2.04 7.33 5.61 7.04 23
ADT-BestTrack Intensity Differences dCAT ALL
TD TS H12 H35 lt-20 0 0 0 0 0
-20 0 0 0 0 0 -15 1 0
0 0 1 -10 1 0 0 0 1 -5
4 0 1 1 2 0 9 0 1 6
2 5 4 0 0 1 3 10 2
0 0 0 2 15 2 0 0 0 2
20 0 0 0 0 0 gt20 0 0 0
0 0 23 0 2 8 13 dCAT
ALL TD TS H12 H35 lt 2.5
39.1 0.0 50.0 75.0 15.4 lt 7.5
73.9 0.0 100.0 100.0 53.8 gt10.0
17.4 0.0 0.0 0.0 30.8

• Current intensity validation statistical output
  example
• Intensity statistical error analysis versus
  ground truth (either reconnaissance and/or NHC
  Best Track information)
• Accuracy and precision measurements are displayed
  for the storm in question
• Categorical differences in ADT differences from
  ground truth can provide quick overview of any
  intensity estimate biases
• Output layout mirrors output parameters as
  utilized in operations by NOAA/SAB

27
Deep-Dive Validation Tools

• Analysis of HIE automated storm center
  determination algorithm
• Proper determination of storm center plays large
  role in intensity accuracy
• Graphical displays can easily show impact of
  improved position over forecast
• Statistical analysis can provide accuracy of each
  different location method
• Further statistical analysis comparisons will be
  derived versus various operational tropical
  cyclone forecast center intensity estimates
• Manual/Subjective Dvorak Technique estimates will
  also be compared to automated HIE estimates to
  note/define biases and/or derive baseline
  accuracy threshold for Dvorak-based methodologies

• NOAA/Satellite Analysis Branch (SAB) and
  NOAA/NHC/Tropical Analysis and Forecast Branch
  (TAFB), as well as the Joint Typhoon Warning
  Center (JTWC) currently perform manual Dvorak TC
  intensity estimates
• Methods to obtain real-time ground truth
  measurements of intensity and current operational
  Dvorak estimates would need to be outlined
• Output will be created using any graphical
  software package since data is based upon simple
  ASCII data files

28
Deep-Dive Validation Tools

• Graphical timeline example of HIE analysis versus
  observational data and/or TC forecast center
  Dvorak estimates
• Allows for quick analysis of the accuracy of the
  HIE performance versus subjective Dvorak
  estimates and/or ground truth
• Plots can be provided in real-time or in
  post-storm analysis mode
• SAB Dvorak estimates and NHC Best Track are
  displayed here

Timeline of HIE and NESDIS/Satellite Analysis
Branch (SAB) intensity estimates versus NHC Best
Track
29
Deep-Dive Validation Tools

• Histogram of HIE and operational center intensity
  estimates differences from ground truth
• Provides easy display of errors between the two
  methodologies
• Can easily identify any biases in intensity
  differences in either set of estimates
• HIE versus SAB Dvorak intensity differences from
  NHC Best Track are shown in the graph to the right

Histograms of HIE and NESDIS/SAB intensity
estimates differences versus NHC Best Track
30
Deep-DiveValidation Tools

• Display HIE automated storm center position
  versus ground truth and forecast interpolation
  positions
• Provides visual method to determine accuracy of
  automated storm center selection position
• Can be used to assess accuracy of current storm
  forecast from issuing TCFC
• Can be compared to aircraft reconnaissance, if
  available

Example of image displaying storm center location
information.
31
Deep-DiveValidation Tools
Storm center positioning errors

• Current intensity validation statistical output
  example
• Storm center positioning error analysis versus
  ground truth (either reconnaissance and/or NHC
  Best Track information)
• Accuracy and precision measurements are displayed
  for the storm in question or for entire ocean
  basin and season
• Comparisons with manual positions from TCFC can
  be output, if available
• Output layout mirrors output parameters as
  utilized in current operations by NOAA/SAB

POSITIONING ERRORS (distance in nmi) OVERALL
bias rmse aae stdv cnt SABLAT
0.00 0.17 0.12 0.17 118 SABLON
-0.07 0.24 0.17 0.23 118 SABDIST
13.86 118 ADTLAT 0.04
0.22 0.17 0.22 118 ADTLON -0.05
0.31 0.22 0.31 118 ADTDIST
18.16 118 Estimated Position
Error (nmi) by Fix Method Method Num ()
ADT SAB FORECAST 77 ( 65) 20.1
14.9 SPIRAL 29 ( 24) 16.8 13.9 COMBO
12 ( 10) 8.9 7.2 EXTRAP 0 ( 0)
0.0 0.0 OVERALL 118 18.2 13.9
32
Come see our Hurricane Intensity Validation
Poster The GOES-R Hurricane Intensity
Estimation (HIE) Algorithm Overview of Validation
Activity and Methodology (Tim Olander is
manning this poster)
