Projects

1

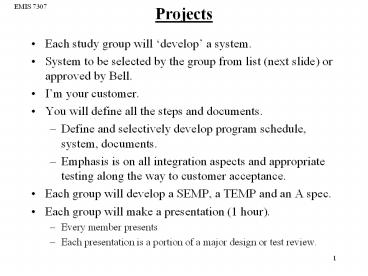

Projects

• Each study group will develop a system.
• System to be selected by the group from list
  (next slide) or approved by Bell.
• Im your customer.
• You will define all the steps and documents.
• Define and selectively develop program schedule,
  system, documents.
• Emphasis is on all integration aspects and
  appropriate testing along the way to customer
  acceptance.
• Each group will develop a SEMP, a TEMP and an A
  spec.
• Each group will make a presentation (1 hour).
• Every member presents
• Each presentation is a portion of a major design
  or test review.

2
Systems for Projects

• Select one or suggest one to Bell for approval
• Automobile
• Airplane
• Distributed computing
• Train
• Spacecraft
• Health monitoring

3
Systems for Projects

• Automobile
• Seats 5 -220 lb, 65 adults.
• 0-60 mph in 6 sec.
• Accelerates as quickly as it stops.
• Has auto-steer and auto-trip capability
• New capability that uses GPS and obstruction
  sensing to navigate safely from place to place.
• 2 years to IOC.

4
Systems for Projects

• Airplane
• Must host surveillance equipment (provided by
  another vendor).
• Accommodates aircrew and 5 sensor operators.
• Delivered with operator USI subsystems installed.

• Must fly from unimproved airfields.
• Used by all military services.
• All weather flying capability.
• 4 years to IOC, if modified.
• 6 years to IOC, if new aircraft.

5
Systems for Projects

• Distributed computing
• World -wide interconnected users.
• Business data processing.
• Scientific data analysis.
• Includes all communication, computing and data
  storage.
• 2 years to IOC.

6
Systems for Projects

• Passenger train
• Magnetically levitated.
• 220 mph normal cruise.
• Less than 80dB noise at 15 feet from train.
• May use modified version of existing cars for
  passengers.
• Include first 100 miles of track from DFW to
  Waco.
• 3 years to IOC.

7
Systems for Projects

• Spacecraft
• Mercury mapper.
• Both IR and radar.
• Directed subcontractors for the sensors.
• 3 year on-station life.
• Uses existing ground stations.
• 3 years to launch from shuttle in orbit.

8
Systems for Projects

• Health monitoring
• Used to monitor ambulatory patients from their
  homes.
• Realtime notification of physicians of out of
  tolerance parameters (50).
• Directed subcontractors for the sensors.
• 5 years between mandatory service.
• Automatic instructions to patient i.e. not just
  an alarm.
• 2 years to competitors roll-out.

9
Instructions

• Develop mini(10 pages each) A Spec with
  section 4, SEMP, and a Master Test Plan.
• Define subsystems and their performance
  requirements.
• Include engineering organization with roles and
  responsibilities.
• Use IPTs.
• Summarize written documents for a Powerpoint
  classroom presentation of which everyone presents
  an approximately equal portion.
• For the remaining information you need to know to
  do your project... ask Bell.
• If no answer in two days, make and document your
  assumptions then continue.
