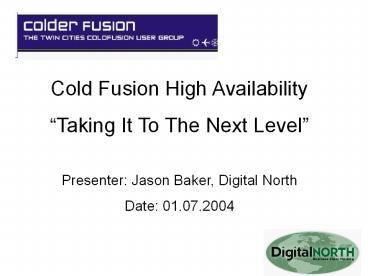

Title: Cold Fusion High Availability


1
Cold Fusion High Availability Taking It To The
Next Level Presenter Jason Baker, Digital
North Date 01.07.2004
2
About the Presenter
  • 7 years of Cold Fusion development experience
  • Participated in the development of 100 Cold
    Fusion websites
  • 10 years of Webhosting/ ISP/ Telecommunications
    experience
  • Co-Founder and Director of Operations for Digital
    North
  • Email jbaker_at_digitalnorth.net

3
About Digital North
  • Business Class Hosting Provider since 2001
  • Shared and Dedicated Hosting, Colocation, Managed
    Services
  • 3 Data Centers Agiliti, Inflow, Visi
  • Windows, Linux, IIS, Apache, MS SQL, Load
    Balancing, Firewalls, Cold Fusion 4.5-6.1, Flash
    Remoting
  • We serve over 1,000 business customers
  • www.digitalnorth.net

4
What is High Availability?
  • High Availability (HA) web applications provide
    maximum uptime while minimizing risks associated
    with service failures.
  • We need to think about the Datacenter, Network,
    Server, OS, Application, People
  • Risks Architecture changes, Business process
    changes, Cost
  • Rewards Better uptime, faster websites, happy
    customers ?

5
HA Infrastructure Requirements
  • Environment Is Everything
  • Physical service location
  • Climate control
  • Physical security protection from yourself
  • Power backup and redundancy
  • Multiple upstream providers
  • Local network redundancy
  • Fire suppression

6
HA Webserver Requirements
  • Server-class machine
  • Redundant power supplies
  • Redundant Array of Independent Disks (RAID)
  • Network storage
  • Redundant network access
  • Latest Firmware updates

7
HA OS Application Requirements
  • Hardened OS Windows, Linux, Sun
  • Security and performance tweaks
  • Virus Protection
  • Firewall Protection
  • Intrusion Detection
  • Data Backup Onsite and Offsite
  • Service Monitoring
  • Cold Fusion Security Best Practices http//www.ma
    cromedia.com/devnet/server_archive/articles/priori
    tizing_network_server_security.html
  • Macromedia Security Zone http//www.macromedia.
    com/devnet/security/security_zone/

8
What is Load Balancing?
  • Load Balancing is using multiple webservers to
    maximize service performance and minimize service
    failures.
  • 2 servers can handle more requests or handle
    current requests faster
  • 2 servers minimize risks associated with
    hardware failure, OS failure, Cold Fusion failure

9
Load Balancing Techniques
  • DNS Round-Robin El Cheapo Method
  • Software Load Balancing The Heartbeat
  • Cold Fusion MX for J2EE Multiple Instances
  • Application Isolation
  • ColdFusion Development Center
    http//www.macromedia.com/devnet/mx/coldfusion/clu
    stering.html
  • Cold Fusion Distributed Mode
  • Hardware Load Balancing
  • http//www.macromedia.com/devnet/server_archive/a
    rticles/choosing_hardware_lbdevice.html

10
Hardware Load Balancing
  • Network Architecture
  • Server failover one server takes the load of two
    servers
  • Load balancing algorithms Round Robin, Least
    Used, Fastest Response
  • Sticky sessions
  • Service monitoring agents
  • Active Content Verification

11
Cold Fusion Development Issues
  • Best case scenario Cold Fusion installation is
    identical on multiple servers
  • Store Cold Fusion session information in a
    database!! (Common problem)
  • Beware of local databases (MS Access)
  • Beware of writing to local disk (uploads),
    memory, or registry
  • Use replication to deploy application
  • Create a clustered development environment to
    properly test

12
Additional Design Issues
  • Load balanced applications could share similar
    failure points
  • Recognize issues related to applications sharing
    a common database
  • SSL requirements same key on each server or SSL
    proxy on hardware
  • Logfile analysis tools need to handle multiple
    logs
  • Stress test your applications in a load balanced
    environment

13
Hardware Load Balancing Costs
  • Costs for an entry-level solution (2 servers, lt
    1000 simultaneous connections, 5-10 Mb/s
    bandwidth)
  • Hardware
  • 2 Dell/HP/IBM Servers 6,000
  • 1 Load Balancing Switch 5,000
  • Software
  • 2 MS Windows 2000 1,500
  • 2 Cold Fusion MX 2,500
  • 1 File Replication 1,000
  • Labor 8 hours 1,000
  • Total 17,000

14
Questions?Thank you!jbaker_at_digitalnorth.net
