BANKS CO. MASTER FORAGE PROGRAM

1

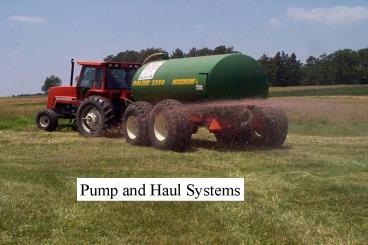

Pump and Haul Systems
2
Remote Storage or Tankers can also be used.
3
Umbilical Hose Application Systems
4
Incorporation reduces odor and conserves
nitrogen. Ammonia losses can be reduced from
10-30 to 1-5
5
Sweep-Style Manure Injector
No-till Manure Injector
6
Soybean Stubble in SC, Coastal Plain. Applied at
10,000 gallons per hour.
Sweep Injector
No-Till Injector
7
CalibrationLiquid Manure Spreaders

• Spread at least one full load of waste,
  preferably in a square or rectangular field
  pattern for ease of measuring, with normal
  overlaps.
• Measure the length and width of coverage,
  recognizing that the outer fringe areas of the
  coverage will receive much lighter applications
  than the overlapped areas.

8
Liquid Application Systems

• Advantages
• provide more transport mobility
• allow direct soil injection
• more flexibility
• can be less expensive

• Disadvantages
• requires more time and labor than irrigation
• higher tractor HP requirement if injecting
• require improved travel roads and proper soil
  trafficability
• higher operating costs

9
Pump and Haul Waste Management Systems

• Loading areas are necessary to
• protect equipment and operators
• avoid damaging the lagoon dike or embankment
• Care should be taken to minimize spills during
  loading and transport.
• Calibration is the combination of settings and
  travel speed needed to apply waste at a desired
  rate and to ensure uniform application. You must
  know the spreader capacity.

10
Solids Application

• Common methods include
• Broadcast to surface
• Broadcast/Incorp.

11
Spreader Calibration

• Do you know the rate?
• Clemson Study
• How about the spreader pattern?

12
Calibration of Manure Spreaders

• Applicators can apply manure, bedding, and
  wastewater at varying rates and patterns,
  depending on
• forward travel and/or PTO speed
• gear box settings
• gate openings
• spread widths
• overlaps

13
Application Uniformity
Desirable Patterns
Undesirable Patterns
14
BEST MANAGEMENT PRACTICES

• Best Management Practices are practices
  determined to be cost effective methods of
  preventing or reducing NPS pollution.
• For waste management, they optimize nutrient
  uptake by plants and minimize nutrient impact on
  the environment.
• A trained agronomist, soil scientist, or
  conservationist is best qualified to assess
  whether a specific BMP is appropriate
  for a given site.

15
BMPs?Erosion is the number one source of
nonpoint source pollution in Georgia.
BMPs should include erosion control to reduce
movement of soil and nutrients. Sediment is a
pollutant, sediment carries nutrients, and loss
of top soil reduces nutrient use by crop.
16
BMPs in CNMPs

• Table C1 in Template recognizes many BMPs and
  lists twelve specifically.
• You may add any others you like.
• 1) Tissue Analysis/Plant Sampling
• Good way to refine rate
• 2) Injection or incorporation
• 3) Manure Treatments like Alum

17
4) Conservation/Reduced Tillage
Reduces runoff and sediment losses
18
BMPs 5)contour planting.
19
6) Terraces or other water control structures
20
BMPs 7) Vegetated Waterways/critical area
plantings grassed waterways can reduce nutrient
movement to ditches, streams, and rivers.
21
8) Diversions/ Downslope retention
22
BMPs9) Buffers
Before
After
Buffers filter/treat - sediment -
nutrients - pathogens
23
9)filter strips can reduce surface movement of
nutrients into nonagricultural land.
24
BMP 10) Winter Cover/Scavenger Crops

• Protect soil from erosion over winter
• Crops scavenge residual nitrogen and phosphorus
• May be good crop to graze.

No-till planting into winter cover
25
BMPs 11) Rotational Grazing
Crop Management¾It is important to reduce
application rates to account for cattle manure
additions.
26
Windbreaks can reduce lagoon effluent and odor
drift from land application sites.
12) Application Timing
27
BMPs?

• Animals with access to surface water can be a
  direct source of pollution.

28
Record keeping

• Good records are essential
• For regulations
• To protect yourself
• To improve over time
• CNMPs are PLANS
• Records document actions
• Monitor, Correct, Document
• Computer record-keeping programs.

29
Required Records

• The following records must be available at the
  farm to satisfy the Environmental Protection
  Division
• By rules or permit
• Individual permits may differ
• Retain for three years
• Record who and when sampled
• Amend CNMP with substantive changes

30
Annual Checklist Log

• Manure storage not leaking
• Manure spreading equipment/transport equipment
  okay.
• Manure application according to plan
• Update CNMP
• Totals for field budgets
• Annual Report will require manure generated,
  offsite transport, acres used and reported in NMP
  and any spills

31
Other records from NPDES permit

• Inspections, findings, and maintenance
• Semi-annual lagoon effluent (TKNNO3) and
  monitoring wells (TKN,NO3, depth)
• Annual P and pH for each field
• Weekly lagoon and freeboard
• Daily rainfall and land application events
• Response to spills (posting reqd)

32
Lagoon Maintenance Inspections

• When inspecting waste inlet pipes, recycling
  pipes, and overflow pipes, look for
• separation of pipe joints
• cracks or breaks
• accumulation of minerals
• overall pipe condition
• Record berm conditions and liquid levels

33
Manure Application Records

• Important notations
• Date and time
• Field ID
• Source and quality
• Application rate and number of loads
• For offsite situations record buyer, intended
  use, amount, and nutrient content. Also supply
  directions for use.

34
Record Keeping (Other req)

• Document employee training .
• Spill reporting may require BOD, TSS, and amount
  of discharge- be prepared.
• Closure must be reported within three months.

35
Beneficial Records

• The following records are not required but should
  be part of your CNMP
• map of farm fields including waste application
  fields and acreage
• animal population
• crop yields and land application BMPs
• water quality/ environmental assessments
• Calibration procedures and results

36
Example Records for Liquid Manure Applications

• IRR-1 Lagoon liquid irrigation field record is
  to be used to record each irrigation event.
• IRR-2 Cumulative lagoon liquid irrigation field
  record is to record the total annual waste
  application to one field per crop cycle.

37
Similar Records for Slurry and Solid Manure
Applications

• SLUR-1 and SLUR 2 Liquid manure slurry field
  record is to be used to record each waste
  application event if the producer is using a
  slurry or pump and haul system.
• SLD-1 SLD-2 Solid manure

38
Example Irrigation Records Using IRR-1 and IRR-2

• Joe Pigford maintains a 3000 head
  feeder-to-finish operation.
• Estimated volume of lagoon liquid generated
  annually is approximately 2.8 million gallons.
• Waste analyses
• February 8, 1996¾2.5 lb PAN/1000 gal
• April 10, 1996¾2.5 lb PAN/1000 gal

39
Example Irrigation Records Using IRR-1 and IRR-2

• He irrigates two crops with wastewater using a
  traveling gun that applies 300 gpm.
• Tract T1004 corn¾traveling gun pulls are
  considered Fields 1 to 4, 6 acres each. He wants
  to apply 100 lbs of PAN/acre.
• Tract T1005 bermuda hay¾traveling gun pulls are
  considered Fields 5 and 6, which are 8 and 4
  acres respectively. He wants to apply 300 lbs of
  PAN/acre.

40
Example

• Joes Lagoon Liquid Irrigation Field Record (Form
  IRR-1) follows.
• Transfer the information for Fields 1 and 5 each
  onto a separate Form IRR-2.
• Complete the calculations to determine whether
  Joe has met his nitrogen requirement for his corn
  crop and bermuda hay.

41
(No Transcript)
42
(No Transcript)
43
(No Transcript)
44
(No Transcript)
45
Review

• Controlling Runoff and Erosion is important
  because sediment is a pollutant, it carries
  nutrients, and degrades top soil.
• Always apply manure when crops can use it.
• Manure with highest nutrient content should go to
  fields furthest away.
• Minimum records should include application date,
  nutrient content, amount applied, field, and
  weather conditions.

46
Review

• When choosing application equipment, consider
  nutrient losses, operating costs, uniformity of
  application, odor, and time of application.
• Calibration can determine application rate,
  uniformity, and overlap and lane spacing.
• Application rate is just the amount applied
  divided by the area it was applied to.
• Surface applications of manure generally result
  in higher nutrient losses.

47
Review

• Record keeping can prevent problems, document
  compliance and improve efficiency.
• Suggested records include application logs,
  rainfall, animal populations, storage
  inspections, equipment maintenance, and water
  quality data.
• Application records should include soil and
  manure tests, yields, application information and
  budgets.
• Transport should include amount sold, buyer, and
  nutrient content.
