Title: 7. TOXIC ORGANIC CHEMICALS


1

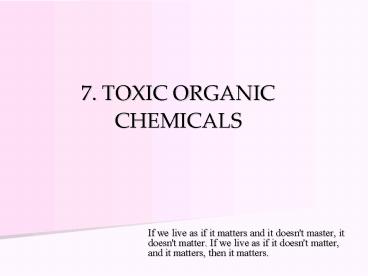

7. TOXIC ORGANIC CHEMICALS
  • If we live as if it matters and it doesn't
    master, it doesn't matter. If we live as if it
    doesn't matter, and it matters, then it matters.

2
  • There are 4 million organic chemicals (IUPAC).
  • 1000 new organic chemicals are synthesized
    each year.
  • A fraction of these is toxic or
    carcinogenic, and the vast majority of them break
    down in the environment.
  • If organics are persistent as wel1 as toxic, we
    may need to use mathematical models to determine
    if they pose an unreasonable risk to humans or
    the environment.
  • Organic chemistry is the chemistry of compounds
    of carbon. Organic chemicals are obtained from
    material produced originally by living organisms
    (petroleum, coal, and plant residues) or they are
    synthesized from other organic compounds or
    inorganics (carbonates or cyanides).

3
7.1 NOMENCLATURE
  • Figure 7.1 shows some classes of organic
    compounds that are widely used. The left-hand
    side of the figure gives some general classes of
    compounds and the right-hand side is a specific
    example of each.

Figure 7.1 Some common classes of organic
compounds (left) and examples (right). R and R
indicate different alkyl group.
4
  • In the environment, alkanes ? alcohol.
  • Enzymes catalyze the reactions, but other
    abiotic processes such as photolysis, hydrolysis,
    chemical oxidation or reduction may also be
    important.
  • Microbial "infallibility" would state that all
    organic chemicals that are synthesized can be
    mineralized all the way to carbon dioxide and
    water as shown above.
  • Microbes are not infallible, although given
    the proper conditions, enough time, and in
    concert with other physical and chemical
    reactions, they can often help to break down most
    organic chemicals. On the other hand, microbes
    and plants can sometimes synthesize chemicals in
    nature that are quite toxic and rather slow to
    degrade.
  • Chlorinated organic chemicals are not purely
    man-made (xenobiotics), but now we know that some
    chlorinated organic chemicals are synthesized by
    plants and quite common in nature.

5
  • Figure 7.2 shows some examples of cyclic organic
    chemicals that are sometimes difficult to degrade
    in the environment.
  • To oxidize benzene to carbon dioxide and water
    requires that the very stable benzene ring must
    be cleaved. Under anaerobic conditions this can
    be a difficult task.

Figure 7.2 Examples of cyclic organic compounds
(including alicyclic, aromatic, and heterocyclic
compounds).
6
  • Drinking water standards. Organic chemicals for
    which maximum allowable drinking water standards
    have been established are shown in Figure 7.3.
  • Figure 7.3
  • (a) Volatile organic compounds that have maximum
    contaminant level (MCL) drinking water standards.
  • (b) Some synthetic organic chemicals for which
    maximum contaminant levels (MCLs) have been
    established.

7
7.2 ORGANICS REACTIONS
  • The types of reactions biological
    transformations, chemical hydrolysis,
    oxidation/reduction, photodegradation,
    volatilization. sorption, and bioconcentration
    are among the important reactions that organic
    chemicals undergo in natural waters.
  • Biological transformations - the microbially
    mediated transformation of organic chemicals,
    often the predominant decay pathway in natural
    waters. It may occur under aerobic or anaerobic
    conditions, by bacteria, algae, or fungi, and by
    an array of mechanisms (dealkylation, ring
    cleavage, dehalogenation, etc.). It can be an
    intracellular or extracellunar enzyme
    transformation.
  • The term "biodegradation" is used synonymously
    with "biotransformation," but some researchers
    reserve "biodegradation" only for oxidation
    reactions that break down the chemical. Reactions
    that go all the way to CO2 and H2O are referred
    to as "mineralization." In the broadest sense,
    "biotransformation" refers to any microbially
    mediated reaction that changes the organic
    chemical. It does not have to be an oxidation
    reaction, nor does it have to yield carbon or
    energy for microbial growth or maintenance.

7.2.1 Biological Transformations
8
  • The term "secondary substrate utilization" - the
    utilization of organic chemicals at low
    concentrations in the presence of one or more
    primary substrates that are used as carbon and
    energy sources.
  • "Co-metabolism" - the transformation of a
    substrate that cannot be used as a sole carbon or
    energy source but can be degraded in the presence
    of other substrates.
  • Many toxic organic reactions in natural waters
    are microbially mediated with both bacteria and
    fungi degrading a wide variety of pesticides.
    Dehalogenation, dealkylation, hydrolysis,
    oxidation, reduction, ring cleavage, and
    condensation reactions are all known to occur
    either metabolically or via co-metabolism (see
    Table 7.1). In co-metabolism, the microbe does
    not even derive carbon or net energy from the
    degradation rather, the pesticide is caught up
    in the overall metabolic reactions as a
    detoxification or other enzymatic reaction.
  • Several bacterial genera are known that are
    capable of utilizing certain organics as the sole
    carbon, energy, or nitrogen source. Pseudomonas
    (with 2,4-D and paraquat), Nocardia (with dalapon
    and propanil), and Aspergillus species (with
    trifluralin and picloram) are poignant examples.

9
Table 7.1 Biological Transformations Common in
the Aquatic/Terrestrial Environment
10
  • It is convenient when possible to express rate
    expressions for organic transformations as
    pseudo-first-order-reactions, such as equation
    (1) below. The reaction rate expression is then
  • (1)
  • where C is the toxic organic concentration in
    solution and kb is the pseudo-first-order
    biotransformation rate constant.
  • Table 7.2 is a summary of pseudo-first-order and
    second-order rate constants kb for the
    disappearance of toxic organics from natural
    waters and groundwater via biotransformation.
  • The actual microbial biotransformation rate
    follows the Monod or Michaelis-Menton enzyme
    kinetics expression
  • (2)
  • Where kb pseudo-first-order biological
    transformation rate constant,T-1
  • µ maximum growth rate, T-1
  • X viable microbial biomass
    concentration, M L-3
  • Y cell yield, microbial cell
    concentration yield/ organic concentration
    utilized
  • KM Michaelis half saturation
    constant, M L-3.
  • Typical cell concentrations in surface waters
    would be 106 107 cells mL-1 and less in
    groundwater

11
Table 7.2 Selected Biotransformation Rate
Constants.
12
  • Under typical environmental conditions, the
    concentration of dissolved organics (C lt 10 µg
    L-1) is less than that of the Michaelis
    half-saturation constant (KM 0.1-10 mg L-1).
    Therefore the equation becomes
  • (3a)
  • where kb µ/YKM.
  • Sometimes organic chemicals that are adsorbed to
    suspended particulate matter are biodegraded in
    addition to soluble chemical. Equation (3a) must
    be rewritten in terms of both dissolved and
    adsorbed chemical concentrations
  • (3b)
  • where CT is the total whole water chemical
    concentration, C is the dissolved phase
    concentration and Cp is the particulate adsorbed
    concentration.
  • If the substrate concentration C is very large
    such that C gtgt KM , then the microorganisms are
    growing exponentially, and the rate expression in
    equation (2) reduces to
  • (4)
  • which is a zero-order rate expression in C and
    first-order in X.

13
  • Biotransformation experiments are conducted by
    batch, column, and chemostat experimental
    methods. Other fate pathways (photolysis,
    hydrolysis, volatilization) must be accounted for
    in order to correctly evaluate the effects of
    biodegradation.
  • It is incumbent on the fate modeler to understand
    the range of breakdown products (metabolites) in
    biological transformation reactions. Metabolites
    can be as toxic (or more toxic) than the parent
    compound.
  • Following all the metabolites and pathways in the
    biological degradation of organic chemicals can
    be complicated. Polychlorinated biphenyls (PCBs)
    are mixtures of many isomers - the total number
    of different organic chemicals is 209 congeners.
  • Figure 7.3b shows the structures, where x and y
    represent the combinations of chlorine atoms (one
    to five) at different positions on the biphenyl
    rings. Each congener has distinct properties that
    result in a different reactivity than the others.
    Both the rate of the biological transformation
    and the pathway can be different for each of the
    congeners.

14
  • There are several basic types of biodegradation
    experiments. Natural water samples from lakes or
    rivers can have organic toxicant added to them in
    batch experiments. Disappearance of toxicant is
    monitored.
  • Organic xenobiotic chemicals can be added to a
    water-sediment sample to simulate in situ
    conditions, or a contaminated sediment sample
    alone may be used with or without a spiked
    addition. Primary sewage, activated sludge, or
    digester sludge may be used as a seed to test
    degradability and measure xenobiotic
    disappearance.
  • Radiolabeled organic chemicals can be used to
    estimate metabolic degradation (mineralization)
    by measuring CO2 off-gas and synthesis into
    biomass. These experiments are called
    heterotrophic uptake experiments.
  • The organic chemical may be added in minute
    concentrations to simulate exposure in natural
    conditions, or it may be the sole carbon source
    to the culture to determine whether
    transformation reactions are possible.

15
  • Biodegradation is affected by numerous factors
    that influence biological growth
  • Temperature effects on biodegradation of toxics
    are similar to those on biochemical oxygen demand
    (BOD) using an Arrhenius-type relationship.
  • Nutrients are necessary for growth and often
    limit growth rate. Other organic compounds may
    serve as a primary substrate so that the chemical
    of interest is utilized via co-metabolism or as a
    secondary substrate.
  • Acclimation is necessary for expressing
    repressed (induced) enzymes or fostering those
    organisms that can degrade the toxicant through
    gradual exposure to the toxicant over time. A
    shock load of toxicant may kill a culture that
    would otherwise adapt if gradually exposed.
  • Population density or biomass concentration
    organisms must be present in large enough numbers
    to significantly degrade the toxicant (a lag
    often occurs if the organisms are too few).

16
7.2.2 Chemical Oxidation
  • Chemical oxidation takes place in the presence of
    dissolved oxygen in natural waters. Oxygen is
    reduced and the organic chemical is oxidized, but
    the reaction can be slow. Alternatively, chemical
    oxidation can be triggered by photochemical
    transients that may have considerable oxidizing
    power but low concentrations.
  • Oxidants such as peroxyl radicals ROO, alkoxy
    radicals RO, hydrogen peroxide H2O2, hydroxyl
    radicals OH, singlet oxygen O2, and solvated
    electrons are produced in low concentrations and
    react quickly in natural waters. Because of their
    large oxidizing power, they may react with a
    variety of trace organics in solution, but each
    transient reacts rather specifically with certain
    trace organic moieties.
  • It is better to determine the relevant oxidant
    chemistry and to measure the oxidant
    concentration when possible. Since the transient
    chemical oxidants are often generated
    photochemically, light-absorbing chromophores,
    such as humic and fulvic acids and algal
    pigments, and sunlight intensity will influence
    oxidation rates.

17
  • Alkyl peroxyl radicals (1 10-9 M in sunlit
    natural waters) react rapidly with phenols and
    amines in natural waters to form acids and
    aromatic radicals
  • Singlet oxygen reacts specifically with olefins
  • Singlet oxygen concentrations in sunlit natural
    waters are on the order of 110-12 M. All of
    these oxidation reactions may be assumed to be
    second-order reactions
  • (5)
  • where C is the organic concentration and Ox is
    the oxidant concentration.
  • Table 7.3 the second-order rate constants for
    chemical oxidation of selected priority organic
    chemicals with singlet oxygen and alkyl peroxyl
    radicals.

18
Table 7.3 Second-Order Reaction Rate Constants
for Chemical Oxidation Summary Table of
Oxidation Data with Singlet Oxygen O2 and Alkyl
Peroxyl Radicals ROO
19
  • Free radical oxidation requires a chain or series
    of reactions involving an initiation step,
    propagation, and subsequent termination. We will
    illustrate the free radical reaction using the
    alkyl peroxyl radical ROO as an example.

20
  • The chemical is represented as an arbitrary
    organic, RH. A-B is the initiator, which is any
    free radical source including peroxides, H2O2,
    metal salts, and azo compounds. Investigators
    have utilized a commercially available azo
    initiator to estimate the reactivity of
    pesticides to ROO in natural waters.
  • If no initiators are available in the water, then
    reaction (c) represents the probable oxidation
    pathway, a slow reaction with dissolved oxygen.
    Otherwise steps (a) and (b) lead to peroxide
    formation, step (d). Once the highly reactive
    peroxide radical is formed, it continues to react
    with the organic chemical, RH, and regenerates
    another free radical, R', as given in reaction
    (e).
  • This step may be repeated thousands of times for
    every photon of light absorbed. Chance collisions
    between free radicals can terminate the reaction,
    reactions (f), (g), and (h). At the low pollutant
    concentrations found in natural waters, reaction
    (f) is the most likely termination step. Hydrogen
    peroxide may also be formed, especially when
    natural dissolved organic matter (DOC) and
    humates are present. H2O2 is a powerful oxidant
    in natural waters.

21
  • If the initiation step is rapid, then the
    rate-limiting step is the rate of oxidation of
    the organic in reaction (e)
  • (6)
  • Provided that reaction (d) is more raped than
    reaction (e), the rate of peroxide formation is
  • (7)
  • and assuming steady state, the rate of radical be
    equal to the rate of termination
  • (8), (9)
  • Substituting equation (9) into equation (6), we
    find the final reaction rate for the oxidation of
    the organic chemical is
  • (10)

22
  • The rate of reaction is a pseudo-first-order
    reaction, where k3 is the overall reaction rate
    constant which is a function of rf, the rate of
    peroxide formation. If the rate of peroxide
    formation is relatively constant (as expected in
    natural waters), then the free radical oxidation
    of the toxic organic can be computed as a
    pseudo-first-order reaction.
  • First-order oxidations of pesticides and organic
    chemicals have been reported in natural waters.
    However, these oxidations are often microbially
    mediated. Strictly chemical free radical
    oxidation of toxic organics in natural waters
    remains important for a few classes of compounds.
    Free radical oxidation is often a part of the
    photolytic cycle of reactions in natural waters
    and atmospheric waters.
  • Oxidations of organic chemicals by O2(aq) is
    generally slow, but it can be mediated by
    microorganisms. Cytochrome P450 monooxygenase is
    a well-studied enzyme with an iron porphyrin
    active site. Methanotrophs and other organisms
    can use this pathway to oxidize organics in
    natural waters, a type of biological
    transformation.

23
7.2.3 Redox Reactions
  • Electron acceptors such as oxygen, nitrate, and
    sulfate can be reduced in natural waters while
    oxidizing trace organic contaminants. Oxidation
    reactions of toxic organic chemicals are
    especially important in sediments and
    groundwater, where conditions may be anoxic or
    anaerobic. The general scheme for utilization of
    electron acceptors in natural waters fort lows
    thermodynamics (Table 7.4).
  • The sequence of electron acceptors is
    approximately
  • The organic chemical in Table 7.4 is represented
    as a simple carbohydrate (CH2O such as glucose
    C6H12O6) but other organics may be important
    reductants in natural waters and groundwaters.

24
  • Strict chemical reduction reactions that do not
    involve a biological catalyst (abiotic reactions)
    are common in groundwater but less important in
    natural waters and sediments, where a great
    complement of enzymes are available for redox
    transformations. In groundwater, H2S is a common
    reductant. It can reduce nitrobenzene to aniline
    in homogeneous reactions.

Table 7.4 Redox Reactions in a Closed Oxidant
System at 25ºC and pH 7.0 and Their Free Energies
of Reaction.
25
  • Likewise, humic substances and their decay
    products (natural organic matter, NOM) are good
    reductants in homogeneous systems.
  • Figure 7.4 is a structure-activity relationship
    demonstrating that, in homogeneous solution, the
    second-order kinetic rate constant kAB is
    directly proportional to the one-electron
    reduction potential of the redox couple.
  • (11)
  • where H2X is the reductant.
  • Schwarzenbach et al. have shown that, in the case
    of juglone, it is not the diprotic dihydroquinone
    H2JUG that is the reactant with nitroaromatics,
    but rather the anions HJUG- and JUG2-. Reductants
    in natural waters include quinone, juglone (oak
    tree exudate), lawsone, and Fe-porphyrins.
    Nitroreduction is a two-electron, two-proton
    transfer reaction.
  • The reduction of nitroaromatic compounds in
    natural waters and soil water may be viewed as an
    electron transfer system that is mediated by NOM
    or its constituents.

26
Figure 7.4 Liner free-energy relationship
between second-order rate constant and the one
electron potential for reduction of substituted
nitrobenzenes with natural organic matter
(Juglone). From Schwarzenbach, et al..
27
  • Natural organic matter contains electron transfer
    mediators such as quinones, hydroquinones, and
    Fe-porphyrin-like substances.
  • These mediators are reactants that are
    regenerated in the process by the bulk reductant,
    which is in excess.

28
Table 7.5 Redox Half-Reactions Pertinent in
Wastewater, Groundwater, and Sediment Reactions
29
7.2.4 Photochemical Transformation Reactions
  • Direct photolysis, a light-initiated
    transformation reaction, is a function of the
    incident energy on the molecule and the quantum
    yield of the chemical.
  • When light strikes the pollutant molecule, the
    energy content of the molecule is increased and
    the molecule reaches an excited electron state.
    This excited state is unstable and the molecule
    reaches a normal (lower) energy level by one of
    two paths
  • - it loses its "extra" energy through energy
    emission, that is, fluorescence or
    phosphorescence
  • - it is converted to a different molecule
    through the new electron distribution that
    existed in the excited state. Usually the organic
    chemical is oxidized.
  • Photolysis may be direct or indirect. Indirect
    photolysis occurs when an intermediary molecule
    becomes energized, which then reacts with the
    chemical of interest.

30
  • The basic equation for direct photolysis is of
    the form
  • (12)
  • Where C is the concentration of organic chemical,
    and kp is the rate constant for photolysis.
    Photo1ysis rate constants can be measured in the
    yield with sunlight or under laboratory
    conditions.
  • The first-order rate constant, kp can be
    estimated directly
  • (13)
  • where kp photolysis rate constant, s-1
  • J 6.02 1020 conversion constant
  • f quantum yield
  • I? sunlight intensity at wavelength ?,
    photons cm-2 s-1
  • e? molar absorbtivity or molar extinction
    coefficient at wavelength ?,
  • molarity-1 cm-1.
  • The near-surface photolysis rate constants,
    quantum yields, and wavelengths at which they
    were measured are presented in Table 7.6.
    Photolysis will not be an important fate process
    unless sunlight is absorbed in the visible or
    near-ultraviolet wavelength ranges (above 290 nm)
    by either the organic chemical or its sensitizing
    agent.

31
  • The quantum yield is defined by
  • (14)
  • An einstein is the unit of light on a molar basis
    (a quantum or photon is the unit of light on a
    molecular basis). The quantum yield may be
    thought of as the efficiency of photoreaction.
    Incoming radiation is measured in units of energy
    per unit area per time (e g., cal cm-2 s-1). The
    incident light in units of einsteins cm-2 s-1
    nm-1 can be converted to watts cm-2 nm-1 by
    multiplying by the wavelength (nm) and 3.03
    1039.
  • The intensity of light varies over the depth of
    the water column and may be related by
  • (15)
  • where Iz is the intensity at depth z, I0 is the
    intensity at the surface, and Ke is an extinction
    coefficient for light disappearance.
  • Light disappearance is caused by the scattering
    of light by reflection off particulate matter,
    and absorption by any molecule. Absorbed energy
    can be converted to heat or can cause photolysis.
    Light disappearance is a function of wavelength
    and water quality (e.g., color, suspended solids,
    dissolved organic carbon).

32
  • Indirect or sensitized photolysis occurs when a
    nontarget molecule is transformed directly by
    light, which, in turn, transmits its energy to
    the pollutant molecule. Changes in the molecule
    then occur as a result of the increased energy
    content.
  • The kinetic equation for indirect photolysis is
  • (16)
  • where k2 is the indirect photolysis rate
    constant, X is the concentration of the nontarget
    intermediary, and kp is the overall
    pseudo-first-order rate constant for sensitized
    photolysis.
  • The important role of inducing agents (e.g.,
    algae exudates and nitrate) has been
    demonstrated.
  • Inorganics, especially iron, play an important
    role in the photochemical cycle in natural
    waters. Hydrogen peroxide, a common transient
    oxidant, is a natural source of hydroxyl radicals
    in rivers, oceans, and atmospheric water
    droplets.

33
  • Direct photolysis of H2O2 produces OH, but this
    pathway is relatively unimportant because H2O2
    does not absorb visible light very strongly. The
    important source of OH involves hydrogen
    peroxide and iron (II) in a photo-Fenton
    reaction.
  • Hydroxyl radicals are a highly reactive and
    important transient oxidant of a wide range of
    organic xenobiotics in solution. They can be
    generated by direct photolysis of nitrate and
    nitrite in natural waters, or they can be
    generated from H2O2 in the reaction shown above.
    Nitrobenzene, anisole, and several pesticides
    have been shown to be oxidized by hydroxyl
    radicals in natural waters.

34
7.2.5 Chemical Hydrolysis
  • Chemical hydrolysis is that fate pathway by which
    an organic chemical reacts with water.
    Particularly, a nucleophile (hydroxide, water, or
    hydronium ions), N, displaces a leaving group, X,
    as shown.
  • Hydrolysis does not include acid-base, hydration,
    addition, or elimination reactions. The
    hydrolysis reaction consists of the cleaving of a
    molecular bond and the formation of a new bond
    with components of the water molecule (H, OH-).
    It is often a strong function of pH (see Figure
    7.5).
  • Three examples of a hydrolysis reaction are
    presented below.

35
  • Types of compounds that are generally susceptible
    to hydrolysis are
  • - Alkyl halides
  • - Amides
  • - Amines
  • - Carbamates
  • - Carboxylic acid esters
  • - Epoxides
  • - Nitriles
  • - Phosphonic acid esters
  • - Phosphoric acid esters
  • - Sulfonic acid esters
  • - Sulfuric acid esters
  • The kinetic expression for hydrolysis is

36
  • A summary of these data is presented in Table
    7.7.
  • Hydrolysis experiments usually involve fixing the
    pH at some target value, eliminating other fate
    processes, and measuring toxicant disappearance
    over time. A sterile sample in a glass tube,
    filled to avoid a gas space, and kept in the dark
    eliminates the other fate pathways. In order to
    evaluate ka and kb, several non-neutral pH
    experiments must be conducted as depicted in
    Figure 7.5.
  • Often, the hydrolysis reaction rate expression in
    equation (17) is simplified to a
    pseudo-first-order reaction rate expression at a
    given pH and temperature (Table 7.7, 298 K and pH
    7).
  • (18)
  • where kh kb OH- ka H kn and kh is the
    pseudo-first-order hydrolysis rate constant, T-1
    kb is the base-catalyzed rate constant,
    molarity-1 T-1 ka is the acid-catalyzed rate,
    polarity-1 T-1 and kn is the neutral rate
    constant, T-1.

37
Table 7.7Selected Chemical Hydrolysis Rate
Constants, at 298 K and pH 7.
38
Figure 7.5Effect of pH on hydrolysis rate
constants.
39
7.2.6 Volatilization/Gas Transfer
  • The transfer of pollutants from water to air or
    from air to water is an important fate process to
    consider when modeling organic chemicals.
    Volatilization is a transfer process it does not
    result in the breakdown of a substance, only its
    movement from the liquid to gas phase, or vice
    versa.
  • Gas transfer of pollutants is analogous to the
    reaeration of oxygen in surface waters and will
    be related to known oxygen transfer rates. The
    rate of volatilization is related to the site of
    the molecule (as measured by the molecular
    weight).
  • Gas transfer models are often based on two-film
    theory (Figure 7.6). Two-film theory was derived
    by Lewis and Whitman in 1923. Mass transfer is
    governed by molecular diffusion through a
    stagnant liquid and gas film. Mass moves from
    areas of high concentration to areas of low
    concentration. Transfer can be limited at the gas
    film or the liquid film.
  • Oxygen, for example, is controlled by the
    liquid-film resistance. Nitrogen gas, although
    approximately four times more abundant in the
    atmosphere than oxygen, has a greater liquid-film
    resistance than oxygen.

40
  • Volatilization, as described by two-film theory,
    is a function of Henrys constant, the gas-film
    resistance, and the liquid-film resistance. The
    film resistance depends on diffusion and mixing.
    Henry's constant, H, is a ratio of a chemical's
    vapor pressure to its solubility. It is a
    thermodynamic ratio of the fugacity of the
    chemical (escaping tendency from air and water).
  • (19)
  • where pg is the partial pressure of the chemical
    of interest in the gas phase
  • Csl is its saturation solubility.
  • Henry's constant can be "dimensionless" mg/L (in
    air)/mg/L (in water) or it has units of atm m3
    mol-1.

Figure 7.6 Two-film theory of gas-liquid
interchange.
41
  • The value of H can be used to develop simplifying
    assumptions for modeling volatilization. If
    either the liquid-film or the gas-film controls -
    that is, one resistance is much greater than the
    other - the lesser resistance can be neglected.
  • The flux of contaminants across the boundary can
    be modeled by Fick's first law of diffusion at
    equilibrium,
  • (20)
  • where D is the molecular diffusion coefficient
    and dC/dx is the concentration gradient in either
    the gas or liquid phase.
  • If we consider the molecular diffusion to occur
    through a thin stagnant film, the mass flux is
    then
  • (21)
  • where k D/?z in which ?z is the film thickness
    and k is the mass transfer coefficient with units
    of LT-1.
  • At steady state, the flux through both films of
    Figure 7.6 must be equal
  • (22)

42
  • If Henry's law applies exactly at the interface,
    we can express the concentrations in terms of
    bulk phase concentrations, which are measurable
    by substitution below
  • (23)
  • (24)
  • (25)
  • By rearranging equation (25), we can solve for N
    in terms of bulk phase concentration, mass
    transfer coefficients for each phase, and Henry's
    constant
  • (26)
  • where KL is the overall mass transfer coefficient
    derived for expression of the gas transfer in
    terms of a liquid phase concentration.
  • (27)

43
  • We may think of the first term on the right-hand
    side of the equation as a liquid-film resistance
    and the second term as a gas phase resistance
    using an electrical resistance analogy.
  • We can compare the two resistances to determine
    if the
  • (28)
  • gas phase resistance, rg, or the liquid phase
    resistance, rl, predominates.
  • Equivalently, we could choose to write the
    overall mass transfer in terms of the buck gas
    phase concentration.
  • (29), (30)
  • If the gas is soluble, then H is small and the
    gas-film resistance controls mass transfer.
  • In terms of a differential equation, the overall
    gas transfer
  • (31)
  • where Csat pg/H, A is the interfacial surface
    area, and V is the volume of the liquid.

44
  • In streams, A/V is the reciprocal depth of the
    water and the equation can be expressed as
  • (32)
  • where Z is the mean depth and kli is termed the
    volatilization rate constant (T-1).
  • Equations (31) and (32) apply for either gas
    absorption or gas stripping from the water body.
    It is a reversible process.
  • The mass transfer coefficients are dependent on
    the hydrodynamic characteristics of the air-water
    interface and flow regime. For flowing water, we
    may write
  • (33)
  • where u is the mean stream velocity and Z is the
    mean depth.
  • For smooth flow (no ripples or waves) and wind
    speed less than 5 ms-1, 1/Kd predominates.
  • (34), (35)
  • where CD is the dimensionless drag coefficient,
    W is the wind speed, and v is the kinematic
    viscosity.

45
  • The transfer term for aerodynamically rough flow
    with wave is
  • (36)
  • where d is the diameter or amplitude of the
    waves, u is the surface shear velocity and a is
    a constant dependent on the physics of the wave
    properties.
  • The diffusion coefficients in water and air have
    been related to molecular weight
  • (37)
  • where Dl is the diffusivity of the chemical in
    water and MW is the molecular weight, and
  • (38)
  • where Dg is the diffusivity of the chemical in
    air.
  • The mass transfer rate constant, kli, can then
    be related to the oxygen reaeration rate, ka, by
    a ratio of the diffusivity of the chemical to
    that of oxygen in water
  • (39)

46
  • The reaeration rate, ka, can be calculated from
    any of the formulas available. In addition, the
    overall gas-film transfer rate may be calculated
    from
  • (40)
  • where vg is the kinematic viscosity of all (a
    function of temperature) as presented in Table
    7.8, Z is the water depth, and W is the wind
    speed in m s-1 kgi has units of T-1.
  • Solubility, vapor pressure, and Henry's constant
    data are presented in Table 7.9.
  • Dimensionless Henry's constant refer to a
    concentration ratio of mg/L air per mg/L in the
    water phase.
  • Yalkowsky measured the solubility of 26
    halogenated benzenes at 25 ºC and developed the
    following relationship
  • (41)



  • Where Sw is solubility (mol L-1), MP is the
    melting point (ºC), and Kow is the estimated
    octanol/water partition coefficient.

47
Table 7.8 Kinematic Viscosity of Air
48
Table 7.9 Summary Table of Volatilization Data at
20 ºC
49
Table 7.9 (continued)
50
  • Lyman et al. compiled solubility data on 78
    organic compounds and presented estimation
    methods based on Kow for different classes of
    compounds. They also included a method based on
    the molecular structure.
  • Mackay measured Henry's constant for 22 organic
    chemicals as part of a study of volatilization
    characteristics.
  • Transfer coefficients for the gas and liquid
    phases were correlated for environmental
    conditions as
  • (42)
  • (43)
  • Where U10 is the 10-m wind velocity (m s-1), ScL
    and ScG are the dimensionless liquid and gas
    Schmidt numbers.
  • Volatile compounds such as those shown in Figure
    7.3a are easily removed from water and wastewater
    by purging with air or by passing them through an
    air stripping tower. In natural waters, they are
    removed by stripping from the atmosphere.
  • The overall mass transfer coefficient KL can be
    related to that of oxygen (Table 7.10) because so
    much information exists for oxygen transfer in
    natural waters.

51
Table 7.10 Estimated Henrys Constant and Mass
Transfer Coefficients for Selected Organics at 20
ºC
52
7.2.7 Sorption Reaction
  • Soluble organics in natural waters can sorb onto
    particulate suspended material or bed sediments.
    The mechanism and the processes by which this
    occurs include
  • - physical adsorption due to van der Waals
    forces
  • - chemisorption due to a chemical bonding or
    surface coordination reaction
  • - partitioning of the organic chemical into the
    organic carbon phase of the particulates.
  • Physical adsorption is purely a surface
    electrostatic phenomenon. Partitioning refers to
    the dissolution of hydrophobic organic chemicals
    into the organic phase of the particulate matter
    it is an absorption phenomenon rather than a
    surface reaction, and it may occur slowly over
    time scales of minutes to days.
  • Adsorption isotherms refer to the equilibrium
    relationship of sorption between organics and
    particulates at constant temperature. The
    chemical is dissolved in water in the presence of
    various concentrations of suspended solids. After
    an initial kinetic reaction, a dynamic
    equilibrium is established in which the rate of
    the forward reaction (sorption) is exactly equal
    to the rate of the reverse reaction (desorption).

53
  • The sorption of toxicants to suspended
    particulates and bed sediments is a significant
    transfer mechanism. Partitioning of a chemical
    between particulate matter and the dissolved
    phase is not a transformation pathway it only
    relates the concentration of dissolved and sorbed
    states of the chemical.
  • The octanol/water partition coefficient, Kow, is
    related to the solubility of a chemical in water.
  • Tables 7.9 and 7.11 provide log Kow values for a
    number of organic chemicals of environmental
    interest.

Table 7.11 Octanol/Water Partition Coefficients
of Selected Organics, 298 K
54
  • The laboratory procedure for measuring Kow is
    given by Lyman.
  • 1. Chemical is added to a mixture of pure
    octanol (a nonpolar solvent) and - pure water (a
    polar solvent). The volume ratio of octanol and
    water is set at the estimated Kow.
  • 2. Mixture is agitated until equilibrium is
    reached.
  • 3. Mixture is centrifuged to separate the two
    phases. The phases are analyzed for the chemical.
  • 4. Kow is the ratio of the chemical
    concentration in the octanol phase to chemical
    concentration in the water phase, and has no
    units. The logarithm of Kow has been measured
    from -3 to 7.
  • If the octanol/water partition coefficient cannot
    be reliably measured or is not available in
    databases, it can be estimated from solubility
    and molecular weight information,
  • (44)
  • where MW is the molecular weight of the pollutant
    (g mol-1) and S is in units of ppm for organics
    that are liquid in their pure state at 25 ºC.

55
  • For organics that are solid in their pure state
    at 25 ºC,
  • (45)
  • where MP is the melting point of the pollutant
    (ºC) and ?Sf is the entropy of fusion of the
    pollutant (cal mol-1 deg-1).
  • The octanol/water partition coefficient is
    dimensionless, but it derives from the
    partitioning that occurs in the extraction
    between the chemical in octanol and water.
  • Octanol was chosen as a reference because it is a
    model solvent with some properties that make it
    similar to organic matter and lipids in nature.
  • For a wide variety of organic chemicals, the
    octanol water partition coefficient is a good
    estimator of the organic carbon normalized
    partition coefficient (Koc).

56
  • Karickhoff et al. and Schwarzenbach and Westall
    have published useful empirical equations for
    predicting Koc as a function of Kow
  • (46)
  • (47)
  • Once an estimate of Koc is obtained, the
    calculation of a sediment/water partition
    coefficient suitable for natural waters is
    straightforward because the
  • (48)
  • where foc is the decimal fraction of organic
    carbon present in the particulate matter
    (mass/mass).
  • Figure 7.7 is a schematic of how Kp, Koc, and Kow
    are interrelated. Figure 7.7 is the Langmuir
    adsorption isotherm for sorption of one chemical
    on particulate matter.

57
Figure 7.7Relationship between the
sediment/water partition coefficient Kp, the
organic carbon partition coefficient Koc, and the
octanol/water partition coefficient Kow.Plot (a)
and (b) are for only one chemical and (c) is for
many chemicals.
58
  • Kp is a measure of the actual partitioning in
    natural waters.
  • The linear portion of the adsorption isotherm
    (Figure 7.7a) can be expressed by equation
  • (49)
  • The Langmuir isotherm in Figure 7.7a is derived
    from the kinetic eqn for sorption-desorption
  • (50), (51)
  • where C is the concentration of dissolved
    toxicant, Cp is the concentration of particulate
    toxicant, Cpc is the maximum adsorptive
    concentration of the solids, and k1 and k2 are
    the adsorption and desorption rate constants,
    respectively.

59
  • At steady-state, eqn (51) reduces to a Langmuir
    isotherm in which the amount adsorbed is linear
    at low dissolved toxicant concentrations but
    gradually becomes saturated at the maximum value
    (rc) at high dissolved concentrations.
  • (52)
  • Generally, the adsorption capacity of sediments
    is inversely related to particle size clays gt
    silts gt sands. Sorption of organic chemicals is
    also a function of the organic content of the
    sediment, as measured by Koc, and silts are most
    likely to have the highest organic content.
  • Sometimes a Freundlich isotherm is inferred from
    empirical data. The function is of the form
  • (53)
  • where n is usually greater than 1. In dilute
    solutions, when n approaches 1, the Freundlich
    coefficient, K, is equal to the partition
    coefficient, Kp.

60
  • The partition coefficient is derived from
    simplification of the kinetic eqns (50) and (51)
    if rc gtgt r (the linear portion of the Langmuir
    isotherm). In this case, we may write
  • (54a), (54b)
  • Where kf is the adsorption rate constant and kr
    is the desorption rate constant.
  • The total concentration of toxicant
  • (55)
  • Where fd and fp are the dissolved and particulate
    fractions, respectively
  • and the ratio of the reaction rate constants is
    related by
  • (58)
  • Where the 8 subscripts indicate chemical
    equilibrium.

(56), (57)
61
  • From kinetics experiments where dissolved and
    particulate concentrations are monitored over
    time, the ratio of steady-state concentrations
    can be read from the graph (Figure 7.8).
  • Sorption reactions usually reach chemical
    equilibrium quickly, and the kinetic
    relationships can often be assumed to be at
    steady-state. This is sometimes referred to as
    the "local equilibrium" assumption, when the
    kinetics of adsorption and desorption are rapid
    relative to other kinetic and transport processes
    in the system.
  • O'Conner and Connolly first reported that, for
    organics and metals alike, the sediment/water
    partition coefficient Kp declines as sediment
    (solids) concentrations increase. It is a
    consistent phenomenon in natural waters that is
    particularly important for hydrophobic organic
    chemicals. For example, the Kp for a chemical in
    sediments is much lower than that observed in the
    water column. Most researchers attribute this
    fact to artifacts in the way that one attempts to
    measure Kp, including complexation of a chemical
    by colloids and dissolved organic carbon that
    pass a membrane filter.

62
Figure 7.8 Kinetic sorption experiment in a
batch reactor
63
7.2.8 Bioconcentration and Bioaccumulation
  • Bioconcentration of toxicants is defined as the
    direct uptake of aqueous toxicant through the
    gills and epithelial tissues of aquatic
    organisms. This fate process is of interest
    because it helps to predict human exposure to the
    toxicant in food items, particularly fish.
  • Bioconcentration is part of the greater picture
    of bioaccumulation and biomagnification that
    includes food chain effects. Bioaccumulation
    refers to uptake of the toxicant by the fish from
    a number of different sources including
    bioconcentration from the water and biouptake
    from various food items (prey) or sediment
    ingestion. Biomagnification refers to the process
    whereby bioaccumulation increases with each step
    on the trophic ladder.
  • The terms bioconcentration, bioaccumulation, and
    biomagnification are sometimes mistakenly used
    interchangeably. It is useful to accept the
    following definitions for the sake of discussion.

64
  • Bioconcentration the uptake of toxic organics
    through the gill membrane and epithelial tissue
    from the dissolved phase.
  • Bioaccumulation the total biouptake of toxic
    organics by the organism from food items
    (benthos, fish prey, sediment ingestion, etc.) as
    well as via mass transport of dissolved organics
    through the gill and epithelium.
  • Biomagnification that circumstance where
    bioaccumulation causes an increase in total body
    burden as one proceeds up the trophic ladder from
    primary producer to top carnivore.
  • Bioconcentration experiments measure the net
    bioconcentration effect after x days, having
    reached equilibrium conditions, by measuring the
    toxicant concentration in the test organism. The
    BCF (bioconcentration factor) is the ratio of the
    concentration in the organism to the
    concentration in the water.

65
  • The BCF derives from a kinetic expression
    relating the water toxicant concentration and
    organism mass
  • (59)
  • where e efficiency of toxic absorption at the
    gill
  • k1 (L filtered/kg organism per day)
  • k2 depuration rate constant
    including excretion and clearance of metabolites,
    day-1
  • C dissolved toxicant, µg L-1
  • B organism biomass, kg L-1
  • F organism toxicant residue (whole
    body), µg kg-1
  • Steady-state solution is
  • (60)
  • where BCF has units of (µg/kg)/(µg/L).
  • Bioconcentration is analogous to sorption of
    hydrophobic organics. Organic chemicals tend to
    partition into the fatty tissue of fish and other
    aquatic organisms, and BCF is analogous to the
    sediment/water partition coefficient, Kp.
  • Bioconcentration also can be measured in algae
    and higher plants, where uptake occurs by
    adsorption to the cell surfaces or sorption into
    the tissues.

66
  • An empirical relationship for bioconcentration
    (BCF-Kow) in bluegill sunfish in 28 days exposure
    for 84 organic priority pollutants was
  • (61)
  • and for rainbow trout with ten chlorobenzenes it
    was
  • (62)
  • for low-level exposures typical of natural
    waters. Fathead minnow, bluegill, rainbow trout,
    brook trout, and mosquito fish are the species
    most frequently involved in bioconcentration
    tests.
  • Bioconcentration experiments, per se, do not
    measure the metabolism or detoxification of the
    chemical. Chemicals can be metabolized to more or
    less toxic products that may have different
    depuration characteristics. The bioconcentration
    experiment only measures the final body burden at
    equilibrium (although interim data that were used
    to determine when equilibrium was reached may be
    available).
  • The fact that a chemical bioaccumulates at all is
    an indication that it resists biodegradation and
    is somewhat "biologically hard" or "nonlabile."

67
  • The kinetics of bioaccumulation are shown
    schematically in Figure 7.9.
  • Fish can lose unmetabolized toxics via biliary
    excretion or "desorption" through the gill. On
    the other hand, toxic organics can undergo
    biotransformations and be eliminated as metabolic
    products.
  • The rate constant, k2, includes total depuration
    (both excretion of unmetabolized toxics, k2, and
    elimination of metabolites, k2). Only a
    fraction of this elimination is returned to the
    water column as dissolved parent compound,
    designated as k2 in Figure 7.9.
  • Hydrophobic organics tend to accumulate in fatty
    tissue of animals. Lipid normalized
    bioconcentration factors both in the laboratory
    and in the field have been correlated
    successfully with the hydrophobicity of toxic
    organics as measured by the octanol/water
    partition coefficient, Kow (Table 7.12).
    Biomagnification occurs in lake trout for PCBs in
    the Great Lakes due to the contribution of
    alewife and small fish to the diet of these top
    carnivores.

68
Figure 7.9 Bioaccumulation kinetics for
hydrophobic organic chemicals in fish
69
Table 7.12Bioconcentration Factor (BCF) for
Selected Organic Chemicals in Fish (Units µg/kg
fish- µg L water)
70
7.2.9 Comparison of Pathway
  • Most of the transformations discussed in Section
    7.2 are expressed as second-order reactions. It
    is difficult to compare the magnitudes of these
    reactions-the rate constants all have different
    units. Each of the transformations can be written
    as pseudo-first-order reactions assuming that the
    second concentration in the reaction rate
    expression can be assumed to be relatively
    constant.
  • The overall reaction rate
  • (63)
  • where C dissolved organic concentration, ML-3
  • t time, T
  • kb biotransformation rate constant,
    T-1
  • ko oxidation rate constant, T-1
  • kr reduction rate constant, T-1
  • kp photolysis rate constant, T-1
  • kh hydrolysis rate constant, T-1
  • kv volatilization rate constant, T-1

71
  • Equation (63) includes an assumption that the
    atmosphere has a neg1igible concentration
    (partial pressure) of the organic, so only
    volatilization occurs (stripping out of the water
    body).
  • For first-order reactions in a batch reactor
    without transport, the reaction rate
  • (64)
  • Solving for the concentration as a function of
    time
  • (65), (66)
  • Taking the natural logarithm of both sides of
    equation (66) and solving for time (half-life)
    yields the well-known relationship below
  • (67)
  • where t1/2 overall half-life of the chemical
    due to all transformation reactions
  • the sum of all the
    pseudo-first-order reaction rate constants
  • Individual half-lives may be compared to
    determine which reaction predominates (gives the
    shortest half-life).

72
7.3 ORGANIC CHEMICALS IN LAKES 7.3.1
Completely Mixed Systems
  • As an approximation, lakes can be represented as
    ideal completely mixed flow through reactors (CMF
    systems) or a network of CMF compartments.
  • A mass balance system of equations
  • Figure 7.10 a schematic of the various reactions
    in the lake water column and sediment.
  • An assumption of local equilibrium may be used to
    relate the particulate adsorbed concentration to
    the dissolved concentration through the partition
    coefficient Kp.
  • (68)
  • where Kp sediment/water partition
    coefficient, L kg-1
  • C dissolved organic chemical
    concentration, µg L-1
  • r mass sorbed, µg kg-1
  • M suspended or bed solids
    concentration, kg L-1
  • Cp particulate adsorbed concentration, µg L-1
  • CT total (dissolved plus particulate)
    concentration, µg L-1

73
Figure 7.10 Schematic of a fate model for
organic chemicals in water and sediment
74
  • Sorptive equilibrium is usually a valid
    assumption in natural waters because the time
    scale for most sorption reactions (minutes to
    hours) is small compared to the time scale for
    reactions and transport (days to years).
  • Figure 7.10 indicates a rapid local equilibrium
    assumption for bioconcentration. If uptake and
    depuration kinetics (hours to days) are fast
    relative to other reactions and time scales, this
    is a valid assumption. Use of the
    bioconcentration factor (BCF) helps to simplify
    the equations, and it is another partitioning
    coefficient that we may use similar to Kp.
  • (69)
  • where BCF bioconcentration factor, L kg-1
  • C dissolved chemical
    concentration, µg L-1
  • F residue concentration in whole
    fish, µg kg-1
  • The total concentration of chemical CT may be
    larger or smaller in the sediment than the
    overlying water depending on whether the water
    column or sediment was contaminated first.
    Partitioning of the chemical between the
    dissolved pore water C2 and adsorbed sediment
    Cp2, may also be different due to the dependence
    of Kp2, on solids concentration. Generally, Kp2 lt
    Kp1, because the sediment has a much higher
    solids concentration.

75
  • A framework for a mass balance model for an
    organic chemical in a lake is given by Figure
    7.10. Waste inputs, their fate and effects, can
    be assessed in this context.
  • Anthropogenic inputs may also enter the water
    body from the atmosphere via wet precipitation
    and dry deposition. The concentration in rainfall
    is related to the gas phase concentration and
    Henry's constant, so the deposition mass is equal
    to the volume of rainfall times the aqueous phase
    concentration
  • (70)
  • Where Cprecip is the precipitation
    concentration, Cg is the gas phase concentration,
    and H is Henry's constant with the appropriate
    units.
  • The flux of contaminants due to dry deposition is
    related to the depositional velocity and the
    gaseous concentration
  • (71)
  • where vd is the deposition velocity (LT-1), Cg is
    the gas phase concentration (ML-3) and Jd is the
    areal mass flux due to dry deposition (ML-2T-1).
  • Equation (71) is empirical. Both gases and
    aerosol particles may contribute to dry
    deposition but the gas phase concentration should
    be proportional in either case, vd serving as the
    empirical proportionality constant.

76
  • The mass balance equation for a lake with toxic
    organic chemical inputs can be written assuming
    complete mixing, steady flow conditions,
    instantaneous local sorption equilibrium, and no
    atmospheric deposition.
  • (72)
  • Equation (72) has three unknown dependent
    variables CT, and C - but the assumption of
    local equilibrium allows us to write the equation
    entirely in terms of total (whole water,
    unfiltered) concentration.
  • (73)
  • where CT total concentration C Cp, ML-3
  • V volume of the lake, L3
  • t time, T
  • Q flowrate in and out, L3T-1
  • fp particulate fraction of total
    chemical concentration, dimensionless
  • Cp/ CT KpM /(1 KpM)
  • fd dissolved fraction of total
    chemical concentration, dimensionless
  • C/ CT 1 /(1 KpM)
  • C dissolved chemical concentration, ML-3
  • Cp particulate chemical concentration,
    ML-3
  • ks sedimentation rate constant,T-1

77
  • Equation (73) is an ordinary differential
    equation with constant coefficients. It is
    solvable by first-order methods such as the
    integration factor method. Dividing through by
    the constant volume and rearranging, we have
  • (74)
  • The final solution is
  • (75)
  • where CTo initial total input concentration,
    ML-3
  • a integration factor
  • t mean hydraulic detention time
    V/Q, T
  • We see that the solution to a continuous input of
    organic chemical to a lake is composed of two
    terms in equation (75) the first term is the
    die-away of initial conditions, and the second
    term is the asymptotic "hump" (the shape of a
    Langmuir isotherm), which builds to a
    steady-state concentration as t ? 8.
  • (76)

  • The steady-state concentration is directly
    proportional to the total concentration of
    organic inputs to the lake.

78
  • Because it takes an infinite amount of time (or
    the lake to reach steady state in the strictest
    sense, we speak of time to 95 of steady state,
    that is, the length of time required for the
    concentration in the lake to reach 95 of the
    value that it will ultimately achieve.
  • (77)
  • or
  • (78)
  • By inspection, one can prove that equations (75)
    and (78) are equal when
  • (79)
  • Equation (79) gives the time to 95 of steady
    state. For the simplest case of a nonadsorbing
    dissolved chemical undergoing first-order
    reaction decay, a k 1/t.
  • The greater is the flushing rate ( 1/t) and the
    reaction rate constant, the less is time required
    to achieve steady state. Conservative substances
    (k 0) take the longest time to reach steady
    state after a step function change in inputs.

79
Figure 7.13Schematic of lake recovery from a
persistent hydrophobic pollutant
7.3.2 Dieldrin Case Study in Coralville
Reservoir, Iowa
  • The following case study is used to illustrate
    aspects of ecosystem recovery from a persistent
    hydrophobic organic pollutant. It also
    demonstrates the use of compartmentalization
    within a lake to simulate transport.
  • Figure 7.13 a schematic of water column,
    sediment, and fish concentrations following a
    period when large discharges of chemical were put
    into the system. Because the contaminant is
    hydrophobic and persistent, it remains in the
    system for a long time, accumulating in fish
    tissue and sediment. It disappears by washout
    (advection), burial into the deep sediment, and
    slow degradation reactions. Depending on the
    sediment dynamics of the system and the rate of
    chemical degradation, these can be slow processes
    taking years to decades.

80
Figure 7.14Selected insecticides used in the
past in the midwestern United States
  • Figure 7.14 some persistent insecticides (e.g.
    chlorinated hydrocarbons) used in the Midwest.
    These chemicals were banned in the 1970s and
    early 1980s because of their persistence and
    propensity to bioaccumulate in fish and wildlife.
    Also shown are two replacement insecticides
    (ester compounds), which hydrolyze and break down
    in the environment. They are toxic but much less
    persistent.

81
  • Agricultural usage of pesticides in Iowa is
    widespread, particularly grass and broadleaf
    herbicides and row crop soil insecticides. One of
    the insecticides widely used for control of the
    corn rootworm and cutworm from 1960 to 1975 was
    the chlorinated hydrocarbon, aldrin.
  • Aldrin is microbially metabolized to its
    persistent epoxide, dieldrin. Dieldrin is itself
    an insecticide of certain toxicity and is also a
    hydrophobic substance of limited solubility in
    water (0.25 ppm) and low vapor pressure (2.7
    10-6 mm Hg at 25 ºC). It is known to
    bioaccumulate to levels as high as 1.6 mg/kg wet
    weight in edible tissue of Iowa catfish.
  • Coralville Reservoir is a mainstream impoundment
    of the Iowa River in eastern Iowa. It drains
    approximately 3084 square miles (7978 km2) of
    prime Iowa farmland and receives extensive
    agricultural runoff with 90 of its drainage
    basin in intensive agriculture. It is a
    variable-level, flood control and recreational
    reservoir, which has undergone considerable
    sedimentation since it was created in 1958.
  • At conservation pool (680 ft above mean sea
    level, msl), the reservoir has a capacity of
    38,000 acre-ft (4.79 107 m3), a surface area of
    4900 acres (1.98 107m2), a mean depth of
    approximately 8 ft (2.44 m), and a mean detention
    time of 14 days. In 1958, the capacity at
    conservation pool was 53,750 acre-ft (6.63 107
    m3).

82
  • The total pesticide concentration is the sum of
    the particulate plus the dissolved
    concentrations, with instantaneous sorptive
    equilibrium assumed
  • (80)
  • where fd C/ CT 1/(1 KpM) fraction of
    dissolved pesticide
  • fp Cp/ CT KpM/(1 KpM) fraction
    of particulate pesticide
  • W(t) time-variable loading of
    pesticide, M/T
  • CT total concentration in the water
    column, ML-3
  • sum of the pseudo-first-order
    degradation rate constants
  • t mean hydraulic detention time
  • V reservoir volume, L3
  • ks sedimentation rate constant, T-1
  • The fish residue equation is
  • (81)
  • where k1 pesticide uptake rate by fish, T-1

83
  • Equations (80) and (81) may be solved
    analytically for constant coefficients and simple
    pesticide loading functions, W(t), or they may be
    integrated numerically. In the case of a
    pesticide ban, the W(t) might typically decline
    in an exponential manner due to degradation by
    soil organisms or a ban on application.
  • For an exponentially declining loading function
    at rate ?, the analytical solutions to equations
    (80) and (81) are
  • (82)
  • (83)
  • where CTo initial total pesticide
    concentration in lake, ML-3
  • CTin,o initial total pesticide inflow
    concentration, ML-3
  • ? rate of exponentially declining
    inflow concentration,T-1

84
Figure 7.15Compartmental configuration for a
two-box pond model or an eight-box lake model
  • Figure 7.15 is a schematic diagram of
    hypothetical pond or lake configurations that are
    possible for this problem. Each box is assumed to
    be completely mixed with bulk exchange between
    water compartments. There is dispersion in
    Coralville Reservoir that seems to be simulated
    best by the eight-compartment model based on dye
    studies.

85
Figure 7.16Result of model and field data for
dieldrin in Coralville Reservoi
Write a Comment
User Comments (0)
About PowerShow.com
