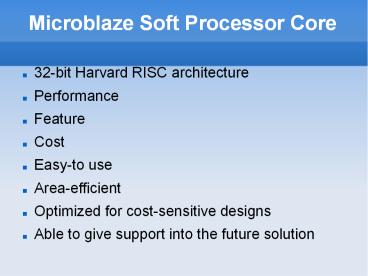

Microblaze Soft Processor Core
  • 32-bit Harvard RISC architecture
  • Performance
  • Feature
  • Cost
  • Easy-to use
  • Area-efficient
  • Optimized for cost-sensitive designs
  • Able to give support into the future solution

2
Microblaze's Features
  • Cost-efficient, high performance 32-bit soft
    processor
  • Optimized for Xilinx FPGAs
  • Highly configurable feature set
  • Co-processor interface for hardware acceleration
  • Fully supported by the Platform Studio embedded
    development environment
  • JTAG-based integrated debug support
  • Optional integrated single precision FPU

3
Picoblaze
  • Cost-effective fully embedded 8-bit RISC
    microcontroller core
  • Optimized for the Virtex and Spartan series of
    FPGAs and CoolRunner-II CPLDs
  • Provided as a free, source-level VHDL file with
    royalty-free re-use within Xilinx FPGAs.
  • Cost-efficient microcontroller-based control and
    simple data processing.

4
Picoblaze's Features
  • 16 byte-wide general-purpose data registers
  • 1K instructions of programmable on-chip program
    store, automatically loaded during FPGA
    configuration
  • Byte-wide Arithmetic Logic Unit (ALU) with CARRY
    and ZERO indicator flags
  • 64-byte internal scratchpad RAM
  • 256 input and 256 output ports for easy expansion
    and enhancement
  • Automatic 31-location CALL/RETURN stack

5
Picoblaze's Features (Cont.)?
  • Predictable performance, always two clock cycles
    per instruction, up to 200 MHz or 100 MIPS in a
    Virtex-4 FPGA and 88 MHz or 44 MIPS in a
    Spartan-3 FPGA
  • Fast interrupt response worst-case 5 clock
    cycles
  • Assembler, instruction-set simulator support

6
PicoBlaze Microcontroller Embedded within an FPGA
  • Optimal Balance between Microcontroller and FPGA
    Solutions

7
MicroBlaze Hardware Options and Configurable
Blocks
  • Hardware Functions
  • Hardware Barrel Shifter
  • Hardware Divider
  • Machine Status Set and Clear Instructions
  • Hardware Exception Support
  • Processor Version Register
  • Floating-Point Unit (FPU)?
  • Hardware Multiplier
  • Hardware Debug Logic

8
MicroBlaze Hardware Options and Configurable
Blocks (Cont.)?
  • Cache Options
  • Configurable size 2kB - 64 kB
  • Configurable micro-cache size 64B 1024B
  • 4 or 8 word cache lines
  • Bus Infrastructure
  • On-Chip Peripheral Bus (OPB) for interfacing to
    peripherals
  • Local Memory Bus (LMB) for fast local access
    memory
  • Fast Simplex Link (FSL) for interfacing to
    co-processors

9
MicroBlaze Architecture
  • 32 general-purpose registers
  • An Arithmetic Logic Unit (ALU)?
  • A shift unit
  • Two levels of interrupt
  • It can be configured this basic design with more
    advanced features to allow the user to balance
    the required performance of the target
    application against the logic area cost of the
    soft processor.

10
MicroBlaze Architecture (Cont.)?
11
MicroBlaze Block Diagram
12
Microblaze - Data Types and Endianness
  • Uses Big-Endian bit-reversed format to represent
    data.
  • Hardware supported data types
  • Word
  • Half word
  • Byte

13
Microblaze - Data Types and Endianness (Cont.)?
  • Word Data Type
  • Half Word Data Type Byte Data Type

14
Microblaze - Instructions
  • Instructions are 32 bits defined as either Type A
    or Type B
  • Type A
  • Have up to two source register operands and one
    destination register operand

15
Microblaze Instructions (Cont.)?
  • Type B
  • Have one source register and a 16-bit immediate
    operand
  • can be extended to 32 bits by preceding the Type
    B instruction with an IMM instruction
  • Have a single destination register operand

16
add - Arithmetic Add (Microblaze's Instruction)?
add rD, rA, rB Add addc rD, rA, rB Add
with Carry addk rD, rA, rB Add and Keep
Carry addkc rD, rA, rB Add with Carry and
Keep Carry
Pseudocode if C 0 then (rD) ?(rA)
(rB)? else (rD) ? (rA) (rB) MSRC if K
0 then MSRC ? CarryOut
Registers Altered rD MSRC Latency 1 cycle
17
bne - Branch if Not Equal (Microblaze's
Instruction)?
bne rA, rB Branch if Not Equal bned rA, rB
Branch if Not Equal with Delay
Pseudocode If rA ? 0 then PC ?PC
rB else PC ?PC 4 if D 1 then allow
following instruction to complete execution
Latency 1 cycle (if branch is not taken)? 2
cycles (if branch is taken and the D bit is
set)? 3 cycles (if branch is taken and the D bit
is not set)?
Registers Altered PC
18
Microblaze - Registers
  • General Purpose Registers
  • 32-bit General Purpose Registers numbered R0
    through R31.
  • Special Purpose Registers
  • Program Counter (PC)?
  • Machine Status Register (MSR)?
  • Exception Address Register (EAR)?
  • Exception Status Register (ESR)?
  • Branch Target Register (BTR)?
  • Floating Point Status Register (FSR)?
  • Processor Version Register (PVR)?

19
MicroblazePipeline Architecture
  • Three Stage Pipeline
  • When area optimization is enabled, the pipeline
    is divided into three stages to minimize hardware
    cost Fetch, Decode, and Execute.

20
MicroblazePipeline Architecture (Cont.)?
  • Five Stage Pipeline
  • When area optimization is disabled, the pipeline
    is divided into five stages to maximize
    performance Fetch (IF), Decode (OF), Execute
    (EX), Access Memory (MEM), and Writeback (WB).

21
MicroblazePipeline Architecture (Cont.)?
  • Branches
  • The instructions in the fetch and decode stages
    (as well as prefetch buffer) are flushed when
    executing a taken branch. The fetch pipeline
    stage is then reloaded with a new instruction
    from the calculated branch address. A taken
    branch in MicroBlaze takes three clock cycles to
    execute, two of which are required for refilling
    the pipeline. To reduce this latency overhead,
    MicroBlaze supports branches with delay slots.

22
Microblaze - Reset, Interrupts, Exceptions, and
Break
  • Reset
  • Hardware Exceptions

Equivalent Pseudocode ESRDS ? exception in
delay slot if ESRDS then BTR ? branch target
PC r17 ? invalid value else r17 ? PC 4 PC
? 0x00000020 MSREE ? 0 MSREIP? 1 ESREC ?
exception specific value ESRESS? exception
specific value EAR ? exception specific
value FSR ? exception specific value
23
Microblaze - Reset, Interrupts, Exceptions, and
Break
  • Breaks
  • There are two kinds of breaks
  • 1.Hardware (external) breaks
  • 2.Software (internal) breaks

Equivalent Pseudocode r16 ? PC PC ?
0x00000018 MSRBIP ? 1
24
Microblaze - Reset, Interrupts, Exceptions, and
Break
  • Interrupt
  • User Vector (Exception)?

Equivalent Pseudocode r14 ? PC PC ?
0x00000010 MSRIE ? 0
Pseudocode rx ? PC PC ? 0x00000008
  • Interrupt and Exception Handling

25
Microblaze - Instruction Cache
  • Optional instruction cache for improved
    performance when executing code that resides
    outside the LMB address range.
  • The instruction cache has the following features
  • Direct mapped (1-way associative)?
  • User selectable cacheable memory address range
  • Configurable cache and tag size
  • Caching over CacheLink (XCL) interface
  • Option to use 4 or 8 word cache-line
  • Cache on and off controlled using a bit in the
    MSR
  • Optional WIC instruction to invalidate
    instruction cache lines

26
Microblaze - Data Cache
  • Optional data cache for improved performance. The
    cached memory range must not include addresses in
    the LMB address range.
  • The data cache has the following features
  • Direct mapped (1-way associative)?
  • Write-through
  • User selectable cacheable memory address range
  • Configurable cache size and tag size
  • Caching over CacheLink (XCL) interface
  • Option to use 4 or 8 word cache-lines
  • Cache on and off controlled using a bit in the
    MSR
  • Optional WDC instruction to invalidate data cache
    lines

27
PicoBlaze 8-bit Embedded Microcontroller's Block
Diagram
28
PicoBlaze - Instruction Set
  • Processing Data
  • All data processing instructions operate on any
    of the 16 general-purpose registers
  • The data processing instructions consists of the
    following types
  • Logic instructions
  • Arithmetic instructions
  • Test and Compare instructions
  • Shift and Rotate instructions

29
PicoBlaze - Instruction Set (Cont.)?
  • Logic Instructions
  • Bitwise logical AND, OR, or XOR between two
    operands.
  • The first operand is a register location
  • The second operand is either a register location
    or a literal constant
  • Besides performing pure AND, OR, and XOR
    operations, the logic instructions provide a
    means to
  • complement or invert a register
  • clear a register
  • set or clear specific bits within a register

30
PicoblazeBitwise AND, OR, XOR
  • Bitwise AND, OR, XOR
  • All logic instructions are bitwise operations
  • The OR and XOR instructions are similar to the
    AND instruction illustrated in the figure above
    except that they perform an OR or XOR logical
    operation, respectively

31
PicoblazeComplement/Invert Register
  • PicoBlaze microcontroller does not have a
    specific instruction to invert individual bits
    within register sX. However, the XOR sX,FF
    instruction performs the equivalent operation, as
    shown in the figure below
  • Complementing a Register Value
  • Does not have a specific instruction to invert or
    toggle an individual bit or bits within a
    specific register. However, the XOR instruction
    performs the equivalent operation
  • Inverting an Individual Bit Location

32
Third Party Real Time Operating Systems (RTOS)
Support
  • About lacking a Memory Management Unit, and thus
    unable to run full Linux, several operating
    systems have been ported to the MicroBlaze
    including µClinux and FreeRTOS

33
ARM Comparison
  • Xilinxs MicroBlaze soft core is similar to
    Alteras Nios II
  • Sharing many of the same advantages and
    disadvantages
  • Nios II, designed specifically for FPGA
    integration
  • It runs at 140180MHz in a fast Stratix or
    Stratix II device
  • Is a 32-bit RISC processor with a deeper pipeline
    than the ARM7TDMI
  • It has additional advantages dynamic or static
    branch prediction
  • Configurable instruction and data caches
  • An extendable instruction set

34
ARM Comparison
  • Nios II has two disadvantages
  • All instructions are 32 bits long
  • the ARM7TDMI has 16-bit Thumb instructions for
    greater code density
  • Its a proprietary Altera architecture
  • not the industry-standard ARM architecture.
