Title: Case Study


1

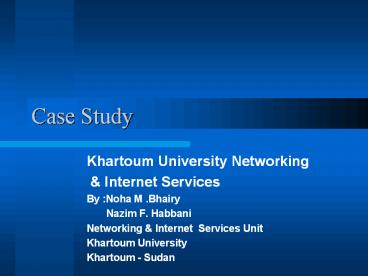

Case Study
  • Khartoum University Networking
  • Internet Services
  • By Noha M .Bhairy
  • Nazim F. Habbani
  • Networking Internet Services Unit
  • Khartoum University
  • Khartoum - Sudan

2
Introduction
  • The Position of the University.
  • The university Campuses locations.

3
University of Khartoum Sites
Acad. Centre
Edu. Campus
Sham. Campus
5.6km
8.2km
6.3km
Main Campus
Communication Room
2.1km
10.4km
14.4km
Soba Campus
Saad Hospital
Med. Campus
4
The Network Plans
  • Three Phases (1995)
  • Phase One LANs of Faculties.
  • Phase Two Backbones.
  • Phase Three WANs of Campuses .

5
The Existing Networks
  • Established LANs in various faculties
  • Most LANs are connected to the communication room
    at the unit.
  • Some are connected via local PBX, and others are
    connected using wide area technologies (ISDN ,
    Datacloud)

6
Connections to Communication Room Gateway
7
Technology Used for Internet Connections
  • Zaknet Connections
  • Data cloud

8
Zaknet Connection
  • Satellite access to Internet
  • Download Speed 192kbps
  • Satellite dish of 60 cm diameter
  • Dish pointed to Nile Sat
  • Zak card plugged into the server

9
(No Transcript)
10
Data Cloud
  • Frame Relay technology offered by the Sudan
    Telecommunications Company(Sudatel)
  • Bandwidth of 64kbps, upgradable to 2Mbps
  • User equipment consist of DTU and router

11
The Proposed Networks
  • The following interconnections are to be made
    within the university
  • Shampat campus to comm. room(Radio link)
  • Within Education campus (optical fibre)
  • Within the main campus (optical fibre)
  • Soba campus to comm. room (Radio link)
