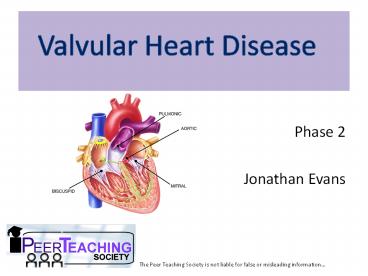

Valvular Heart Disease

• Phase 2
• Jonathan Evans

The Peer Teaching Society is not liable for false
or misleading information
2
Aims

• Aortic Stenosis
• Aortic Regurgitation
• Mitral Stenosis
• Mitral Regurgitation

• Causes
• Symptoms
• Murmur and signs
• Treatment
• Questions

The Peer Teaching Society is not liable for false
or misleading information
3
Valves
Mitral Valve
The Peer Teaching Society is not liable for false
or misleading information
4
If in doubt - Rheumatic fever

• Children aged 5-15
• Common in Asia and south America
• Pharyngeal infection with
• Streptococcus Pyogenes followed by the clinical
  syndrome of Rheumatic fever
• It is an autoimmune reaction not an infection
• After 10-20 years - valve disease

The Peer Teaching Society is not liable for false
or misleading information
5
Aortic Stenosis - Causes

• Congenital Bicuspid valve presents later in
  life
• Acquired
• Degenerative Calcific valve disease
• Rheumatic fever

The Peer Teaching Society is not liable for false
or misleading information
6
Pathophysiology
Reduced cardiac output
Left ventricular hypertrophy
The Peer Teaching Society is not liable for false
or misleading information
7
Symptoms severe AS

• SAD

Syncope exercise induced Angina from LV
hypertrophy Dyspnoea due to Heart failure
The Peer Teaching Society is not liable for false
or misleading information
8
Signs

• Ejection Systolic murmur radiating to the
  carotids
• Slow rising pulse
• Systolic thrill over aortic area
• Other
• Systolic ejection click
• Soft 2nd heart sound

The Peer Teaching Society is not liable for false
or misleading information
9
Aortic Regurgitation - Causes

• Rheumatic fever
• Infective endocarditis
• Likes to sit on previously damaged valves

The Peer Teaching Society is not liable for false
or misleading information
10
Pathophysiology
Left ventricular failure
The Peer Teaching Society is not liable for false
or misleading information
11
Symptoms

• Asymptomatic until Left Ventricular Failure
  occurs
• Dyspneoa
• Fatigue
• pounding of the heart
• Angina, but less common than in AS

The Peer Teaching Society is not liable for false
or misleading information
12
Murmur

• Two murmurs to remember
• Early Diastolic left sternal edge, high pitch
• Ejection systolic from high flow of blood

The Peer Teaching Society is not liable for false
or misleading information
13
Signs Aortic Regurgitation

1. Collapsing or Water-hammer pulse
2. Deviated apex beat
3. Lots of signs with weird names that we dont need
   to remember.

The Peer Teaching Society is not liable for false
or misleading information
14
Mitral Stenosis - Causes

1. Rheumatic fever

The Peer Teaching Society is not liable for false
or misleading information
15
Pathophysiology
Atrial Fibrillation
Pulmonary hypertension
The Peer Teaching Society is not liable for false
or misleading information
16
Symptoms

• Pulmonary Hypertension
• Dyspnoea
• Cough frothy blood tinged sputum
• Right heart Failure
• Raised JVP
• Big liver
• Ankle swelling

The Peer Teaching Society is not liable for false
or misleading information
17
Signs

1. Rumbling Mid-diastolic murmur heard best with
   the bell at the apex with the patient lying on
   the left side
2. Opening snap at the start of the murmur
3. Pink cheeks malar flush

The Peer Teaching Society is not liable for false
or misleading information
18
Mitral Regurgitation- Causes

• Rheumatic fever (50)
• Prolapsing mitral valve
• Other
• Ischaemic heart disease
• Cardiomyopathies
• Collagen abnormalities
• Drugs

The Peer Teaching Society is not liable for false
or misleading information
19
Prolapsing floppy mitral valve

• Usually a benign and asymptomatic condition
• Common 2-6 of population
• May have atypical chest pain or palpitations
• Mid- systolic click

The Peer Teaching Society is not liable for false
or misleading information
20
Pathophysiology
Left ventricular failure
The Peer Teaching Society is not liable for false
or misleading information
21
Signs and symptoms

• Pansystolic murmur Heard best at the apex
• Deviated apex beat
• Left ventricular failure
• Dyspnoea
• Orthopnoea

The Peer Teaching Society is not liable for false
or misleading information
22
Echocardiogram to see whats going on
Investigations
The Peer Teaching Society is not liable for false
or misleading information
23
Treatment

• Medical
• Treat Heart Failure if they have it
• Surgical
• Valvoplasty dilate the valve with a balloon for
  stenotic valves
• Replace the valve

The Peer Teaching Society is not liable for false
or misleading information
24
1. Mechanical valve

• Need anticoagulation (warfarin)
• Last longer - Younger people

The Peer Teaching Society is not liable for false
or misleading information
25
2. Bio-prosthetic valve

• Usually porcine
• Doesnt last as long elderly people

The Peer Teaching Society is not liable for false
or misleading information
26
Questions

• Rumbling Mid-diastolic murmur?

The Peer Teaching Society is not liable for false
or misleading information
27
Answer

• Mitral Stenosis
• Where is it heard best?

The Peer Teaching Society is not liable for false
or misleading information
28
Answer

• Apex with the patient on their left and using
  the bell

The Peer Teaching Society is not liable for false
or misleading information
29
Questions

• Aortic Stenosis what is the murmur?

The Peer Teaching Society is not liable for false
or misleading information
30
Questions

• Ejection systolic heard best right sternal edge
  2nd intercostal space
• Where does it radiate?

The Peer Teaching Society is not liable for false
or misleading information
31
Questions

• Carotids
• Name three symptoms of Aortic stenosis?

The Peer Teaching Society is not liable for false
or misleading information
32
Questions

• Syncope
• Angina
• Dyspnoea

The Peer Teaching Society is not liable for false
or misleading information
33
Questions

• Early diastolic murmur
• Where is it heard best?

The Peer Teaching Society is not liable for false
or misleading information
34
Questions

• Left sternal edge
• What other murmur might you hear?

The Peer Teaching Society is not liable for false
or misleading information
35
Questions

• Ejection systolic due to high flow

The Peer Teaching Society is not liable for false
or misleading information
36
Questions

• Ejection systolic due to high flow

The Peer Teaching Society is not liable for false
or misleading information
37
Questions

• Ejection systolic due to high flow

The Peer Teaching Society is not liable for false
or misleading information
38
Questions

• Ejection systolic due to high flow

The Peer Teaching Society is not liable for false
or misleading information
39
Previous exam question

• A 78 year old man presented with episodes of loss
  of consciousness on exertion. On examination,
  the carotid pulse is rising slowly. There is a
  loud ejection systolic murmur at the aortic area,
  radiating to both carotid arteries.

The Peer Teaching Society is not liable for false
or misleading information
40
Answer

• Aortic stenosis

The Peer Teaching Society is not liable for false
or misleading information
41
Question

• A 32 year old lady presented with recurrent
  palpitation and exertional breathlessness. On
  examination, her height is 183 cm and her
  arms-span is 185 cm. The first heart sound is
  soft. There is a mid-systolic click, followed by
  a blowing late systolic murmur in the apex
  radiating to the axilla.

The Peer Teaching Society is not liable for false
or misleading information
42
Answer

• Mitral valve prolapse

The Peer Teaching Society is not liable for false
or misleading information
43
Question

• A 45 year old lady, who moved to the UK from
  India 5 years ago, presented with increasing
  exertional dyspnoea and orthopnoea. On
  examination, the apex beat is tapping, with a
  loud first heart sound, and an apical
  mid-diastolic rumble.

The Peer Teaching Society is not liable for false
or misleading information
44
Answer

• Mitral Stenosis

The Peer Teaching Society is not liable for false
or misleading information
45
Question

• 47 year old chap presents with intermittent
  breathlessness. ECG is normal but 24 hr tape
  shows runs of AF. Paroxysmal AF is diagnosed. On
  auscultation he has a mid-diastolic murmur and is
  diagnosed with mitral stenosis.
• 1. Why is he presyncopal when hes going into
  AF?
• 2. How is the mitral stenosis causing AF?
• 3. 2x imaging investigations for this patient
  rationales for each

The Peer Teaching Society is not liable for false
or misleading information
46
Question

• A 21 year old female intravenous drug abuser
  collapses following a 2 day history of rapidly
  increasing malaise, fever and a patchy rash.
  Although previously well, she now has a systolic
  cardiac murmur. Her urine shows both protein and
  blood on dipstick test.

The Peer Teaching Society is not liable for false
or misleading information
47
Which is most likely?

• Acute rheumatic fever
• Amyloid valve tissue
• Congenital valve anatomy abnormality
• Infective endocarditis
• Metallic valve prosthesis
• Mitral valve prolapse
• Non-bacterial thrombotic endocarditis
• Normal valve
• Senile calcific valve stenosis
• Xenograft valve

The Peer Teaching Society is not liable for false
or misleading information
48
Answer

• 4. Infective endocarditis
• Fever new murmur Endocarditis
• Two main causes
• Streptococcus Viridans (dental problems)
• Staphylococcus aureus (IVDU, Diabetes, Surgury)

The Peer Teaching Society is not liable for false
or misleading information
49
Question

• A 71 year old male presents with anginal
  symptoms, shortness of breath and syncopal
  attacks when exercising. He has a harsh systolic
  flow murmur at the right sternal edge 2nd
  intercostal space.

The Peer Teaching Society is not liable for false
or misleading information
50
Which is most likely?

• Acute rheumatic fever
• Amyloid valve tissue
• Congenital valve anatomy abnormality
• Infective endocarditis
• Metallic valve prosthesis
• Mitral valve prolapse
• Non-bacterial thrombotic endocarditis
• Normal valve
• Senile calcific valve stenosis
• Xenograft valve

The Peer Teaching Society is not liable for false
or misleading information
51
Answer

• 9. Senile calcific valve stenosis
• The commonest cause of Aortic stenosis is
• Calcific valve disease and mainly occurs in the
  elderly.

The Peer Teaching Society is not liable for false
or misleading information
52
Question 3

• An 81 year old male patient with carcinoma of the
  bronchus collapses and dies. The autopsy shows
  irregular vegetations on the mitral valve. No
  septic event was identified prior to the
  patients death, and the clinicians did not
  detect an ante-mortem murmur.

The Peer Teaching Society is not liable for false
or misleading information
53
Which is most likely?

• Acute rheumatic fever
• Amyloid valve tissue
• Congenital valve anatomy abnormality
• Infective endocarditis
• Metallic valve prosthesis
• Mitral valve prolapse
• Non-bacterial thrombotic endocarditis
• Normal valve
• Senile calcific valve stenosis
• Xenograft valve

The Peer Teaching Society is not liable for false
or misleading information
54
Answer

• Non Bacterial Thrombotic Endocarditis

The Peer Teaching Society is not liable for false
or misleading information
