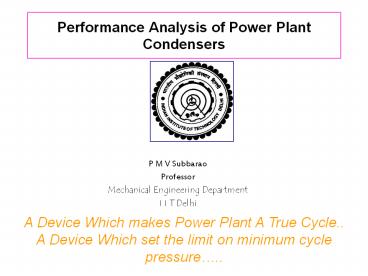

Performance Analysis of Power Plant Condensers

1
Performance Analysis of Power Plant Condensers

• P M V Subbarao
• Professor
• Mechanical Engineering Department
• I I T Delhi

A Device Which makes Power Plant A True Cycle.. A
Device Which set the limit on minimum cycle
pressure..
2
T-S Diagram Rankine Cycle with FWHs.
3
Two-Pass Surface Condenser
4
T-S Diagram Rankine Cycle with FWHs.
5
Thermal Processes Occurring in Condensers

• The condenser never receives pure seam from the
  turbine.
• A mixture of steam and non-condensable gases
  (Air-steam mixture) enters the condenser.
• The ratio of the quantity of gas that enters the
  condenser to the quantity of steam is called the
  relative air content.

• The value of e, depends on type, capacity, load
  and design dimensions of the condenser plant.

6
Variation of Steam-air Mixture Parameters
7

• Using Dalons Law

Gas laws
Volumes and temperatures are same.
8

• At the entry to condenser the relative content of
  air is very low and partial pressure of steam is
  almost equal to condenser pressure.
• As air-steam mixture moves in the condenser,
  steam is condensed and the relative content of
  air increases.
• Accordingly, the partial pressure of steam drops
  down.
• The total pressure in the bottom portion of
  condenser is lower than that of the top portion.
• The pressure drop from inlet to exit of condenser
  is called steam exhaust resistance of a
  condenser.
• The partial pressure of air at the bottom of the
  condenser cannot be neglected.

9

• The temperature of steam is a function of
  condenser pressure.
• As the air-steam mixture moves through the
  condenser and the steam is condensed, its
  temperature decreases owing to decreasing partial
  pressure of saturated steam.
• This is due to increase in relative content of
  air in the mixture.
• The pressure also decreases due to resistance to
  flow of steam.
• The zone of intensive condensation.
• The zone of cooling of air-steam mixture.

10
Variation of Steam Partial Pressure Saturation
Temperature
Saturation Temperature, 0C
Steam Partial Pressure, kPa
exit
Inlet
11
Condenser with Air Removal Pump A practicable
Concept
12
Combined Condensation Air Pumping Action
Air Pumping Action Vs Condensing Action !!!
13
Effect of Air Leakage on Condenser Pressure
Inlet Condenser Pressure, mm of Hg
10
30
40
50
20
Cooling water Inlet Temperature
14
(No Transcript)
15
(No Transcript)
16
Power Loss Due to Excess Back Pressure
What is Techno-economically Viable value of TTD ?
17
Condensate Depression

• The temperature of condensate is always a few
  degrees lower than the coincident condensing
  steam temperature.
• Subcooling of condensate is undesirable on two
  accouts
• It lowers the thermodynamic efficiency of the
  power cycle.
• It enhances the propensity of the condensate to
  reabsorb non-condensibles.
