PROJECT MANAGEMENT

1

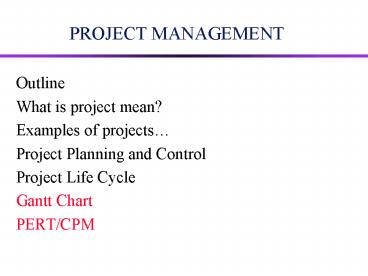

PROJECT MANAGEMENT

• Outline
• What is project mean?
• Examples of projects
• Project Planning and Control
• Project Life Cycle
• Gantt Chart
• PERT/CPM

2
What is Project?

• What is the different between normal business
  activities and Project?
• Project
• Unique, one time operations design to
  accomplish a specific set of objectives in a
  limited time frame.

3
Examples of project

1. Building a house
2. Building a factory
3. Add assembly line in the factory
4. Merging to companies
5. Managing political campaign
6. Designing a new product
7. Soft ware development

4
In project a lot of problem arise? Why?

• a lot of activities should be handles
• Limited time
• Restricted resources

5
Project Planning and Control

• Definition of Project Management
• Work Breakdown Structure
• Project Control
• Organizational Structures
• Critical Path Scheduling
• CPM with a Single Time
• CPM with Three Activity Time Estimates

6
Project Management

• Project
• Lengthy network of activities needed to complete
  a major output.
• Project Management
• Planning, execution, and controlling resources to
  needed to complete the project.

7
Project Life Cycle

• Definition
• Why we need to start new project
• Feasibility Analysis (Cost, Benefit , risk of
  under taking a project)
• Planning
• Details of the work, estimates time, Human
  resource and cost
• Execution
• During which a project itself is done
• Termination
• During which closer is achieved

8
Work Breakdown Structure
9
Project Control Gantt Chart

• The Gantt chart is a popular tool for planning
  and scheduling simple project.
• It enables a manager to initially schedule
  project activities and then to monitor progress
  over time by comparing planned progress to actual
  progress

10
Project Control Gantt Chart
a
b
a
c
b
d
c
d
d
11
PERT and CPM

• PERT (program evaluation and review technique)
• U.S. Navy Special Projects Office (1958)
• Polaris missile project
• CPM (critical path method)
• J. E. Kelly of Remington-Rand and M. R. Walker of
  Du Pont (1957)
• Scheduling maintenance shutdowns of chemical
  processing plants

12
Questions answered by PERT/CPM

• When will the entire project be completed?
• What are the critical activities or tasks in the
  project, that is, the ones that will delay the
  entire project if they are late?
• Which are the non-critical activities, that is,
  the ones that can run late without delaying the
  entire projects completion?
• What is the probability that the project will be
  completed by a specific date?

13
Questions answered by PERT/CPM

• At any particular date, is the project on
  schedule, behind schedule, or ahead of schedule?
• On any given date, is the money spent equal to,
  less than, or greater than the budgeted amount?
• Are there enough resources available to finish
  the project on time?
• If the project is to be finished in a shorter
  amount of time, what is the best way to
  accomplish this at the least cost?

14
To Find Critical Path ???

• To find the critical path, need to determine the
  following quantities for each activity in the
  network
• 1. Earliest start time (ES) the earliest time an
  activity can begin without violation of immediate
  predecessor requirements.
• 2. Earliest finish time (EF) the earliest time
  at which an activity can end.
• 3. Latest start time (LS) the latest time an
  activity can begin without delaying the entire
  project.
• 4. Latest finish time (LF) the latest time an
  activity can end without delaying the entire
  project.

15
CPM with Single Time Estimate
Consider the following consulting project
Develop a critical path diagram and determine
the duration of the critical path and slack times
for all activities
16
First draw the network
C, 1
17
Determine early start and early finish times
ES4 EF6
ES0 EF2
ES2 EF3
ES3 EF4
?
C, 1
ES4 EF9
18
When I can start depends on when predecessors
finish.
ES4 EF6
ES0 EF2
ES2 EF3
ES3 EF4
C, 1
ES4 EF9
19
Determine late starts and late finish times
ES4 EF6
ES0 EF2
ES2 EF3
ES3 EF4
LS7 LF9
C, 1
ES4 EF9
LS14 LF15
LS9 LF14
?
LS4 LF9
20
Dont delay the project
ES4 EF6
ES0 EF2
ES2 EF3
ES3 EF4
LS7 LF9
C, 1
ES4 EF9
LS14 LF15
LS9 LF14
LS4 LF9
21
Critical Path Slack
ES4 EF6
D, 2
ES0 EF2
ES2 EF3
ES3 EF4
LS7 LF9
C, 1
ES4 EF9
LS14 LF15
LS9 LF14
E, 5
LS4 LF9
Duration 15 weeks
22
Probabilistic Time Estimates

• Optimistic time
• Time required under optimal conditions
• Pessimistic time
• Time required under worst conditions
• Most likely time
• Most probable length of time that will be required

23
Probabilistic Estimates
Figure 17.8
24
Expected Time
te expected time to optimistic time tm most
likely time tp pessimistic time
25
Variance
?2 variance to optimistic time tp
pessimistic time
26
CPM with Three Activity Time Estimates
Find the estimated time and variance of each
activity?
27
Expected Times
28
PERT/ CPM

• CPM uses two sets of time and cost estimates for
  activities
• A normal time and cost and
• A crash time and cost
• The normal cost is an estimate of cost to
  complete an activity in normal time.
• The crash time is the shortest possible activity
  time.
• Crash cost is the cost of completing the activity
  on a crash or deadline basis.

29
Project Crashing with PERT/CPM Four Steps

• Find the normal critical path and identify the
  critical activities.
• Compute the crash cost per week (or other time
  period) for all activities in the network.
• This process uses the following formula

30
Project Crashing with PERT/CPM Four Steps

• 3. Select the activity on the critical path with
  the smallest crash cost per week.
• Crash this activity to the maximum extent
  possible or to the point at which your desired
  deadline has been reached
• 4. Check to be sure that the critical path you
  were crashing is still critical.
• Often, a reduction in activity time along the
  critical path causes a non-critical path or paths
  to become critical.
• If the critical path is still the longest path
  through the network, return to step 3.
• If not, find the new critical path and return to
  step 2.

31
Subproject

• For extremely large projects, an activity may be
  made of several smaller sub-activities.
• Each activity might be viewed as a smaller
  project or a subproject of the original project.
• The person in charge of the activity might wish
  to create a PERT/CPM chart for managing this
  subproject.
• Many software packages have the ability to
  include several levels of subprojects
