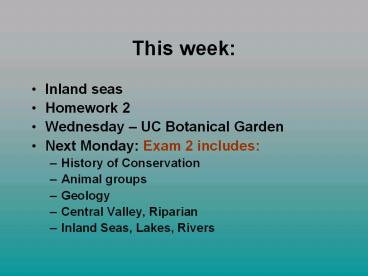

This week:

1
This week

• Inland seas
• Homework 2
• Wednesday UC Botanical Garden
• Next Monday Exam 2 includes
• History of Conservation
• Animal groups
• Geology
• Central Valley, Riparian
• Inland Seas, Lakes, Rivers

2
Inland Waters
3
Fresh Water a precious resource
4
Importance of Fresh Water areas
5
Fresh Waters

• Surface waters run off, down hill
• All area that collects water forms a water shed
  for a river, delta, bay
• Source zone
• High oxygen levels, clear water
• fast moving head waters, waterfalls
• Transition zone
• Floodplain zone
• Muddy water
• Low oxygen levels

6
River Zones
7
Our Watershed

• Drains to Carquinez Straits

8
Lakes - water collects in a catch depression

• Lake type determine by how it formed
• Glacial
• Tectonic
• Landslide
• Volcanic
• Fluviatile
• Shoreline
• Terminal or Closed basin

9
Glacial Lakes

• Glacial action- Common in Sierras
• Tarns (lakes) formed by glacier action leaving
  low spots in bed rock-
• Pater Noster- series of cirques (tarns with high
  vertical back wall) down a mountain
• Moraine lakes- impeded by moraine.
• May have a blue color due to suspended rock
  particles
• Common on east side of Sierras
• Kettles form as holes in the moraine field

10
Tarn
11
Cirque
12
Pater Noster
13
Kettle
14
Tectonic process uplifting, and depressions in
dip-slip Faults

• Graben (grave) lakes
• Lake Tahoe (1). Original lake formed between two
  blocks of stone as fault slipped down.
• Livermore Valley - gravels

15
Lake Tahoe
16
Volcanic Lakes

• Lava flows blocks water flow
• Common along faults, often form in conjunction
  with tectonic (as in Tahoe)
• Clear lake - Dammed by lava.
• Two arms fill in grabens.
• Current form of Lake Tahoe (2)
• Was deepened by lava flow at Truckee end.
• Caldera Lake forms when a volcano blows off its
  summit and leaves the sunken caldera which fills
  with water.
• Crater lake in Oregon, deepest in US.
• Small surface area restrict evaporation stays
  full with winter rains/snow

17
Crater Lake
18
Landslide lakes-

• Rock, Mud flow traps flow, raises water level
• Mirror lake in Yosemite. Several on Kern River.
• Often short lived as water digs in new channel.
• Often form in narrow river canyons.
• Caused by mudslides or earthquakes.

19
Fluviatile - From in depression formed by flowing
water

• Ox Bow lakes - cut off from main channel.
• River Dam lakes - Sediment flowing down a
  tributary blocks main channel.
• Kings River sediment blocked flow North up San
  Joaquin valley.
• Tulare river flows south, formed lake Tulare.

20
(No Transcript)
21
Shoreline -

• impounded by barriers of sand by wind and waves
  at River mouths.
• maybe seasonal
• Can break quickly-
• a tourist drowned in San Lorenzo River - at Santa
  Cruz, washed out to sea.
• Well see a small lake at Salmon Creek beach

22
Terminal or Closed basin

• Watershed with no outlet
• Dependent on inflow vs. evaporation rates
• Mono Lake-Oldest lake in California
• Hypersaline, accumulating solutes for thousands
  of years
• Tufa towers form under water in bubbles in brine
  solution
• One of most productive ecosystems
• Water Diversion in Owens River
• Level dropped 46 feet since 1946.
• 1994 decision mandated rising lake 20 feet.

23
Mono Lake Currently at 6382.3 ft.Goal 6391 ft.
in 2014
24
Aral Sea - disappearing

• Rivers being diverted for agriculture
• From 4th to 8th largest lake
• (1960) 68,000 km2 (1998) 28,000
• Salinity increasing, salt blows onto fields

25
(No Transcript)
26
Created Lakes Reservoirs

• All have an estimated life span until sediments
  fills them in.
• Block fish migrations, silt flow to flood plain
• Control floods
• Clean Power source

27
Limnology Study of lakes

• Littoral Zones
• near shore, sunlight
• marsh, floating plants (macrophytes)
• Lots of decomposers marsh food chain
• Limnetic Zone
• Open sunlight waters,
• main photosynthetic (producers) zone
• Profundal Zone
• Deep open water, too dark for photosynthesis
• Benthic Zone
• Bottom of lake inhabited by decomposers, and
  other animals adapted to cold, oxygen poor water
  snails, worms, crayfish, catfish

28
Lake Ecosystem
29
Dissolved Oxygen (DO)

• Oxygen needed for cell activity
• Low oxygen levels limit activity of animals.
• Can cause massive die offs
• BOD- is biological oxygen demand
• caused by organic wastes in water (pollution).
• Decomposers use up oxygen in the rapid growth.
• DO Sensitive to temperature, pH levels in water.

30
(No Transcript)
31
(No Transcript)
32
Seasonal changes in Alpine lakes

• Water mixes in Fall and Spring, oxygen, nutrient
  levels uniform
• Summer warming stratifies lakes
• Water floats over cooler, forming a thermocline
• Lower water is nutrient rich
• Lack oxygen
• Upper warmer water may run out of nutrient for
  photosynthesis
• Winter may have insulating ice layer, forming a
  stratification

33
(No Transcript)
34
Lake Succession

• Lakes fill-in over time. Nearly all the
  nutrients come from outside the lake.
• e.g. Lake Yosemite filled valley after ice melted
• Oligotrophic few nutrients.
• Clear, bluish water little algae
• high dissolved oxygen
• Few fish, e.g.. Trout (small gills, easy to get
  oxygen)
• Meso- intermediate
• Eutrophic- more and higher nutrient levels
• Low oxygen levels. Green color
• Senescent- filled in, becoming meadow
• Crane Flat in Yosemite

35
Oligotrophic Eutrophic
Age Young Old
Nutrients Poor Rich
Clarity Clear Cloudy
Color Blue Green to brown
Depth Deep Shallow
Temperature Cold Warmer
D Oxygen High trough out Low, at surface
D solids Low High
Sediment Sparse, coarse Deep, muddy
Locality Mountains Valleys
Fish Trout Catfish
36
Eutrophic
Cultural Eutrophication human influences cause
lakes to become eutrophic due to pollution,
erosion.
Oligotrophic
37
Stream / River types (Indicated on topo maps)

• Permanent- year round
• Intermittent - seasonal, winter / spring flow,
  dry summer fall.
• Interrupted- parts flow above ground, other parts
  below (common in Southern California)
• Slough - slower moving side channel of larger
  creek, stream, river

38
Bends in the Rivers, Streams

• Coriolis affect causes water to flow in an arch
  on a flat plain,
• to the right in the Northern hemisphere,
• causes streams to meander, as water curves until
  it reaches an uphill.
• Can be seen in rivers in Central Valley
• As stream erodes the channel on its outside bend,
  it deposits new sediments on the inside. New
  soil is formed.
• Heavy rocks only moved in great floods, rivers
  carry mostly gravel, sand, silt, and clay. Clay
  moves the farthest.

39

• Meanders have a distinctive structure. On the
  bend of a river, the water rushes to the outside
  of a bend. This photograph shows the inside,
  known as a slip-off slope. This is a small area
  of deposition and creates a gentle slope.

40
Rivers transport erosion debris

• Deforestation adds to erosion, and sediment loads
  in rivers
• Add to near shore pollution, nutrient loads in
  oceans

41
Everglades

• Fifty miles (80 km) wide in places, one to three
  feet (0.3 to 0.9 meters) deep in the slough's
  center but only 6 inches (15 cm) deep elsewhere,
  it flowed south 100 feet (30 meters) per day
• Water diversion started killing off this vast
  marsh lands
• Largest restoration project ever attempted
  started in 1996.
• National Parks are not islands- they still can be
  influenced by development outside their
  boundaries.

42
Water Diversion in California

• Water wars
• North- most of water
• South most of the population
• Agriculture uses the most
• Cities cut back the most in droughts
• Population continues to grow
• Recycling water can save millions of gallons
• Wildlife loose out down stream
