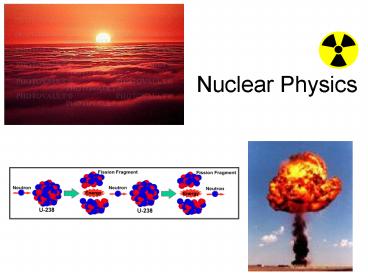

Title: Nuclear Physics


1
Nuclear Physics
2
Discovery of the Nucleus
  • Prior to 1911, the atom was thought to be like a
    plum pudding, with its positive charge spread
    out through the entire volume of the atom (the
    pudding), and the electrons (the plums)
    vibrating at fixed points within this sphere of
    charge.
  • Ernest Rutherford showed via simple experiment
    that the atom could not be structured like this
    at all, but rather had all its positive charge
    concentrated in a tiny nucleus, approximately 104
    times smaller than the atom itself.
  • Rutherford fired energetic ?-particles (Helium
    nuclei) at a thin piece of gold foil, and
    measured the extent to which they were deflected
    as they passed through.
  • He found that most of the ?-particles were
    deflected through small angles, but a small
    fraction of them were scattered through very
    large angles approaching 180! In Rutherfords
    words it was as if a 15-inch shell was fired at
    a piece of tissue paper and it came back and hit
    you!.

Alpha source
Gold foil
?
Detector
3
Discovery of the Nucleus
  • Rutherford deduced that the maximum deflecting
    force that could act on an ?-particle as it
    passed through an atom with a plum pudding type
    charge distribution, would be far too small to
    deflect it by even as much as 1 degree. The only
    way such a large (180) deflection could take
    place was to have all the positive charge
    concentrated tightly at the atoms centre. In
    that way the incoming ?-particle could get very
    close to it and in doing so experience the full
    force of the charge.

How close?? Consider a 5.30MeV ?-particle (that
has a charge of 2e) that heads directly towards
the nucleus of an atom of gold (which has a
charge of 79e). The repulsive force the
?-particle feels from the gold nucleus will cause
it to come to rest, or in other words, its
kinetic energy will be converted into
electrostatic potential energy, with 5.30 MeV
(1/4??0)(Q?QAu/d) putting in the appropriate
numbers gives d 4.29 x 10-14m, which is about
10-4 x smaller than size of atom ? it is mostly
empty space!!
4
Nuclear Properties
  • Some nuclear terminology
  • Nuclei are made up of protons and neutrons.
  • The number of protons is called the atomic number
    or proton number and is represented by the symbol
    Z.
  • The number of neutrons is called the neutron
    number and is represented by the symbol N.
  • The total number of neutrons and protons in a
    nucleus is called its mass number A, where A Z
    N.
  • Nuclides with the same atomic number Z but
    different neutron numbers N are called isotopes.
  • As an example, the element gold has 30 isotopes
    ranging from 175Au to 204Au. Only one of them,
    197Au, is stable the remaining 29 are
    radioactive, decaying by the spontaneous emission
    of a particle, with average lives ranging from
    seconds to a few months.

5
Nuclear Properties
  • Distribution of nuclides in the Z-N plane
  • It is interesting to examine where naturally
    occurring nuclides both stable and radioactive
    lie in a plot of atomic number (Z) versus
    neutron number (N).
  • The stable nuclides are represented by the green
    data points they are seen to lie in a
    well-defined central band.
  • The radionuclides (radioactive nuclides) tend to
    lie on either side of and at the upper end of the
    band defined by the stable nuclides (light-orange
    shading).

6
Nuclear Properties
  • Nuclear Radii
  • A convenient unit for measuring the sizes of
    atomic nuclei is the femtometer (10-15m) or
    fermi (shortened to fm).
  • The size and structure of nuclei is best
    determined by bombarding them with high-energy
    electrons and observing the way the nuclei
    deflect them. The energy of the electrons must be
    200MeV in order for them to be
    structure-sensitive probes.
  • Such experiments show that the nucleus has a
    characteristic mean radius R given by
  • R RoA?,
  • where A is the mass number and Ro 1.2fm.
  • Nuclear masses
  • These are measured in atomic mass units, u,
    chosen so that the atomic mass of 12C is exactly
    12u. 1u 1.661 x 10-27 kg.

7
Nuclear Properties
  • Nuclear Binding Energies
  • When the masses of nuclei are measured with great
    precision (via mass spectrometry), it is found
    that they are slightly smaller than the value
    derived by summing the masses of the individual
    protons and neutrons in the nuclei. This is
    called the mass defect (?m).
  • The energy associated with this mass defect, E
    ?mc2, is what binds the nucleus together, and is
    called the nuclear binding energy. It can also be
    thought of as the total energy required to tear a
    nucleus apart into its constituent protons and
    neutrons.
  • If we divide the binding energy of a nucleus by
    its mass number, we get the binding energy per
    nucleon.
  • The figure on the next slide shows a plot of the
    binding energy per nucleon versus mass number (A)
    for the various nuclides.

8
Binding Energy
  • We see that the binding energy per nucleon curve
    rises sharply with increasing A, in the range
    2ltAlt12, and then flattens off to reach a peak at
    56ltAlt81. This range in A is the region of
    greatest stability, where nuclei have the highest
    possible binding energy per nucleon.
  • The binding energy curve then shows a gradual
    decline in going to higher A values beyond the
    peak region.

9
Binding Energy
  • This behavior means that it is energetically
    favorable for nuclides at the low A end to fuse
    into higher mass nuclei ? nuclear fusion.
  • It also means that it is energetically favourable
    for nuclides at the high A end to split into
    smaller nuclei ? nuclear fission.

10
Nuclear Force
  • Since the nucleus contains positively charged
    protons (as well as neutral neutrons), it must be
    bound together by a very different force to the
    electromagnetic force that binds electrons to the
    nucleus.
  • It must be a strongly attractive force that
    overcomes the electromagnetic repulsion between
    the protons, and contains all the protons and
    neutrons in such a small volume. It must also be
    short range, since its influence is known not to
    extend far beyond the nuclear surface.
  • This force is called the nuclear strong force
    which binds the constituents of neutrons and
    protons quarks together.

11
Radioactive Decay
  • As we have seen from the figure shown in slide 5,
    a significant fraction of nuclides are
    radioactive (as indicated by the light-orange
    shading) that is, a nucleus will spontaneously
    emit a particle, thereby transforming itself into
    a different nuclide. This is a completely
    statistical process in that there is no way to
    predict whether and when a nucleus will decay
    rather all we can do is talk about the chance of
    it happening.
  • The statistical nature of the decay can, however,
    be expressed mathematically, in that if a sample
    contains N radioactive nuclei, then the rate at
    which nuclei decay is proportional to N
  • -dN/dt ?N
  • where ? is the disintegration constant which has
    a characteristic value for every radionuclide.
  • Integrating the above decay equation gives
  • N N0e-?t
  • where N0 is the number of radioactive nuclei in
    the sample at t0 and N is the number remaining
    at any subsequent time t.

12
Radioactive Decay
  • It is often the case that the actual decay rate R
    (-dN/dt) is of most interest, and we can derive
    this by differentiating the previous equation
  • R -dN/dt ? N0e-?t R0e-?t
  • where R0 ? N0 is the initial decay rate at t0.
    The decay rate R is also referred to as the
    activity of the radionuclide.
  • R is measured in disintegrations per second, or
    counts per second (as measured by a Geiger
    counter), or in curies (Ci) where 1 Ci 3.70 x
    1010 disintegrations per second.

The half-life ? of a radioactive nucleus is
defined as the time after which both N and R are
reduced to one-half their initial values.
  • Putting R ½ R0 in the above equation and
    substituting ? for t, we have
  • ½ R0 R0e-??
  • and solving for ? yields
  • ? (ln 2)/?

13
Radioactive Dating
  • If the half-life of a given radionuclide is
    known, then in principle it can be used as a
    clock to measure a time interval ? radioactive
    dating.
  • This is best understood by working through the
    following example

Q. Analysis of potassium and argon atoms in a
moon rock shows that the ratio of the number of
stable 40Ar atoms present to the number of
radioactive 40K atoms is 10.3. Assume that all
the argon atoms were produced by the decay of
potassium atoms, with a half-life of 1.25x109
yrs. How old is the rock? A. If N0 potassium
atoms were present at the time the rock was
formed, the number of potassium atoms remaining
at the time of analysis is NK N0e-?t where t
is the age of the rock. For every potassium atom
that decays, an argon atom is produced. Hence the
number of argon atoms present is NAr N0 - NK
14
Radioactive Dating
We cannot measure N0, so we need to eliminate it
from the equations ?t ln (1 NAr/NK). Solving
for t and replacing ? with (ln 2)/?, we get t
? ln (1 NAr/NK)/ln 2 1.25 x
109ln (110.3)/ln 2 4.37 x 109 yrs
15
Alpha Decay
  • Nuclear decay occurs, sooner or later, whenever a
    nucleus containing a certain number of nucleons
    resides in an energy state which is not the
    lowest possible one for a system with that number
    of nucleons.
  • Nuclear decay divides itself into 3 categories
    ?-decay, ?-decay and ?-decay. The first of these,
    ?-decay, involves the spontaneous emission of an
    ? particle (that is, a Helium nucleus 2He) from a
    nucleus of large atomic number (Zgt82).
  • This decay takes place spontaneously because it
    is energetically favoured, the mass of the parent
    nucleus being greater than the mass of the
    daughter nucleus plus the mass of the ? particle.
    The reduction in nuclear mass in the decay is
    primarily due to a reduction in the Coulomb
    energy of the nucleus when its charge Ze is
    reduced by the charge 2e carried away by the ?
    particle.
  • The energy made available in the decay is the
    energy equivalent of the mass difference, and it
    is carried away by the ? particle. As confirmed
    by experiment, all the ? particles emitted in the
    decay of a particular species have the same
    unique kinetic energy (mass difference)c2.

4
16
Alpha Decay
  • This ?-decay energy, E, can be written in terms
    of the atomic masses of the parent, daughter, and
    ? particle nuclei
  • E MZ,A (MZ-2,A-4 M2,4)c2
  • Note that the ?-decay energies range from 8.9MeV
    to 4.1MeV.

Illustrative example an ? particle is emitted by
the parent nucleus 84Po. Estimate the Coulomb
potential it feels at the nuclear surface and
plot the sum of the Coulomb and nuclear
potentials acting on the ? particle in various
locations. Solution if we approximate the
daughter nucleus and the ? particle as uniformly
charged spheres, the Coulomb repulsion potential
energy when they are just touching will be Vo
2Ze2/4??or Where 2e is the ? particle charge,
Ze is the daughter nucleus charge, and r is the
sum of the radii of the ? particle and daughter
nucleus (which in this case 8.0F).
212
17
? decay example continued So we have Vo 2 x
82 x (1.6 x 10-19)2/1.1 x 10-10 x 8.0 x 10-15
4.8 x 10-12 J 30 MeV
  • The plot shows the total (Coulomb nuclear)
    potential acting on the ? particle. As it
    approaches the nucleus, it feels the repulsive
    Coulomb potential increasing in inverse
    proportion to the separation between the centres
    of the ? particle and nucleus, and reaches a
    value of Vo when this distance equals r.
  • Inside the surface it feels a rapid onset of the
    strong attractive nuclear potential.
  • Also indicated is the ?-decay energy, E8.9MeV,
    which is the energy of the emitted ? particle.
  • The E value is considerably smaller than the
    height of the Coulomb barrier, which is 30MeV
    classically, the ? particle would appear trapped
    inside the barrier, but is able to escape through
    the process of quantum tunneling.

18
Alpha Decay and the Z-N diagram
?-decay involves a loss of 2 protons and 2
neutrons, and hence causes nuclei to move
diagonally downwards in the Z-N diagram,
allowing radioactive nuclei to migrate down to
the stable zone (green band)
19
Beta Decay
  • There are three different ?-decay processes
  • Electron emission where a negatively charged
    electron is emitted by the nucleus, so Z
    increases by one, N decreases by one, and A
    remains fixed (effectively n ? e- p within
    nucleus)
  • Electron capture where a nucleus captures a
    negatively charged electron, and Z decreases by
    one, N increases by one, and A remains fixed
    (effectively p e- ? n)
  • Positron emission where a nucleus emits a
    positively charged electron, and Z decreases by
    one, N increases by one, and A remains fixed
    (effectively p ? e n)
  • Conditions for each of these forms of ?-decay to
    occur
  • E mZ,A (mZ1,A me)c2 gt 0
  • E (mZ,A me) mZ-1,Ac2 gt 0
  • E mZ,A (mZ-1,A me)c2 gt 0

me electron mass
Mass defect
20
Beta Decay
  • Experimental studies of ?-decay show that the
    electrons (either positive or negative) that are
    emitted, have a broad spectrum of kinetic
    energies, Ke, as shown in the figure. Initially,
    this was a very mysterious and disturbing result,
    since you would expect the electron to carry away
    all the decay energy associated with this process
    (i.e. given by the E value equations on the
    previous page). Where did the missing energy go?
  • Problem solved by Pauli in 1931, who postulated
    that a particle, now called the anti-neutrino, is
    also emitted in the ?-decay process, but is not
    normally detected because its interaction with
    matter is extremely weak.

21
Beta Decay and the Z-N diagram
  • ?-decay causes nuclei to move diagonally upwards
    or downwards as shown, and hence allows
    radioactive nuclei at intermediate values of N
    and Z to migrate towards the stable zone.

positron emission electron capture
electron emission
22
?- and ?-decay in the Z-N diagram
  • In reality, it is the combination of successive
    ?- and ?-decays that allow nuclei to migrate to
    the stable zone.

23
  • Often nuclear decay is accompanied by the
    emission of a ?-ray, which is a photon that
    carries away the energy released when a nucleus
    makes a transition from a higher excited state to
    a lower excited state.
  • An example is shown in the diagram where the
    parent nucleus undergoes ?-decay to one of three
    different energy levels of the daughter nucleus
    (the lowest being the ground state). Where the
    decay is to one of the two excited states, it is
    followed by ?-ray emission, as the daughter
    nucleus drops down to the lower energy states.
  • IMPORTANT ?-rays typically have energies of
    several MeV (highly energetic!), since this is
    the separation between the different energy
    levels of the nucleus.

Gamma Decay
E (MeV)
parent
5
?
4
?
?
3
?
2
?
1
0
24
Nuclear Fission
  • In 1932, James Chadwick discovered the neutron.
    Subsequently, physicists realised that this
    particle was a very useful nuclear projectile,
    since being neutral, it had no Coulomb barrier to
    overcome as it approached the nucleus. They had
    particular success in producing new, lower mass
    nuclei by bombarding uranium salts with neutrons.
  • A typical fission event is seen in the case of
    235U, which can absorb a neutron, producing 236U
    in a highly excited state. This nucleus undergoes
    fission, splitting into two fragments 140Xe and
    94Sr, which each rapidly emit a neutron
  • 235U n ? 236U ? 140Xe 94Sr 2n
  • The fragments 140Xe and 94Sr are both highly
    unstable and undergo ?-decay (with the emission
    of an electron) until each reaches a stable end
    product
  • 140Xe ? 140Cs ? 140Ba ? 140La ? 140Ce
  • 94Sr ? 94Y ? 94Zr

25
Nuclear Fission and its applications
  • We see from the previous example of 235U fission,
    for every single neutron that is required to
    trigger the process, two neutrons are produced by
    it.
  • Hence the process is self-sustaining since these
    neutrons are capable of triggering further
    fission events ? creates a CHAIN REACTION.
  • This chain reaction, plus the release of energy
    associated with each fission event
  • disintegration energy, Q (for fission of 235U)
    209MeV (LARGE!!)
  • ? it can be used as the basis for a nuclear bomb
    (where process happens rapidly) or a nuclear
    reactor (where process is kept under control and
    made to occur slowly).

26
Nuclear Fusion
  • We have already seen from examination of the
    binding energy curve for nuclides that it is
    energetically favourable for two light nuclei to
    combine to form a single larger nucleus ? a
    process called nuclear fusion.
  • However, the process is hindered by the Coulomb
    barrier that the nuclei have to surmount in
    order to overcome the repulsion between them due
    to each having a positive charge.

Reminder the Coulombic potential energy
associated with this repulsion is given by
V(1/4??o)(e2/r)Z1Z2, where Z1 and Z2 are the
proton numbers of each nuclei, and r is their
separation. When just touching, r is typically
several Fermis ( 10-15m), and V200(Z1Z2) keV.
The nuclei need kinetic energies of this order to
overcome the Coulomb barrier.
  • When the temperature is high enough that the
    thermal motions of the nuclei alone are
    sufficient to penetrate the Coulomb barrier, then
    thermonuclear fusion takes place.

27
Nuclear Fusion
How high does the temperature have to be? Energy
associated with thermal motion, KkT (k
Boltzmanns constant 1.38 x 10-23 J/K). So if K
200keV ? T (200 x 103 x 1.6 x
10-19)/1.38x10-23 2.32 x 109 K
  • A place which might be hot enough for
    thermonuclear fusion to take place is at the
    centre of a star. However, taking the Sun as an
    example, it would at first glance appear not to
    be hot enough with T?(centre)107 K. But we do
    know that the Sun is in fact powered by the
    thermonuclear conversion of hydrogen into helium
    at its centre why is this so?
  • The above calculation refers to a mean or most
    probably energy, whereas the gas at the centre of
    the Sun has a Maxwellian distribution of
    energies, with a long tail which extends to much
    higher values.
  • The barrier heights that have been calculated
    represent peak values and barrier tunneling can
    occur at energies significantly below these
    values.

28
Thermonuclear fusion in the Sun
  • The Sun radiates energy at the rate of 3.9 x 1026
    W and has been doing so for 4-5 billion years. It
    is impossible to explain this rate of energy
    output over such a long period by non-nuclear
    processes
  • Chemical burning e.g., combustion of coal and
    oxygen, would only last for 1000 years
  • Conversion of gravitational potential energy to
    thermal energy solar lifetime too short by a
    factor of 500.
  • Instead, the Sun is powered by thermonuclear
    fusion in which hydrogen is burned into helium
    via a multi-step process called the proton-proton
    (p-p) cycle. The various steps are as follows
  • 1H 1H ? 2H e ? (Q0.42MeV)
    x2
  • e e- ? ? ? (positron-electron
    annihilation, Q1.02MeV) x2
  • 2H 1H ? 3He ? (Q 5.49MeV)
    x2
  • 3He 3He ? 4He 1H 1H (Q 12.86MeV)
  • Q(total) 2(0.421.025.49) 12.86 26.7 MeV

29
Thermonuclear fusion in the Sun
  • The Sun radiates energy at the rate of 3.9 x 1026
    W and has been doing so for 4-5 billion years. It
    is impossible to explain this rate of energy
    output over such a long period by non-nuclear
    processes
  • Chemical burning e.g., combustion of coal and
    oxygen, would only last for 1000 years
  • Conversion of gravitational potential energy to
    thermal energy solar lifetime too short by a
    factor of 500.
  • Instead, the Sun is powered by thermonuclear
    fusion in which hydrogen is burned into helium
    via a multi-step process called the proton-proton
    (p-p) cycle. The various steps are as follows
  • 1H 1H ? 2H e ? (Q0.42MeV)
    x2
  • e e- ? ? ? (positron-electron
    annihilation, Q1.02MeV) x2
  • 2H 1H ? 3He ? (Q 5.49MeV)
    x2
  • 3He 3He ? 4He 1H 1H (Q 12.86MeV)
  • Q(total) 2(0.421.025.49) 12.86 26.7 MeV

solar neutrino
30
Thermonuclear fusion in the Sun
  • Important notes
  • The first step in the process where two protons
    collide to successfully form a deuteron is
    extremely rare (a 1 in 1026 chance!!) hence this
    step provides a bottle-neck which regulates the
    thermonuclear process in the Sun (and stars in
    general).
  • In spite of this bottle-neck, there are so many
    protons undergoing collisions, that 1012 kg of
    deuterium is produced in this way each second!
  • Overall, the p-p cycle amounts to the combination
    of 4 protons and 2 electrons to form an
    ?-particle, 2 neutrinos, and 6 ?-rays.

31
The Solar Neutrino Problem
  • We see that step 1. of the p-p cycle produces a
    neutrino, and hence the thermonuclear fusion
    taking place at the centre of the Sun produces a
    steady stream of neutrinos which travel
    unhindered from the Suns core to the Earth (and
    through it!).
  • However, the number of neutrinos detected on
    Earth is found to be between ? and ½ the number
    predicted from theoretical calculations.
  • Unlikely that the observations were wrong
    instead either the models of the Sun were wrong
    or the models of neutrino behaviour (and hence
    the standard model of physics) were wrong ?
    SOLAR NEUTRINO PROBLEM!
  • This problem remain unsolved for about 40 years,
    until 2002 when it was shown by the
    Super-Kamiokande and Sudbury Neutrino
    Observatories that the neutrino actually had a
    mass.
  • This was in contradiction to the Standard Model
    of Particle Physics where neutrinos have zero
    mass, and the relative fractions of the different
    types electron-neutrino, muon-neutrino, and
    tau-neutrino were invariant.

32
The Solar Neutrino Problem
  • It was known from theory that if neutrinos did
    have mass, then they could change from one type
    to another ? NEUTRINO OSCILLATIONS. In particular
    the electron-neutrinos, which are the type
    produced by the p-p cycle in the Sun and the only
    type that could be detected by the neutrino
    observatories like Super-Kamiokande and Sudbury,
    can change into the other two types (muon and
    tau) during their journey from the Sun to the
    Earth.
  • Hence the solar neutrino problem was solved, with
    theoretical calculations showing that with
    neutrino oscillations, the number of
    electron-neutrinos expected to be observed is
    35 of the number that leave the Sun, consistent
    with experiment.
Write a Comment
User Comments (0)
About PowerShow.com
