X-ray Pump-Probe Instrument D. M. Fritz

1

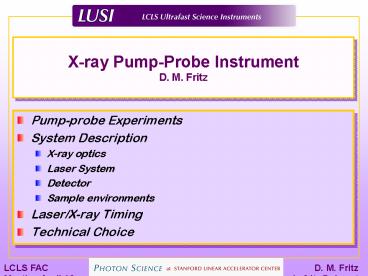

X-ray Pump-Probe InstrumentD. M. Fritz

• Pump-probe Experiments
• System Description
• X-ray optics
• Laser System
• Detector
• Sample environments
• Laser/X-ray Timing
• Technical Choice

2
Science Team

• Specifications and instrument concept developed
  with the science team.
• The XRPP team
• Kelly Gaffney (leader), SSRL/SLAC
• Jorgen Larsson, Lund Institute of Technology,
  Sweden
• David Reis, University of Michigan
• Thomas Tschentscher, DESY, Germany

3
X-ray Pump-Probe Science

• Phase Transitions
• Order / Disorder
• Metal/Insulator
• Phonon Dynamics
• Charge Transfer Reactions
• Photosynthesis
• Photovoltaics
• Vision
• Photoactive Proteins

photo- excitation
Stampfli and Bennemann Phys. Rev. B 49, 7299
(1994)
photo- excitation
4
Time Resolved Scattering
5
Laser System (Fundamental)
Small Angle Scattering
X-ray Diffractometer
Wavelength Conversion
Offset Monochromator
6
X-ray Optics
Scattering Angles (2 theta) Scattering Angles (2 theta) Scattering Angles (2 theta)
1.5 Å 0.5 Å
Silicon 111 27.6 9.1
Silicon 220 45.8 14.9
Diamond 111 42.5 13.9
Diamond 220 - 22.8

• Double Crystal Offset Monochromator
• Narrows x-ray spectrum for resonant scattering
  experiments
• Multiplexes LCLS beam (mono. beam, diagnostic
  beam)

7
X-ray Optics

• Double Crystal Offset Monochromator
• for 2 µm Si (111) _at_ 1.5 Å
• 85 transmission ,2.5 - Mono beam, 1.3 -
  Diagnostics beam

8
X-ray Optics
Flexure Stages
Piezoelectric Stages

• Double Crystal Offset Monochromator (cont.)
• motion
• 0.02 arcsecond resolution and repeatability (100
  nrad)

9
X-ray Optics
Lens
Mono
190 m
4 m

• Beryllium lens focusing optic
• Variable spot size from 2-10 µm and 40-60 µm _at_
  8.3 keV
• Variable spot size from 2-10 µm _at_ 24.9 keV
• gt 40 throughput
• Positioning resolution and repeatability to 1 µm

10
Laser System Overview
11
Ultrafast Laser System
TiSapphire Oscillator Power Amplifiers
Compressor, OPA, Harmonic Generation, Delay Stage
12
Ultrafast Laser System
Cavity Length Stabilization Mirror

• TiSapphire Oscillator
• 119 MHz rep. rate, lt30 fs 2.5 nJ/pulse
• Frequency stabilized to LCLS RF lt 300 fs rms
  phase jitter
• Demonstrated at SPPS

13
Ultrafast Laser System

• Power Amplifiers
• Regenerative amplifier
• 2.5 mJ (lt 1 rms stability), 120 Hz, lt35 fs
• Multipass amplifier
• 20 mJ (lt1.5 rms stability), 120 Hz, lt35 fs
• Second Compressor
• External Pockels Cell
• Arbitrary laser pulse train structure

14
Ultrafast Laser System

• Temporal Pulse Shaper
• Create complex excitation pulse envelopes
• Multi-pulses
• Compression optimization

15
XPP Detector - BNL

• Pixel array detector
• 1000 x 1000 pixels
• 80 micron pixel size
• High Detector Quantum Efficiency (DQE)
• 10 4 dynamic range at 8 keV
• 120 Hz Readout Rate

16
XPP Diffractometer System

Rotary Stages vs. Robot Arm
17
XPP Diffractometer System

• X-ray Diffractometer
• Operate in both direct and monochromatic beam
• Sample orientation translation
• Detector motion about a spherical surface
  centered at sample (variable radius from 0.1 m to
  1.5 m)
• Accommodate various sample environments

18
Small Angle Scattering Capability

• 10 µrad angular resolution with XAMPS detector
• Detector translation
• Operate in both direct and monochromatic beam

19
Sample Environments
Det. Array
Collinear Geometry
Det. Array
Non-collinear Geometry

• Cryostat System
• Vacuum shroud
• Optical and x-ray windows (collinear
  non-collinear geometry)
• Decoupled sample motion

20
Expected Fluctuations of the LCLS

• Intensity fluctuations exceeding 30
• Expected spatial jitter 25 of beam diameter
• Wavelength fluctuations expected to be 0.2 of
  center wavelength ( LCLS intrinsic bandwidth)
• Pulse duration expected to vary 15
• X-ray Pulse/LCLS RF timing will fluctuate by 1
  ps
• - Diagnostics are required to measure these
  parameters since they cannot be controlled
• - This information must be available to
  accelerator operations and experiments

21
Temporal Jitter
Master Clock
Coax RF Distribution Network
Accelerating Elements
Experimental Pump Laser
Electron Gun
Sources of Short Term Jitter

• Coax RF distribution Network
• e-beam phase to RF phase
• End Station Laser phase to RF phase

Limited to 1 ps !
22
Electro-optic Sampling
Stabilized Fiber Optic RF Distribution (10
fs) LBNL
Electro-optic Sampling Laser
Pump-probe Laser
Gun Laser
LTU
NEH
Sector 20

• Temporal resolution is now limited by
• Our ability to phase lock the lasers to the RF
• Intra-bunch SASE jitter

23
SPPS Laser/X-ray Timing
100 consecutive shots
Single shot, Lorentzian fit
24
Data Sorting at SPPS

• 10 Hz
• Point Detector

25
XPP Data Sorting at LCLS
X-ray Detector
LCLS Beam Parameters
Intensity
Time of Arrival
Wavelength
180 MB/s
1 MB/s
Real Time Processing Unit
t1 t2 t3 t4
.tN

• 120 Hz
• 1 Megapixel Area Detector
• 2-dimensional binning or data filtering?

26
Key Technological Choices

• Diamond vs. Silicon Monochromator Crystal
• - Absorption, Damage vs. Quality
• Flexure vs. Piezo Monochromator Rotation Stage
• - Stability vs. Range
• Robot Arm vs. Rotary Stage Detector Mover
• - Reciprocal Space Access vs. Control, Safety
• Hexapod vs. Stages Sample Manipulator
• - Range of Motion vs. Stability, Control
• TiSapphire Oscillator vs. Fiber Oscillator
• - Bandwidth vs. Synchronization
