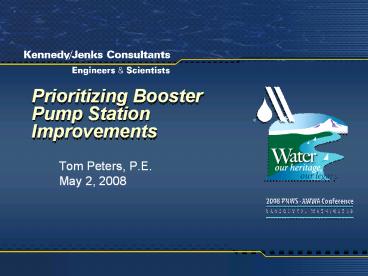

Prioritizing Booster Pump Station Improvements

• Tom Peters, P.E.May 2, 2008

2
City of Bellevue WBPS Evaluation Overview

• Owns and operates 23 major water booster pump
  stations
• Pumped water service for over 60 of customers
• First overall technical evaluation of all pumping
  facilities and equipment

3
City of BellevueWBPS Evaluation Project Goals

• Efficient distribution of maintenance dollars
• Identify facilities whose failure significantly
  impacts system reliability
• Rank WBPS in order of needed improvement
• Develop costs to upgrade and Improve WBPS
  reliability
• Asset management building block

4
(No Transcript)
5
City of BellevueWBPS Evaluation History

• Grown from merger and assumption of old water
  districts
• Some facilities developer constructed
• Historically wholesale water purchase from City
  of Seattle
• Member of Cascade Water Alliance

6
City of Bellevue WBPS Evaluation Project
Challenges

• Multiple pump types
• Varying levels of building quality
• Below grade vaults
• Inefficient location of emergency power
• Absence of re-chlorination facilities

7
City of Bellevue WBPS Evaluation Project
Challenges
8
Pump Station Information and Data

• Thorough review of as-builts, maintenance
  records, water production and previous studies
• Analysis of peak and average day consumption, by
  pump station and operating zone.
• Rigorous assessment of each pump station
  condition, with video taped operator interview
• Development of 10 system schematics summarizing
  basic system information

9
(No Transcript)
10
Ranking Pump Stations
Paired Comparison Normal Operation
Ranking WBPS Needs
Paired Comparison Emergency Operation
11
Ranking Evaluation Criteria
12
Pump Station Score Card
13
Normal Operating Ranking
14
Ranking Pump Stations
Paired Comparison Normal Operation
Ranking WBPS Needs
Paired Comparison Emergency Operation
15
City of Bellevue WBPS Evaluation Risk Based
Assessment

• Risk
• Hazard Probability X Vulnerability X Consequence
• Hazards impacting multiple facilities pose the
  greatest risk
• Regional power outage
• Earthquake
• Flooding
• Redundancy, properly placed, provides effective
  mitigation

16
Sample Risk Ranking
17
Emergency Operating Scenario
18
Combined Rankings
19
SUMMARY

• WBPS assessed 23
• WBPS requiring improvements 21
• Total cost all improvements 21.4 M
• Average cost of replacement (5) 2.9 M
• Average cost of improvements (16) 0.43 M
