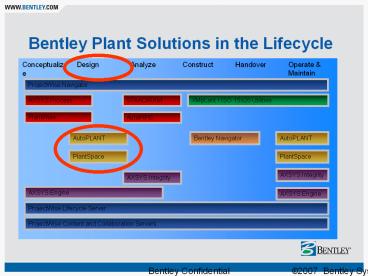

Bentley Plant Solutions in the Lifecycle

1
Bentley Plant Solutions in the Lifecycle
ProjectWise Navigator
STAAD/RAM
XMpLant / ISO 15926 Utilities
AXSYS.Process
PlantWise
AutoPIPE
AutoPLANT
Bentley Navigator
AutoPLANT
PlantSpace
PlantSpace
AXSYS.Integrity
AXSYS.Integrity
AXSYS.Engine
AXSYS.Engine
ProjectWise Lifecycle Server
ProjectWise Content and Collaboration Servers
2
3D Design Tools Business Focus

• Data Reuse (accuracy, efficiency)
• Prototyping
• Interdisciplinary coordination
• Automatic deliverables
• Reporting
• Improved Design
• Data accessibility
• Visualization/Simulation
• Spec driven
• Productivity

3
Benefits of Bentleys Project approach

• Project information available AND secure
• Standard formats and environments
• Coordinated design teams
• Consistency between 2d and 3d design
• Distributed workflows
• Portable models/Disconnected modeling

4

• ProjectWise Navigator
• Design Review
• Interference Detection
• Schedule simulation
• Animation

• 3D Plant Design
• Piping
• Equipment
• Raceways
• Isometrics

• Structural
• Modeling
• Engineering
• Detailing

Project Database
ProjectWise

• Analysis
• Pipe Stress
• Flow
• Structural

5
Bentley Piping
Detailed Design of piping systems in a 3D
environment

• Specification Driven Piping utilizes a
  Spec-Driven approach to design maximizing quality
  by ensuring compliance with applicable design
  criteria.
• Easy to learn - User-friendly menus and toolbars
  enables users to easily create models.
• Powerful Editing React to design changes.
  Editing features such as change size/change spec,
  rotate components, delete and mend.
• Multiple Piping System Modules Delivered with
  Catalogs and Menus featuring thousands of
  industry-standard piping components. These
  include Welded, Flanged, Threaded, Clamped
  components in Ductile Iron, PVC, FRP, Lined,
  materials and more.
• Integration Piping is integrated with the
  schematic information entered using PID,
  Datasheets and Instrumentation Wiring.
• Industry Standard Orthographic drawings
  configurable to output single line or double line
  pipe featuring visible centerlines.
