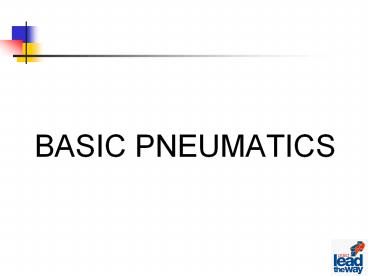

BASIC PNEUMATICS

1
BASIC PNEUMATICS
2
Properties of Compressed Air

• Availability
• Easily stored in large volumes
• Simplicity in design and control
• Provides linear and rotary movement
• Low system cost due to low component cost

3
Properties of Compressed Air

• Components have long working life resulting in
  longer system reliability
• Environmentally friendly
• Safety issues are minimized e.g.. Fire hazards
  unaffected by overloads (actuators stall or slip)
• Pneumatic actuators in a system do not produce
  heat (except for friction)

4
A Basic Pneumatic SystemAir Production and
Distribution System
Line Filter
Compressor
Pressure Switch
Check Valve
Motor
Pressure Gauge
Refrigerated Air Dryer
Drain
Tank
5
A Basic Pneumatic SystemAir Consumption System
Actuator
Drain
Directional Valve
Conditioning Unit
Air Line Take-off
6
Air Compression
Rotary
Vane
7
Compressor
8
Air Receiver
A pressure Vessel (Tank) normally made of metal
and installed either horizontally or vertically.
This vessel provides a volume of air to be
utilized by the system and reduced the loading
and unloading of the compressor.
Air Receiver (Tank)
9
Air Treatment
All atmospheric air carries both moisture and dust
Inlet Filter

• Used to remove large particle dirt from
• entering the system.

• Used to prevent excessive
• wear of cylinder, piston rings and other moving
  parts in the initial stage of the system

10
Air Dryer
Compressed air cannot hold the same amount of
moisture as non compressed air. Once the air is
compressed, some of the moisture condenses in the
tank and is removed through a drain valve. The
remaining moisture will rust internal components
of the system and must be removed. One way this
is done by sending the air through an air
conditioned chamber which will condense more of
the moisture which is present.
