Testing the programs

1

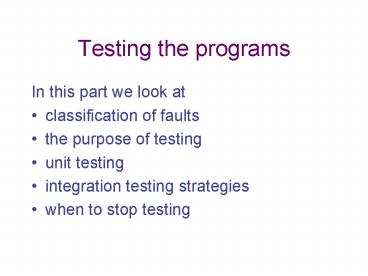

Testing the programs

• In this part we look at
• classification of faults
• the purpose of testing
• unit testing
• integration testing strategies
• when to stop testing

2
Concept change!!

• Many programmers view testing as a demonstration
  that their program performs properly.
• The idea of demonstrating correctness is really
  the reverse of what testing is all about.
• We test a program to demonstrate the existence of
  a fault! Because our goal is to discover faults,
  we consider a test successful only when a fault
  is discovered or a failure occurs as a result of
  our testing procedures.

3
Classification of faults

• In an ideal world, we produce programs where
  everything works flawlessly every time.
  Unfortunately this is not the case!
• We say that our software has failed, usually when
  its behaviour deviates from the one described in
  the requirements.
• First we identify the fault, i.e. determine what
  fault or faults caused the failure. Next we
  correct the fault by making changes to the system
  so that the fault is removed.

4
Classification of faults

• Why do we classify faults?
• In order to improve our development process!
• We would like to match a fault to a specific area
  of our development process.
• In other words, we would like our classification
  scheme to be orthogonal.

5
IBM Orthogonal Defect Classification
Fault type
Meaning
Function
Fault that affects capability, end-user
interfaces, product interfaces, interface with
hardware architecture, or global data structure
Interface
Fault in interacting with other components or
drivers via calls, macros,
control blocks or parameter lists
Checking
Fault in program logic that fails to validate
data and values properly before
they are used
Assignment
Fault in data structure or code block
initialization.
6
IBM Orthogonal Defect Classification
Fault type
Meaning
Fault that involves timing of shared and
real-time resources
Timing/serialization
Build/package/merge
Fault that occurs because of problems in
repositories, management changes,
or version control
Fault that affects publications and maintenance
notes
Documentation
Fault involving efficiency or correctness of
algorithm or data structure but
Algorithm
not design
7
Hewlett-Packard fault classification
8
Testing steps
9
Views of Test Objects

• Black (opaque) box
• In this type of testing, the test object is
  viewed from the outside and its contents are
  unknown.
• Testing consists of feeding input to the object
  and noting what output is produced.
• The test's goal is to be sure that every kind of
  input is submitted and that the observed output
  matches the expected output.

10
Black Box (example)

• Suppose we have a component that accepts as input
  the three numbers a, b, c and outputs the two
  roots of the equation ax2 bx c 0 or the
  message no real roots.
• It is impossible to test the component by
  submitting every possible triple of numbers
  (a,b,c).
• Representative cases may be chosen so that we
  have all combinations of positive, negative and
  zero for each of a, b, and c.
• Additionally we may select values that ensure
  that the discriminant, (b2 4ac) is positive,
  zero, or negative.

11
Black Box (example)

• If the tests reveal no faults, we have no
  guarantee that the component is fault-free!
• There are other reasons why failure may occur.
• For some components, it is impossible to generate
  a set of test cases to demonstrate correct
  functionality for all cases.

12
White box testing

• White (transparent) box
• In this type of testing, we use the structure of
  the test object to test in different ways.
• For example, we can devise test cases that
  execute all the statements or all the control
  paths within the component(s).
• Sometimes with many branches and loops it may be
  impractical to use this kind of approach.

13
(No Transcript)
14
Unit testing

• Our goal is to find faults in components. There
  are several ways to do this
• Examining the code
• Code walkthroughs
• Code inspections
• Proving code correct
• Testing components

15
Examining the Code

• Code walkthroughs are an informal type of review.

• Your code and documentation is presented to a
  review team and the team comments on their
  correctness.
• You lead and control the discussion. The focus is
  on the code not the programmer

16
Examining the Code

• A code inspection is similar to a walkthrough but
  is more formal.
• Here the review team checks the code and
  documentation against a prepared list of
  concerns.
• For example, the team may examine the definition
  and use of data types and structures to see if
  their use is consistent with the design and with
  system standards and procedures.
• The team may review algorithms and computations
  for their correctness and efficiency

17
Proving code correct

• Proof techniques are not widely used. It is
  difficult to create proofs, these can sometimes
  be longer than the program itself!
• Additionally customers require demonstration that
  the program is working correctly.
• Whereas a proof tells us how a program will work
  in a hypothetical environment described by the
  design and requirements, testing gives us
  information on how the program works in its
  actual operating environment.

18
Testing components

• Choosing test cases To test a component, we
  select input data and conditions and observe the
  output.
• A test point or case is a particular choice of
  test data.
• A test is a finite collection of test cases.
• Create tests that can convince ourselves and our
  customers that the program works correctly, not
  only for the test cases but for all input.
• We start by defining test objectives and define
  tests designed to meet a specific objective.
• One objective can be that all statements should
  execute correctly another can be that every
  function performed by the code is done correctly.

19
Testing components

• As seen before we view the component as either a
  white or black box.
• If we use black box testing, we supply all
  possible input and compare the output with what
  was expected.
• For example, with the quadratic equation seen
  earlier we can choose values for the coefficients
  that range over combinations of positive, zero
  and negative numbers.
• Or select combinations based on the relative
  sizes e.g. a gt b gt c, b gt c gt a, c gt b gt a,
  ...etc

20
Testing components

• We can go further and select values based upon
  the discriminant.
• We even supply non-numeric input to determine the
  program's response.
• In total we have four mutually exclusive types of
  test input.
• We thus use the test objective to help us
  separate the input into equivalence classes.

21
Equivalence classes

• Every possible input belongs to one of the
• classes. That is, the classes cover the entire
• set of input data.
• No input datum belongs to more than one
• class. That is, the classes are disjoint.
• If the executing code demonstrates a fault
• when using a particular class member is used
• as input, then the same fault can be detected
• using any other member of the class as input.
• That is , any element of the class represents all
• elements of that class.

22
Equivalence classes

• It is not always easy of feasible to tell if the
  third restriction can be met and it is usually
  rewritten to say
• if a class member is used to detect a fault then
  the probability is high that the other elements
  in the class will reveal the same fault.

23
Common Practice

• Usually 'white' box and 'black' box testing are
  combined.
• Suppose we have a component expects a positive
  input value. Then, using 'black' box testing, we
  can have a test case for each of the following
• a very large positive integer
• a positive integer
• a positive, fixed point decimal
• a number greater than 0 but less than 1
• a negative number
• a non numeric character

24
Common Practice

• Using 'white' box testing we can chose one or
  more of the following
• Statement testing Every statement in the
  component is executed at least once in some test.
• Branch testing For every decision point in the
  the code, each branch is chosen at least once in
  some test.
• Path testing Every distinct path through the
  code is executed at least once in some test.

25
(No Transcript)
26
White box testing

• Statement testing
• choose X gt K that produces a ve result
• 1-2-3-4-5-6-7
• Branch testing
• choose two test cases to traverse each branch of
  the decision points
• 1-2-3-4-5-6-7
• 1-2-4-5-6-1
• Path testing
• four test cases needed
• 1-2-3-4-5-6-7
• 1-2-3-4-5-6-1
• 1-2-4-5-6-7
• 1-2-4-5-6-1

27
Integration testing

• When each component has been completed and
  tested, we can then combine them into a working
  system.
• This integration must be planned and coordinated
  so that in the case of a failure, we would be
  able to determine what may have caused it.
• Suppose we view the system as a hierarchy of
  components (shown on the following slide).

28
Integration testing
29
Bottom-up integration
30
Top-down integration
31
Big-bang integration
32
Sandwich integration
33
Comparison of integration strategies
34
When to Stop Testing?
35
Fault Seeding

• We intentionally insert or seed a know number
  of faults in a program.
• Then another member of the team locate as many
  faults as possible.
• The number of undiscovered seeded faults act as
  an indicator of the total number of
  faults(unseeded and seeded) remaining in the
  program.
• We say

36
Fault Seeding

• Problems
• It is assumed that the seeded faults are of the
  same kind and complexity as the actual faults in
  the program.
• This is difficult to do since we do not know what
  are the typical faults until we have found them.
• We can attempt to overcome this by basing the
  seeded faults on historical data about previous
  faults.
• This, however requires that we have built similar
  systems before.

37
Fault Seeding

• Solution
• Use two independent groups, Test Group 1 and Test
  Group 2.
• Let x be the number detected by Group 1 and y the
  number detected by Group 2.
• Some faults will be detected by both groups say
  q, such that q lt x and q lt y.
• Finally let n be the total number of faults in
  the program which we want to estimate.
• The effectiveness of each group can be given by
  E1 x/n and E2 y/n

38
Fault Seeding

• The group effectiveness measures the group's
  ability to detect faults from among a set of
  existing faults.
• If we assume that Group 1 is just as effective at
  finding faults in any part of the program as in
  any other part,
• we can look at the ratio of faults found by Group
  1 from the set of faults found by Group 2.
• E1 x/n q/y
• E2 y/n q/x
• Which gives n (xy)/q q/(E1 E2)

39
Confidence in the Software

• If we seeded a program with S faults and we claim
  that the code has only N actual faults.
• Suppose we tested until all S faults have been
  found as well as n non-seeded faults, then a
  confidence level can be calculated as
• 1 , if n gt N
• C
• S/(S N 1) , if n ? N

40
Confidence in the Software

• With that approach we cannot predict the level of
  confidence until all the seeded faults are
  detected.
• Richards (1974) suggests a modification, where
  the confidence level can be estimated whether or
  not all the seeded faults have located.
• 1 , if n gt N
• C S S N 1 ,if n lt N
• s -1 N s

41
Other stopping criteria

• We can use the test strategy to determine when to
  stop.
• If we are doing statement, branch or path
  testing, we can track how many statements,
  branches or paths yet need to be executed and
  gauge our progress in terms of those statements,
  branches or paths left to test.
• There are many tools that can calculate these
  coverage values for us.
