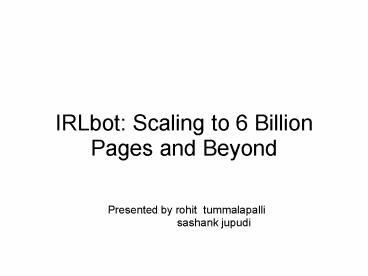

IRLbot: Scaling to 6 Billion Pages and Beyond

1
IRLbot Scaling to 6 Billion Pages and Beyond

• Presented by rohit  tummalapalli
•                   sashank jupudi

2
Agenda

• Introduction
• Challenges
• Overcoming the challenges
• Scalability
• Reputation and spam
• Politeness
• Experimental results
• Conclusion

3

•    Introduction
• Search engines consist of two fundamental
  components
• web crawlers
• data miners
• What is a web crawler?
• Challenges
• scalability
• spam avoidance
• politeness
•

4
Challenges - Scalability

• Internet trade off between scalability(N) ,
  performance(S) and resource usage(E).
• Previous works?
• Our goal

5
Challenges - spam avoidance

• Crawler is bogged down in synchronized delay
  attacks of certain spammers
• Prior research?
• Our goal

6
Challenges - politeness

• Web crawlers often get in trouble with webmasters
  for slowing down their servers.
• Even with spam avoidance, the entire RAM
  eventually gets filled with URLs from a small set
  of hosts and the crawler simply chokes on its
  politeness.
• Previous algorithms No
• Our goal

7
Scalability

• Bottleneck caused by complexity of verifying
  uniqueness of        URL's and compliance with
  robots.txt .
• Need for an algorithm that can perform very
  fast checks for    large N
• Authors introduced DRUM(Disk Repository with
  Update    Management)
• DRUM can store large volumes of arbitrary data
  on disk to implement very fast checks using
  bucket sort.
• Efficient and faster than prior disk based
  methods

8
Disk Repository with Update Mngmt

• The purpose of DRUM is to allow for efficient
  storage of large collections of ltkey, valuegt
  pairs
• ?Key is a unique identifier of some data
• ?Value is arbitrary information attached to keys
• Three supported operations
•    check, update, checkupdate

9
(No Transcript)
10
cont..

•  input  Continuous tuples of ltkey,value,auxgt
• DRUM spreads ltkey,valuegt pairs in K disk buckets
  according to key.
• All buckets pre-allocated on disk before usage.

11
cont..

• Once largest bucket reaches size r lt R foll.
  process repeated for all i 1..k
• 1) Bucket QiH read into bucket buffer
• 2) Disk Cache Z sequentially read and compared
  with bucket buffer.
• 3) Updating disk cache Z

12
DRUM used for storing crawler data

• DRUM objects
• URLseen
•     checkupdate operation
•
• RobotsCache
•     check and update operations
•     caching robots.txt file
• RobotsRequested
•     stores hashes of sites for which robots.txt
  been requested

13


•

14
Organisation of IRLbot

• URLseen discards duplicate URL's , unique one's
  are sent for BUDGET and STAR check.
• passing or failing based on matching Robots.txt
• sent back to Qr and host names passed through
  RobotsReq
• Sites hashes not already present are fed into Qd
  which performs DNS lokups

15


• Overhead metric ? of bytes written to/read
  from disk during uniqueness checks of lN URLs
•
•     ?a is the number of times they are written
  to/read from disk
•     ?blN is the number of bytes in all parsed
  URLs
• Maximum download rate (in pages/s) supported by
  the disk portion of URL uniqueness
•
•

16
spam avoidance

• BFS is a poor technique in presence of spam farms
  and infinite webs.
• Simply restricting the branching factor or the
  maximum number of pages/hosts per domain is not a
  viable solution.
• Computing traditional PageRank for each page
  could be prohibitively expensive in large crawls.
• Spam can be effectively deterred by budgeting the
  number of allowed pages per pay-level domain
  (PLD).

17
cont..

• This solution we call Spam Tracking and Avoidance
  through Reputation (STAR).
• Each PLD x has budget Bx that represents the
  number of pages that are allowed to pass from x
  (including all subdomains) to crawling threads
  every T time units.
• Each PLD x starts with a default budget B0 ,
  which is then dynamically adjusted as its
  in-degree dx changes over time
• DRUM is used to store PLD budgets and aggregate
  PLD-PLD link information.

18


•

19
Politeness

• Prior work has only enforced a certain per-host
  access delay th seconds
•     ?Easy to crash servers that co-locate 1000s
  of virtual hosts.
• To admit URLs into RAM we have a method called
  Budget Enforcement with Anti-Spam Tactics
  (BEAST).
• BEAST does not discard URLs, but rather delays
  their download until it knows more about the PLD
  they belong to.

20


•

21
cont..

• A naive implementation is to maintain two queues
•      ?Q contains URLs that passed the budget
  check
•     ?QF contains those that failed
• After Q is emptied, QF is read and again split
  into two queues Q and QF checks at regular
  increasing intervals.
• For N ?8, disk speed ? ? 2Sb(2L 1) constant
• It is roughly four times the speed needed to
  write all unique URLs to disk as they are
  discovered during the crawl
•

22
Experiments - summary

• Active crawling period of 41 days in summer 2007.
• IRLbot attempted 7.6 billion connections and
  received 7.4 billion valid HTTP replies.
• Average download rate 319 mb/s (1,789 pages/s).

23
Conclusion

• This paper tackled the issue of scaling web
  crawlers to billions and even trillions of pages
•     ?Single server with constant CPU, disk, and
  memory speed
•
• We identified several bottlenecks in building an
  efficient large-scale crawler and presented our
  solution to these problems
•     ?Low-overhead disk-based data structures
   ?Non-BFS crawling order    ?Real-time
  reputation to guide the crawling rate

24
Future work

• Refining reputation algorithms, accessing their
  performance.
• Mining the collected data.
