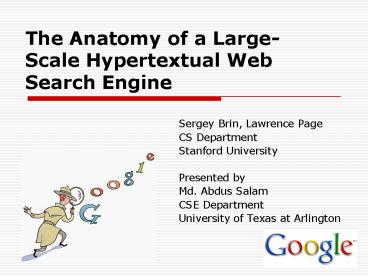

The Anatomy of a Large-Scale Hypertextual Web Search Engine

1
The Anatomy of a Large-Scale Hypertextual Web
Search Engine

• Sergey Brin, Lawrence Page
• CS Department
• Stanford University
• Presented by
• Md. Abdus Salam
• CSE Department
• University of Texas at Arlington

2
Introduction
3
Introduction
4
Introduction

• Googles Mission
• To organize the worlds information and make
  it universally accessible and useful
• Scaling with the web
• Improved Search Quality
• Academic Search Engine Research

5
System Features

• It makes use of the link structure of the Web to
  calculate a quality ranking for each web page,
  called PageRank
• PageRank is a trademark of Google. The PageRank
  process has been patented.
• Google utilizes link to improve search results

6
PageRank

• PageRank is a link analysis algorithm which
  assigns a numerical weighting to each Web page,
  with the purpose of "measuring" relative
  importance.

• Based on the hyperlinks map
• An excellent way to prioritize the results of web
  keyword searches

7
Simplified PageRank algorithm

• Assume four web pages A, B,C and D. Let each
  page would begin with an estimated PageRank of
  0.25.
• L(A) is defined as the number of links going out
  of page A. The PageRank of a page A is given as
  follows

C
A
D
B
C
A
D
B
8
PageRank algorithm including damping factor

• Assume page A has pages B, C, D ..., which point
  to it. The parameter d is a damping factor which
  can be set between 0 and 1. Usually set d to
  0.85. The PageRank of a page A is given as
  follows

9
Intuitive Justification

• A "random surfer" who is given a web page at
  random and keeps clicking on links, never hitting
  "back, but eventually gets bored and starts on
  another random page.
• The probability that the random surfer visits a
  page is its PageRank.
• The d damping factor is the probability at each
  page the "random surfer" will get bored and
  request another random page.
• A page can have a high PageRank
• If there are many pages that point to it
• Or if there are some pages that point to it, and
  have a high PageRank.

10
Anchor Text

• ltA href"http//www.yahoo.com/"gtYahoo!lt/Agt
• Besides the text of a hyperlink (anchor text) is
• associated with the page that the link is on,
• it is also associated with the page the link
• points to.
• anchors often provide more accurate descriptions
  of web pages than the pages themselves.
• anchors may exist for documents which cannot be
  indexed by a text-based search engine, such as
  images, programs, and databases.

11
Other Features

• It has location information for all hits.
• Google keeps track of some visual presentation
  details such as font size of words.
• Words in a larger or bolder font are weighted
  higher than other words.
• Full raw HTML of pages is available in a
  repository

12
Architecture Overview
13
Major Data Structures

• BigFiles
• virtual files spanning multiple file systems and
  are addressable by 64 bit integers.
• Repository
• contains the full HTML of every web page.
• Document Index
• keeps information about each document.
• Lexicon
• two parts a list of the words and a hash table
  of pointers.
• Hit Lists
• a list of occurrences of a particular word in a
  particular document including position, font, and
  capitalization information.
• Forward Index
• stored in a number of barrels
• Inverted Index
• consists of the same barrels as the forward
  index, except that they have been processed by
  the sorter.

14
Google Architecture
Multiple crawlers run in parallel. Each crawler
keeps its own DNS lookup cache and 300 open
connections open at once.
Keeps track of URLs that have and need to be
crawled
Compresses and stores web pages
Stores each link and text surrounding link.
Converts relative URLs into absolute URLs.
Contains full html of every web page. Each
document is prefixed by docID, length, and URL.
Uncompresses and parses documents. Stores link
information in anchors file.
15
Google Architecture
Parses distributes hit lists into barrels.
Maps absolute URLs into docIDs stored in Doc
Index. Stores anchor text in barrels. Generates
database of links (pairs of docIds).
Partially sorted forward indexes sorted by docID.
Each barrel stores hitlists for a given range of
wordIDs.
In-memory hash table that maps words to wordIds.
Contains pointer to doclist in barrel which
wordId falls into.
Creates inverted index whereby document list
containing docID and hitlists can be retrieved
given wordID.
DocID keyed index where each entry includes info
such as pointer to doc in repository, checksum,
statistics, status, etc. Also contains URL info
if doc has been crawled. If not just contains URL.
16
Google Architecture
2 kinds of barrels. Short barrell which contain
hit list which include title or anchor hits. Long
barrell for all hit lists.
List of wordIds produced by Sorter and lexicon
created by Indexer used to create new lexicon
used by searcher. Lexicon stores 14 million
words.
New lexicon keyed by wordID, inverted doc index
keyed by docID, and PageRanks used to answer
queries
17
Crawling the Web

• Google has a fast distributed crawling system.
• A single URLserver serves lists of URLs to a
  number of crawlers.
• Both the URLserver and the crawlers are
  implemented in Python.
• Each crawler keeps roughly 300 connections open
  at once. At peak speeds, the system can crawl
  over 100 web pages per second using four
  crawlers. This amounts to roughly 600K per second
  of data.
• Each crawler maintains its own DNS cache so it
  does not need to do a DNS lookup before crawling
  each document.

18
Indexing the Web

• Parsing
• Any parser which is designed to run on the entire
  Web must handle a huge array of possible errors.
• Indexing Documents into Barrels
• After each document is parsed, it is encoded into
  a number of barrels. Every word is converted into
  a wordID by using an in-memory hash table -- the
  lexicon.
• Once the words are converted into wordID's, their
  occurrences in the current document are
  translated into hit lists and are written into
  the forward barrels.
• Sorting
• the sorter takes each of the forward barrels and
  sorts it by wordID to produce an inverted barrel
  for title and anchor hits and a full text
  inverted barrel.

19
Google Query Evaluation

• Parse the query.
• Convert words into wordIDs.
• Seek to the start of the doclist in the short
  barrel for every word.
• Scan through the doclists until there is a
  document that matches all the search terms.
• Compute the rank of that document for the query.
• If we are in the short barrels and at the end of
  any doclist, seek to the start of the doclist in
  the full barrel for every word and go to step 4.
• If we are not at the end of any doclist go to
  step 4.
• Sort the documents that have matched by rank and
  return the top k.

20
Single Word Query Ranking

• Hitlist is retrieved for single word
• Each hit can be one of several types title,
  anchor, URL, large font, small font, etc.
• Each hit type is assigned its own weight
• Type-weights make up vector of weights
• Number of hits of each type is counted to form
  count-weight vector
• Dot product of type-weight and count-weight
  vectors is used to compute IR score
• IR score is combined with PageRank to compute
  final rank

21
Multi-word Query Ranking

• Similar to single-word ranking except now must
  analyze proximity of words in a document
• Hits occurring closer together are weighted
  higher than those farther apart
• Each proximity relation is classified into 1 of
  10 bins ranging from a phrase match to not
  even close
• Each type and proximity pair has a type-prox
  weight
• Counts converted into count-weights
• Take dot product of count-weights and type-prox
  weights to computer for IR score

22
Scalability

• Cluster architecture combined with Moores Law
  make for high scalability. At time of writing
• 24 million documents indexed in one week
• 518 million hyperlinks indexed
• Four crawlers collected 100 documents/sec

23
Key Optimization Techniques

• Each crawler maintains its own DNS lookup cache
• Use flex to generate lexical analyzer with own
  stack for parsing documents
• Parallelization of indexing phase
• In-memory lexicon
• Compression of repository
• Compact encoding of hit lists for space saving
• Indexer is optimized so it is just faster than
  the crawler so that crawling is the bottleneck
• Document index is updated in bulk
• Critical data structures placed on local disk
• Overall architecture designed avoid to disk seeks
  wherever possible

24
Storage Requirements

• At the time of publication, Google had the
  following statistical breakdown for storage
  requirements

25
Results and Performance

• The version of Google when this paper was
  written, answered most queries in between 1 and
  10 seconds.
• The table shows some samples search time from
  that version of Google. They were repeated to
  show the speedups resulting from cached IO.

26
Conclusion

• Google is designed to be a scalable search
  engine.
• The primary goal is to provide high quality
  search results over a rapidly growing World Wide
  Web.
• Google employs a number of techniques to improve
  search quality including page rank, anchor text,
  and proximity information.
• Google is a complete architecture for gathering
  web pages, indexing them, and performing search
  queries over them.

27
Google bomb

• Because of the PageRank, a page will be ranked
  higher if the sites that link to that page use
  consistent anchor text.
• A Google bomb is created if a large number of
  sites link to the page in this manner.
• search term "more evil than Satan himself" ? the
  Microsoft homepage as the top result.

28
Problems

• All Shopping, All the Time Searching for
  flowers, more than 90 of the top results are
  online florists.
• Skewed Synonyms If apple is searched, the
  top results would be related to apple computers.
• Book Learning People are implicitly pushed
  toward information stored in articles and away
  from information stored in books.

29
The Future

• The ultimate search engine would understand
  exactly what you mean and give back exactly what
  you want.
• - Larry Page

30
Web Search For A Planet

• The Google Cluster Architecture

Luiz Andre Barroso Jeffrey Dean Urs Holzle Google
Presented by Md. Abdus Salam CSE
Department University of Texas at Arlington
31
Basic Cluster Design Insights

• Reliability in software rather than server-class
  hardware.
• Commodity PCs used to build high-end computing
  cluster at a low end prices.
• Example
• 278,000 176x 2GHz Xeon, 176GB RAM, 7TB HDD
• 758,000 8x 2GHZ Xeon, 64GB RAM, 8TB HDD
• Design is tailored for best aggregate request
  throughput, not peak server response time
  individual request parallelization

32
Serving a Google Query

• Pre-phase
• Browser requests e.g. http//www.google.com/search
  ?qedusession
• DNS-based load-balancing selects cluster
  according to the geographical location of the
  user actual cluster utilization
• The rest of the evaluation is entirely local to
  the that cluster
• Phase 1 Index servers...
• Parse the query
• Perform spell-check and fork Ad task
• Convert words into WORDIDs
• Choose inverted Barrel(s) using Lexicon
• Barrel index is formed by number of servers whose
  data are randomly distributed and replicated
  (full index/index shards) so search is highly
  parallelizable
• Inverted barrel maps each query word to a
  matching list of documents (Hit list)
• Index servers determine a set of relevant
  documents by intersecting the hit lists of the
  individual query words
• A relevance score for each document is also
  computed which determines the order of the result
  in the output page

33
Serving a Google Query

• Phase 2 Document servers...
• For each DOCID compute actual title, URL and
  query-specific document summary (matched words
  context).
• Document servers are used to dispatch this
  completion also documents are randomly
  distributed and replicated, so the completion is
  highly parallelizable

34
Cluster Design Principles

• Software reliability
• Use replication for better request throughput and
  availability
• Price/performance beats peak performance
• Using commodity PCs reduces the cost of
  computation

35
Bonus
36
Stanford lab (around 1996)
37
The Original Google Storage 10x4GB (1996)
38
Google San Francisco (2004)
39
A cluster of coolness Google History
40
Google Results Page Per Day
41
References

• Sergey Brin, Lawrence Page The Anatomy of a
  Large-Scale Hypertextual Web Search Engine 1998
• Luiz André Barroso, Jeffrey Dean and Urs
  HoelzleWeb Search for a Planet The Google
  Cluster Architecture 2003
• http//www-db.stanford.edu/pub/voy/museum/pictures

• www.e-mental.com/dvorka/ppt/googleClusterInnards.p
  pt
• www.cis.temple.edu/vasilis/Courses/CIS664/Papers/
  An-google.ppt
• www.cs.uvm.edu/xwu/kdd/PageRank.ppt

42
Thanks!
