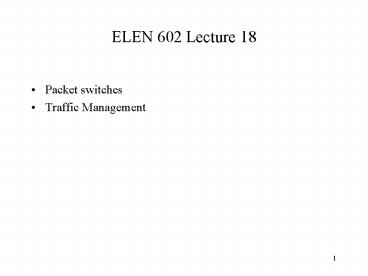

ELEN 602 Lecture 18

1
ELEN 602 Lecture 18

• Packet switches
• Traffic Management

2
Gateway
Organization Servers
To internet or wide area network
s
s
Backbone
R
R
R
S
Departmental Server
S
S
R
R
R
s
s
s
s
s
s
s
s
s
Campus Network
3
Intradomain and Interdomain levels
Interdomain level
Border routers
Internet service provider
Autonomous system or domain
Border routers
LAN level
Intradomain level
4
National service provider A
(a)
National service provider B
NAP
NAP
National service provider C
(b)
NAP
RA
RB
Route server
LAN
RC
5
Components of Generic Switch/Router
Control
1
Line Card
Line Card
1
2
2
Line Card
Line Card
3
Interconnection Fabric
3
Line Card
Line Card




N
N
Line Card
Line Card
6
Buffering

• Wherever contention is possible
• input port (contend for fabric)
• internal (contend for output port)
• output port (contend for link)
• Head-of-Line Blocking
• input buffering

7
Crossbar Switches
8
Workstation based Router
CPU
I/O
Bus
1
NIC Card
2
NIC Card
NIC Card
3
Main Memory


N
NIC Card
9
Workstation-Based

• Aggregate bandwidth
• 1/2 of the I/O bus bandwidth
• capacity shared among all hosts connected to
  switch
• example 800Mbps bus can support 8 T3 ports

• Packets-per-second
• must be able to switch small packets
• 100,000 packets-per-second is achievable
• e.g., 64-byte packets implies 51.2Mbps

10
Self-Routing Fabrics

• Banyan Network
• constructed from simple 2 x 2 switching elements
• self-routing header attached to each packet
• elements arranged to route based on this header
• no collisions if input packets sorted into
  ascending order
• complexity n log2 n

11
High-Speed IP Router

• Switch (possibly ATM)
• Line Cards Forwarding Engines
• link interface
• router lookup (input)
• common IP path (input)
• packet queue (output)
• Network Processor
• routing protocol(s)
• exceptional cases

12
High-Speed Router
13
Virtual-circuit Packet Switching
Packet
Packet
14
Delays in virtual-circuit switching
t
Connect request
1
3
2
CC
t
Release
3
CR
1
2
CC
t
Connect confirm
1
2
CR
3
t
Figure 7.19
15
Signaling for virtual-circuit setup
Connect request
Connect request
Connect request
SW 1
SW n
SW 2

Connect confirm
Connect confirm
16
Example virtual-circuit routing table
Output port
Next identifier
Identifier
12
44
13
Entry for packets with identifier 15
15
15
23
13
27
16
58
7
34
17
FIFO Queuing
(a)
Packet buffer
Arriving packets
Transmission link
Packet discard when full
FIFO Queuing with discard priority
(b)
Packet buffer
Arriving packets
Transmission link
Class 1 discard when full
Class 2 discard when threshold exceeded
18
HOL Priority queuing
Packet discard when full
High-priority packets
Transmission link
Low-priority packets
When high-priority queue empty
Packet discard when full
19
Sorting packets according to priority tag
Sorted packet buffer
Arriving packets
Tagging unit
Transmission link
Packet discard when full
20
Fair queuing
Approximated bit-level round robin service
Packet flow 1
Packet flow 2
C bits/second
Transmission link
Packet flow n
21
Fluid-flow and packet-by-packet FQ
Queue 1 _at_ t0
Fluid-flow system both packets served at rate
1/2
1
Queue 2 _at_ t0
Both packets complete service at t2
t
0
2
1
Packet from queue 2 waiting
Packet-by-packet system queue 1 served first at
rate 1 then queue 2 served at rate 1.
1
Packet from queue 2 being served
Packet from queue 1 being served
t
0
2
1
22
Computing finishing times
Generalize so R(t) is continuous, not discrete
R(t) grows at rate inversely proportional to
nactive(t)
23
2
Fluid-flow system both packets served at rate
1/2
Queue 1 _at_ t0
1
Queue 2 _at_ t0
Packet from queue s served at rate 1
t
0
2
3
Packet-by-packet fair queueing queue 2 served at
rate 1
Packet from queue 2 waiting
1
Packet from queue 1 being served at rate 1
t
2
1
3
0
Fluid-flow and packet-by-packet FQ
24
Queue 1 _at_ t0
Fluid-flow system packet from queue 1 served at
rate 1/4 Packet from queue 1 served at rate 1
Queue 2 _at_ t0
1
Packet from queue 2 served at rate 3/4
t
0
2
1
Packet from queue 1 waiting
Packet-by-packet weighted fair queueing queue 2
served first at rate 1 then queue 1 served at
rate 1.
1
Packet from queue 1 being served
Packet from queue 2 being served
t
0
2
1
Weighted Fair Queuing
