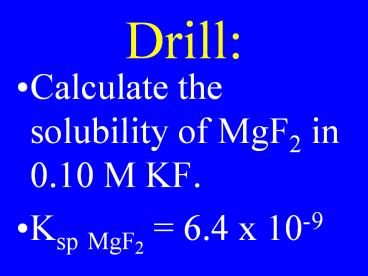

Drill:

1
Drill

• Calculate the solubility of MgF2 in 0.10 M KF.
• Ksp MgF2 6.4 x 10-9

2
Drill A statue is electroplated at the cathode
using a silver anode in aqueous AgNO3. Calculate
the current required to plate 10.8 g of silver in
5.0 minutes.
3
Drill Calculate the volume of Cl2 formed at 27oC
under 75 kPa when xs molten NaCl is electrolyzed
with 96.5 mA for 5.0 mins.
4
Nuclear Chemistry
5
Nuclear Chemistry

• The study of reactions that take place in the
  nuclei of atoms

6
Chemical Reactions

• In normal chemical reactions, only the electrons
  are involved

7
Radioactive Nuclei

• Nuclei that spontaneously decompose

8
Isotopes

• Elements with the same atomic number, but
  different mass number

9
Isotopes

• Elements with numbers of protons, but ? numbers
  of neutrons

10
Isotopes

• All elements have at least one radioactive isotope

11
Nuclear Radiation

• The emission of particles rays from
  spontaneously decomposing nuclei

12
Modes of Decay

• Alpha emission
• Beta emission
• Gamma emission
• Positron emission
• K-electron capture

13
Alpha Particle (a)

• Helium nucleus
• 2 protons 2 neutrons
• mass 4 amu
• charge 2
• Penetration power small

14
Beta Particle (b)

• High speed electron
• 1 electron
• mass 1/1836 amu
• charge -1
• Penetration power medium

15
Gamma Ray (g)

• High energy photon
• Electromagnetic wave
• mass 0
• charge 0
• Penetration power great

16
Positron (p)

• Positive electron
• 1 positive electron
• mass 1/1836 amu
• charge 1
• Penetration power medium

17
K-capture

• The capture of an inner level e- by the nucleus
• 1 electron
• mass 1/1836 amu
• charge -1

18
Nuclear Symbol

• Alpha 24He or 24a
• Beta -10e or 10b
• Gamma 0 0 ?
• Positron 10e
• K-electron -10e

19
Fission

• The splitting of a nucleus into smaller nuclei
  involving the release of energy

20
Fusion

• The combining of smaller nuclei into a larger
  nucleus involving the release of energy

21
Drill

• Name describe 3 types of radiation

22
Fission

• The splitting of a nucleus into smaller nuclei
  involving the release of energy

23
Fusion

• The combining of smaller nuclei into a larger one
  involving the release of energy

24
Transmutation Rxns

• Nuclear reactions in which one element is changed
  into another

25
Transmutation Rxns

• Reactions in which the nucleus of an atom is
  changed

26
Transmutation Rxns

• Both fission fusion are examples of
  transmutation rxns

27
Transmutation Rxns

• Can occur through emission of or bombardment by
  particles

28
Nuclear Symbol

• Alpha 24He or 24a
• Beta -10e or 10b
• Gamma 0 0 ?

29
Nuclear Symbols

• Neutron 01n
• Proton 11p
• Electron -10e

30
Transmutation Rxns

• b emission of Pm-142
• a bombardment of Th-231

31
Transmutation Rxns

• a emission of U-238 followed by two separate b
  emissions

32
Transmutation Rxns

• a bombardment of Th-235 followed by two separate
  b emission

33
Predict Products

• a emission of O-18 followed by a
• b emission

34
Predict Products

• b absorption by V-45 followed by neutron emission
  then a emission

35
Predict Products

• neutron bombardment of Ta-182 followed by b
  emission then a emission

36
Drill Predict Prod

• Neutron absorption by U-238 followed by two
  separate b emission

37
Nuclear Power
38
Nuclear Fission

• U-235 is the only fissable isotope of uranium
• 0.71 of uranium is U-235
• 99.28 of uranium is U-238

39
Nuclear Fission

• Chain reaction can occur only when it reaches
  critical mass
• The percentage of U-235 in uranium is too low to
  form a chain reaction

40
Nuclear Fission

• To run a power plant, the U-235 needs to be
  enriched to 2
• To make a bomb, the U-235 needs to be enriched to
  gt 70

41
Nuclear Fission

• To create a chain reaction, the U-235 must be
  increased (enriched) greatly
• Ultra-centrifugation

42
(No Transcript)
43
Nuclear Fission Bomb
44
Decay Rate

• The rate at which radioactive nuclei break down

45
Half-Life

• The time it takes for 50 of the radioactive
  nuclei to decompose

46
(No Transcript)
47
Decay Rate

• Rate kDX/Dt
• ln(Xi/Xf) kt1/2
• k 0.693/t1/2
• t1/2 half-life

48
1st Order Age Dating Formula

• ln(Xi/Xf)t1/2
• 0.693

t
49

• Calculate the age of a skeleton found with 0.125
  C-14 when atmospheric C-14 1.00 .
• t1/2 C-14 5730 yr

50

• Calculate the age of a tooth found with 0.00132
  C-14 when atmospheric C-14 1.00 .
• t1/2 C-14 5730

51
Drill

• Predict the products in each step when
• Boron-12 goes through a bombardment followed by b
  emission.

52
Predict the products in each step
when Uranium-234 goes through 5 straight a
emissions.
53

• Calculate the age of a bone found with 0.000010
  C-14 when atmospheric C-14 1.00 . t1/2 C-14
  5730

54
Mass-Energy Relations

• DE Dmc2

55
Nuclear Fact

• The mass of any nucleus is different than the sum
  of the masses of its protons neutrons

56
Nuclear Fact

• The energy corresponding to the mass difference
  can be solved using
• DE Dmc2

57
Binding Energy

• The energy that holds a nucleus together
  corresponds to Dm of nucleus

58
In an atomic bomb, 40.00 kg of U-235 (235.401) is
split into Ba-143 (143.223) Kr-89 (89.335) 2
neutrons (1.014). A) Calculate the energy
released. B) Calculate the wavelength of the g
ray
59
Drill Show neutron bombardment of Ra-223
followed by 3 alpha emissions
60

• A fossil contained 3.125 of its original
  carbon-14. Determine its age.
• t1/2 for C-14 5730 yrs

61
Know the radioactive particles their
characteristics.
62
Alpha (a)Beta (b)Gamma (g)
63
Know how to balance transmutation reactions
64
Show the intermediates and the final isotope of
alpha bombardment of Xe-136 followed by two
separate beta emissions.
65
Know how to perform age dating

• ln(Xi/Xf)t1/2
• 0.693

t
66

• Calculate the age of a bone found with 0.000010
  C-14
• when atmospheric
• C-14 1.00 .
• t1/2 C-14 5730

67
Know How to Determine Reactions in an
Electrolytic Cell
68
2.0 volts is applied to a system through 2
platinum electrodes in an aqueous solution
containing ZnCl2(aq) CaBr2(aq).

• Calculate anode, cathode, total rxns
  voltages.

69
Know how to make electroplating calculations.
70
Charge (mass) current x timecoul amp x
secq It
71
Sauls Rule

• nFm MWIt

72
Calculate the mass of Al purified from Al2O3
using a current of 96.5 MA for 5.0 hrs.
73
Calculate the time required to plate 1.08 g of
silver onto a cathode using a current of 965 mA.
