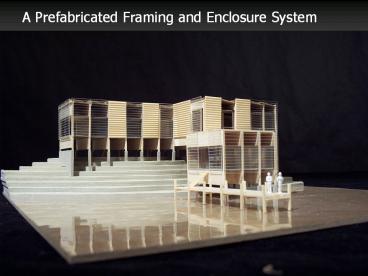

A Prefabricated Framing and Enclosure System

1
A Prefabricated Framing and Enclosure System
2
The Problem
3
Typical prefab systems lack flexibility In both
plan and section
4
Custom construction systems lack economic
efficiency (initial long-term)
5
The Response
6
ECONOMY
FLEXIBILITY
7
COMPONENT SPECTRUM
CUSTOM
Lighting Water Heat Doors Windows Finishes Partit
ion Walls Enclosure Walls Rainscreen Structure
UTILITIES
This presentation kicks ass
FLEXIBLE
STANDARD
8
SYSTEM CONCEPT
3 distinct layers
rainscreen
structure
enclosure
9
SYSTEM DERIVATION
SIP SYSTEM
STICK FRAME
10
columns
FRAMING PLAN -
truss
floor panels
wall panels
rainscreen
column zone
11
COMPONENTS
roof decking
wall panel
deck panel
rainscreen
partition
floor and ceiling panel
column
truss
12
COLUMN
13
TRUSS
14
FLOOR AND CEILING PANELS
15
DECK PANEL
16
WALL PANEL
standard wall panel
with wall lengthener A
lengthener B
17
GLASS WALL PANEL
18
TRUSS ZONE PANELS
19
COLUMN ZONE PANELS
20
DOUBLE RAINSCREEN
21
ROOF PANELS
22
DRAINAGE SYSTEM
23
INTERIOR PANEL CLOSURE
PLAN CONNECTION DETAIL
24
WALL PARTITIONS AND PARTITION BRACKETS
25
LATERAL CABLE
26
STAIR STRINGER
24
8
Elevation
Connection Detail
27
(No Transcript)
28
SECTION DIAGRAMS
29
SECTION DIAGRAMS
30
SECTION DIAGRAMS
Some possible sectional arrangements
perpendicular to truss
floor plan
31
SECTION DIAGRAMS
Some possible sectional arrangements parallel to
truss
32
Some possible plan arrangements
33
Enclosure walls may move away from boundary set
by structural frame
34
MARGINAL SPACES
POSSIBLE USES
storage
mech
mech
mech
garage
storage
35
ECONOMY
NUMBERS ARE BASED ON CONSULTATION WITH WITH A
PROFESSIONAL COST ESTIMATOR

• Little or no construction waste

- Easy maintenance

• Long-lived components

• Minimal site work/impact

- Energy savings
36
ECONOMY
NUMBERS ARE BASED ON CONSULTATION WITH WITH A
PROFESSIONAL COST ESTIMATOR
Based on material cost of a 2000sf enclosure
Dimensional lumber 22,163
This system 13,922
37
APPLICATIONS
38
NUMBERS ARE BASED ON CONSULTATION WITH WITH A
PROFESSIONAL COST ESTIMATOR
ECONOMY
LITTLE OR NO CONSTRUCTION WASTE
MINIMAL SITE WORK
Based on a 2000sf enclosure
Cheapest custom system
My system

• MATERIALS
• 1st Floor
• - 1000sf slab on grade 1588
• 10 insulated stick frame wall 6819
• 2nd Floor
• 1000sf stick frame floor 2355
• 10 insulated stick frame wall 6819
• prefab gable roof 4582.00
• TOTAL 22,163

MATERIALS 128 floor/ceiling panels 7040 64 wall
panels 1536 15 1st floor columns 900 15 2nd
floor columns 630 15 9 trusses 509 15 25
trusses 1464 1152sf standing seam roof
1843 TOTAL 13,922
LABOR 5/sf 10,000
LABOR 7/sf 14,000
Long term maintenance costs 20 cheaper Energy
costs 10 cheaper Total costs after custom
work 25 cheaper
