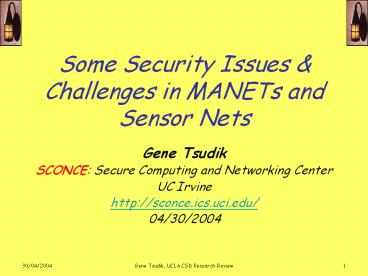

Some Security Issues

1
Some Security Issues Challenges in MANETs and
Sensor Nets

• Gene Tsudik
• SCONCE Secure Computing and Networking Center
• UC Irvine
• http//sconce.ics.uci.edu/
• 04/30/2004

2
Outline

• Background
• Some security issues
• Secure Casual Multicast
• Aided Cryptography
• Secure Routing
• Privacy Issues
• Aggregation and minimization
• Group Membership Admission and Eviction
• DoS resistance
• Some on-going work

3
Secure Casual Multicast

• An important service in MANETs and sensor
  networks is the need to communicate to dynamic
  subsets/clusters of nodes, e.g.,
• All routers with x available bw
• All nodes close to some location
• All nodes with gtt power remaining
• This kind of multicast can be one-time
• How to distribute a group key to such subsets?
• Broadcast encryption doesnt help here

4
Secure Casual Multicast

• If the subset is large (around n) then broadcast
  encryption techniques could be used
• But what if subset size is much smaller than the
  total of nodes, e.g., n/c for some constant c.
• Solutions today are
• encrypt the message as many times as there are
  receivers or,
• use group key establishment protocols
• Both solutions are very expensive
• Can we do better???

5
Aided Cryptographic Computations

• Assume nodes have limited computation and
  communication ability as well as limited energy
• Computationally intensive tasks, e.g., full-blown
  PK crypto operations are costly
• Many setting involve a (small) number of more
  powerful devices (gw-s, servers, etc.)
• Can be used for off-loading crypto computations
• if power needed for computing is greater than
  that for communication
• if time needed for computing would adversely
  impact sensors other tasks

6
Aided Cryptographic Computations

• Server-aided cryptography is applicable but
  state-of-the-art (2-party, mediated,
  server-aided, etc..) still too expensive
• Designed to enforce various policies
  (fine-grained control, revocation,) not to
  minimize computation
• Can we design an architecture that off-loads
  heavy computation to more powerful devices?

7
Secure Routing/Key distribution

• Most MANET routing protocols are vulnerable to
  attacks that can paralyze the whole network
• Existing secure MANET routing protocols (such as
  Ariadne) authenticate each data and control
  packet
• Proposed authentication solutions are
• Signatures too costly!
• TESLA needs buffering, synchronization, some
  complexity
• Pair-wise keys not flexible - all nodes must be
  updated when a new node joins the MANET.
• Shared (common) group key not secure one
  corruption is enough to break the system!
• No general solution exists

8
Secure Routing/Key distribution

• Similarly, state-of the art secure routing in
  sensor networks
• relies on time synchronization (is this
  realistic?)
• remains secure only if less that t nodes are
  compromised
• Since wholesale re-keying/re-initializing is
  often impossible, these solutions might not be
  practical!
• Also, it is often difficult to identify
  compromised nodes in monitoring applications
• Ideally we need solutions that work even if some
  nodes have been compromised
• New key distribution and secure routing protocols
  are required for these types of networks!

9
Privacy-Aware Routing

• MANET routing is cooperative
• Traffic analysis is very easy!
• Some technical solutions exists onion routing,
  mixes very expensive!
• Can we build routing protocols that prevent
  intermediate nodes from performing traffic
  analysis?
• Privacy-aware routing is needed!

10
Privacy of Associations

• MANETs and sensor nets can operate in
  multi-cultural environment
• Need to tell kin from strangers (friend-or-foe)
• Need to do so in private manner no
  observability!
• Secret Handshakes can help
• Balfanz, et al.
• Castelluccia, et al.
• Still need to solve one-time credential issue
• Group handshakes?
• Sensors operating in hostile settings need to
  produce signatures that are anonymous/untraceable
• Group signatures? Too expensive

11
Group Key Management

• Group Key Distribution (GKD) requires a center,
  large groups, multicast, wireline
• Group Key Agreement (GKA) distributed
  (group-based), expensive, small groups, wireline
• Current solutions unsuitable for MANETs
• GKD no center, long messages, broadcasts
• GKA multi-round, many messages, broadcasts
• GKA need underlying reliable group comm.
• GKA tries to minimize computation
• GKD tries to minimize bw
• Sometimes need to switch priorities
• GKA protocols need to complete even if
  membership changes in the interim
• GKA center availability (partitions/failures/comp
  romise)
• No practical protocol tolerates malicious insiders

12
Aggregation / Minimization

• MACs, signatures are examples of crypto tags
• If information is collected from each node
  (sensor, router, etc), much bw and storage is
  wasted on tags
• Need to minimize tag size aggregate signatures,
  MACs, etc.
• If multiple nodes report the same data, can
  aggregate it
• Why not aggregate tags too?
• Example techniques Mykletun NDSS04, Boneh
  EuroCrypt03, Mazieres IPTPS04
• Much more work needed

13
DoS Resistance

• DoS attacks are here to stay
• Worst (best) attacks target servers Web, Time,
  Name, Authentication, etc.
• So-called Client Puzzles are touted as an
  effective solution
• Waste of computation
• Punishes anemic clients
• Powerful adversary can afford fast hw
• Other solutions?

14
Group Membership Control

• Goal secure admission of members to a
  group while tolerating adversaries both outside
  and inside
• Standard Model
• A CA is distributed among n nodes (all or only
  some)
• A new node must gets a partial signature from
  each of at least k (out of n) nodes
• It then computes its membership certificate and
  becomes a bona fide member
• Can prove membership by presenting his
  certificate
• Can compute pair-wise keys
• Can authenticate to insiders and outsiders
• TS-RSA, TS-DSA, ID-based
• All areTOO expensive!
• New crypto algorithms/protocols needed
• Distributed Eviction is harder (need to maintain
  MRLs)

15
Membership Control

• KMT03 Y. Kim, D. Mazzocchi and G. Tsudik,
• Admission Control in Collaborative Groups, I
• IEEE Symposium on Network Computing and
  Applications (NCA-03)
• NTY03 M. Narasimha, G. Tsudik and J. Yi,
• On the Utility of Distributed Cryptography in
  P2P and MANETs,
• IEEE International Conference on Network
  Protocols (ICNP'03)
• STY03 N. Saxena, G. Tsudik and J. Yi,
• Admission Control in P2P Design and Performance
  Evaluation,
• ACM Workshop on Security of Ad Hoc and Sensor
  Networks (SASN '03)

16
Key (pre-)distribution

• Combine key pre-distribution (Blom scheme) with
  secret sharing to achieve (pairwise) key
  distribution in MANETs
• Model
• Each node (a priori) gets a share of its
  secrets from k servers
• Uses shares to compute a secret
• This secret can be used to compute a pair-wise
  key with any other node
• Sometimes more appropriate than the
  distributed-CA model
• Members get keys not certificates!
• efficientfew modular multiplications per key
  computation
• Extending this to INEXPENSIVE group keying

17
Aggregation of crypto-tags

• Efficient Secure Routing
• Using DH for securing Route Discovery (as in DSR)
• Constant-size tags
• Few (2) exponentiations to verify route integrity
• Few (2) exponentiations per route hop
• Also, using ID-based cryptography
