Ground Water Resources

1

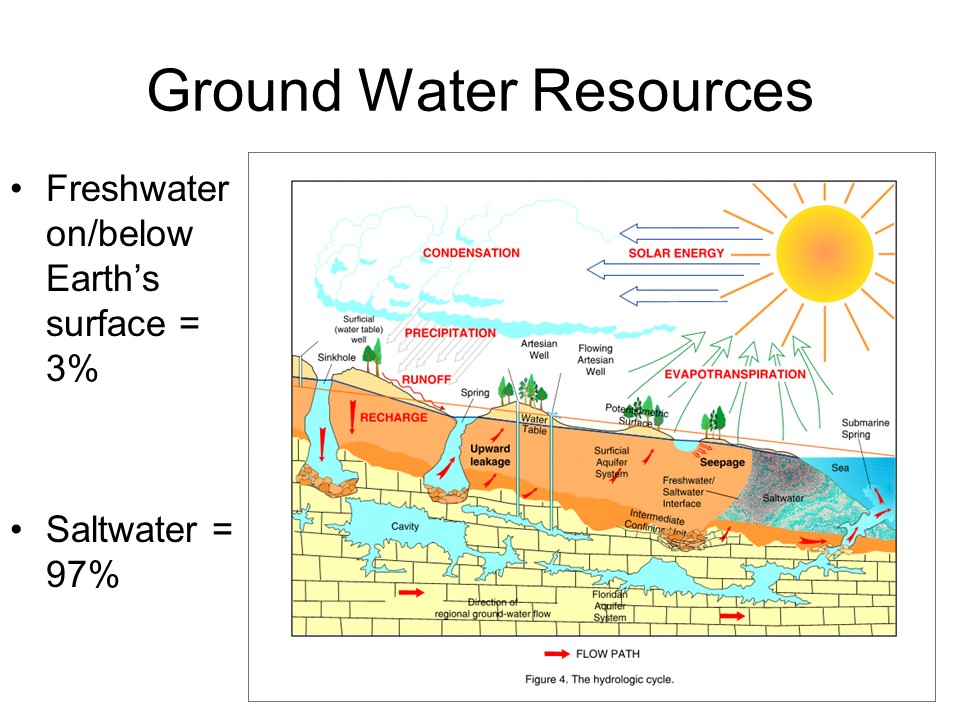

Ground Water Resources

• Freshwater on/below Earths surface 3
• Saltwater 97

2
Groundwater

• Precipitation infiltrates and percolates downward
  through soil pore spaces and rock crevices and is
  stored below ground.
• Groundwater surplus higher than normal water
  table.
• Groundwater deficit lower than normal water
  table.

3
Water Budget
Water Surplus Inputgtoutput
Average WT
Water Deficit Inputltoutput
4
Aquifers

• Aquifer porous soils allow for water to
  accumulated in layers of sand and gravel confined
  by clay layers (confining layers)

5
Long Island Sole Source Aquifer
6
Groundwater Recharge Areas

• Recharge Areas any area of land where water
  passes downward or laterally into an aquifer.
  Example Long Island Pine Barrens or Development
  Recharge Basins sumps.

7
Long Islands Groundwater Recharge
8
Freshwater Uses

• Irrigation 16
• Energy Production Cooling 25
• Domestic/Municipal use 10
• (mostly developed nations)
• Agriculture and Industrial Processing 50
• Eastern USA plenty of water
• Western USA arid region water shortages
• Long Island Sole Source Aquifer

9
Causes of Water Shortages

• Dry Climate
• Drought Precipitation (low), Evapotranspiration
  and evaporation (high)
• Dessication (drying out)
• Water stress as population increases (Las Vegas)
• Precipitation 10cm/yr 64 water usage by
  homeowners for lawns and gardens!
• Result water diversion from Colorado River to
  meet water consumption needs.

10
Water Rights in the USA
West First Come-First Serve basis -legal
rights to usage groundwater belongs to the owner
of the land above it! They can use as much as
they want, divert it or sell it to make a
profit! Garrett Hardins Tragedy of the
Commons (FBL)

• East
• Riparian Rights
• -As per needed basis as long as there is enough
  water left for downstream areas.

11
Ogallala Aquifer
Wyoming S. Dakota Nebraska Colorado Kansas New
Mexico Oklahoma Texas
12
Ogallala Aquifer

• Worlds largest aquifer
• Water is 15,000 30,000 years old (nonrenewable)
• VERY SLOW recharge rate
• Used for irrigation (20) and farming (40)

13
Ogallala Aquifer Problems

• Water is diverted into arid lands which are
  normally NOT arable.
• Subsidies provided to farmers to divert water in
  an effort to decrease government crop disaster
  payments to farmers who lose their crop due to
  drought.
• The government encourages groundwater mining by
  giving tax breaks FBL
• 3. Water experts expect the Ogallala to be
  economically depleted by 2020 at current
  consumption rate.
• 4. Native Americans lost rights to water on what
  was originally their land due to settlers
  Appropriation Rights!

14
Colorado River
15
Colorado River Diversion

• 1,400 miles long
• Headwaters glacial in Colorado Rocky Mountains
• Mouth Gulf of California, Mexico
• Federal Energy Regulatory Commission (FERC) and
  US Army Corps of Engineers (ACE) licensed 17
  major hydropower dams and 100 minor dams.
• Water is diverted to farmers to grow water
  thirsty crops such as alfalfa and ranchers (80)
  as far away as Californias Imperial Valley and
  to cities including Las Vegas.

16
Hydropower Dams Along the Colorado River
17
Subsidies

• Water is subsidized by taxpayers for construction
  of dams.
• This presents a false, low cost of water to
  consumers in this extremely arid region.
• Native Americans have lost rights because of
  settlers Appropriation Rights.
• Water allotments in USA have been exceeded,
  leaving a trickle of water for Mexicans.
• Water quality is compromised and biodiversity
  decreases.

18
Gulf of California, Mexico
19
Should Water Be Privatized?

• Pros to privitization of water when a resource
  is an investment better care is taken of the
  resource.
• Cons to privitization of water water is a
  common resource for all people to use. Is it
  fair to allow corporations to control common
  resources?
• Tragedy of the commons overuse and depletion of
  common resources.
• Mind-set is If I dont use it, someone else
  will
• (Video)

20
Water Wars in the Middle East
Turkey
Jordan River Jordan Syria Israel Tigris-Euphrate
s Turkey Syria Iraq
Nile River Ethiopia Sudan Egypt
Syria
Iraq
Jordan
Jordan River
Israel
21
Jordan River

• Israel irrigates 2/3 of its croplands, but uses
  water more efficiently than any other country in
  the world.
• Jordan 75 of water from Jordan River basin.
  With population on the rise, water shortages
  could cause Jordan to declare war on Israel for
  water useage.
• Syria gets water from Jordan and the
  Euphrates-Tigris rivers. Syria is closest to
  headwaters for Jordan River. They plan to build
  many dams for water diversion. This will limit
  water going to Jordan and Israel.
• Israel threatens to destroy dams in Syria.

22
Tigris-Euphrates River

• Turkey is situated at the headwater and they
  plan to build 22 dams along the upper Tigris and
  Euphrates for hydroelectric plants and for
  irrigation.
• Turkey plans on diverting water from dams via
  pipelines to Saudi Arabia, Kuwait and possibly
  Syria, Israel and Jordan.
• Syria gets 90 of its water from the Euphrates.
• Iraq will be left with very little water.

23
Nile River

• Ethiopia control 85 of the headwaters.
• Sudan uses approximately 10 .
• Egypt the last to get water along the Nile
  (5). Egypt has a thin area of irrigated
  cropland, the rest of Egypt is desert.
• PROBLEM Egyptian population grows by 1 million
  every 9 months!

24
What Can Egypt Do?

• Declare war on Sudan and Ethiopia
• Decrease population growth
• Save water by improving irrigation efficiency and
  drought resistant crops
• Spend 2 billion dollars and pump water from Lake
  Nasser (reservoir at the Aswan High Dam)
• Import more grain to feed population
• Work out water-sharing agreements with other
  countries.
• Suffer human and economic losses.

25
How Can Water Problems Be Resolved?

• 1. Decrease population!
• 1.2 billion lack access to clean drinking water
• 2.2 billion live without Sewage Treatment Plants
  (STPs)
• 2/3 of the world households do NOT have running
  water.
• Must be a global commitment to sharing this rare
  and valuable resource sustainably!
• Build dams to store water in (reservoirs)
• Transfer water from other places.
• Build desalination plants (USA engineers)
• Improve efficiency in water usage
• Conserve water.

26
Why Is Water Wasted In the USA?

• Artificially low prices of water resulting from
  government subsidies (externalities not including
  in your water bill).
• Promotion of growing water thirsty crops such as
  alfalfa in California and Arizona! The
  government makes water SO cheap and easily
  accessible through water transfer from Colorado
  River that farmers grow these crops.
• The US Bureau of Reclamation supplies ¼ of all
  water used to irrigate lands to the western USA
  under Long-Term Contracts at greatly subsidized
  prices from our taxes!
• Watershed Management is divided between state and
  local governments in the western USA, there is
  not 1 Authority in control. Long Island has a
  Regional Water Authority (Suffolk County Water
  Authority) and we are in much better shape, but
  water is still ridiculously cheap.

27
Suffolk County Water Authority

• Annual Reports on the Quality of Your Drinking
  Water are mailed out each spring to each resident
  in Suffolk County.
• You can view them online as well.
• www.scwa.com/residential/yourdrinkingwater.cfm

28
How Can We Conserve Water in the USA?

• Efficiency improvement
• Flood irrigation through gravity flow
• Center-pivot sprinklers (low to ground less
  evaporation. (costs are high initially farmers
  dont use them)
• Drip Systems release trickle of water near
  plant roots. High initial costs.
• Computer controlled systems monitor soil
  moisture and turn on irrigation systems as needed
  (high initial costs)
• Switch to xerophytic crops (little water needed)
  xeroscaping.
• Consumer should pay true cost of water (include
  externalities)
• Provide subsidies for conservation methods that
  have high initial start-up costs!
• Treat wastewater to irrigate non-edible crops.

29
What You Can Do

• Turn faucet off when brushing teeth (saves 9
  gallons of water)
• Fill up sink when shaving (saves 14 gallons of
  water)
• Fill kitchen sink with water to wash pots and
  pans (saves 25 gallons of water)
• When washing car, do not leave hose running
  (saves 150 gallons of water)
• Self service car wash uses only 10 gallons of
  water
• Sponge and bucket uses only 15 gallon of water.
• Flushing a toilet uses 5-7 gallons of water put
  a displacement device in tank and reduce it to
  2-3 gallons of water per flush.

30
What Can You Do?

• Install low flow shower head. Decreases water
  use by 35 gallons for every 5 minutes you are in
  the shower.
• Reduce the time spent in the shower!
• Install low flow aerator faucet heads (4.00 at
  Home Depot or Hardware Store). Reduces water use
  by 50.
• Use Phosphate-free detergents (Mandatory in
  Nassau and Suffolk) to decrease cultural
  eutrophication.
• To Prevent Groundwater Contamination DO NOT
  dispose of paint, paint thinner, oil, grease or
  any other material labeled as hazardous or toxic
  into the environment or down the drain.
• Town of Islip has special pick ups through WRAP
  program (1 in fall, 1 in spring) OR you can bring
  these materials to the Islip Town recycling
  centers.

31
Groundwater Contamination

• Groundwater is the primary source of drinking
  water and irrigation.
• Contamination Sources
• a. Livestock waste
• b. Underground storage tanks (leak fuel and
  MTBs)
• c. Landfills (leach materials breaking down
  (metals, hdyrocarbons, etc.)
• d. Abandoned hazardous waste sites leach heavy
  metals and solvents into groundwater.

32
Sanitary Landfill
33
Groundwater Protection in USA

• Clean up is VERY expensive and technically not
  feasible.
• PREVENTION IS BEST!
• US Safe Drinking Water Act, 1974 EPA
  established national drinking water standards e.
  0 coliform bacteria colonies per 100mL of water.
• (Recall Clean Water Act does not protect
  groundwater)

34
EPA MANDATES

• 1992 survey showed that 40 of the US drinking
  water contained parasitic organisms of
  Cryptosporidium sp., but not Giardia sp.
• 1996 EPA mandated that ALL Public Water
  Suppliers (Suffolk County Water Authority) test
  for Cryptosporidium sp., but not Giardia sp.
• There are 255 chemicals and compounds that the
  government requires we monitor in our drinking
  water

Cryptosporidium sp.
Giardia sp.
35
Who Has Too Much Water?

• When there is too much water or soils are
  persistently saturated, rain events can cause
  disastrous flooding.
• Humans have contributing to increased flooding
  from
• a. deforestation
• b. Mining
• c. Overgrazing
• d. urbanization (hard surface increase leads to
  infiltration decrease)

36
Bangladesh
37
Bangladesh

• 123 million people in one of the poorest
  countries in the world and 80 of the population
  live along the shoreline where there are rich,
  fertile soils.
• Average per capita GNP 260.00 71 cents/day!
• Monsoon season brings continuous flooding during
  the summer months. It appears to be cyclic and
  that every four years there are significant
  monsoonal events since the 1970s (historically
  it was about every 50 years!)

38
Why Does Bangladesh Flood So Frequently?

• Rapid population increase has changed the natural
  character of the land by
• Deforestation which has promoted significant soil
  erosion.
• Overgrazing
• Unsuitable farming (steep slopes) and unsound
  farming practices on these slopes.
• Cleared coastal mangrove forests to provide land
  to grow rice. They have removed the wetland
  structures and decreased or removed the functions
  they need to survive along the coastlines.
• No money to restore mangrove swamps!
• RESULT Millions of homes are destroyed each
  year, thousands of people drown. 30 million
  people become environmental refugees each year.

39
(No Transcript)
40
How Do We Reduce Flood Risks?

• Channelization to divert water away from
  communities can have both positive and negative
  effects. (Florida Everglades are destroyed from
  ACE water diversion)
• Build levees and dams when they break
  disaster (Hurricane Katrina)
• Restore wetland systems (never achieve 100
  replacement of structure and functions)
• Establish Flood Plain Management Plans How
  about dont build in the flood plain?!!
• PREVENTION IS BEST!

41
FEMA

• Federal Emergency Management Agency
• Provide Flood Plain Maps for every County in the
  USA. Designed for Insurance Companies.
• Delineate 500 year storm flood elevation
• Delineate 100 year storm flood elevation
• Delineates entire flood plain area.

42
(No Transcript)
43
(No Transcript)
