Lab results/lab report

1

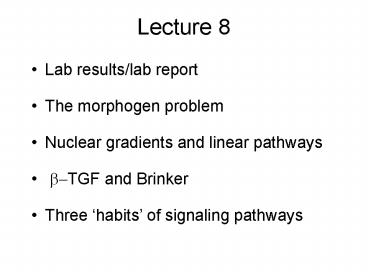

Lecture 8

• Lab results/lab report
• The morphogen problem
• Nuclear gradients and linear pathways
• b-TGF and Brinker
• Three habits of signaling pathways

2
Results are posted on the web Go to results page
3
Click and find your files
4
Instruction to authors
5
Instruction to authors
6
Turnitin.com

• To be marked the lab report must be submitted to
  turnitin.com minus the references.
• Class ID see web site
• Enrollment password see web site
• Due April 5, 2012

7
The problem with Morphogens
100
Percent bound/ response
50
Concentration
8
The problem with Morphogens
100
Percent bound/ response
50
Concentration
9
The problem with Morphogens
100
Percent bound/ response
50
Concentration
10
The problem with Morphogens
Cooperative
100
Percent bound/ response
50
Concentration
11
The problem with Morphogens
Cooperative
100
Percent bound/ response
50
Concentration
12
The primacy of secreted morphogens
Teleman and Cohen Cell 103, 971
13
bTGF/DPP pathway
bTGF/DPP
Type1. thickvein
ligand
Type2, punt
Smads
One eyed pinhead oep Co-receptor in zebrafish
14
The primacy of secreted morphogens
Teleman and Cohen Cell 103, 971
15
Problems with primacy of secreted morphogens

• Changes to gene expression is ultimately a
  nuclear event.
• Most morphogen signaling pathways are linear.
• Gradient on gradient on gradient.
• Bicoid rules.

16
Toll Dorsal Pathway
Gilbert 7th Ed.
17
Gradients

• Spatzle is activated in a graded manner.
• Toll is active in a graded manner.
• Pelle kinase is active in a graded manner.
• Cactus is degraded in a graded manner.
• Dorsal enters the nucleus in a graded manner.

18
Dorsal nuclear gradient
Stathopoulos and Levine Dev. Biol. 246, 57
19
Interpretation in the nucleus of the gradient
Stathopoulos and Levine Dev. Biol. 246, 57
20
Interpretation in the nucleus of the gradient
Convert low affinity site to high affinity
Stathopoulos and Levine Dev. Biol. 246, 57
21
Interpretation in the nucleus of the gradient
Stathopoulos and Levine Dev. Biol. 246, 57
22
Dorsal patterns the dorsal ventral axis
Stathopoulos and Levine Current opinion in
Genetics and Development 14, 477
23
Different Dorsal dependent regulatory elements
Stathopoulos and Levine Current opinion in
Genetics and Development 14, 477
24
Different Dorsal dependent regulatory elements
Stathopoulos and Levine Current opinion in
Genetics and Development 14, 477
25
Problem with Dorsal as model morphogen

• The Toll Dorsal pathway activated at syncytial
  blastoderm stage.
• Look at DPP again.

26
bTGF/DPP pathway
bTGF/DPP
Type1. thickvein
ligand
Type2, punt
Smads
27
bTGF/DPP pathway
bTGF/DPP
P
Type1. thickvein
ligand
Type2, punt
Smads
28
bTGF/DPP pathway
bTGF/DPP
P
Type1. thickvein
ligand
Type2, punt
P
Smads
29
bTGF/DPP pathway
bTGF/DPP
P
Type1. thickvein
ligand
Type2, punt
P
Smads
Mad Medea
Nucleus
30
What do Mad and Medea do in the nucleus?

• Activate expression of an inhibitory Smad called
  Dad
• Repress Brinker expression

31
Brinker?

• Identified as a DPP regulated gene required for
  the repression of DPP regulated genes.

32
Brinker expression repressed by DPP pathway
FRT
mad
FRT
UbiGFP
Campbell and Tomlinson Cell 96, 553
33
Brinker represses Octomotor blind and Spalt
FRT
brkXH
FRT
UbiGFP
Campbell and Tomlinson Cell 96, 553
34
Brinker epistasis
Jazwinska et al., Cell 96, 563
35
Brinker is a nuclear protein that is repressed by
DPP such that it is expressed in a DPP
anti-gradient. Sal and omb are repressed by
different concentrations of Brinker.
Campbell and Tomlinson Cell 96, 553
36
Brinker DNA binding domain bound to DNA
37
Questions about Brinker

• How do Mad and Medea both activate and repress
  transcription?
• How does the DPP pathway regulate Brinker
  expression to create the anti-gradient?

38
Schnurri is required for expression of DPP
responsive genes Schnurri phenotype is
suppressed by brinker mutant
wt
shn
brk
shn, brk
Marty et al., Nature cell biol. 2, 745
39
Expression in shn brk mutants
GFP
shn
Sal expression
shn
Brinker expression
shn brk
Sal expression
Marty et al., Nature cell biol. 2, 745
40
DPP pathway has two branches
Marty et al., Nature cell biol. 2, 745
41
Looking for the brinker regulatory element
Muller et al., Cell 113, 221
42
24 bases required for repression
Pyrowolakis et al., Dev. Cell 7, 229
43
Mad Medea and Schnurri bind to the silencer
Pyrowolakis et al., Dev. Cell 7, 229
44
Brinker is not the only gene repressed
Pyrowolakis et al., Dev. Cell 7, 229
45
Brinker is a nuclear protein that is repressed by
DPP such that it is expressed in a DPP
anti-gradient. Sal and omb are repressed by
different concentrations of Brinker. Bicoid rules
Campbell and Tomlinson Cell 96, 553
46
The three habits

• Barolo and Posakony 2002
• Looking for common themes in the organization of
  signaling pathways.

47
Trying to explain the precision of expression
Example wingless expression
48
The three habits

• Activator insufficiency
• Cooperative activation
• Default repression

49
SPRE Signaling pathway response elements
SPRE-binding transcription factor
50
SPRE Signaling pathway response elements
SPRE-binding transcription factor
HH Ci/Gli WNT Lef/Tcf Notch Su(H)/CBF1
51
Other factors
Barolo and Posakony Genes and Dev. 16, 1167
52
3 habits model
Barolo and Posakony Genes and Dev. 16, 1167
53
Basis for the proposal of the model
Barolo and Posakony Genes and Dev. 16, 1167
54
Activator insufficiency

• SPRE-binding transcription factor can not
  activate transcription alone.
• Tissue culture vs in vivo

55
Cooperative activation

• SPRE-binding transcription factors require other
  transcription factors for the activation of
  transcription.
• The interaction is cooperative

56
Default repression

• In the absence of ligand SPRE-binding factors
  repress transcription.

57
3 habits model
Barolo and Posakony Genes and Dev. 16, 1167
58
Switching from default repression to activation
Barolo and Posakony Genes and Dev. 16, 1167
59
3 habits model
Barolo and Posakony Genes and Dev. 16, 1167
60
Consequences of the 3 habits
Barolo and Posakony Genes and Dev. 16, 1167
61
Trying to explain the precision of expression
Wingless is regulated by the HH pathway
62
DPP pathway and the three habits
Pyrowolakis et al., Dev. Cell 7, 229
