Making Connection

1

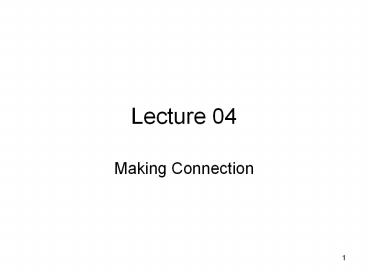

Lecture 04

• Making Connection

2
Introduction

• Connection concept
• Interface concept and standard (Level 1)
• EIA-232F
• USB
• Data Link Connections (Level 2)
• Terminal-to-mainframe computer connections
• Application examples

(to p3)
(to p35)
(to p48)
(to p52)
3
Connection concept

• How computer networks are connected?

(to p4)
4
Connection concept

• Recalled OSI model level 1
• Physical level, which requires peripheral devices
  to connect two different computers or devices
  together
• Termed as interface
• Two types of standards
• Modes of data flow
• Connection to systems

(to p7)
(to p8)
(to p9)
(to p14)
(to p5)
5
Connection (cont.)
(to p18)

• Characteristics of interface standards
• Two important interface standards
• EIA-232F
• USB (Universal Serial Bus)
• Other interfacing standards

(to p20)
(to p27)
(to p6)
6
Other interfacing standards

• Other peripheral interfacing standards that
  provide power, flexibility and ease-of-installatio
  n include
• FireWire (low cost device for digital)
• SCSI, iSCSC(mainly for permanent storage,
  CD/DVD)
• InfiniBand, Fibre Channel (high speed connection)

(to p32)
(to p33)
(to p34)
(to p2)
7
Level 2
Level 1
Data terminating equipment
Data communicating equipment
(to p4)
8
Characteristics of Interface Standards

• There are essentially two types of standards
• Official standards
• Created by standards-making organizations such as
  ITU (International Telecommunications Union),
  IEEE (Institute for Electrical and Electronics
  Engineers), EIA (Electronic Industries
  Association), ISO (International Organization for
  Standardization), and ANSI (American National
  Standards Institute)
• CSA (Canadian standard), UL (USA for computer
  hardware)
• De facto standards
• Created by other groups that are not official
  standards but because of their widespread use,
  become almost standards

(to p4)
9
data flow

• There are 3 types of data flow
• i) simplex transmission
• ii) half-duplex transmission
• iii) full duplex transmission

(to p10)
(to p12)
(to p13)
(to p4)
10
simplex transmission

• i) simplex transmission
• data is transmitted in one direction only
• ie no data transmission on opposite direction is
  allowed
• see Figure 8-2
• Application examples?

(to p11)
(to p9)
11
(to p10)
(to p12)
(to p13)
12
half-duplex transmission

• ii) half-duplex transmission
• transmission in either direction on a circuit but
  only one direction at a time
• eg an inquiry is sent to the computer and then a
  response is sent back on the same circuit to the
  terminal
• Application examples?

(to p11)
(to p9)
13
full duplex transmission

• iii) full duplex transmission
• data transmission in both directions
  simultaneously on the circuit
• machine needs to be intelligence at both ends
  (why?)
• Application examples?

(to p11)
(to p9)
14
connection to the system

• two types of physical connection in the system
• i) Parallel data transmission
• ii) Series data transmission

(to p15)
(to p17)
(to p4)
15
Parallel data transmission

• i) Parallel data transmission
• connected via direct cable that has one wire for
  each bit in a character of data code being used
  by the terminal
• See Figure 8.3
• with multiple wires, all the bits of a characters
  can be transmitted between the terminals and
  computer at once
• Disadv very expensive no practice over long
  distance (why?)

(to p16)
(to p14)
16
FIGURE 8-3 Parallel and serial transmission.
(to p15)
(to p17)
17

• ii) Series data transmission
• bits of each character are sent down to a line
  one after another
• complicated process because machine needs to know
  how to decompose and to reconstruct of bits at
  each respective end
• Adv or Disadv?

(to p16)
(to p14)
18
Characteristics of Interface Standards
(continued)

• There are four possible components to an
  interface standard
• Electrical component
• Mechanical component
• Functional component
• Procedural component

(to p19)
Explanations
(to p5)
19
Characteristics of Interface Standards
(continued)

• Four components
• Electrical component deals with voltages, line
  capacitance, and other electrical characteristics
• Mechanical component deals with items such as
  the connector or plug description
• Functional component describes the function of
  each pin or circuit that is used in a particular
  interface
• Procedural component describes how the
  particular circuits are used to perform an
  operation

(to p18)
20
EIA-232F

• EIA-232F an older standard originally designed
  to connect a modem to a computer
• Originally named RS-232 but has gone through many
  revisions
• The electrical component is defined by another
  standard V.28
• The mechanical component is often defined by ISO
  2110, the DB-25 connector. The DB-9 connector is
  now more common than the DB-25.

(to p23)
(to p21)
(to p24)
21
Worked as full duplex (why?) Its functions
(to p22)
(to p20)
22
(to p21)
23
EIA-232F (continued)
(to p20)
24
EIA-232F (continued)

• The functional and procedural components are
  defined by the V.24 standard
• For example, V.24 defines the function of each of
  the pins on the DB-9 connector, as shown on the
  Table 4.1
• Table 4.2 shows an example of the procedural
  dialog that can be used to create a connection
  between two endpoints
• Note the level of complexity needed to establish
  a full-duplex connection

(to p25)
(to p26)
(to p5)
25
EIA-232F (continued)
(to p24)
26
EIA-232F (continued)
(to p24)
27
Universal Serial Bus (USB)

• a newer standard that is much more powerful than
  EIA-232F
• The USB interface is a modern standard for
  interconnecting a wide range of peripheral
  devices to computers
• Supports plug and play
• Can daisy-chain multiple devices
• USB 2.0 can support 480 Mbps (USB 1.0 is only 12
  Mbps) USB 3.0

(to p28)
28
Universal Serial Bus (USB) (continued)

• The USB interface defines all four components
• The electrical component defines two wires VBUS
  and Ground to carry a 5-volt signal, while the D
  and D- wires carry the data and signaling
  information
• The mechanical component precisely defines the
  size of four different connectors and uses only
  four wires (the metal shell counts as one more
  connector)

(to p29)
29
Universal Serial Bus (USB) (continued)

• Four types of USB connectors
• The functional and procedural components are
  fairly complex but are based on the polled bus
• The computer takes turns asking each peripheral
  if it has anything to send
• More on polling near the end of this chapter

(to p30)
(to p31)
(to p5)
30
Universal Serial Bus (USB) (continued)
(to p29)
31
Universal Serial Bus (USB) (continued)

• The functional and procedural components are
  fairly complex but are based on the polled bus
• The computer takes turns asking each peripheral
  if it has anything to send
• More on polling near the end of this chapter

(to p29)
32
FireWire

• Low-cost digital interface (real time connection
  for PC)
• A FireWire connection lets you send data to and
  from high-bandwidth digital devices such as
  digital camcorders, and it's faster than USB
• Capable of supporting transfer speeds of up to
  400 Mbps
• Hot pluggable
• Supports two types of data connections
• Asynchronous connection
• Isochronous connection

(to p6)
33
SCSI and iSCSI

• SCSI (Small Computer System Interface)
• A technique for interfacing a computer to
  high-speed devices such as hard disk drives, tape
  drives, CDs, and DVDs
• Designed to support devices of a more permanent
  nature
• SCSI is a systems interface
• Need SCSI adapter
• iSCSI (Internet SCSI)
• A technique for interfacing
• disk storage to a computer via
• the Internet

(to p6)
34
InfiniBand and Fibre Channel

• InfiniBand a serial connection or bus that can
  carry multiple channels of data at the same time
• Can support data transfer speeds of 2.5 billion
  bits (2.5 gigabits) per second and address
  thousands of devices, using both copper wire and
  fiber-optic cables
• A network of high-speed links and switches
• Fibre Channel also a serial, high-speed network
  that connects a computer to multiple input/output
  devices
• Supports data transfer rates up to billions of
  bits per second, but can support the
  interconnection of up to 126 devices only

(to p6)
35
Data Link Connections

• Take place at level 2
• technique used to transmit data on a comm line
• two methods could be used to transmit data
• i) Asynchronous transmission (Asych)
• ii) Synchronous transmission (Synch)
• Iii) Isochronous Connections (Isoch)

(to p36)
(to p42)
(to p47)
(to p2)
36
Asynchronous transmission

• i) Asynchronous transmission (Asych)
• Pattern of data presentation
• data transmission is sent preceded by an extra
  bit, called a start bit, and followed by one more
  extra bit called stop bit (start/stop
  transmission)

(to p37)
37
Asynchronous transmission

• Eg
• 1 1 0 0 0 0 0 1 0
• represent a A character Stop
  bit
• start bit or representation of or space
  bit
• mark bit a code system

(to p38)
Alternative presentation
(to p40)
38
Asynchronous Connections (continued)
(to p39)
More example
39
Asynchronous Connections (continued)
Send the word H E L L O
(to p37)
40
Asynchronous transmission

• Penalty term is used to measure the efficiency of
  a code system
• known as transmission efficiency
• Eg.
• Code No. of bits start/stop total bite Eff.
• Baudot 5 2 7 5/771.5
• ASCII 7 2 9 7/977
• EBCDIC 8 2 10 8/1080

(to p41)
41
Asynchronous transmission

• Asyn has a function of character synchronization,
  which allows when a start bit is sensed, the
  receiver knows that the next n bits on the line
  make up a characters
• Without Char Syn, receiver cannot rocog the first
  bit of charc, and thus character could not be
  interpreted.
• Adv. Equipment cost is low
• Disadv. Slow speed, less than 300bps

(to p35)
42
Synchronous transmission

• ii) Synchronous transmission (Synch)
• design for line speed that cannot handle by Asyn
• its function is that bit Synch is maintained by
  clock circuitry in the transmitter and in the
  receiver

(to p43)
43
Synchronous transmission

• that is timing generated by the transmitters
  clock is sent along with data so that the
  receiver can keep its clock synchronized with
  that of the transmitter throughout a long
  transmission
• data is usually sent in a block oriented,
  contains special synch character with a unique
  bit pattern
• similar the Asych, synch char performs a function
  similar to that of start bit

(to p44)
44
Synchronous transmission

• It has 1 to 4 synchronizing characters for each
  block of data whereas Asych has 2 bits for
  each character
• Semantic view
• efficiency

(to p45)
(to p46)
45
Synchronous Connections (continued)
(to p44)
46
Synchronous transmission

• Example consider a character consists of
• 0100101
• Asynch 250 char x (7 data 2 start/stop)
  2250
• Synch (250 4 synch char) x 7 bits) 1778
• Thus, Synch is 21 more efficient than Aysnch
• Note Mostly, host computers adopt Synch
  transmission.

(to p35)
47
Isochronous Connections

• A third type of connection defined at the data
  link layer used to support real-time applications
• Data must be delivered at just the right speed
  (real-time) not too fast and not too slow
• Typically an isochronous connection must allocate
  resources on both ends to maintain real-time
• USB and Firewire can both support isochronous
• (provide data transmission in a regular period of
  time)

(to p35)
48
Terminal-to-Mainframe Computer Connections

• Two main ways for connections
• Point-to-point connection a direct, unshared
  connection between a terminal and a mainframe
  computer
• Multipoint connection a shared connection
  between multiple terminals and a mainframe
  computer
• The mainframe is the primary and the terminals
  are the secondaries (how do you draw them
  semantically?)

(to p49)
(to p49)
(to p50)
49
Terminal-to-Mainframe Computer Connections
(continued)
(to p48)
(to p48)
50
Terminal-to-Mainframe Computer Connections
(continued)

• To allow a terminal to transmit data to a
  mainframe, the mainframe must poll the terminal
• Two basic forms of polling roll-call polling and
  hub polling
• In roll-call polling, the mainframe polls each
  terminal in a round-robin fashion
• In hub polling, the mainframe polls the first
  terminal, and this terminal passes the poll onto
  the next terminal (how it works, semantically?)

(to p51)
(to p2)
51
Terminal-to-Mainframe Computer Connections
(continued)
Roll-call pulling
(to p50)
52
Making Computer Connections In Action

• The back panel of a personal computer has many
  different types of connectors, or connections
• RS-232 connectors
• USB connectors
• Parallel printer connectors
• Serial port connectors

(to p53)
Layout
53
Making Computer Connections In Action (continued)
(to p54)
54
Making Computer Connections In Action (continued)

• 1 and 2 DIN connectors for keyboard and mouse
• 3 USB connectors
• 4 and 6 DB-9 connectors
• 5 Parallel port connector (Centronics)
• 7, 8, and 9 audio connectors
• Will Bluetooth replace these someday?

(to p55)
Solution!
55
Making Computer Connections In Action (continued)

• A company wants to transfer files that are
  typically 700K chars in size
• If an asynchronous connection is used, each
  character will have a start bit, a stop bit, and
  maybe a parity bit
• 700,000 chars 11 bits/char (8 bits data start
  stop parity) 7,700,000 bits

(to p56)
56
Making Computer Connections In Action (continued)

• If a synchronous connection is used, assume
  maximum payload size 1500 bytes
• To transfer a 700K char file requires 467
  1500-character (byte) frames
• Each frame will also contain 1-byte header,
  1-byte address, 1-byte control, and 2-byte
  checksum, thus 5 bytes overhead

(to p57)
57
Making Computer Connections In Action (continued)

• 1500 bytes payload 5 byte overhead 1505 byte
  frames
• 467 frames 1505 bytes/frame 716,380 bytes, or
  5,731,040 bits
• Significantly less data using synchronous
  connection
