Ordered List: The Abstract View

1

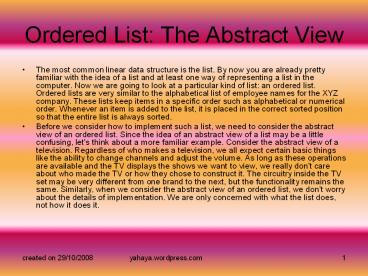

Ordered List The Abstract View

• The most common linear data structure is the
  list. By now you are already pretty familiar with
  the idea of a list and at least one way of
  representing a list in the computer. Now we are
  going to look at a particular kind of list an
  ordered list. Ordered lists are very similar to
  the alphabetical list of employee names for the
  XYZ company. These lists keep items in a specific
  order such as alphabetical or numerical order.
  Whenever an item is added to the list, it is
  placed in the correct sorted position so that the
  entire list is always sorted.
• Before we consider how to implement such a list,
  we need to consider the abstract view of an
  ordered list. Since the idea of an abstract view
  of a list may be a little confusing, let's think
  about a more familiar example. Consider the
  abstract view of a television. Regardless of who
  makes a television, we all expect certain basic
  things like the ability to change channels and
  adjust the volume. As long as these operations
  are available and the TV displays the shows we
  want to view, we really don't care about who made
  the TV or how they chose to construct it. The
  circuitry inside the TV set may be very different
  from one brand to the next, but the functionality
  remains the same. Similarly, when we consider the
  abstract view of an ordered list, we don't worry
  about the details of implementation. We are only
  concerned with what the list does, not how it
  does it.

2
Ordered List The Abstract View

• Suppose we want a list that can hold the
  following group of sorted numbers 2 4 6 7.
  What are some things that we might want to do
  with our list? Well, since our list is in order,
  we will need some way of adding numbers to the
  list in the proper place, and we will need some
  way of deleting numbers we don't want from the
  list. To represent these operations, we will use
  the following notation
• AddListItem(List, Item)RemoveListItem(List,
  Item)
• Each operation has a name and a list of
  parameters the operation needs. The parameter
  list for the AddListItem operation includes a
  list (the list we want to add to) and an item
  (the item we want to add). The RemoveListItem
  operation is very similar except this time we
  specify the item we want to remove. These
  operations are part of the abstract view of an
  ordered list. They are what we expect from any
  ordered list regardless of how it is implemented
  in the computer.

3
Ordered List The Implementation

• In this lesson, we are going to look at two
  different ways of creating an ordered list data
  structure to hold the following list 2 4 6 7.
  First, we will create a list using an array of
  memory cells. Next, we will create the the same
  list using pointers. Finally, we will compare
  these two approaches to see the advantages and
  disadvantages.
• Array Implementation
• One approach to creating a list is simply to
  reserve a block of adjacent memory cells large
  enough to hold the entire list. Such a block of
  memory is called an array. Of course, since we
  will want to add items to our list, we need to
  reserve more than just four memory cells. For
  now, we will make our array large enough to hold
  six numbers. The animation below shows a
  graphical representation of our array in memory
  with the list numbers. Follow the directions in
  the animation to learn how the list operations
  AddListItem and RemoveListItem work.

4
Ordered List The Implementation

• In the animation, you saw that there were two
  disadvantages to using an array to implement an
  ordered list. First, you saw that the elements in
  the list must be kept in sequence, that is, there
  must not be gaps in the list. If gaps are
  allowed, the computer will not be able to
  determine which items are part of the list and
  which items are not. For this reason, the ordered
  list structures that are implemented with arrays
  are known as sequential lists.
• The second disadvantage that you saw was that
  arrays have a fixed size and therefore limit the
  number of items the list can contain. Of course
  we could try to increase the size of the array,
  but it may not always be the case that the
  adjacent memory cells in the computer are
  available. They could be in use by some other
  program. However, it is quite likely that the
  computer does have available memory at some other
  non-adjacent location. To take advantage of this
  memory, we need to design our list so that the
  list items do not have to be adjacent.

5
Ordered List The Implementation

• Pointer Implementation
• A second approach to creating a list is to link
  groups of memory cells together using pointers.
  Each group of memory cells is called a node. With
  this implementation every node contains a data
  item and a pointer to the next item in the list.
  You can picture this structure as a chain of
  nodes linked together by pointers. As long as we
  know where the chain begins, we can follow the
  links to reach any item in the list. Often this
  structure is called a linked list.

6
Ordered List The Implementation

• Notice that the last memory cell in our chain
  contains a symbol called "Null". This symbol is a
  special value that tells us we have reached the
  end of our list. You can think of this symbol as
  a pointer that points to nothing. Since we are
  using pointers to implement our list, the list
  operations AddListItem and RemoveListItem will
  work differently than they did for sequential
  lists. The animation below shows how these
  operations work and how they provide a solution
  for the two problems we had with arrays.

7
Ordered List The Implementation

• By implementing our list with pointers, we are
  able to avoid the two disadvantages we discovered
  with using sequential lists. However, this does
  not mean that linked lists are the perfect
  solution. Whenever we use indirection in building
  a data structure, it becomes much harder to find
  mistakes. For example, it is very easy to assign
  the wrong address to a pointer and "short
  circuit" our list. In general, sequential lists
  are simpler than linked lists but they are also
  more limited. Linked lists give us a great amount
  of flexibility but this comes at the cost of
  increased complexity
