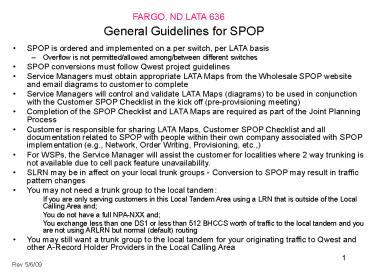

General Guidelines for SPOP

1
FARGO, ND LATA 636
General Guidelines for SPOP

• SPOP is ordered and implemented on a per switch,
  per LATA basis
• Overflow is not permitted/allowed among/between
  different switches
• SPOP conversions must follow Qwest project
  guidelines
• Service Managers must obtain appropriate LATA
  Maps from the Wholesale SPOP website and email
  diagrams to customer to complete
• Service Managers will control and validate LATA
  Maps (diagrams) to be used in conjunction with
  the Customer SPOP Checklist in the kick off
  (pre-provisioning meeting)
• Completion of the SPOP Checklist and LATA Maps
  are required as part of the Joint Planning
  Process
• Customer is responsible for sharing LATA Maps,
  Customer SPOP Checklist and all documentation
  related to SPOP with people within their own
  company associated with SPOP implementation
  (e.g., Network, Order Writing, Provisioning,
  etc.,)
• For WSPs, the Service Manager will assist the
  customer for localities where 2 way trunking is
  not available due to cell pack feature
  unavailability.
• SLRN may be in affect on your local trunk groups
  - Conversion to SPOP may result in traffic
  pattern changes
• You may not need a trunk group to the local
  tandem
• If you are only serving customers in this Local
  Tandem Area using a LRN that is outside of the
  Local Calling Area and
• You do not have a full NPA-NXX and
• You exchange less than one DS1 or less than 512
  BHCCS worth of traffic to the local tandem and
  you are not using ARLRN but normal (default)
  routing
• You may still want a trunk group to the local
  tandem for your originating traffic to Qwest and
  other A-Record Holder Providers in the Local
  Calling Area

Rev 5/6/09
2
Subtending Localities















FARGO, ND LATA 636
BRECKENRIDGE HORACE
CASSELTON JAMESTOWN
COMSTOCK KINDRED
DILWORTH LEONARD
FARGO MOORHEAD
GARDNER SABIN
HARWOOD VALLEY CITY
HAWLEY WAHPETON
HICKSON WEST FARGO
HILLSBORO
Locality covered by local tandem submit
diagram for local tandem, also.
REV. 9/11/08
3
INSTRUCTIONS
FARGO, ND LATA 636

• Use previous slide as a template. Copy all and
  paste to new document
• In top left box enter the full NPA-NXXs
  assigned to the switch and in LATA 636 (on ASR
  full NPA-NXXs should go in CNPANXX fields on
  ICTQ6.)
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the ICASR page of the ASR)
  and POI/ACTL CLLI (this is the ACTL on the ICASR
  page). If POI/ACTL CLLI is owned by another OCN,
  LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• EITHER enter a single line from POI/ACTL CLLI box
  to each access tandem circle and label 2W SPOP
  COMBINED and include quantity of trunks
  requested OR enter 2 lines from POI/ACTL CLLI box
  to each access tandem circle and label top line
  2W SPOP IXC and bottom line 2W SPOP
  Local/Intra and include quantity of trunks
  requested.
• Indicate the QWEST localities where you will be
  conducting business (pooling, porting, etc) by
  changing the color to red.
• Full NPA-NXXs also known as Code Holder,
  LERG Assignee, or A Record Holder

REV. 9/11/08
4
Subtending Localities

FARGO, ND LATA 636
EAST GRAND FORKS
GRAND FORKS
CROOKSTON
EMERADO
GRAFTON
MANVEL
REYNOLDS
THOMPSON
THIEF RIVER FALLS
HATTON
LARIMORE
NORTHWOOD
REV. 9/11/08
5
INSTRUCTIONS
FARGO, ND LATA 636

• Use previous slide as a template. Copy all and
  paste to new document
• In top left box enter the full NPA-NXXs
  assigned to the switch and in LATA 636 (on ASR
  full NPA-NXXs should go in CNPANXX fields on
  ICTQ6.)
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the ICASR page of the ASR)
  and POI/ACTL CLLI (this is the ACTL on the ICASR
  page). If POI/ACTL CLLI is owned by another OCN,
  LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• EITHER enter a single line from POI/ACTL CLLI box
  to each access tandem circle and label 2W SPOP
  COMBINED and include quantity of trunks
  requested OR enter 2 lines from POI/ACTL CLLI box
  to each access tandem circle and label top line
  2W SPOP IXC and bottom line 2W SPOP
  Local/Intra and include quantity of trunks
  requested.
• Indicate the QWEST localities where you will be
  conducting business (pooling, porting, etc) by
  changing the color to red.
• Full NPA-NXXs also known as Code Holder,
  LERG Assignee, or A Record Holder

REV. 9/11/08
6
Subtending Localities

FARGO, ND LATA 636
BATTLE LAKE
BEMIDJI
BRAINERD
CASS LAKE
DETROIT LAKES
FERGUS FALLS

HENNING
MAHNOMEN
NISSWA
PARK RAPIDS
STAPLES
WADENA
Locality covered by local tandem submit
diagram for local tandem, also.
REV. 9/11/08
7
INSTRUCTIONS
FARGO, ND LATA 636

• Use previous slide as a template. Copy all and
  paste to new document
• In top left box enter the full NPA-NXXs
  assigned to the switch and in LATA 636 (on ASR
  full NPA-NXXs should go in CNPANXX fields on
  ICTQ6.)
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the ICASR page of the ASR)
  and POI/ACTL CLLI (this is the ACTL on the ICASR
  page). If POI/ACTL CLLI is owned by another OCN,
  LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• EITHER enter a single line from POI/ACTL CLLI box
  to each access tandem circle and label 2W SPOP
  COMBINED and include quantity of trunks
  requested OR enter 2 lines from POI/ACTL CLLI box
  to each access tandem circle and label top line
  2W SPOP IXC and bottom line 2W SPOP
  Local/Intra and include quantity of trunks
  requested.
• Indicate the QWEST localities where you will be
  conducting business (pooling, porting, etc) by
  changing the color to red.
• Full NPA-NXXs also known as Code Holder,
  LERG Assignee, or A Record Holder

REV. 9/11/08
8
Subtending Localities

FARGO, ND LATA 636
CASSELTON
COMSTOCK
DILWORTH
FARGO
GARDNER
HARWOOD
HAWLEY
HICKSON
HORACE
KINDRED
LEONARD
MOORHEAD
SABIN
WEST FARGO
If Existing POI/ACTL CLLI Identify the POI/ACTL
CLLI If Need New POI/ACTL CLLI Identify City
Name for the POI/ACTL CLLI
REV. 7/21/09
9
FARGO, ND LATA 636
INSTRUCTIONS
WARNING SLRN may be in affect on your local
trunk groups - Conversion to SPOP may result in
traffic pattern changes

• Use previous slide as a template. Copy all and
  paste to new document
• In top left box enter the full NPA-NXXs
  assigned to the switch and in the FARGO LOCAL
  CALLING AREA (on ASR, full NPA-NXXs should go
  in CNPANXX fields on Translations Questionnaire).
  If no full NPA-NXXs, MAY REQUEST ARLRN. SEE
  ARLRN PCAT FOR MORE INFORMATION.
  http//www.qwest.com/wholesale/clecs/slrn.html
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the Access Service Request
  Form) and POI/ACTL CLLI (this is the ACTL on the
  Access Service Request Form). If POI/ACTL CLLI
  is owned by another OCN, LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• Enter a single line from POI/ACTL CLLI box to
  each local tandem circle and label 2W SPOP
  LOCAL and include quantity of trunks requested.
• Indicate the QWEST localities where you will be
  conducting business by changing the color to red.
• Full NPA-NXXs also known as Code Holder,
  LERG Assignee, or A Record Holder

REV. 2/5/09
10
Subtending Localities

FARGO, ND LATA 636
BRAINERD
NISSWA
If Existing POI/ACTL CLLI Identify the POI/ACTL
CLLI If Need New POI/ACTL CLLI Identify City
Name for the POI/ACTL CLLI
REV.7/21/09
11
FARGO, ND LATA 636
INSTRUCTIONS
WARNING SLRN may be in affect on your local
trunk groups - Conversion to SPOP may result in
traffic pattern changes

• Use previous slide as a template. Copy all and
  paste to new document
• In top left box enter the full NPA-NXXs
  assigned to the switch and in the BRAINERD LOCAL
  CALLING AREA (on ASR, full NPA-NXXs should go
  in CNPANXX fields on Translations Questionnaire).
  If no full NPA-NXXs, MAY REQUEST ARLRN. SEE
  ARLRN PCAT FOR MORE INFORMATION.
  http//www.qwest.com/wholesale/clecs/slrn.html
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the Access Service Request
  Form) and POI/ACTL CLLI (this is the ACTL on the
  Access Service Request Form). If POI/ACTL CLLI
  is owned by another OCN, LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• Enter a single line from POI/ACTL CLLI box to
  each local tandem circle and label 2W SPOP
  LOCAL and include quantity of trunks requested.
• Indicate the QWEST localities where you will be
  conducting business by changing the color to red.
• Full NPA-NXXs also known as Code Holder,
  LERG Assignee, or A Record Holder

REV. 2/5/09
12
Subtending Localities

FARGO, ND LATA 636
FERGUS FALLS
If Existing POI/ACTL CLLI Identify the POI/ACTL
CLLI If Need New POI/ACTL CLLI Identify City
Name for the POI/ACTL CLLI
REV. 7/21/09
13
FARGO, ND LATA 636
INSTRUCTIONS
WARNING SLRN may be in affect on your local
trunk groups - Conversion to SPOP may result in
traffic pattern changes

• Use previous slide as a template. Copy all and
  paste to new document
• In top left box enter the full NPA-NXXs
  assigned to the switch and in the FERGUS FALLS
  LOCAL CALLING AREA (on ASR, full NPA-NXXs
  should go in CNPANXX fields on Translations
  Questionnaire). If no full NPA-NXXs, MAY REQUEST
  ARLRN. SEE ARLRN PCAT FOR MORE INFORMATION.
  http//www.qwest.com/wholesale/clecs/slrn.html
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the Access Service Request
  Form) and POI/ACTL CLLI (this is the ACTL on the
  Access Service Request Form). If POI/ACTL CLLI
  is owned by another OCN, LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• Enter a single line from POI/ACTL CLLI box to
  each local tandem circle and label 2W SPOP
  LOCAL and include quantity of trunks requested.
• Indicate the QWEST localities where you will be
  conducting business by changing the color to red.
• Full NPA-NXXs also known as Code Holder,
  LERG Assignee, or A Record Holder

REV. 2/5/09
14
Subtending Localities

FARGO, ND LATA 636
WADENA
If Existing POI/ACTL CLLI Identify the POI/ACTL
CLLI If Need New POI/ACTL CLLI Identify City
Name for the POI/ACTL CLLI
REV. 7/21/09
15
FARGO, ND LATA 636
INSTRUCTIONS
WARNING SLRN may be in affect on your local
trunk groups - Conversion to SPOP may result in
traffic pattern changes

• Use previous slide as a template. Copy all and
  paste to new document
• In top left box enter the full NPA-NXXs
  assigned to the switch and in the WADENA LOCAL
  CALLING AREA (on ASR, full NPA-NXXs should go
  in CNPANXX fields on Translations Questionnaire).
  If no full NPA-NXXs, MAY REQUEST ARLRN. SEE
  ARLRN PCAT FOR MORE INFORMATION.
  http//www.qwest.com/wholesale/clecs/slrn.html
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the Access Service Request
  Form) and POI/ACTL CLLI (this is the ACTL on the
  Access Service Request Form). If POI/ACTL CLLI
  is owned by another OCN, LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• Enter a single line from POI/ACTL CLLI box to
  each local tandem circle and label 2W SPOP
  LOCAL and include quantity of trunks requested.
• Indicate the QWEST localities where you will be
  conducting business by changing the color to red.
• Full NPA-NXXs also known as Code Holder,
  LERG Assignee, or A Record Holder

REV. 2/5/09
16
FARGO, ND LATA 636
CUSTOMER NAME and ACNA
Subtending Localities
GRAND FORKS
EAST GRAND FORKS
MANVEL
REYNOLDS
THOMPSON

If Existing POI/ACTL CLLI Identify the POI/ACTL
CLLI If Need New POI/ACTL CLLI Identify City
Name for the POI/ACTL CLLI
REV. 7/21/09
17
FARGO, ND LATA 636
INSTRUCTIONS
WARNING SLRN may be in affect on your local
trunk groups - Conversion to SPOP may result in
traffic pattern changes

• Use previous slide as a template. Copy all and
  paste to new document
• In top left box enter the full NPA-NXXs
  assigned to the switch and in the GRAND FORKS
  LOCAL CALLING AREA (on ASR, full NPA-NXXs
  should go in CNPANXX fields on Translations
  Questionnaire). If no full NPA-NXXs, MAY REQUEST
  ARLRN. SEE ARLRN PCAT FOR MORE INFORMATION.
  http//www.qwest.com/wholesale/clecs/slrn.html
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the Access Service Request
  Form) and POI/ACTL CLLI (this is the ACTL on the
  Access Service Request Form). If POI/ACTL CLLI
  is owned by another OCN, LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• Enter a single line from POI/ACTL CLLI box to
  each local tandem circle and label 2W SPOP
  LOCAL and include quantity of trunks requested.
• Indicate the QWEST localities where you will be
  conducting business by changing the color to red.
• Full NPA-NXXs also known as Code Holder,
  LERG Assignee, or A Record Holder

REV. 2/5/09
