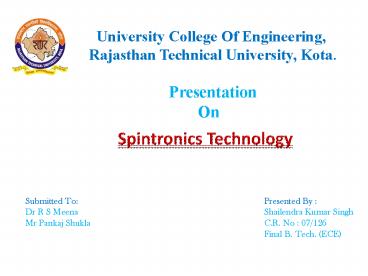

University College Of Engineering,
Rajasthan Technical University, Kota.
Presentation On
Spintronics Technology
Submitted To Presented By Dr R S
Meena Shailendra Kumar Singh Mr
Pankaj Shukla C.R. No
07/126 Final B. Tech. (ECE)
2
What Is Spintronics ?
  • In conventional electronics, electron charge is
    used for manipulation, storage, and transfer of
    information .
  • Spintronics uses electron spins in addition to
    or in place of the electron charge.

3
Why We Need Spintronics !
  • Failure of Moores Law
  • Moores Law states that the number of
    transistors on a
  • silicon chip will roughly double every
    eighteen months.
  • But now the transistors other components have
    reached
  • nanoscale dimensions and further reducing
  • the size would lead to
  • 1. Scorching heat making making the
    circuit inoperable.
  • 2. Also Quantum effects come into play at
    nanoscale
  • dimensions.
  • So the size of transistors other components
    cannot be
  • reduced further.

4
Basic Principle
  • In Spintronics , information is carried by
    orientation of
  • spin rather than charge.
  • Spin can assume one of the two states relative
    to the magnetic
  • field, called spin up or spin down.
  • These states, spin up or spin down, can be used
    to represent
  • 1 and 0 in binary logic.
  • In certain spintronic materials, spin
    orientation can be used
  • as spintronic memory as these orientation do
    not change
  • when system is switched off.

5
Advantage Spintronics
  • Low power consumption.
  • Less heat dissipation.
  • Spintronic memory is non-volatile.
  • Takes up lesser space on chip, thus more
    compact.
  • Spin manipulation is faster , so greater read
    write speed.
  • Spintronics does not require unique and
    specialized semiconductors.
  • Common metals such as Fe, Al, Ag , etc. can
    be used.

6
Gaint Magnetoresistance (GMR)
  • The basic GMR device consists of a layer of non
    -magnetic metal between two
  • two magnetic layers.
  • A current consisting of spin-up and spin-down
    electrons is passed through
  • the layers.
  • Those oriented in the same direction as the
    electron spins in a magnetic layer pass
  • through quite easily while those oriented
    in the opposite direction are scattered.

7
SPIN VALVES
  • If the orientation of one of the magnetic layers
    be changed then
  • the device will act as a filter, or spin
    valve, letting through more
  • electrons when the spin orientations in the
    two layers are the same
  • and fewer when orientations are oppositely
    aligned.
  • The electrical resistance of the device can
    therefore be changed
  • dramatically.

8
Tunnel Magnetoresistance
  • Magnetic tunnel junction has two
  • magnetic layers separated by an insulating
  • metal-oxide layer.
  • Is similar to a GMR spin valve except that
  • a very thin insulator layer is sandwitched
  • between magnetic layers instead of metal
  • layer .
  • The difference in resistance between the
  • spin-aligned and nonaligned cases is much
  • greater than for GMR device infact 1000
  • times higher than the standard spin valve.

9
Magnetoresistive Random Access Memory (MRAM)
  • MRAM uses magnetic storage elements.
  • The elements are mostly tunnel junctions formed
    from two
  • ferromagnetic plates, each of which can hold
    a magnetic field,
  • separated by a thin insulating layer.

10
SRAM VS DRAM VS MRAM
SRAM DRAM MRAM
  • Advantage
  • Fast read write
  • speed.
  • Low power
  • High density
  • Fast read write
  • speed.
  • Fast read write
  • speed.
  • Low power
  • High density
  • Non Volatile
  • Disadvantage
  • Volatile
  • Low density
  • Volatile
  • High power
  • None ??

11
Comparison with DRAM SRAM
  • In DRAM SRAM, a bit is represented as charge
    stored in
  • capacitor.
  • In MRAM, data is stored as magnetic alignment of
    electrons in
  • a ferromagnetic material. Spin up represents
    0 and spin down
  • represents 1.
  • MRAM promises
  • Density of DRAM
  • Speed of SRAM
  • Non-volatility like flash memory.
  • Thats why its called universal memory.

256 K MRAM
12
Journey of MRAM
  • Problems encountered
  • 1. The density of bits was low.
  • 2. Cost of chips was high.
  • Improved designs to overcome these problems
    would work
  • only at liquid nitrogen temperature.
  • An important breakthrough was made in the year
    2009.
  • Scientists at the North Carolina State
    University discovered
  • a semiconductor material Galium manganese
    nitride that
  • can store retain spin orientation at room
    temperature.
  • And research is still going on

13
