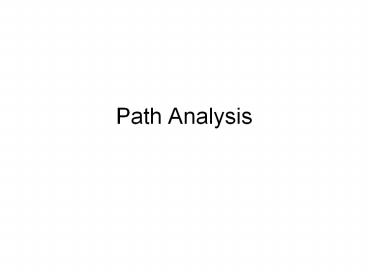

Path Analysis
2
Remember What Multiple Regression Tells Us

• How each individual IV is related to the DV
• The total amount of variance explained in a DV
• Multiple regression is VERY DV CENTRIC!!!
• We know NOTHING about how the IVs are related

3
What is Path Analysis?

• Another way to do Multiple Regression
• A special case of multiple regression where all
  the relationships among variables can be
  estimated simultaneously

4
What do you mean Simultaneously?

• Estimate correlations among your IVs
• Estimate regression relationships in the model
• You can make all the variables related to one
  another and find out what the relationship is
  exactly!
• All the regression analyses we did in SPSS can be
  done in path analysis

5
Example

• Lets say you are interested in the extent to
  which intellectual activities mediate the
  relationship between education and cognition

6
SPSS

• SPSS tells you about mediation
• SPSS tells you the relationship between
• Intellectual activities and cognition
• Education and cognition
• SPSS doesnt tell you anything about the
  relationship between education and intellectual
  activities

7
Path Analysis
R2 ?
R2 ?
a
b
Education
Activities
Cognition
c
All these parameters are estimated at the same
time!
8

• If we wanted to get the same results in SPSS we
  would have to do a bunch of different models
• Education predicts cognition
• Activities predicts cognition
• Both Predict cognition
• If we had more than three variables you can see
  how this could get impossible

9
A model like this would be impossible in SPSS
IV
Mediator IV
DV
IV
Mediator IV
IV
10
Benefits of Path Analysis

• Estimate all the relationships among all
  variables SIMULTANEOUSLY
• Able to test various hypothesis regarding
  different relationships
• Most programs you do path analysis in having
  Missing Data Estimation procedures!!!
• SPSS uses list-wise deletion

11
Statistical Packages for Path Analysis

• Path analysis is the precursor to Structural
  Equation Modeling
• Any SEM program can do path analysis
• AMOS
• LISREL
• EQS

12
AMOS

• AMOS is now bundled with SPSS
• It is the EASIEST program to use
• Its ease is based on the fact that you actually
  DRAW your models right in the program!!!

13
AMOS Steps

• Open AMOS
• Tell AMOS what SPSS data set to use
• Draw your variables in AMOS
• Select estimation and output options
• Draw your model(s)
• Run your model

14
(1) Open AMOS
15
(2) Tell AMOS what SPSS data set to use

• Select FILE on the top tool bar
• Select DATA FILE from the drop down menu

Click on File Name and select your SPSS data set
16
Drawing Tool Bar
(3) Draw your variables in AMOS
17
Draw Your Variables
You click on this icon to draw a box in AMOS!
Variables are represented by a box
18
You write the NAME of your variable here
You RIGHT CLICK on your variable box to get the
Object Properties
19
(4) Select estimation and output options

• Select VIEW on the top tool bar
• Select ANALYSIS PROPERTIES from the drop down
  menu

20
(5) Draw your model(s)
age
memory
Regression Path
Correlations
21
DV needs a way indicate variance not explained by
AGE
0,
Error_1
1
age
memory
22
AMOS practice

• Education and activity engagement are predictors
  of cognition. Also allow education and activity
  to correlate
• EDUCATION (educ), activity (activ), cognition
  (cog)

23
