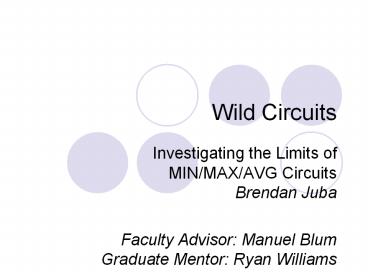

Wild Circuits

1
Wild Circuits

• Investigating the Limits of MIN/MAX/AVG
  CircuitsBrendan Juba
• Faculty Advisor Manuel BlumGraduate Mentor
  Ryan Williams

2
Definitions MIN/MAX/AVG Circuits
unsatisfied
satisfied

• We are given a circuit, C, with feedback,
  operating on real numbers from the closed
  interval 0,1.
• C contains
• MIN, MAX, or AVG gates with two inputs
• Inputs to the circuit that are hard-wired to
  either 0 or 1.
• C denotes the number of gates of C
• Here, C 3
• When the output of a gate is the appropriate
  function of its inputs, we say that the gate is
  satisfied

1
0
0
MIN
AVG
0
MAX
0
satisfied
3
Definitions MIN/MAX/AVG Circuits

• Settings of the gate outputs from the interval
  0,1 are value vectors
• A value vector for C, v ? 0,1C
• The ith entry, vi, is the output of the ith gate.
• We may also consider an update function, F
  0,1C ? 0,1C
• We are interested in two varieties single-gate
  update functions and circuit-wide update
  functions
• A single gate update function replaces the output
  of a single designated gate with the correct
  output value.
• We will call iterating over the single gate
  update functions gate-by-gate update
• The circuit-wide update function simultaneously
  replaces the output of every gate with a value
  that is correct with respect to the old values

1
0
MIN
AVG
MAX
4
Definition Stable Circuit Problem

• A vector v is stable iff every gate is satisfied.
  (F(v) v)
• We wish to find these stable vectors.
• Gate-by-gate update from 0 clearly obtains a
  stable vector in the limit. This is the minimum
  stable solution

1
0
1
0
unstable
stable
MIN
MIN
0
0
1/2
1/2
AVG
AVG
MAX
MAX
1/2
0
5
Stable Circuit Decision Problem

• We designate some ith gate of C in the minimum
  stable solution, s, and ask, is si 1/2?
• We can reduce the function problem to this
  decision problem. We can find 2C bits of any
  si, which may be shown to be sufficient.
• Suppose there is a gate xk sxk 1/2 iff the
  kth bit of si is a 1
• If sxk 1/2, we assume its binary decimal
  representation is.1000 with 0s in positions 2
  through 2k-1
• Otherwise, it is .0111 with 1s in positions 2
  through 2k-1
• Depending on whether sxk 1/2, we add a new
  gate, xk1 AVG(xk,1/2-1/22k), if sxk .1000
  AVG(xk,1/21/22k), if sxk .0111
• In the former case, sxk1(.1)(.1000? .01111)
• In the latter, sxk1(.1)(.0111? .10001)
• In the solution for the modified circuit, xk1
  clearly has the desired properties. The largest
  construction is O(C2) gates.

6
Unique Solution Circuits
0
x

• Replace any wire from x to y in the circuit with
  the construction on the right using m AVG gates
• This circuit has a unique solution (Shapley,
  1953)
• Suppose the original circuit-wide update function
  is F, stable solutions are u and v
• If u-v8 c, then it is easy to seec
  u-v (1-1/2m)F(u)-F(v) (1-1/2m)c
• Clearly, c 0.
• These solutions turn out to be arbitrarily close
  to the minimum stable solutions (for appropriate
  m).

AVG
AVG
AVG
y
7
Stable Circuit is in NP?co-NP (Condon, 1992)

• A nondeterministic machine M can, in polynomial
  time, on input circuit C, for gate i
• Build a suitably close unique solution circuit C
• Guess the solution to C
• Verify the guessed vector is a solution
• Accept or reject, respectively, precisely when
  the value of gate i is above 1/2 (since C was
  close to C, either i is above 1/2 in neither, or
  it is above 1/2 in both)

8
Stable Circuit is P-hard

• If we use no AVG gates, the wires of the circuit
  will only carry 0 or 1
• It is immediate that we may use MIN as AND, MAX
  as OR
• For any circuit with fixed inputs, we can
  construct a complement circuit
• Switch 0 inputs with 1 inputs
• Switch MIN gates with MAX gates
• We can now negate by crossing a wire between the
  original and complement circuits
• (In this AVG-free case, deciding the output is in
  P, too)

9
Observation and Motivation

• If we apply gate-by-gate or circuit-wide update
  on arbitrary starting value vectors, we can
  obtain interesting circuits
• One such interesting circuit is a binary
  counter
• We do not necessarily obtain the stable
  configurations of our circuits this way -- this
  is not Stable Circuit
• Can we obtain such circuits under gate-by-gate
  update from 0?
• If so, the minimum stable solution is the
  configuration of the device after an unbounded
  amount of time!

10
Leapfrog circuits

• We assign each wire a threshold wire and
  interpret its value relative to that threshold
• Above threshold T
• Below threshold F
• It is already clear that we still have AND and OR
• There is also a construction for NOT (next slide)
• If there are W wires which we wish to interpret
  relative to the same threshold, this gadget takes
  T(W) gates
• NB The circuits are still monotone!
• As we update, a value may seem to rise or fall,
  as we follow it across different wires through
  the circuit
• The value on any particular wire only rises as
  the gates of the circuit are updated

11
NOT Gadget
th
x1
x0
x2
AVG
AVG
AVG
MAX
MAX
MAX
MIN
MIN
MIN
MIN
MIN
MIN
MIN
MIN
MIN
AVG
MAX
MAX
MAX
MAX
MAX
MAX
AVG
AVG
x0
th
x0
x1
x2
x1
x2
th
12
Caveats

• Assumptions
• All values above below threshold are equal
• The values th, T, and F are all different
• We may specify the update order for the gates of
  the circuit
• Take each in turn
• Everything starts from zero, the property is
  preserved by all three gates
• We can push th above zero by means of an AVG gate
• With feedback, we must pass the other wires to be
  interpreted relative to that threshold through
  similar constructions so as to maintain relative
  values
• Update order doesnt change the solution we
  approach

13
Two-bit Counter Circuit
1
1
AVG
AVG
AVG
AVG
x0
x1
th
NOT
NOT
MIN
MIN
MIN
MIN
MIN
MIN
MAX
MAX
MAX
1
1
AVG
AVG
AVG
AVG
AVG
AVG
0
x0
x1
th
14
Two-bit Counter Circuit
1
17/32
AVG
x0
x1
th
NOT
NOT
MIN
MIN
MIN
MIN
MIN
MIN
MAX
MAX
MAX
1
1
AVG
AVG
1/2
x0
x1
th
15
Two-bit Counter Circuit
1
781/ 1024
AVG
x0
x1
th
NOT
NOT
MIN
MIN
MIN
MIN
MIN
MIN
MAX
MAX
MAX
1
1
AVG
AVG
195/256
x0
x1
th
16
Two-bit Counter Circuit
1
7217/8192
AVG
x0
x1
th
NOT
NOT
MIN
MIN
MIN
MIN
MIN
MIN
MAX
MAX
MAX
1
1
AVG
AVG
28867/32768
x0
x1
th
17
Serving Suggestions
carry-in
xi

• The counter generalizes to n bits easily
• The n-bit counter takes T(n2) gates, due to the
  size of the NOT gadgets
• We may also build a gadget such that, if its
  input is ever above threshold, a wire in the
  gadget stays above threshold forever

NOT
NOT
MIN
MIN
MIN
carry-out
MAX
xi
(the internal wire must also pass through the NOT
gadgets)
18
NP-hardness
x1
x2
x3
th, etc.
Let any boolean formula be given Ex
(x1?x2?x3) ? (x1?x2?x3) Since we have AND,
OR, and NOT gates, we can easily translate any
formula into a circuit which has an output above
its threshold iff the formula is satisfied by the
assignment from the input wires, as we have on
the right.
(x1?x2?x3)?(x1?x2?x3)
By attaching xi to the ith bit of the counter, we
try all possible assignments, allowing us to
encode answers to SAT on a wire. The number of
gates in this circuit is quadratic in the length
of the formula.
19
Entering PSPACE

• We can still do better using the counter, we
  will decide whether quantified boolean formulas
  are valid
• Assume WLOG that the quantifiers alternate odd
  variables are universal, even existential
• Observe that the counter walks along the leaves
  of a tree of assignments, left to right.
• Suppose that at the bottom we evaluate the
  quantifier-free part of the formula on the
  specified assignment.

x1
?
x0
x0
?
00
01
10
11

• Now suppose at every ? level of the tree, we have
  one bit of memory for the left branch
• Set it to T when the branch is T, reset it to F
  when leaving that subtree.
• Pass T up the tree when
• We see T at either branch at an ? level
• We see T at the right branch of a ? level with
  the left branch bit already set to T.
• T is passed up from the top of the tree iff we
  have a TQBF.

20
Quantifier Circuit ?xi ?xi-1 A
A
xi
vi0
Carry-out xi

• IH the wire labeled A will carry T iff the
  shorter boolean formula with alternating
  quantifiers, A, is satisfied by the current
  assignment to xi-1,,xn from the counter
• vi0 is a register that holds the evaluation of
  ?xi-1A when xi is F, while xi1,,xn remain
  fixed
• When there is a carry out of xi, xi1 has
  altered, (new branch) so we reset vi0 to F
• If vi0 holds T, and when xi is T, for some xi-1 A
  carries T, then the wire labeled ?xi?xi-1A
  carries T. Otherwise, the wire remains F.
• Observe that the wire ?xi?xi-1A will carry T iff
  ?xi?xi-1A is satisfied by the current assignment
  to xi1,,xn, so the IH is satisfied

NOT
MIN
NOT
MIN
MIN
MAX
MIN
xi
vi0
?xi?xi-1A
21
End of the Line Thwarted by PSPACE

• In the limit, the separation between T and F
  shrinks as the internal wires approach 1.
• It is not immediately clear how to recover the
  values of any wire from the minimum stable
  solution
• Recall finding values in the limit (the minimum
  stable solution) is known to be in NP?co-NP
• Answers to PSPACE-hard problems (QSAT) may be
  encoded on the wires as we update
• Since the space in Leapfrog circuits is bounded
  by the number of gates, it is doubtful that such
  circuits can solve anything harder
• In the limit, it is impossible to distinguish the
  values in Leapfrog circuits unless NP PSPACE

22
Stoppable NOT Gadget
This gadget behaves identically to the regular
NOT, unless check is set high, in which case, all
outputs are set high. Gadgets such as this
suggest that the problem with our Leapfrog
counter was in the AVG gates we used to power
it from 0.
th
x1
check
x0
x2
AVG
MAX
MIN
MIN
MIN
MIN
MAX
AVG
MAX
MAX
MAX
x1
th
x2
check
GAME OVER Thank you for playing CAPCOM
