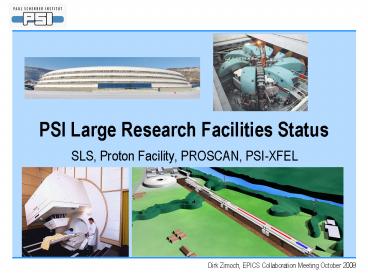

PSI Large Research Facilities Status

1
PSI Large Research Facilities Status

• SLS, Proton Facility, PROSCAN, PSI-XFEL

2
EPICS Usage at PSI
XFEL 250 MeV Injector Test
XFEL LowEmittanceGun Test
PSI-XFEL
PROSCAN
Proton Superbuncher
UCN Timing
He Liquefaction
SLS
Operations Building
3
New Operations Building

• New "combined function" control room
• SLS
• Proton facility
• PROSCAN
• XFEL
• New server room
• New offices
• New cafeteria

4
SLS Filling Pattern Feedback

• Better charge distribution
• Improved beam stability
• Separate talk

5
SLS Beamline IT Infrastructure Upgrade

• Old SLS control room became new server room for
  beamlines
• New data storage
• Up to 30 TB per beamline
• New network topology
• Separate talk

6
Other SLS (PX) Beamline Improvements

• High precision rotation stage
• separate talk
• Sample mounting robot
• separate talk
• Pilatus 6M detector

7
ProtonFacility
Optis Eye Cancer Therapy
SINQ Spallation Neutron Source
Ring Cyclotron
UCN Ultra Cold Neutrons
Gantry 1
PROSCAN Proton Therapy
Optis 2
Gantry 2
8
Cyclotron Upgrade

• New cavities for beam current upgrade to 3 mA
• Replace old CAMAC with new VME hardware
• New superbuncher runs with EPICS
• Long term future plans
• Replace complete control system with EPICS
• Integrate pion/muon beamlines
• Upgrade network infrastructure

9
UCN (Ultra Cold Neutrons)

• Spallation source under construction (start
  2009)
• 5K cold deuterium moderator
• neutrons lt1µeV, 7m/s, 25km/h
• Proton beam time structure is controlled with
  EPICS

1. Lead target
2. D2O moderator
3. Solid D2 moderator
4. UCN guide
5. Valve
6. To experiments
7. Storage tank

10
PROSCAN

• Dedicated accelerator for cancer treatment with
  protons
• Over one year in operation
• At the moment Trying to replace accelerator
  control system with EPICS
• Problem Can test only on weekends
• Early 2009 Optis 2
• Partially EPICS
• Patient treatment system is not EPICS
• Late 2009 Gantry 2

11
PSI-XFEL
Experiment Building
Tunnel is a bridge here !
Low Emittance Gun
Aare
SLS
800 m tunnel
400 m Linac
80 m Undulators
farm land
12
PSI-XFEL Schedule

• 500 keV gun test dismantled
• Setup of 4 MeV test
• Building for 250 MeV test linac under
  construction
• Milestone Proof of principle in October 2010
• XFEL construction start in 2011
• XFEL operation start in 2016

13
Firewire Camera Server

• Linux IOC with embedded HTTP server
• Used for beam diagnostics at SLS, XFEL,
• See Miroslaw Dach's talk at PCaPAC

14
Other controls activities

• Upgrade of PCs to Scientific Linux 5
• Many unexpected problems
• Adaption of SLS controls tools for XFEL
• Build up IT infrastructure for XFEL
• Evaluation of embedded Linux IOCs
• Evaluation of remote control (web access) for SLS
  beamlines
• Planned Upgrade of SLS IOCs to EPICS 3.14
