Title: Diffraction and Interference


1

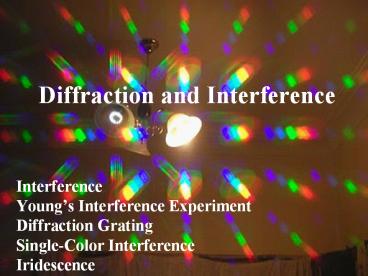

Diffraction and Interference
  • Interference
  • Youngs Interference Experiment
  • Diffraction Grating
  • Single-Color Interference
  • Iridescence

2
Interference
3
Youngs Interference Experiment
  • 1801, Thomas Young discovered that when light of
    a single color (monochromatic) was directed
    through two closely spaced pinholes, fringes of
    brightness and darkness were produced on a screen.

4
(No Transcript)
5
Youngs Interference Experiment
  • Bright fringes constructive interference
  • Waves arrive at the screen in phase
  • Dark fringes destructive interference
  • Waves arrive at the screen out of phase

6
Diffraction Grating
  • A series of closely spaced parallel slits or
    grooves that are used to separate colors of light
    by interference.
  • Different colors have different wavelengths and
    diffract at different rates.
  • So they constructively interfere at different
    places.

7
Single-Color Interference from Thin Films
  • Interference fringes can be produced by the
    reflection of light from two surfaces that are
    very close together.
  • If you shine a single-color (monochromatic) light
    onto stacked (with an air wedge) plates of glass,
    youll see dark and bright bands.

8
Single-Color Interference from Thin Films
  • The reason for the dark/bright bands is that
    reflected light from the top plate interferes
    destructively/constructively with light reflected
    from the bottom plate.

9
Single-Color Interference from Thin Films
  • Practical uses would be to test the precision of
    lenses.
  • Straight/round fringes perfectly flat/round
    glass
  • Irregular fringes irregular surface

10
Iridescence from Thin Films
11
Iridescence from Thin Films
  • Iridescence The phenomenon whereby interference
    of light waves of mixed frequencies reflected
    from the top and bottom of thin films produces a
    spectrum of colors.

12
Iridescence From Thin Films
  • A thin film, such as a soap bubble or oil on
    water, has two closely spaced surfaces.
  • Light that reflects from one surface may cancel
    light of a certain frequency that reflects from
    the other surface.

http//webphysics.davidson.edu/physlet_resources/b
u_semester2/c26_thinfilm.html
13
Iridescence From Thin Films
  • If the film is illuminated with white light and
    the light that reflects to your eye has blue
    cancelled due to the reflected light from the
    other surface, what color will you see?

14
Iridescence From Thin Films
  • If the film is illuminated with white light and
    the light that reflects to your eye has blue
    cancelled due to the reflected light from the
    other surface, what color will you see?
  • The complementary color, yellow!

15
Iridescence from Thin Films
  • Same principles as Single-Color Interference
  • The shapes of the fringes for both are made by
    the differences in thickness of the materials.

Except we are using light of mixed frequencies
and our fringes are made of different colors.
16
CD 31-1
