8 Rotation

1

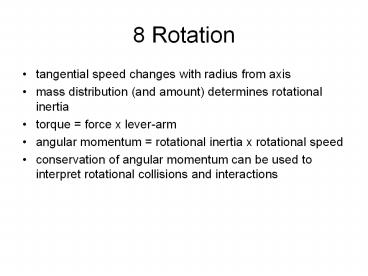

8 Rotation

• tangential speed changes with radius from axis
• mass distribution (and amount) determines
  rotational inertia
• torque force x lever-arm
• angular momentum rotational inertia x
  rotational speed
• conservation of angular momentum can be used to
  interpret rotational collisions and interactions

2
9 Gravity

• Newton's law of gravity universality, mass
  dependence, distance dependence
• light propagation and the inverse square law
• origin and effect of tidal forces

3
Intensity

• intensity power delivered per unit area in
  watts/m2
• point source intensity is inverse-square with
  distance

4
Universal Law of Gravity

• all matter is weakly attracted
• the force is an inverse-square law
• where G 6.67x10-11 Nm2/kg2
• Example Two 100kg persons stand 1.0m apart

5
Gravity causes differential (rather than
constant) pull on large objects. This
causes orbital lock of moon with earth ocean
tides on earth
6
Spring Tides (largest)
7
Neap Tides (smallest)
8
Eclipses
Solar Eclipse
Solar Eclipse, moon blocks light heading toward
earth (shown above)
Lunar Eclipse, earth blocks light from sun
heading toward moon
9
Einstein modeled gravity as stretched space-time
10
10 Projectile Motion

• Projectile motion is a combination of horizontal
  motion at constant velocity and vertical free
  fall
• satellite motion is projectile motion
• gravity does work on objects in elliptical orbits
• kinematic equations used to calculate range or
  distance of fall for horizontally released
  projectiles
• Kepler's laws
• elliptical orbits
• equal areas in equal times
• period2 average radius3

11
Projectile Motion is motion when only gravity acts
Horizontal force is zero ? Horizontal velocity
constant. Vertical force is weight ? Vertical
velocity is decreasing.
12
Each component affects range
vertical component affects time of flight Range
(horizontal component) x (time of flight) as
angle increases (time of flight) increases as
angle increases (horizontal component) decreases
13
Distance of Fall

• d ½ gt2 with g 10m/s/s
• t 1s d 5m
• t 2s d 20m
• t 3s d 45m

Example h 15m, projectile fired horizontally
at 6 m/s. Calculate the Range.
14
Another way to see distance of fall in
projectile motion
15
11 Atomic Physics

• protons, neutrons, electrons and atoms
• atomic number and isotopes
• nucleus size and Rutherfords Experiment
• elements, molecules, compounds, and mixtures

16
Atomic History

• Hypothesized in 5th Century B.C. (Greece)
• Aristotle 4th Century B.C. did not believe in
  atoms. Taught 4-element idea (earth, air, water,
  fire)
• Dalton 1800s England revived atomic idea
• Brown 1827 hypothesized atoms caused oscillation
  of microscopic particles
• Today we know 88 naturally occurring atoms and
  about 30 more lab created

17
Atomic Imagery

• resolving power size of smallest feature we can
  see
• electron microscopy 0.0005 um
• visible light microscopy 0.2um
• size of atom 0.0002 um

18
What do Atoms Look Like?

• middle of the atom is nucleus which is composed
  of protons and neutrons
• outside of atom is an electron shell
• atom is mostly empty space
• this was confirmed by Rutherfords Experiment

19
Elements and the Atomic Number

• Atomic Number is the number of protons in a
  nucleus,
• this number determines which element the atom is.
• Isotopes are atoms with the same number of
  protons but different number of neutrons

20
The Periodic Table of The Elements (the distinct
atoms)
21
Molecules
Molecules are groups of atoms. Here are a few
examples.
oxygen ammonia methane water
22
A crystal is a solid in which the constituent
atoms, molecules, or ions are packed in a
regularly ordered, repeating pattern extending in
all three spatial dimensions.
23
Terminology

• Element group of atoms with the same number of
  protons.
• Compound chemical substance formed from 2 or
  more elements and which has a definite chemical
  formula. Compounds do not have to be formed from
  molecules since compounds can be crystal
  structures such as table salt.
• Mixture substance with components that have not
  combined chemically.
• Chemical Substance - an element, compound, or
  mixture.
• Molecule smallest particle of chemical
  substance that has the same composition and
  chemical properties, e.g. water molecule.

24
Anti-matter anti-proton same mass as proton
but oppositely charged anti-electron (positron)
same mass as electron but with opposite charge. a
particle and its antiparticle annihilate each
other in a burst of energy
25
Dark Matter
Universe appears to be about 4 visible and 96
dark. There are various theories about what
makes up this mass.
26
End
