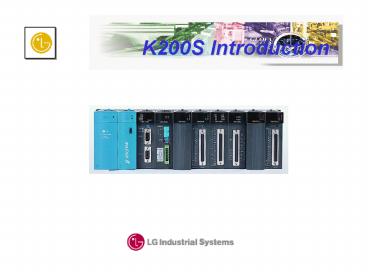

K200S Introduction

1
K200S Introduction
2
LGMaster-K
K200S Overview - Module Type
Key features
Dedicated CPU offers ? Higher
processing speed(0.5 ?/step) ? More
reliable system ? More cost-effective
solution Easy to use Windows based
programming S/W ? Portability
Compatibility of Software ? Mnemonic LD
and SFC supported Variety of CPU just
fit to your applications - Maximum I/O 384
points ? CPUA Computer Link(RS-232C)
? CPUB Computer Link(RS-485), PID and
RTC(Real Time Clock) included ? CPUC
Computer Link(RS-232C), PID and HSC(High Speed
Counter), RTC (Real Time
Clock) included Built-in Power supply for
Analog control ? Output 5Vdc 2A, 15Vdc
0.5A, -15Vdc 0.2A Powerful Standard High
speed network ? RS232C, RS422/485 include
MODBUS(RTU, ASCII), AB DF1(Ful Duplex),
Fieldbus(F-net), F-net Single Remote I/O
3
LGMaster-K
K200S CPU
Built-in Flash Memory
Built-in RS232C Link

• Built-in 7K Program Back-up without battery
• Not necessary additional memory pack such as
• CQM1(OMRON) - CQM 4/8K EEPROM/EPROM
  Memory Cassette necessary

• Provides additional RS232C Ch. besides Loader
  Ch.
• within one serial port
• Monitoring Controlling are available using LG
  protocol
• Provides 3 types of Link speeds

Dip switch for uploading program
Flash Memory
4
LGMaster-K
K200S CPUs - Built-in functions
B Type (GM6-CPUB)
C Type (GM6-CPUC)
? RS422/485 Station 031(32 stations)
Speed 9,600/19,200/38,400 bps
Multi-drop Network with High Speed
? High Speed Counter 1 phase Up/Down or 2
phases Up/Down Counting Range
016,777,215 (24bit) Counting Speed Max.
20Kbps Multiplication 1 / 2 / 4
Condition Up/Down for 1 phase Program
or External Input ? PID with auto-tuning
function Simple PID Control using
software Not necessary PID/Temp.
Controller ? Cost-down effect
Loop No. Unlimited? RS232C Interface ?
RTC(Real Time Clock) - Y2K Free -
Record of Power Faliure etc. Available
1N N N PLC
Function
Computer
. . .
K200S
K200S
K200S
. . .
...
K200S
K200S
K200S
HOST
Slave
Slave
? RTC(Real Time Clock) Y2K Free Record
of Power Failure etc. Available ? PID with
Auto-tuning function
A Type (GM6-CPUA) RS-232C Interface
5
LGMaster-K
K200S Power I/O Modules
Power Supply
I/O Modules
? Input Range 85 264V, DC1224V ? Safe
against Severe Voltage Fluctuation ? 3 types
of Power Supply AC Power Supply General
Type (PAFA) Output 5V/24V (for DC Input)
Analog Type (PAFB) Output 5V/15V
(for Analog) Input current 0.5A /
110V, 0.25A / 220V DC Power Supply Input
DC1224V(PDFA) Input current 1.5A / DC12V,
0.7A / DC24V ? If you use the A/D, D/A Module
for application, you should select analog type
I/O
Details
Description
points
connector
TB
Sink/Source
8
D/C
16
?
TB
Input
CN
32
?
AC110V
8
TB
A/C
8
AC220V
TB
8
Relay, 2A
TB
Relay
16
Relay, 2A
TB
16
Sink, 0.5A
TB
Output
16
TB
Source, 0.5A
Transistor
32
CN
Sink, 0.1A
32
CN
Source, 0.1A
Triac
8
1A
TB
6
LGMaster-K
K200S Special Modules
Fnet with High speed
A/D 4CH
Fnet Remote I/O
? Analog Applications ? PID Control with
auto-tuning
D/A 4CH
? Master ? Slave I/O - DC24V, 16pts. -
Relay, 16pts. - 8 DC In., 8 Ry Out.
PID (B/I)
TC Input 4 CH
K200S
HSC50kpps
? MODBUS(Slave) (ASCII, RTU) ? AB DF1(Full
Duplex)
RS232C
? Position Probe ? Servo/Step Motor
Control ? Position Control
HSC(B/I) 20kpps
RS422
Position Module - 2 Phases
RS232C(B/I)
? Serial Interface ? 11(N), NN? SCADA I/O
RS422/485(B/I)
B/I Built-in function
7
LGMaster-K
K200S Open Network
? Serial Interface(Cnet)
Frame Editing Tool
? RS232C, RS422/485 - Frame Editor Tool
enables to communicate with any other PLCs
using user defined protocol ? MODBUS mode
Cnet module can be used as a Master or Slave
station interface to connect K200S PLC to
the MODBUS network using MODBUS RTU or
ASCII protocol ? AB DF1 (Full Duplex)
Protocol - Mountable up to 4 modules in one
base board - Modem connection is available for
long distance
IEC/ ISA
? Fieldbus Interface(Fnet) Single Remote
I/Os
? Fnet, LG dedicated Fieldbus network, supports
long distance communication - Up to 5.25km
(using 6 repeaters), generally 750m ?
Dedicated Gate Array enables High speed
communication and Reliability -
Transmission speed 1M bps ? Mountable up
to 2 modules in one base board
? Single remote I/Os - Not necessary CPU and
Power modules - Link Master Class Remote
Slave Class 64 nodes - 16 DC Input, 16Relay
Output, 8DC Input/8Relay Output
8
LGMaster-K
K200S Programming Tool (KGLWin)

9
LGMaster-K
K200S Dimensions
CPU Module
I/O Module
Size comparison
A1S (132)
CQM1(115)
GM6 (100)
Base board
