XML,%20HTML%20and%20All%20That

1

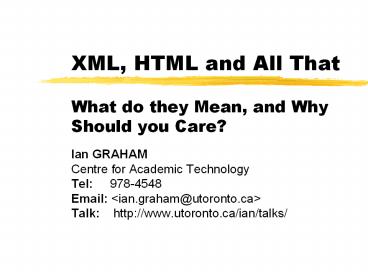

XML, HTML and All That

• What do they Mean, and Why Should you Care?
• Ian GRAHAM
• Centre for Academic Technology
• Tel [phone]
• Email ltian.graham_at_utoronto.cagt
• Talk http//www.utoronto.ca/ian/talks/

2
Overview

• A little Web history and the birth of HTML
• HTML is not enough -- why?
• XML for universal data
• For communicating information of all types
• Examples of XML in action
• Profound conclusions ...

3
The Birth of the Web

• The HyperText Markup Language
• A simple language for distributing text
• All the other parts --
• URLs, HTTP, CGI ...

4
Four Main Components

• URLs For addressing things
• HTTP For transporting data
• CGI For adding functionality
• HTML For encoding text information

5
NNTP
Shoutcast
FTP
HTTP
Databases other software
CGI
URLs
6
HTML

• A simple, general-purpose language
• Simple hypermedia
• Original idea --
• Collaborative authoring
• Merging of concept of authoring/viewing

7
HTML Evolution

• Started with very few tags
• simple requirements (only need to no a little bit
  about the tags, and then just muddle through)
• Language evolved, as more tags were added
• forms, images, tables, frames, fonts, ...

8
HTML Problems (1)

• Everyone wanted personalized tags
• Want to put other data into HTML
• mathematics, database entries, literary text,
  poems, purchase orders .
• HTML just isnt designed for that!

9
HTML Problems (2)
Web server engine

• Software processing
• Server management of data
• But -- HTML is so ill-formed, this is hard!

HTML
HTML
HTML
HTML
HTML
10
HTML Problems (3)

• Software processing
• Client data processing (machine--machine
  communication)
• But -- HTML is so ill-formed, this is hard!

Client software
HTML
(from somewhere on the Web ...)
Database, viewer, whatever....
11
Idea Back to Basics

• HTML was defined using SGML
• Standard Generalized Markup Language
• A meta-language for defining languages
• Complex, sophisticated, powerful
• Idea Use SGML

12
Languages based on SGML
HTML
TEI
DocBook
. . .
SGML
13
Problems with SGML

• SGML Too complicated
• Rules too strict
• Cant distribute loosely formatted text (like
  HTML)
• Not good in a distributed environment
• Cant mix different data together
• Cant add arbitrary tags

14
Idea (2) Webified SGML

• New eXtensible Markup Language XML
• Can use XML to define new languages
• Distributes easily on the Web
• Can mix different types of data together
• can easily add new tags, and tell a browser what
  to do with them (more or less....)

15
Basic XML Rules

• Tags written as with HTML, but ...
• Technical details
• Tag names are case-sensitive
• Always need end tags
• Special empty-element tags
• Always quote attribute values

16
Like this example ..
lt?xml version"1.0" encoding"iso-8859-1"?gt lthtml
xmlns"http//www.w3.org/TR/xhtml1" gt ltheadgt
lttitlegt Title of text XHTML Document
lt/titlegt lt/headgtltbodygt ltdiv class"myDiv"gt
lth1gt Heading of Page lt/h1gt .. ltpgtAnd
here is another paragraph, this one containing
an ltimg src"image.gif" alt"waste
of time" /gt inline image, and a ltbr
/gt line break. lt/pgt lt/divgt lt/bodygtlt/htmlgt
XML stuff
17
Special XML Things

• lt?xml version1.0 encodingiso-8859-1 ?gt
• Says that this is an XML document
• lthtml xmlnshttp//www.w3.org/TR/xhtml1gt
• Says that the meaning of the tags inside (and
  including) the html element are defined as
  belonging in the same space of names.xmlns ?
  XML namespace

18
Evolution of XML

• Many XML languages, optimised for different Web
  roles
• MathML -- for mathematics
• SMIL -- for synchronised multimedia
• RDF -- for describing things
• XUL -- for describing the Nav5 user interface
• SpeechML -- for synthesised voices

19
MathML

• Designed to express layout of maths
• Also can express semantics
• Cut paste into Maple, Mathematica

• x2 4x 4 0
• ltmrowgt
• ltmrowgt
• ltmsupgt ltmigtxlt/migt ltmngt2lt/mngt lt/msupgt
  ltmogtlt/mogt
• ltmrowgt
• ltmngt4lt/mngt
• ltmogtinvisibletimeslt/mogt
• ltmigtxlt/migt
• lt/mrowgt
• ltmogtlt/mogt
• ltmngt4lt/mngt
• lt/mrowgt
• ltmogtlt/mogt
• ltmngt0lt/mngt
• lt/mrowgt

20
SMIL

• Synchronised Multimedia Integration Language
• Integration of multimedia with text, audio, video
• Support in RealPlayer G2

21
SMIL Example
ltsmilgt ltheadgt ltmeta name"title"
content"Online Teaching Services promo" /gt
ltmeta name"author" content"Jay Moonah, CAT" /gt
ltlayout type"text/smil-basic-layout"gt
ltroot-layout width"280" height"316"
background-color"white"/gt ltregion
id"AnimChannel1" title"AnimChannel1"
left"0" top"0" height"265" width"280"
fit"hidden"/gt lt/layoutgt lt/headgt ltbodygt ltpar
title"Online Teaching Services promo"
author"Jay Moonah, CAT" gt ltaudio
src"final.rm" id"Soundtrack"
title"Soundtrack"/gt ltanimation
src"otscompfin.swf" id"Animation"
region"AnimChannel1" title"Animation"
fill"freeze"/gt lttext src"cc.rt"
id"caption" region"cc" title"cc"
fill"freeze"/gt lt/pargt lt/bodygtlt/smilgt
22
XHTML NextGen HTML

• lt?xml version"1.0" encoding"iso-8859-1"?gt
• lthtml xmlns"http//www.w3.org/TR/xhtml1" gt
• ltheadgt
• lttitlegt Title of text XHTML Document lt/titlegt
• lt/headgt
• ltbodygt
• ltdiv class"myDiv"gt
• lth1gt Heading of Page lt/h1gt
• ltpgt here is a paragraph of text. I will
  include inside this paragraph
• a bunch of wonky text so that it
  looks fancy. lt/pgt
• ltpgtHere is another paragraph with
  ltemgtinline emphasizedlt/emgt
• text, and ltbgt absolutely nolt/bgt sense
  of humor. lt/pgt
• ltpgtAnd another paragraph, this one with an
  ltimg src"image.gif"
• alt"waste of time" /gt image, and a
  ltbr /gt line break. lt/pgt
• lt/divgt
• lt/bodygtlt/htmlgt

23
XHTML

• Just like HTML, but based on XML rules
• Will support integration of different data into a
  single document
• (Doesnt work that way now, unfortunately)

24
XHTML and other Data

• lt?xml version"1.0" encoding"iso-8859-1"?gt
• lthtml xmlns"http//www.w3.org/TR/xhtml1" gt
• ltheadgt
• lttitlegt Title of XHTML Document lt/titlegt
• lt/headgtltbodygt
• ltdiv class"myDiv"gt
• lth1gt Heading of Page lt/h1gt
• ltmathml xmlnshttp//www.w3.org/TR/mathmlgt
• MathML markup
• lt/mathmlgt
• ltpgt more html stuff goes here lt/pgt
• ltsmil xmlnshttp//www.w3.org/TR/smil1gt
• SMIL markup
• lt/smilgt
• lt/divgt lt/bodygtlt/htmlgt

25
Displaying XML

• More complicated than HTML
• XML represents data only, not how it looks
• Need extra instructions (a style sheet
  document) to define how things should look

26
What Browsers Do Now?

• Navigator 4, Internet Explorer 4
• Uggh (cant handle XML at all)
• Internet Explorer 5 -- shows a tree of elements
• Netscape 5 -- ignores the tags ... or so it seems
  ...

27
Other Use Data Abstraction

• XML as a universal format for data interchange
• Machines exchange data as XML-format messages
• Eliminates proprietary data formats
• Lots of XML processing software available

28
XML Messaging Business
29
XML Messaging Database
Other DB
Request/send data
Database
Other DB
Other DB
Request/send data
30
Example Message

• ltpartorders xmlnshttp//myco.org/Spec/partorders
  .descgt
• ltorder refx23-2112-2342 date25aug1999-1234
  23hgt
• ltdescgt Gold sprockel grommets, with
  matching hamsterlt/descgt
• ltpart number23-23221-a12 /gt
• ltquantity unitsgrossgt 12 lt/quantitygt
• ltdelivery-date date27aug1999-1200hgt
• lt/ordergt
• ltorder refx23-2112-2342 date25aug1999-123
  423hgt
• . Order something else ..
• lt/ordergt
• lt/partordersgt

31
Other Examples

• XUL XML User Interface Language
• How Navigator 5 configures its interface
• Defines structure and software integration
  (www.mozilla.org)
• RDF Resource Description Framework
• For describing things
• Used by Netscape Open Catalog project to define
  Web accessible resources (www.dmoz.org)

32
The XML Family Tree
HTML
TEI
. . .
. . .
XML
SGML
33
XML Summary

• an integration tool for mixing different types
  of data
• a universal format for exchanging data between
  machines
• a framework for distributing information on the
  Web

34
XML, HTML and All That

• Ian GRAHAM
• Centre for Academic Technology
• Tel [phone]
• Email ltian.graham_at_utoronto.cagt
• Talk http//www.utoronto.ca/ian/talks/
