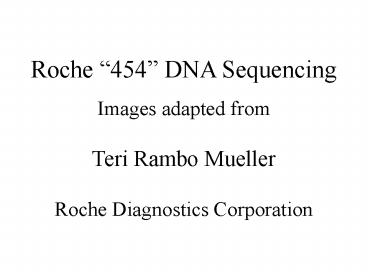

Roche 454 DNA Sequencing Images adapted from
Teri Rambo Mueller Roche Diagnostics Corporation
2
(No Transcript)
3
(No Transcript)
4
(No Transcript)
5
(No Transcript)
6
Wells are picoliter reaction vessels. Wells
have titanium coating. Each well holds 1 bead.
Multiple optical fibers fused in array.
Light-producing reactions in wells measured by
CCD camera.
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
oxy luciferin light
11
Polymerase adds nucleotide Pyrophosphate (PPi)
released Sulfurylase PPi ? ATP Luciferase
ATP luciferin ? light
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
Repeated dNTP flow sequence
G
C
T
A
Process continues until user-defined number of
nucleotide flow cycles are completed.
A A T C G G C A T
G C T A A A A C T G
A
A
A
G
C
T
A
T
T
T
G
C
C
G
C
G
A
C
G
T
T
T
T
T
A
Anneal Primer
16

• Polymerase adds nucleotide (dATP)
• Pyrophosphate is released (PPi)
• Sulfurylase creates ATP from PPi
• Luciferase hydrolyses ATP and uses luciferin to
  make light

DNA Bead with clonally amplified fragments
