Status: ICEBERG Testbed

1

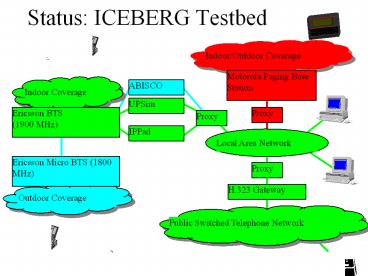

Status ICEBERG Testbed
Motorola Paging Base Station
ABISCO
UPSim
Proxy
Ericsson BTS(1900 MHz)
Proxy
IPPad
Ericsson Micro BTS (1800 MHz)
Proxy
H.323 Gateway
2
Current IP-PAD
RBS 2202
PCM-A
PCM-B
Diamux
IP-PAD
Ethernet
ABISCO
Ethernet
3
Future IP-PAD
Signaling
1900 MHz
1800 MHz
RBS 2202
Micro-BTS
PCM-A
PCM-B
IP-PAD
ABISCO
Ethernet
Ethernet
Traffic
4
IPPAD

• Generic PC Thor-2 (ISA Card) Software
• Thor-2 has
• Two PCM links
• IS Controller Chip
• HDLC Controller allowing raw access to 8bit X
  8KHz time slots

5
Software

• Passes 16Kbit sub-channel voice to VAT
• Passes 16Kbit sub-channel data to RLP/UDP
• Extracts 2 bits at a time from 8k time-slot
• Finds frames
• 4 Threads
• Read from UDP
• Read from BTS
• Write to BTS
• Read Control

6
Software

• IP-PAD Code size is
• 2300 lines
• 24K text
• 528 byte initialized data
• 12K DSS

7
Software

• RLP Code
• Derived from Ericsson DCE software
• XID handling not symmetric between IWF Mobile
• RLP code stats
• 30K text
• 24K DSS
• 4128 lines of code

8
ICBERG GSM on the Net
Ericsson Lab
Soda Hall
Outdoor BTS (1800)
BTS (1800)
Signaling Gateway
Abis Gateway
Indoor BTS (1900)
Jukebox IAP
Appl. Node (IAP)
Access Node
GSM IAP
IPPhone IAP
VoicemailIAP
PSTN IAP
Service Node
Firewall
ICEBERG PoP
9
GoN and ICEBERG

• Interworking of GoN and ICEBERG testbed
• Setup GoN in standalone mode
• Implement IAP on GoN Application Node
• Connect to testbed via Internet
• Later GPRS?
• Location-Aware Applications
• Second ICEBERG location at Ericsson enables
  development and test
• Develop access to location information in GoN
  (using GoN API)
• Possible synergy with Location API development
• GSM Data Services for GoN
• Migrate ICEBERG RLP implementation to GoN
• Feedback experience and code into GoN product?

10
IAP Requirement for GoN

• Initiate calls
• Receive calls
• who from
• dialed number
• DTMF tones
• IMSI attach and detach

11
Future Work???

• Interaction between TCP-friendly congestion
  control and queuing
• GoN location dependent application
• Service handoff via ICEBERG
• Integrate 2nd location into testbed
• GSM data services/RLP implementation
• How to interwork
