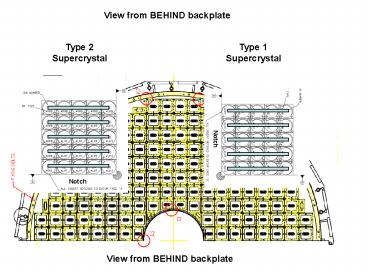

View from BEHIND backplate

1
View from BEHIND backplate
Type 2 Supercrystal
Type 1 Supercrystal
Notch
Notch
View from BEHIND backplate
2
View from FRONT of backplate
Type 1 Supercrystal
Type 2 Supercrystal
Notch
Notch
View from FRONT of backplate
3
Face B
Face A
Crystals into Alveolarfrom BACK of assembly jig
4
Face B
Row 1
Face A
Crystals into Alveolarfrom BACK of assembly jig
5
Face B
Row 2
Face A
Crystals into Alveolarfrom BACK of assembly jig
6
Face B
Row 3
Face A
Crystals into Alveolarfrom BACK of assembly jig
7
Face B
Row 4
Face A
Crystals into Alveolarfrom BACK of assembly jig
8
Row 5
Face B
Face A
Crystals into Alveolarfrom BACK of assembly jig
9
A supercrystal viewed from the front during
assembly
Crystal bar code orientation
10
Interface plate Type 2 (0-TB-0054-249-C) for Dee4
Face B
Holes for housings
Face A
Crystals into Alveolarfrom BACK of assembly jig
