Title: Visualisation of the books


1

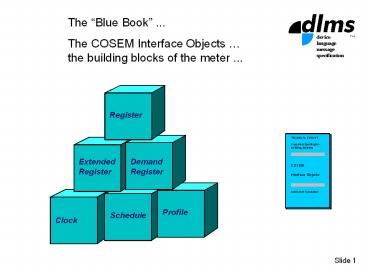

The Blue Book ...
The COSEM Interface
Objects
the building blocks of the meter ...
Register
Extended
Demand
Register
Register
Profile
Schedule
Clock
2
(No Transcript)
3
The Orange Book ... OBIS ...
... The Object Identification System
Class
Methods

Object
Attribute Values
Attributes
class identifier

Instantiation
Total Positive
Register
class_id3
Active Energy Register
logical_name octetstring
logical_name 1 1 1 8 0
value instance specific
...
value 1483

reset (data,...)
Total Positive
Instantiation
Reactive Energy Register
logical_name
1 1 3 8 0
value 57

TECHNICAL REPORT
Companion Specification
for Energy Metering
COSEM
Identification System
Defines in Detail,
DLMS User Association
what a value means
... Gives it a Name !
